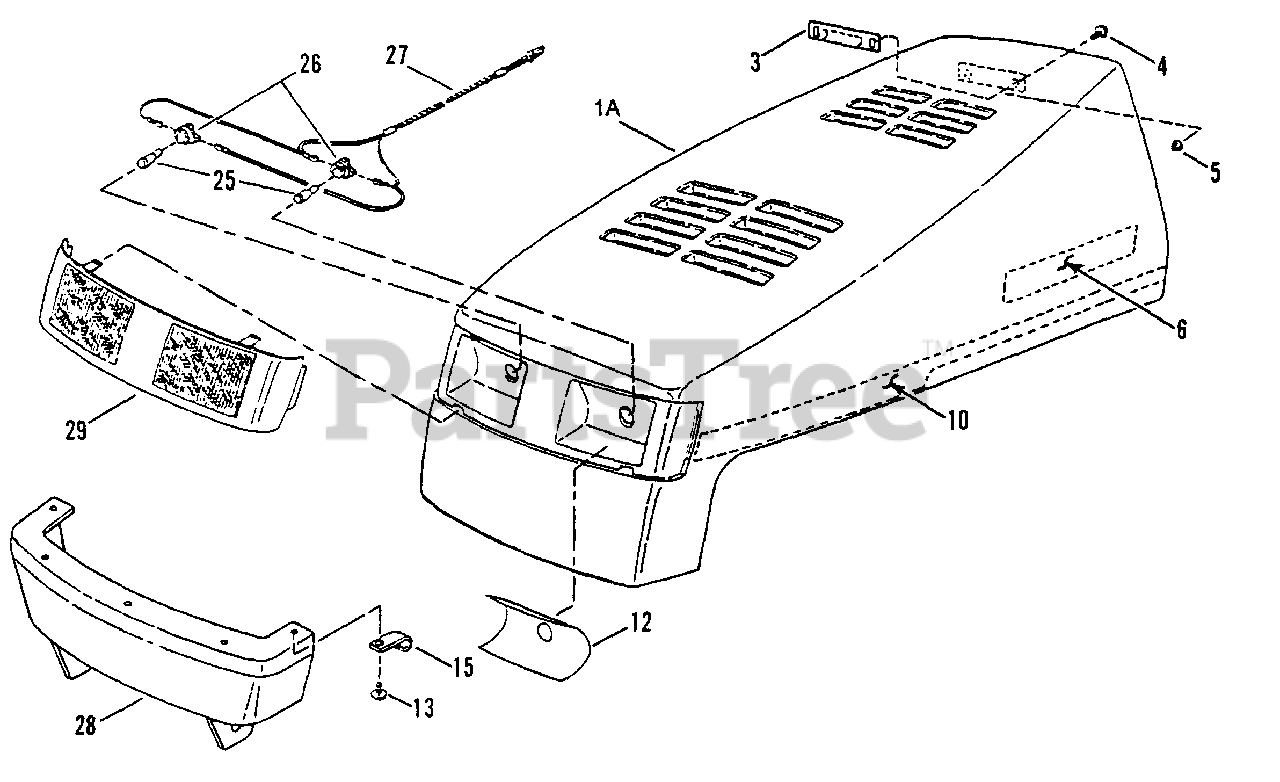

LT 145H38CBV (80840) - Snapper 38" Lawn Tractor, 14.5hp Hood, Bumper, Headlights & Components Parts Diagram

38" Lawn Tractor, 14.5hp

Hood, Bumper, Headlights & Components Parts Diagram

  • Title
1A

Snapper 7063298

HOOD
(Superseded to 7063298YP)

Note: Was 24605 (Model LT145H38CBV)

$1036.99

$

Usually ships in 2-12 days

0

1A

Snapper 7063298

HOOD, Mozart w/Scoop (Not shown)
(Superseded to 7063298YP)

Note: Was 26406 or 61383 (Model LT160H42CBV2)

$1036.99

$

Usually ships in 2-12 days

0

3

Snapper 7024718

LATCH, Spring
(Superseded to 7024718YP)

$23.99

$

Usually ships in 2-12 days

0

4

Snapper 7090999

SCREW, 1/4-20 x 5/8" Truss Head, Torx
(Superseded to 7090999FS)

$3.99

$

Usually ships in 2-12 days

0

4

Snapper 5025029

NUT, #10-24 HEX
(Superseded to 5025029SM)

Note: (S/N: 2013136020 & Below use Qty.8)

$2.99

$

Usually ships in 2-12 days

0

5

Snapper 7076978

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

5

Snapper 5021769

SWITCH, Plunger, NC
(Superseded to 5021769SM)

$14.99

$

In Stock, only 1 left!

0

6

Snapper 7024980

DECAL - SNAPPER, 8" Molded Logo, Silver Letters

Note: Was 16974 or 36438

$

$

Not available

6

Snapper 5025179X4

SCREW, #10-24 X 1/2" ROUND PHILLIPS
(Superseded to 5025179X4SM)

Note: (S/N: 2013136020 & Below use Qty.8)

$3.99

$

Usually ships in 2-12 days

0

10

Snapper 7028636

DECAL, Hood (Right Hand)

Note: (Model LT145H38CBV)

$

$

Not available

10

Snapper 7028637

DECAL, Hood (Left Hand)
(Superseded to 7028637YP)

Note: (Model LT145H38CBV)

$6.99

$

Usually ships in 2-12 days

0

10

Snapper 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

10

Snapper 7027821

DECAL, Hood (Left Hand)
(Superseded to 7027821YP)

Note: (Model LT160H42CBV2)

$7.99

$

Usually ships in 2-12 days

0

12

Snapper 7017175

DECAL, Clear Lens (Left Hand)
(Superseded to 7017175YP)

$7.99

$

Usually ships in 2-12 days

0

12

Snapper 7017174

DECAL, Clear Lens (Right Hand) (Not shown)
(Superseded to 7017174YP)

$7.99

$

Usually ships in 2-12 days

0

25

Snapper 7026172

BULB, Headlights
(Superseded to 7026172YP)

$14.99

$

In Stock, only 1 left!

0

26

Snapper 7024709

SOCKET, Headlight Bulb

$

$

Not available

27

Snapper 7026171

HARNESS, Headlight Wiring
(Superseded to 7026171YP)

$11.99

$

Usually ships in 2-12 days

0

28

Snapper 7029620

BUMPER, Front Hood Support
(Superseded to 7029620YP)

$104.99

$

Usually ships in 2-12 days

0

29

Snapper 7024893

LENS, Clear
(Superseded to 7024893YP)

Note: (Models with Headlights)

$45.99

$

Usually ships in 2-12 days

0
