LT 145H38CBV (80840) - Snapper 38" Lawn Tractor, 14.5hp 38" Cutting Deck, Belts, Brakes Parts Diagram

38" Lawn Tractor, 14.5hp

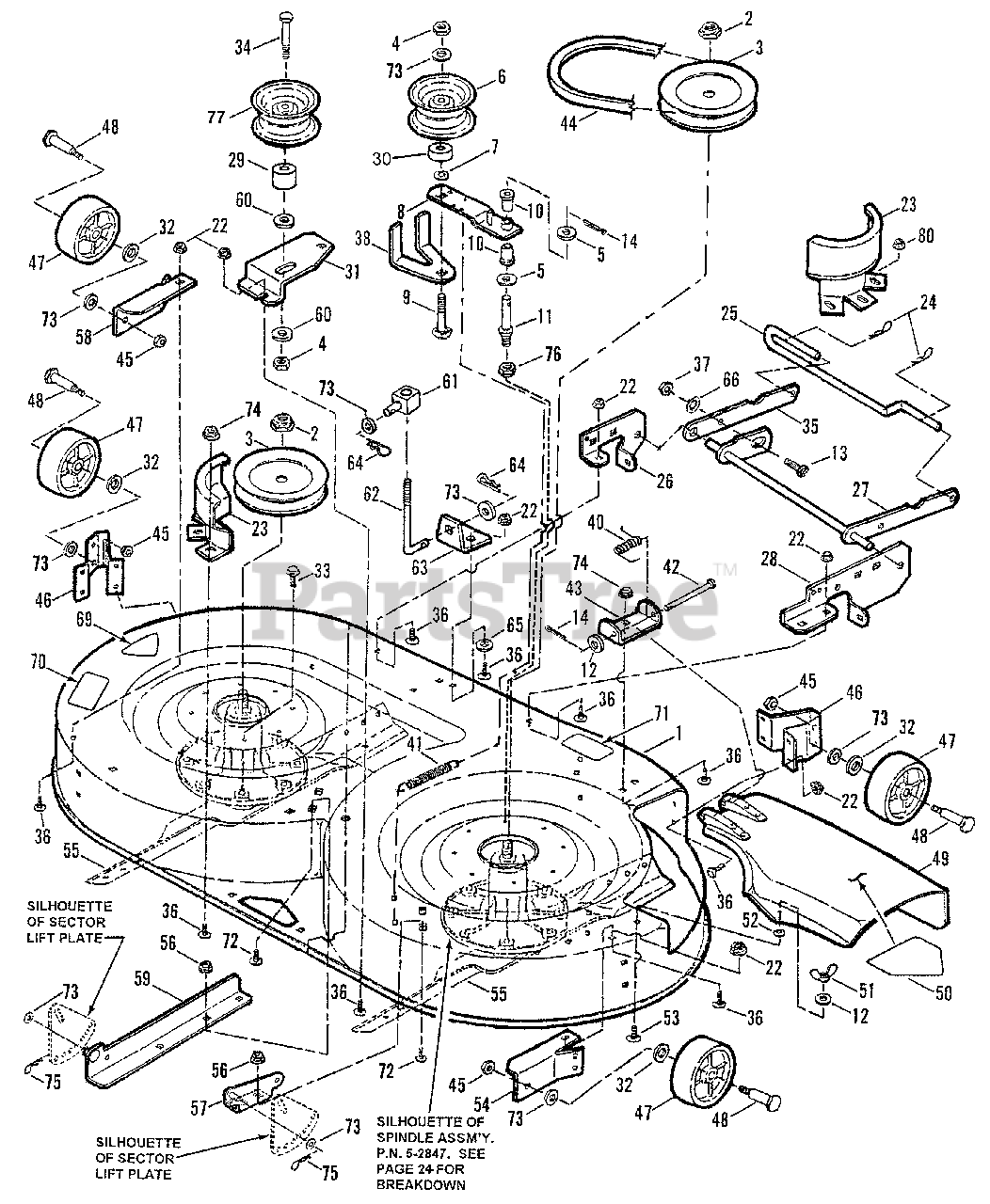

38" Cutting Deck, Belts, Brakes Parts Diagram

  • Title

1

Snapper 7061960

WELDMENT Deck, 38" Cutting

Note: (Includes items 70 & 71)

$

$

Not available

2

Snapper 7091006

NUT, 5/8-16 Hex Nyloc
(Superseded to 7091006SM)

$4.49

$

Usually ships in 2-12 days

0

3

Snapper 7027792

PULLEY, Spindle 5.5" O.D.
(Superseded to 1732354SM)

$30.99

$

In Stock, only 1 left!

0

4

Snapper 7091299

NUT, 3/8-16 Hex Nyloc
(Superseded to 703117)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

5

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

6

Snapper 7018574

PULLEY,Flat Idler 4-1/8"
(Superseded to 7018574SM)

$38.99

$

In Stock, Qty 20+

0

7

Snapper 7013847

RETAINER, 3/8 Bolt
(Superseded to 703986)

$4.49

$

In Stock, only 1 left!

0

8

Snapper 7041711

WELDMENT, Idler Arm

$

$

Not available

9

Snapper 7092000

BOLT, 3/8-16 x 2-3/4" Short Neck Carriage, Grade 5
(Superseded to 7092000SM)

Note: Was 90738

$4.49

$

Usually ships in 2-12 days

0

10

Snapper 7012306

BUSHING, Flange
(Superseded to 703973)

$5.99

$

In Stock, Qty 15

0

11

Snapper 7026618

STUD, Idler
(Superseded to 7026618YP)

$

$

Not available

12

Snapper 7090188

WASHER,11/32 Flat
(Superseded to 703350)

Note: Was 91296

$4.49

$

In Stock, only 2 left!

0

13

Snapper 7091790

BOLT, 3/8-16 x 1-1/4" Sq. Neck Carriage, Grade 5
(Superseded to 703130)

Note: Was 91716

$3.99

$

In Stock, Qty 15

0

14

Snapper 7091597

COTTER-PIN, 3/32 x 3/4"
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

22

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock Grade 5
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

23

Snapper 7024801

GUARD, Belt
(Superseded to 7024801YP)

$27.99

$

Usually ships in 2-12 days

0

24

Snapper 7091596

PIN, Hair 5/8"
(Superseded to 7091596YP)

$4.49

$

Usually ships in 2-12 days

0

25

Snapper 7027471

PIN, Deck Hanger

$

$

Not available

26

Snapper 7035577

BRACKET, Front Lift Arm (Left)
(Superseded to 7035577YP)

Note: Was 26757

$11.99

$

Usually ships in 2-12 days

0

27

Snapper 7042602

LIFT, Front Arm
(Superseded to 7042602YP)

$83.99

$

Usually ships in 2-12 days

0

28

Snapper 7028365

BRACKET, Front Lift Arm (Right)
(Superseded to 7028365YP)

$27.99

$

In Stock, only 1 left!

0

29

Snapper 7034717

SPACER, 13/32 x 1-1/2 x 7/8

$

$

Not available

30

Snapper 7034718

SPACER, 13/32 x 1-1/8 x 5/8

$

$

Not available

31

Snapper 7034723

BRACKET, Fixed Idler
(Superseded to 7034723YP)

$19.99

$

Usually ships in 2-12 days

0

32

Snapper 7091587

WASHER, 1/2 Flat (4)
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

33

Snapper 7090815

SCREW, 3/8-16 x 3/4" Self Tapping
(Superseded to 703950)

$5.49

$

In Stock, only 3 left!

0

34

Snapper 7091501

CAPSCREW, 3/8 -16 x 2.5 Hx. Hd. Grade 5
(Superseded to 703873)

$4.49

$

In Stock, only 3 left!

0

35

Snapper 7035603

ARM, Front Lift

$

$

Not available

36

Snapper 7090799

BOLT, 5/16-18 x 5/8" Short Neck Carriage Grade 5
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

37

Snapper 7091302

NUT, 3/8-16 Hex Grade B or 5
(Superseded to 7091302SM)

$4.49

$

Usually ships in 2-12 days

0

38

Snapper 7033929

GUIDE, Belt
(Superseded to 7033929YP)

$13.99

$

Usually ships in 2-12 days

0

40

Snapper 7026158

SPRING, Chute Deflector Hinge
(Superseded to 7026158YP)

$7.99

$

Usually ships in 2-12 days

0

41

Snapper 7014405

SPRING, Blade Brake

$

$

Not available

42

Snapper 7026161

PIN, 5/16 x 3-3/16" Clevis
(Superseded to 7026161YP)

$6.49

$

Usually ships in 2-12 days

0

43

Snapper 7026750

HINGE, Chute Deflector
(Superseded to 7026750YP)

$11.99

$

Usually ships in 2-12 days

0

44

Snapper 7028793

BELT, Drive, 38" Cutting Deck, 96.0" E.L. HA
(Superseded to 7028793YP)

$64.99

$

Usually ships in 2-12 days

0

45

Snapper 7090289

NUT, 3/8-24 Hex Ctr. Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

46

Snapper 7033756

BRACKET, Gage Wheel, Front
(Superseded to 7033756SM)

$19.99

$

In Stock, only 1 left!

0

47

Snapper 7026122

WHEEL, Gage
(Superseded to 7026122SM)

$10.99

$

In Stock, only 2 left!

0

48

Snapper 7091526

BOLT, 3/8-24 x 5/8" Shoulder
(Superseded to 7091526SM)

$

$

Not available

49

Snapper 7053227

ASSEMBLY, Chute Deflector
(Superseded to 7053227YP)

Note: Was 53226 (Includes 12 & 14, 40, 42, 43, & 50)

$282.99

$

Usually ships in 2-12 days

0

50

Snapper 7013010

DECAL, Danger
(Superseded to 7013010SM)

Note: Was 26831

$9.49

$

In Stock, Qty 11

0

51

Snapper 7091537

NUT, 5/16-18 Wing
(Superseded to 7091537YP)

Note: Was 90492

$4.49

$

In Stock, only 3 left!

0

52

Snapper 7011791

RETAINER, 5/16 Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

53

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage, Grade 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

54

Snapper 7033890

BRACKET, Wheel (Right Side)
(Superseded to 7033890YP)

$23.99

$

In Stock, only 1 left!

0

55

Snapper 7042998

BLADE, 19-1/2"
(Superseded to 7042998BZYP)

Note: Was 24466

$27.99

$

In Stock, Qty 20+

0

56

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

57

Snapper 7041259

BRACKET, Rear Deck Lift (Right Side)

$

$

Not available

58

Snapper 7033891

BRACKET, Wheel (Left Side)
(Superseded to 7033891YP)

$21.99

$

Usually ships in 2-12 days

0

59

Snapper 7041257

BRACKET, Rear Deck Lift (Left Side)

$

$

Not available

60

Snapper 7091331

WASHER, 13/32" I.D. x 1 1/2 O.D. x 1/8"
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

61

Snapper 7024607

SWIVEL, Lift
(Superseded to 7024607YP)

$8.49

$

In Stock, only 1 left!

0

62

Snapper 7029024

BOLT,3/8-16, "J"

$

$

Not available

63

Snapper 7034825

BRACKET, Angle (Front)

$

$

Currently unavailable

64

Snapper 7091310

PIN, Hair #13
(Superseded to 703430)

$3.49

$

In Stock, only 2 left!

0

65

Snapper 7090500

WASHER, 7/16 Flat

$2.99

$

In Stock, Qty 7

0

66

Snapper 7012063

WASHER,13/32 I.D. Cone
(Superseded to 703963)

$6.99

$

In Stock, only 2 left!

0

69

Snapper 7026154

DECAL, 38"
(Superseded to 7026154SM)

$6.49

$

Usually ships in 2-12 days

0

70

Snapper 7014852

DECAL - CAUTION (Rotating Blades)
(Superseded to 7101665YP)

Note: Was 16973

$14.99

$

In Stock, only 3 left!

0

71

Snapper 7014852

DECAL - CAUTION
(Superseded to 7101665YP)

$14.99

$

In Stock, only 3 left!

0

72

Snapper 7091547

BOLT, 3/8-16 x 3/4" Carriage Gr. 2
(Superseded to 703448)

Note: Was 90850

$4.49

$

In Stock, Qty 20+

0

73

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

Note: Was 91514

$3.99

$

In Stock, Qty 20+

0

74

Snapper 7091601

NUT, 5/16-18 Hex Flg Lk, Gr. 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

75

Snapper 7091503

PIN, Hair, 3/32 x 1-1/2"
(Superseded to 7091503SM)

$3.99

$

In Stock, Qty 20+

0

76

Snapper 7092062

NUT, 5/16-24 Hex Lock Grade C
(Superseded to 703459)

Note: Was 11201

$3.49

$

In Stock, Qty 20+

0

77

Snapper 7026310

PULLEY, Flat Idler 3.25"x1.75"
(Superseded to 7026310YP)

$59.99

$

In Stock, only 1 left!

0
