LT 145H33FBV (84355) - Snapper 33" Lawn Tractor, 14.5hp Spindle - 30" And 33" Cutting Deck Parts Diagram

33" Lawn Tractor, 14.5hp

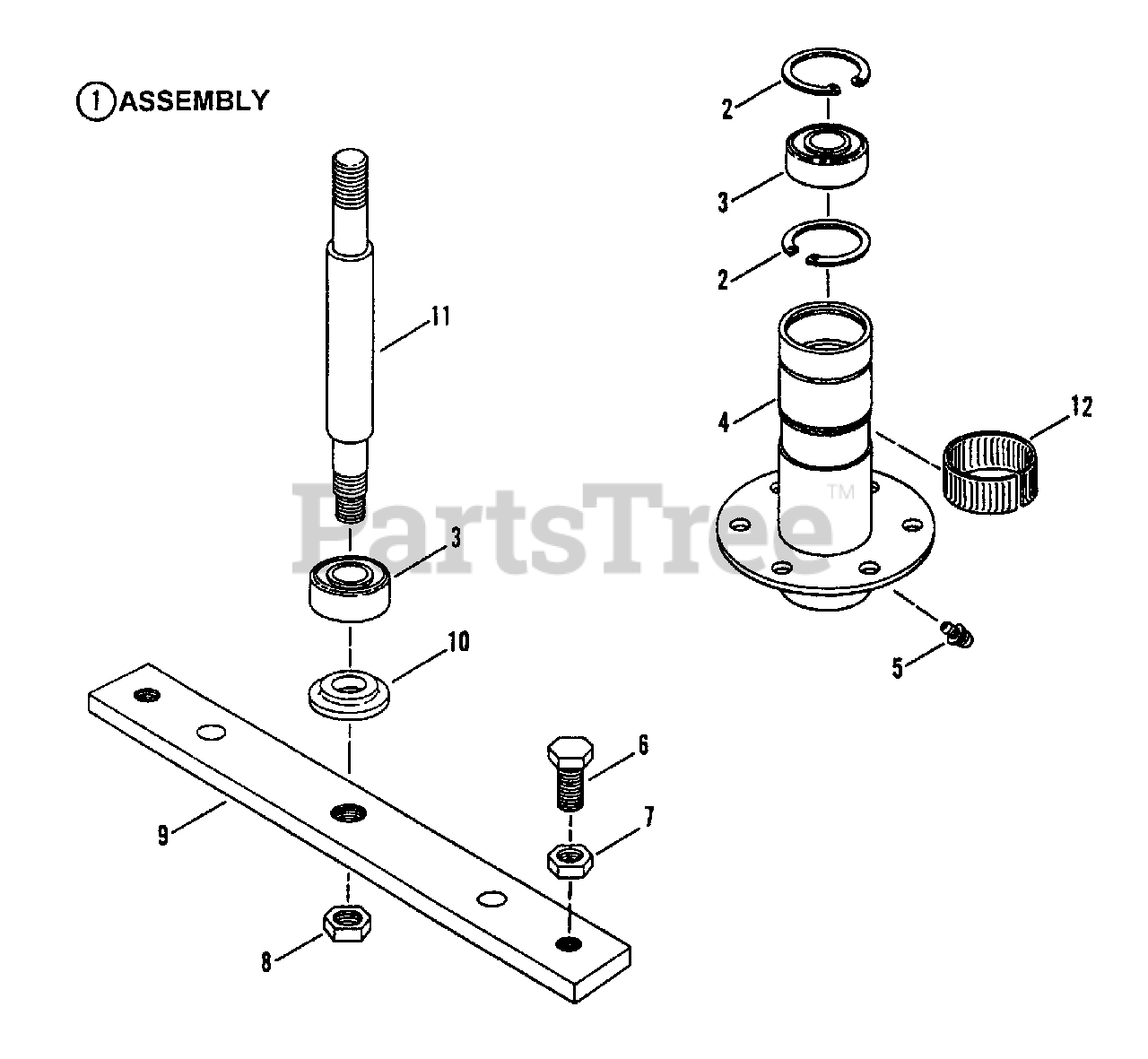

Spindle - 30" And 33" Cutting Deck Parts Diagram

  • Title
1

Snapper 7052917

ASSEMBLY, Spindle Housing, 30" Cutting Deck
(Superseded to 7052917AYP)

Note: (Includes Items 2 thru 11)

$

$

Not available

2

Snapper 7012491

RING, Retaining
(Superseded to 7012491SM)

$4.49

$

In Stock, Qty 20+

0

3

Snapper 7013313

BEARING, Spindle
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

4

Snapper 7052294

HOUSING, Spindle
(Superseded to 7052294YP)

Note: (Includes item 5)

$179.99

$

In Stock, only 2 left!

0

5

Snapper 7010817

FITTING, Lube (Press fit for .187 hole-no ball)
(Superseded to 7010817SM)

$4.49

$

In Stock, Qty 20+

0

6

Snapper 7090491

SCREW, 1/2-20 x 1-1/4" Hex Head Cap, Grade 5
(Superseded to 7090491YP)

$4.99

$

Usually ships in 2-12 days

0

7

Snapper 7091939

NUT, 1/2-20 Hex Jam
(Superseded to 7091939YP)

$3.49

$

In Stock, Qty 20+

0

8

Snapper 7090356

NUT, 5/8-18 Hex Center Lock Jam
(Superseded to 7090356YP)

$5.49

$

In Stock, Qty 20+

0

9

Snapper 7037751

HOLDER, Blade
(Superseded to 7037751BMYP)

$45.99

$

Usually ships in 2-12 days

0

10

Snapper 7014407

WASHER, Spindle
(Superseded to 7014407SM)

$7.49

$

In Stock, Qty 18

0

11

Snapper 7024687

SPINDLE
(Superseded to 7024687YP)

$35.99

$

Usually ships in 2-12 days

0

12

Snapper 7012670

RING, Tolerance
(Superseded to 7012670YP)

$8.49

$

In Stock, Qty 6

0
