LT-1450 (13CP693F190) - White Outdoor 38" Lawn Tractor (2000) Transmission Parts Diagram

38" Lawn Tractor

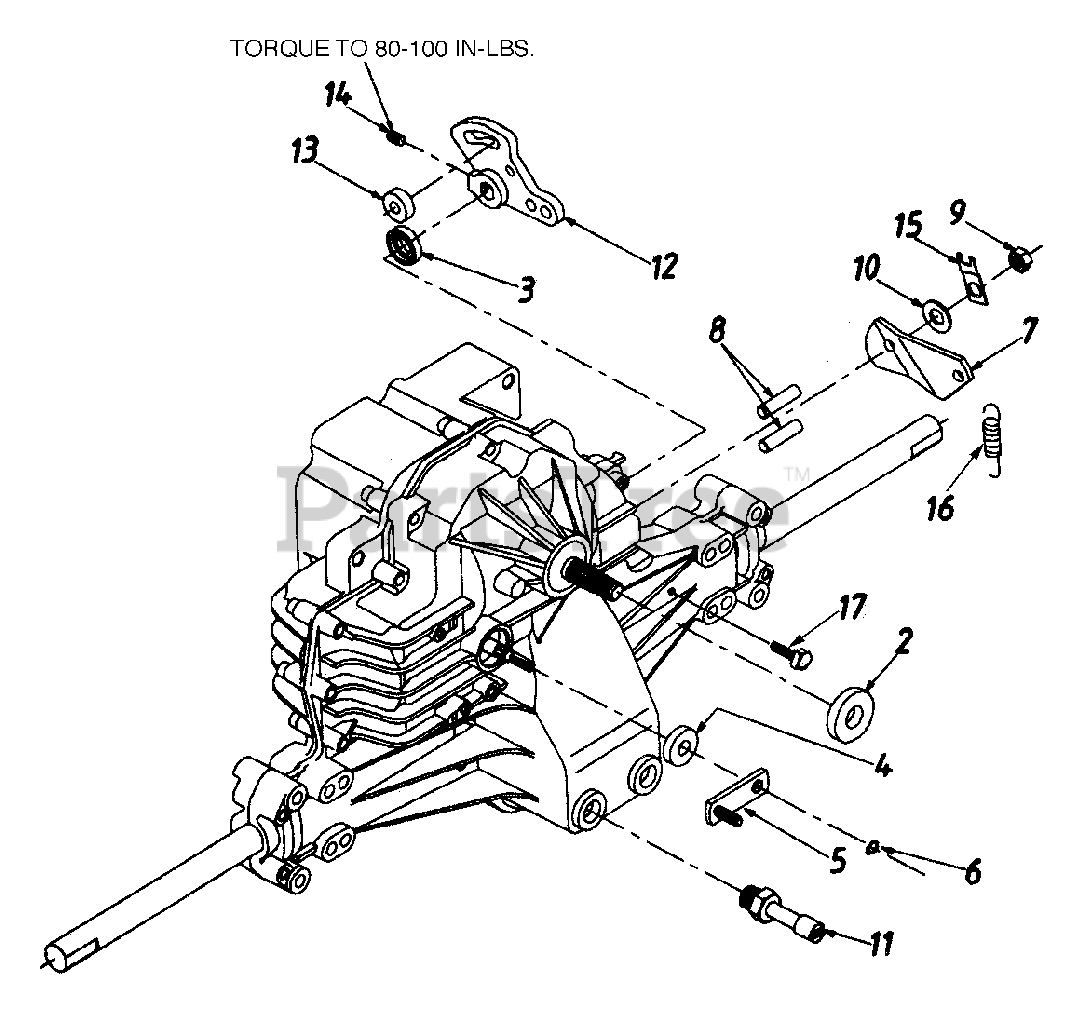

Transmission Parts Diagram

  • Title

?1

White Outdoor 718-0255A

Transmission Comp.
(Superseded to 918-0255A)

$

$

Not available

2

White Outdoor HG-9008000-0128

Seal-Lip

$19.99

$

In Stock, only 2 left!

0

3

White Outdoor HG-9008000-0126

Seal-Lip

$15.99

$

Usually ships in 3-6 days

0

4

White Outdoor HG-45074

Seal-Lip 10X25X7

$

$

Not available

5

White Outdoor HG-50126

Arm-Bypass

$

$

Not available

6

White Outdoor HG-44870

Ring-Retaining

$

$

Not available

7

White Outdoor HG-44094

Arm-Actuating

$9.99

$

Usually ships in 3-6 days

0

8

White Outdoor HG-44891

Pin-Actuating

$

$

Not available

9

White Outdoor HG-50108

Nut-Hex Lock 5/16-24 UNJC
(Superseded to 912-0273)

$4.99

$

Usually ships in 3-6 days

0

10

White Outdoor HG-44130

Washer 7/16" x 7/8" x .06"
(Superseded to 736-0371)

$4.49

$

In Stock, only 3 left!

0

11

White Outdoor HG-50042

Breather Ass'y.

$

$

Not available

12

White Outdoor HG-45007

Arm-Control

$

$

Not available

13

White Outdoor HG-50034

Puck-Dampener

$

$

Not available

14

White Outdoor HG-50018

Set Screw

Note: Torque to 80-100 IN-LBS

$

$

Not available

15

HG-50129

Strap, Locking

$

$

Not available

16

White Outdoor HG-50384

Spring, Extension

$

$

Not available

17

White Outdoor HG-50653

Self Tapp. Scr. #10-.325 x .5"

$2.99

$

Usually ships in 3-6 days

0
