LT-145 (13BP693F190) - White Outdoor 38" Lawn Tractor (1999) Deck Lift Assembly Parts Diagram

38" Lawn Tractor

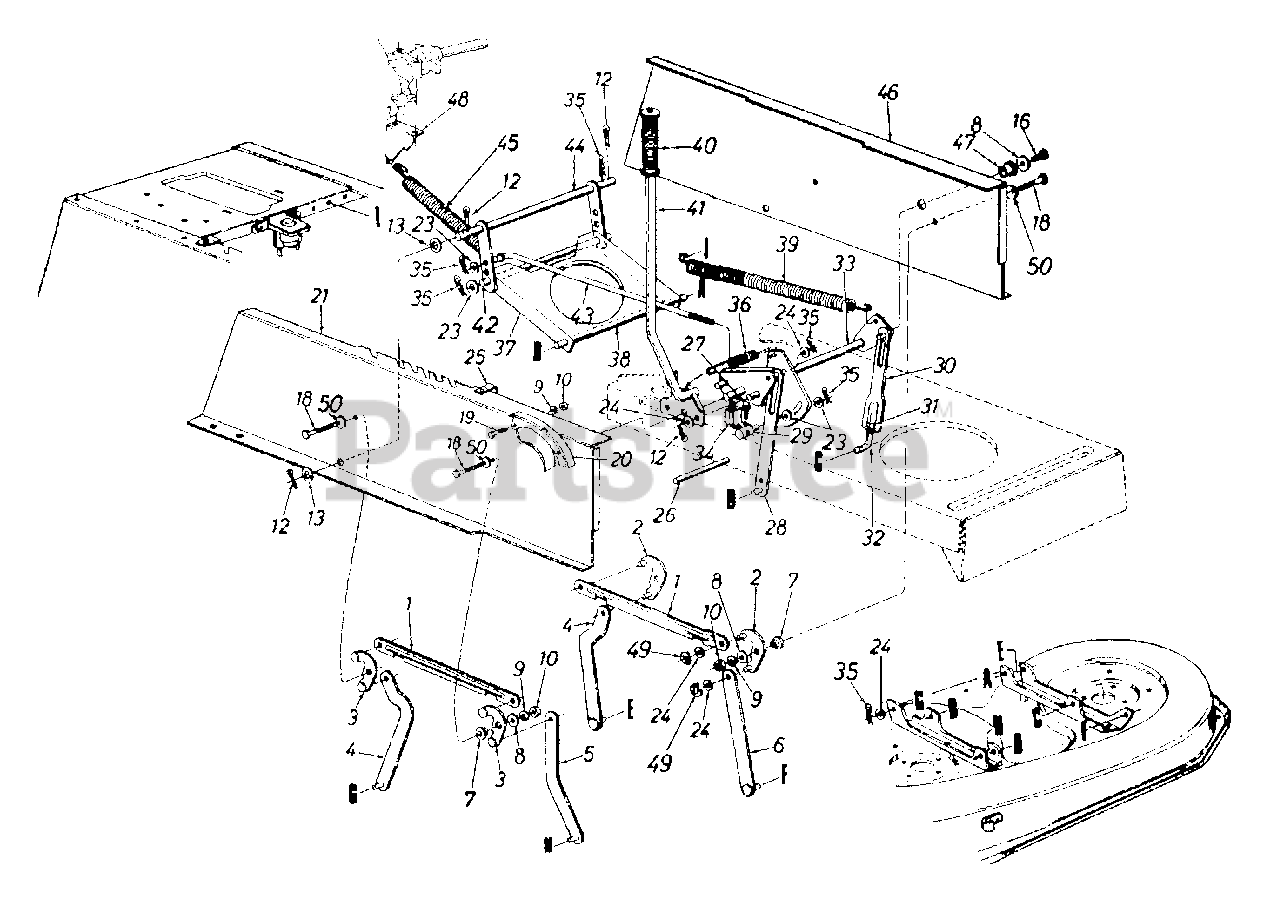

Deck Lift Assembly Parts Diagram

  • Title

1

White Outdoor 783-0103

Connecting Rod
(Superseded to 783-0103-0637)

Variations

White Outdoor 783-0103-0637

ROD-CONNECTING - POWDER BLACK (0637)

$

$

Not available

$

$

2

White Outdoor 683-0029A

Pivot Link Ass'y. - L.H.
(Superseded to 983-0029A-0637)

$13.99

$

In Stock, only 3 left!

0

3

White Outdoor 683-0028A

Pivot Link Ass'y. - R.H.

$

$

Not available

4

White Outdoor 17710

Deck Hanger Link Ass'y.

Variations

White Outdoor 17710-0637

HANGER LINK ASSEMBLY BLACK - POWDER BLACK (0637)

$

$

Not available

$

$

5

White Outdoor 14800A

Deck Hanger Link Ass'y.
(Superseded to 14800A-0637)

Variations

White Outdoor 14800A-0637

HANGER-DECK LINK - POWDER BLACK (0637)

$

$

Not available

$

$

6

White Outdoor 14804A

Deck Hanger Link Ass'y.

$

$

Not available

7

White Outdoor 748-0331

Shld. Spacer .318" I.D.
(Superseded to 948-0331)

$

$

Not available

8

White Outdoor 736-0264

Fl-Wash. .344" I.D. x .62" O.D.

$6.99

$

In Stock, only 1 left!

0

9

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

10

White Outdoor 712-3010

Hex Nut 5/16-18 Thd. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 714-0470

Cotter Pin 1/8" Dia.

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 736-0256

Fl-Wash. .635" I.D. x 1.0" O.D.
(Superseded to 936-0256)

$7.49

$

Usually ships in 3-6 days

0

16

White Outdoor 710-0604

Hex Wash. TT-Tap Scr. 5/16-18 x .75" Lg.
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 710-1238

Hex Wash. Hd. Scr. 5/16-18x .875" Lg.
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 710-3008

Hex Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

20

White Outdoor 783-0118

Index Brkt.

$

$

Not available

21

White Outdoor 783-0042B

Upper Frame - R.H.
(Superseded to 783-0042D)

Variations

White Outdoor 783-0042B-0480

FRAME-UPPER RH SID - BRILLIANT GREEN (0480)

$

$

Not available

White Outdoor 783-0042B-0483

FRAME-UPPER RH SID - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 783-0042B-0629

FRAME-UPPER RH SID - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 783-0042B-0637

FRAME-UPPER RH SID - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0042B-0638

FRAME-UPPER RH SID - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0042B-0648

FRAME-UPPER RH SID - TECH GRAY (0648)

$

$

Not available

White Outdoor 783-0042B-0650

FRAME-UPPER RH SID - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0042B-0665

FRAME-UPPER RH SID - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0042B-0691

FRAME-UPPER RH SID - BLACK JACK (0691)

$

$

Not available

$

$

23

White Outdoor 736-0267

Fl-Wash. .385" I.D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0

24

White Outdoor 736-0160

Fl-Wash. .531" I.D. x .93" O.D.

$4.49

$

In Stock, only 2 left!

0

25

White Outdoor 726-0272

Clamp

$7.49

$

Usually ships in 3-6 days

0

26

White Outdoor 738-0526

Running Board Rod

$

$

Not available

27

White Outdoor 710-3007

Hex Wash. Hd. Tap Scr.

$4.49

$

In Stock, Qty 20+

0

28

White Outdoor 14802A

Link Deck Lift Ass'y.
(Superseded to 14802A-0637)

Variations

White Outdoor 14802A-0637

Deck Lift Link, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

29

White Outdoor 711-0723A

Adj. Ferrule 3/8-24 Thd.
(Superseded to 911-0723A)

$15.99

$

Usually ships in 3-6 days

0

30

White Outdoor 17712

Adj. Deck Lift Link
(Superseded to 17712-0637)

Variations

White Outdoor 17712-0637

Deck Adjust Link - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

31

White Outdoor 712-3066

Hex Nut 1/2-20 Thd. (Gr. 5)
(Superseded to 912-3066)

$6.99

$

In Stock, only 1 left!

0

32

White Outdoor 711-0841

Lift Link Adjuster
(Superseded to 911-0841)

$

$

Not available

33

White Outdoor 683-0059

Lift Shaft Ass'y.
(Superseded to 983-0059-0637)

$

$

Not available

34

White Outdoor 725-1657

Safety Switch (Deck)
(Superseded to 925-1657A)

$24.99

$

In Stock, only 4 left!

0

35

White Outdoor 714-0145

Inter. Cotter Pin 3/8" Dia.

$4.99

$

In Stock, Qty 20+

0

36

White Outdoor 732-0637

Extension Spring
(Superseded to 932-0637)

$

$

Not available

37

White Outdoor 17636C

Stabilizer Bracket
(Superseded to 17636D-0637)

Variations

White Outdoor 17636C-0637

Stabilizer Bracket, Black - POWDER BLACK (0637)

$

$

Not available

$

$

38

White Outdoor 738-0670

Shaft 1/2" Dia. x 10.28" Lg.
(Superseded to 738-0670A)

$

$

Not available

39

White Outdoor 732-0638

Extension Spring

$

$

Not available

40

White Outdoor 720-0233

Grip (Lift Handle)
(Superseded to 920-0233)

$

$

Not available

41

White Outdoor 97675A

Deck Lift Handle Ass'y.

Variations

White Outdoor 97675A-0637

LIFT HANDLE ASSY POWDER BLACK - POWDER BLACK (0637)

$

$

Not available

White Outdoor 97675A-0483

LIFT HANDLE ASSY POWDER BLACK - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 97675A-0638

LIFT HANDLE ASSY POWDER BLACK - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 97675A-0648

LIFT HANDLE ASSY POWDER BLACK - TECH GRAY (0648)

$

$

Not available

White Outdoor 97675A-0665

LIFT HANDLE ASSY POWDER BLACK - YARDMAN GREEN (0665)

$

$

Not available

$

$

42

White Outdoor 738-0669

Shaft 3/8" Dia. x 9.34" Lg.

$

$

Not available

43

White Outdoor 747-0598

Disengagement Rod

$13.99

$

Usually ships in 3-6 days

0

44

White Outdoor 97624

Stabilizer Shaft Ass'y.
(Superseded to 97624-0637)

Variations

White Outdoor 97624-0637

STABALIZER SHAFT ASSY BLACK - POWDER BLACK (0637)

$

$

Not available

$

$

45

White Outdoor 732-0556

Extension Spring 7.58" Lg.
(Superseded to 932-0556)

$21.99

$

Usually ships in 3-6 days

0

46

White Outdoor 783-0043

Upper Frame - L.H.
(Superseded to 783-0043B)

Variations

White Outdoor 783-0043-0648

FRAME-UPPER LH - TECH GRAY (0648)

$

$

Not available

White Outdoor 783-0043-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 783-0043-0499

FRAME-UPPER LH - CUB BEIGE (0499)

$

$

Not available

White Outdoor 783-0043-0606

FRAME-UPPER LH - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 783-0043-0629

FRAME-UPPER LH - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 783-0043-0637

FRAME-UPPER LH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0043-0638

FRAME-UPPER LH - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0043-0650

FRAME-UPPER LH - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0043-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0043-0667

FRAME-UPPER LH - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 783-0043-0677

FRAME-UPPER LH - GRASS GREEN (0677)

$

$

Not available

White Outdoor 783-0043-0689

No Longer Available FRAME-UPPER LH - POLO GREEN (0689)

$

$

Not available

$

$

47

White Outdoor 741-0313

Flange Brg. .632" I.D.
(Superseded to 741-0487C)

$7.49

$

Usually ships in 3-6 days

0

48

White Outdoor 17128A

Spring Retainer Brkt.
(Superseded to 17128A-0637)

Variations

White Outdoor 17128A-0637

Retainer Spring Bracket - POWDER BLACK (0637)

$16.99

$

Usually ships in 3-6 days

0

$16.99

$

Usually ships in 3-6 days

0

49

White Outdoor 716-0104

"E"-Ring
(Superseded to 916-0104)

$3.99

$

In Stock, Qty 20+

0

50

White Outdoor 736-0425

Bell-Wash. .325" I.D.

$4.99

$

In Stock, Qty 13

0
