LT-145 (13AP693F190) - White Outdoor 38" Lawn Tractor (1998) Muffler Assembly Parts Diagram

38" Lawn Tractor

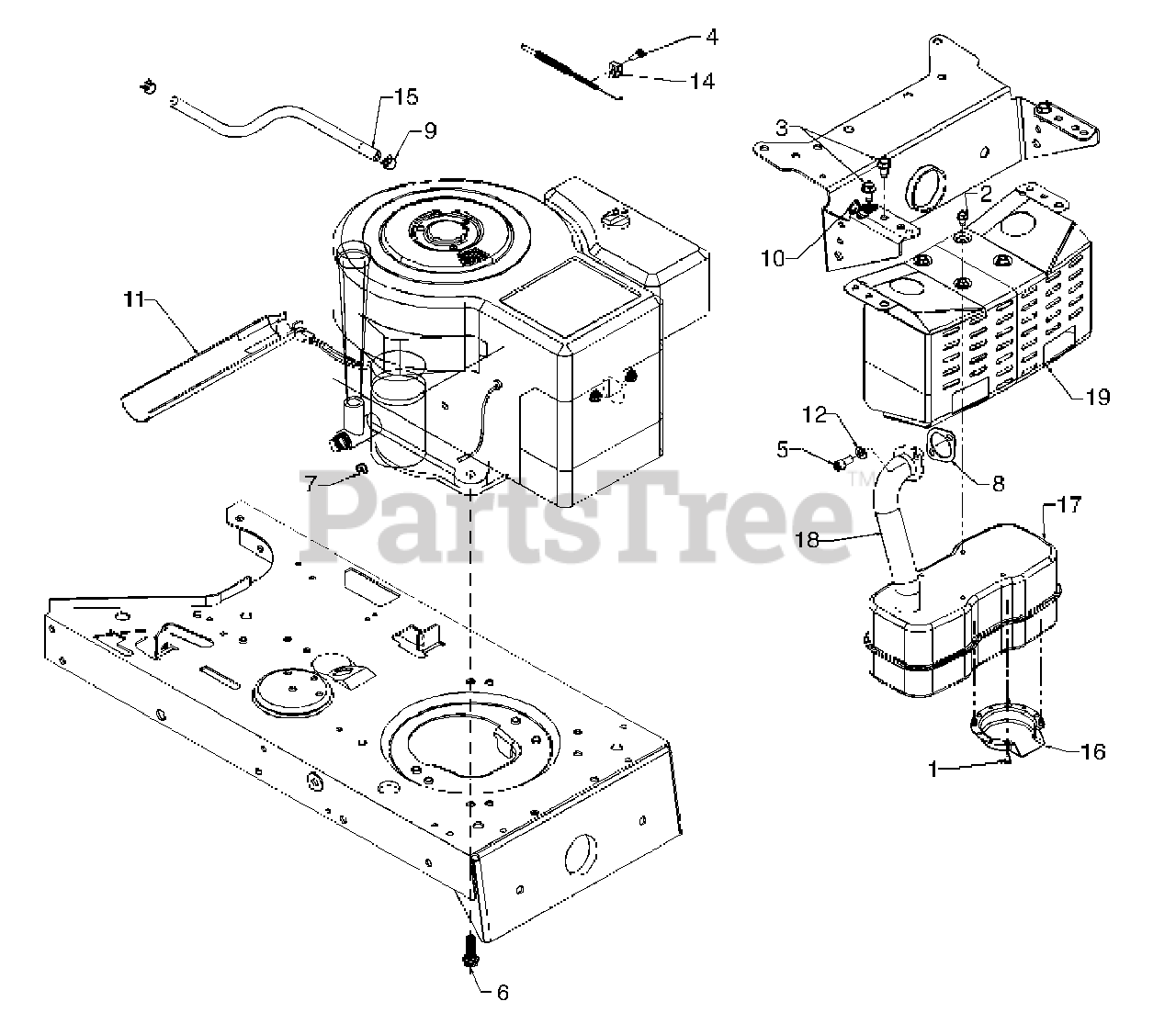

Muffler Assembly Parts Diagram

  • Title

1

White Outdoor 710-0148

Hex Slot Scr. #8-32 x .38" Lg.

$4.49

$

In Stock, Qty 16

0

2

White Outdoor 710-0599

Hex Wash. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 710-0604

Hex Wash Hd. TT-Tap Scr. 5/16-18 x .62" Lg.
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 710-1237

Scr. #10-32: .620 Hx . Slot Wash.

$4.49

$

Usually ships in 3-6 days

0

5

White Outdoor 710-1314

Socket Hd. Bolt 5/16-18 x .62" Lg.
(Superseded to 710-1314A)

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 710-1315

Scr. 3/8-16 x 1.25

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 712-0271

Nut, Hex 1/4-20

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 721-0208

Exhaust Gasket
(Superseded to BS-692236)

$5.49

$

In Stock, Qty 20+

0

9

White Outdoor 726-0205

Hose Clamp .49 Dia.

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 726-0272

Clamp 9/16 Dia.

$7.49

$

Usually ships in 3-6 days

0

11

White Outdoor 731-1682A

Oil Drain Sleeve

$7.99

$

In Stock, Qty 6

0

12

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

14

White Outdoor 751B213146

Casing Clamp, Throttle, B&S
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

15

White Outdoor 751-0535-13

Fuel Line Hose
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

16

White Outdoor 751-0564

Muffler Deflector
(Superseded to 751-0564B)

$13.99

$

In Stock, only 4 left!

0

17

White Outdoor 751-0617

Muffler
(Superseded to 951-0617C)

$149.99

$

In Stock, Qty 5

0

18

White Outdoor 751-0619

Exhaust Pipe
(Superseded to 751-0619B)

$76.99

$

In Stock, only 2 left!

0

19

White Outdoor 783-0615

Muffler Heat Shield
(Superseded to 783-0615E-0637)

Variations

White Outdoor 783-0615-0637

Muffler Bracket - POWDER BLACK (0637)

$64.99

$

In Stock, only 1 left!

0

$64.99

$

In Stock, only 1 left!

0
