LT-145 (13AP693F190) - White Outdoor 38" Lawn Tractor (1998) Deck And Chute Assembly Parts Diagram

38" Lawn Tractor

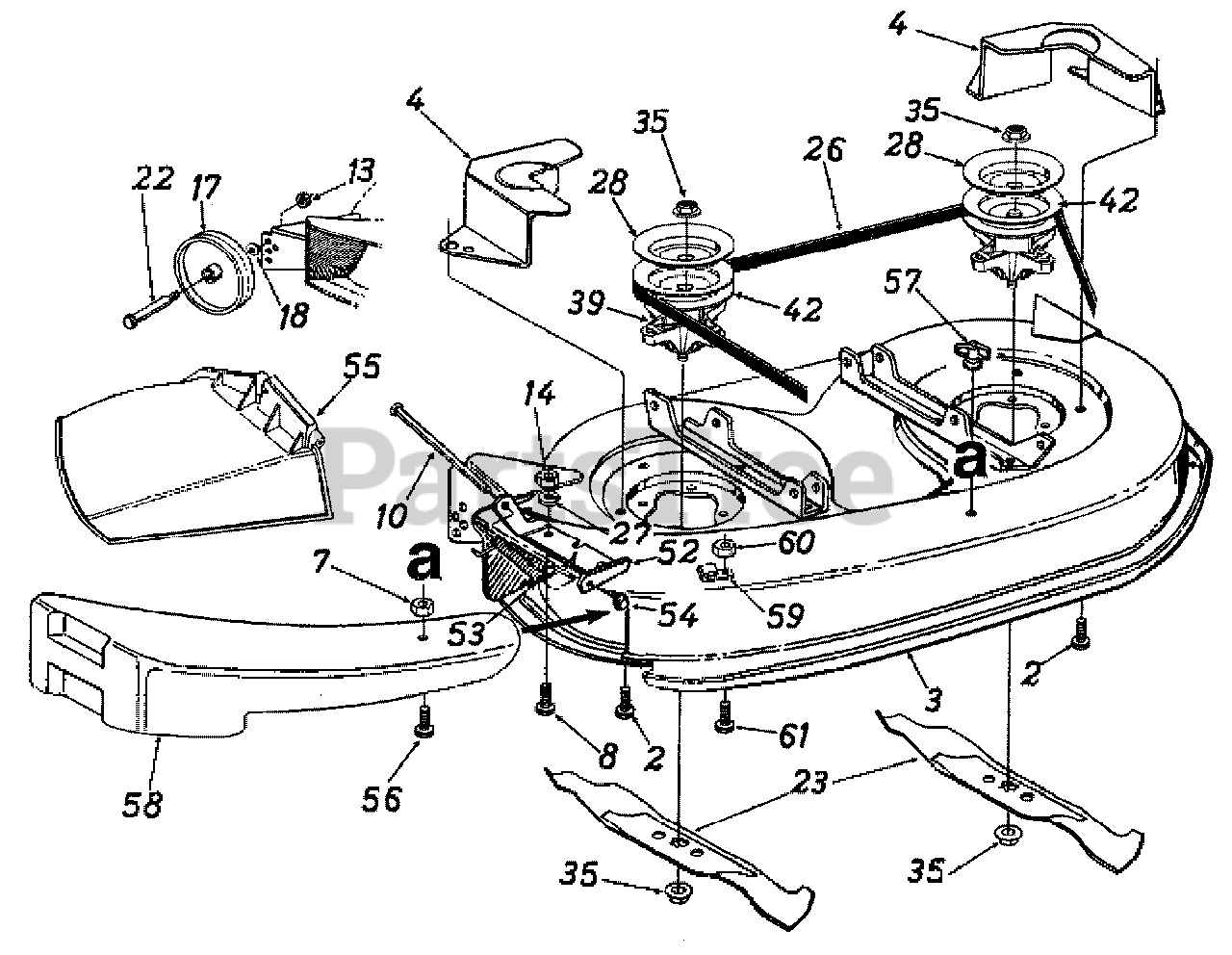

Deck And Chute Assembly Parts Diagram

  • Title

2

White Outdoor 710-1260

Hex Wash. Hd. TT-Tap Scr.5/16-18 x .75" Lg.
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

3

White Outdoor 683-0129

38" Deck Ass'y.
(Superseded to 983-0129A)

Variations

White Outdoor 683-0129-0483

DECK ASSEMBLY 38" BLACK - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 683-0129-0629

DECK ASSEMBLY 38" BLACK - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 683-0129-0637

DECK ASSEMBLY 38" BLACK - POWDER BLACK (0637)

$

$

Not available

White Outdoor 683-0129-0638

DECK ASSEMBLY 38" BLACK - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 683-0129-0648

DECK ASSEMBLY 38" - TECH GRAY (0648)

$

$

Not available

White Outdoor 683-0129-0665

DECK ASSEMBLY 38" BLACK - YARDMAN GREEN (0665)

$

$

Not available

$628.99

$

Usually ships in 3-6 days

0

White Outdoor 813-6980

38" Deck Ass'y. Comp.
(Superseded to 913-06980)

Note: (For Service Only)

Variations

White Outdoor 813-6980-0637

KIT-DECK 38" NEW S - POWDER BLACK (0637)

$

$

Not available

White Outdoor 813-6980-0638

KIT-DECK 38" NEW S - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 813-6980-0648

KIT-DECK 38" NEW S - TECH GRAY (0648)

$

$

Not available

White Outdoor 813-6980-0665

KIT-DECK 38" NEW S - YARDMAN GREEN (0665)

$

$

Not available

$

$

4

White Outdoor 783-0343A

Belt Guard Deck

Variations

White Outdoor 783-0343A-0483

Deck Belt Cover, 38" Black - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 783-0343A-0637

Deck Belt Cover, 38" Black - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0343A-0638

Deck Belt Cover, 38" Black - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0343A-0648

Deck Belt Cover, 38" Black - TECH GRAY (0648)

$

$

Not available

White Outdoor 783-0343A-0650

Deck Belt Cover, 38" Black - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0343A-0665

Deck Belt Cover, 38" Black - YARDMAN GREEN (0665)

$

$

Not available

$57.99

$

Usually ships in 3-6 days

0

7

White Outdoor 712-0291

Hex L-Nut 1/4-20 Thd.

Note: Optional equipment

$4.49

$

In Stock, Qty 8

0

8

White Outdoor 710-0258

Hex Bolt 1/4-20 x .62"
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 711-0792

Hinge Pin
(Superseded to 911-0792)

$4.99

$

In Stock, only 1 left!

0

13

White Outdoor 712-0181

Hex Top L-Nut 3/8-16 Thd.

$4.49

$

In Stock, only 3 left!

0

14

White Outdoor 712-3006

Hex Nut 1/4-20 Thd. (Gr. 5)

$4.99

$

In Stock, Qty 19

0

17

White Outdoor 734-0973

Deck Wheel-5"

$12.99

$

In Stock, Qty 20+

0

18

White Outdoor 736-0105

Bell-Wash. .40" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 738-0373

Shld. Bolt .498" Dia. x 1.53"
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

23

White Outdoor 742-0610

3 in 1 Blade
(Superseded to 942-0610A)

$26.99

$

In Stock, Qty 20+

0

26

White Outdoor 754-0329A

V-Belt
(Superseded to 954-0329A)

$52.99

$

In Stock, only 2 left!

0

27

White Outdoor 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

28

White Outdoor 783-0342

Brake Disc
(Superseded to 783-0342A)

$

$

Not available

?33

White Outdoor 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 18

0

35

White Outdoor 712-0417A

Hex Flange Nut 5/8-18 Thd.

$6.99

$

In Stock, Qty 20+

0

?37

White Outdoor 736-0158

L-Wash. 5/8" I.D.

$4.49

$

In Stock, Qty 11

0

39

White Outdoor 618-0138

Blade Spindle Ass'y. Comp.
(Superseded to 918-0138C)

Note: (Incl. Ref. 28, 35, 42)

$140.99

$

Usually ships in 3-6 days

0

42

White Outdoor 756-0969

5" Dia. Pulley

$35.99

$

Usually ships in 3-6 days

0

52

White Outdoor 703-1693

Hinge Mtg. Brkt.
(Superseded to 703-1693A)

$23.99

$

In Stock, only 4 left!

0

53

White Outdoor 732-0602

Torsion Spring
(Superseded to 732-0602A)

$12.99

$

In Stock, Qty 5

0

54

White Outdoor 726-0106

Push Nut

$3.99

$

Usually ships in 3-6 days

0

55

White Outdoor 731-1032

Chute Ass'y. Comp.
(Superseded to 631-05229)

Note: (Incl. Ref. 10, 52, 53, 54, 55)

$81.99

$

In Stock, Qty 6

0

56

White Outdoor 710-0597

Hex Bolt 1/4-20 x 1" Lg.

Note: Optional equipment

$3.99

$

In Stock, Qty 14

0

57

White Outdoor 712-3087

Wing Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 20+

0

58

White Outdoor 731-1643A

Mulching Plug
(Superseded to OEM-190-116)

Note: Optional equipment

$101.99

$

In Stock, only 2 left!

0

59

White Outdoor 16606

Retainer Hook Brkt.
(Superseded to 96606)

$7.49

$

In Stock, Qty 7

0

60

White Outdoor 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

61

White Outdoor 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0
