LT-145 (133R696G190) - White Outdoor 42" Lawn Tractor (1993) Lower Frame Assembly Parts Diagram

42" Lawn Tractor

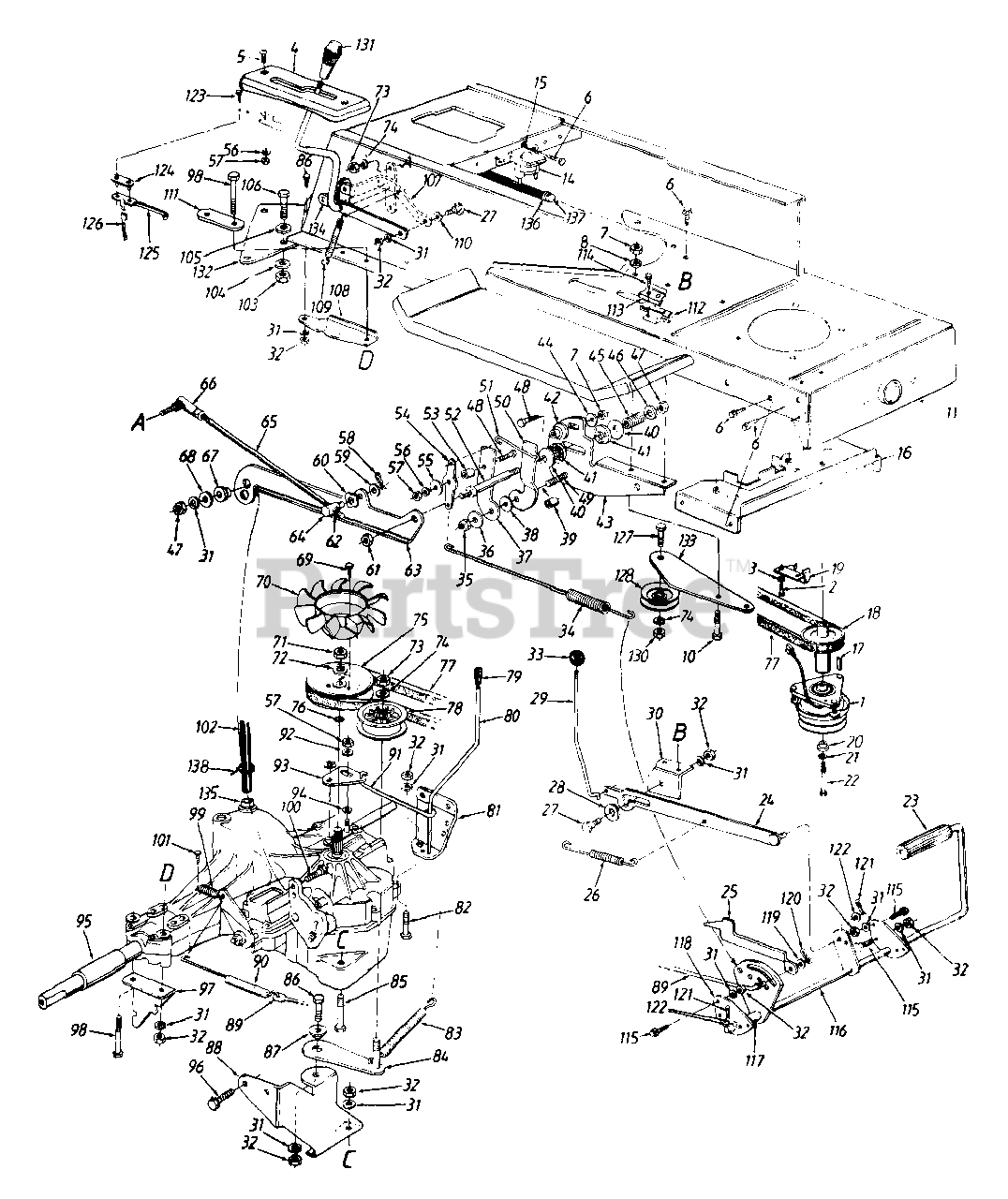

Lower Frame Assembly Parts Diagram

  • Title

1

White Outdoor 717-0983

Electric Clutch
(Superseded to 917-0983)

$

$

Not available

2

White Outdoor 710-3008

Hex Bolt 5/16-18 x .75" Lg. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 736-0242

Bell-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 731-1053B

Index Bracket
(Superseded to 931-1734)

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

5

White Outdoor 710-0924

Pan Hd. Mach. Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

8

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

10

White Outdoor 710-0412

Hex Bolt 1/4-28 x .75" Lg.

$5.99

$

In Stock, Qty 9

0

11

White Outdoor 17619B

Lower Frame Ass'y.

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

?12

White Outdoor 710-0654A

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.0" Lg.

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 725-1426

Solenoid
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

15

White Outdoor 736-0222

Ext. L-Wash. 1/4" I.D.

$5.99

$

In Stock, only 3 left!

0

16

White Outdoor 17358C

Belt Guard Brkt. Ass'y.
(Superseded to 17358D-0637)

$

$

Not available

17

White Outdoor 714-0118

Sq. Key 1/4" x 1.5" Lg.

$6.99

$

In Stock, only 4 left!

0

18

White Outdoor 756-0978

Engine Pulley
(Superseded to 756-0978B)

Note: Code: N Notates a new part (not previously existing)

$66.99

$

In Stock, Qty 13

0

19

White Outdoor 17418

Torque Bracket

Variations

White Outdoor 17418-0637

BRACKET-TORQUE - POWDER BLACK (0637)

$

$

Not available

$

$

20

White Outdoor 738-0785

Shld. Spacer .445" I.D.
(Superseded to 938-0785)

$25.99

$

In Stock, Qty 9

0

21

White Outdoor 736-0171

L-Wash. 7/16" I.D.

$4.49

$

In Stock, only 4 left!

0

22

White Outdoor 710-3157

Hex Bolt 7/16-20 x 3.25" Lg. (Gr. 5)
(Superseded to 710-3157A)

Note: Code: N Notates a new part (not previously existing)

$10.99

$

In Stock, Qty 20+

0

23

White Outdoor 735-0196

Foot Pad
(Superseded to 735-0239A)

$12.99

$

In Stock, only 1 left!

0

24

White Outdoor 683-0049

Brake Lockout Brkt. Ass'y.
(Superseded to 683-0049-0637)

Note: Code: N Notates a new part (not previously existing)

Variations

White Outdoor 683-0049-0637

Brake Lock Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

25

White Outdoor 783-0091

Foot Pedal Brkt.

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

26

White Outdoor 732-0728

Foot Pedal Return Spring

Note: Code: N Notates a new part (not previously existing)

$11.99

$

Usually ships in 3-6 days

0

27

White Outdoor 738-0296

Shld. Bolt .437" Dia. x .268"

$4.49

$

In Stock, Qty 20+

0

28

White Outdoor 736-0406

Fl-Wash. 7/16" I.D. x 1-3/8" O.D.
(Superseded to 936-0406)

$6.99

$

In Stock, Qty 11

0

29

White Outdoor 747-0601

Lock-up Rod

$

$

Not available

30

White Outdoor 17755A

Bracket

$

$

Not available

31

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

32

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

33

White Outdoor 720-0166

Ball Knob

$

$

Not available

34

White Outdoor 732-0727

Neutral Return Spring
(Superseded to 932-0727)

Note: Code: N Notates a new part (not previously existing)

$10.99

$

In Stock, only 1 left!

0

35

White Outdoor 712-0273

Hex Nut 5/16-24 Thd.
(Superseded to 912-0273)

$4.99

$

Usually ships in 3-6 days

0

36

White Outdoor 736-3078

Fl-Wash. .344" I.D. x 1" O.D.

$4.49

$

In Stock, Qty 20+

0

37

White Outdoor 783-0092

Scissor-Flat

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

38

White Outdoor 736-0362

Fl-Wash. .33" I.D. x 1.25" O.D.

$4.49

$

In Stock, Qty 7

0

39

White Outdoor 750-0808

Spacer

$

$

Not available

40

White Outdoor 736-0219

Bell-Wash. .4" I.D. x 1.13" O.D.
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

41

White Outdoor 761-0196

Friction Washer
(Superseded to 961-0196)

$9.49

$

Usually ships in 3-6 days

0

42

White Outdoor 750-0918

Centering Gauge Spacer

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

43

White Outdoor 783-0095

Neutral Return Mtg. Brkt.

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

44

White Outdoor 736-0270

Bell-Wash. .265" I.D. x .75" O.D.

$3.99

$

In Stock, Qty 20+

0

45

White Outdoor 732-0718

Comp. Spring 1.19" Lg.

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

46

White Outdoor 736-3008

Fl-Wash. .312" I.D. x .75" O.D.
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

47

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

48

White Outdoor 710-0299

Hex Bolt 1/4-28 x 1" Lg. (Gr. 5)

$4.49

$

Usually ships in 3-6 days

0

49

White Outdoor 710-1012

Rib Neck Bolt 5/16-24 x .84" Lg.

$4.49

$

Usually ships in 3-6 days

0

50

White Outdoor 783-0093

Scissor-Offset

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

51

White Outdoor 747-0887

Neutral Return Rod

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

52

White Outdoor 738-0879

Friction Disc Stud
(Superseded to 938-0879)

Note: Code: N Notates a new part (not previously existing)

$15.99

$

Usually ships in 3-6 days

0

53

White Outdoor 748-0368

Shld. Spacer

$

$

Not available

54

White Outdoor 783-0096

Neutral Return Lever

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

55

White Outdoor 736-3092

Fl-Wash. .265" I.D. x 1" O.D.

$3.99

$

In Stock, Qty 9

0

56

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

57

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

58

White Outdoor 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

59

White Outdoor 736-0262

Fl-Wash. .375" I.D. x .87" O.D.

$3.99

$

In Stock, Qty 10

0

60

White Outdoor 736-0413

Spring Wash. .39" I.D.

$6.99

$

In Stock, only 2 left!

0

61

White Outdoor 712-0116

Hex L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

62

White Outdoor 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

63

White Outdoor 783-0090A

Neutral Return Brkt.

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

64

White Outdoor 711-0832

Ferrule 3/8-24 Thd.
(Superseded to 911-0832)

$15.99

$

In Stock, only 4 left!

0

65

White Outdoor 747-0365

Control Rod
(Superseded to 747-0365A)

$

$

Not available

66

White Outdoor 723-0351

Ball Joint 3/8-24 Thd.
(Superseded to 923-0351)

$44.99

$

Usually ships in 3-6 days

0

67

White Outdoor 748-0234

Shld. Spacer .5" Dia. x .27" Lg.

$4.49

$

In Stock, Qty 20+

0

68

White Outdoor 736-0159

Fl-Wash. .349" I.D. x .879" O.D.

$4.49

$

In Stock, Qty 20+

0

69

White Outdoor 710-3007

Hex Wash. Hd. Tap Scr. #12 x 3/8" Lg.

$4.49

$

In Stock, Qty 20+

0

70

White Outdoor 731-1449

Fan
(Superseded to 931-1449A)

Note: Code: N Notates a new part (not previously existing)

$35.99

$

In Stock, Qty 9

0

71

White Outdoor 712-0333

Hex Nut 1/2-20 Thd.
(Superseded to 912-0333)

$

$

Not available

72

White Outdoor 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 6

0

73

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

74

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

75

White Outdoor 756-0975

Transmission Pulley

Note: Code: N Notates a new part (not previously existing)

$77.99

$

Usually ships in 3-6 days

0

76

White Outdoor 732-0729

Wire Ring

Note: Code: N Notates a new part (not previously existing)

$4.99

$

In Stock, only 4 left!

0

77

White Outdoor 754-0441

"V"-Belt
(Superseded to 954-0441)

Note: Code: N Notates a new part (not previously existing)

$53.99

$

In Stock, Qty 15

0

78

White Outdoor 756-0981

Fl-idler Pulley 2.75" O.D.
(Superseded to 756-04224)

Note: Code: N Notates a new part (not previously existing)

$26.99

$

In Stock, Qty 20+

0

79

White Outdoor 720-0238

Rod End Grip

$3.99

$

In Stock, only 1 left!

0

80

White Outdoor 747-0894

Bypass Control Lever

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

81

White Outdoor 783-0085

Transaxle Support Brkt. - L.H.

Note: Code: N Notates a new part (not previously existing)

Variations

White Outdoor 783-0085-0637

BRACKET-TRANS SUP - POWDER BLACK (0637)

$

$

Not available

$

$

82

White Outdoor 710-0528

Hex . Bolt 5/16-18 x 1.25" Lg.

$4.49

$

In Stock, Qty 20+

0

83

White Outdoor 732-0384

Ext. Spring 6.12
(Superseded to 932-0384)

$14.99

$

In Stock, Qty 12

0

84

White Outdoor 683-0051

Idler Brkt. Ass'y.
(Superseded to 983-0051)

Note: Code: N Notates a new part (not previously existing)

Variations

White Outdoor 683-0051-0637

BRACKET ASSY-IDLER - POWDER BLACK (0637)

$19.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0

85

White Outdoor 710-0116

Hex Bolt 5/16-18 x 2.5" Lg.
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 20+

0

86

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

87

White Outdoor 748-0234

Shld. Spacer .5" Dia. x .27" Lg.

$4.49

$

In Stock, Qty 20+

0

88

White Outdoor 783-0086A

Transaxle Support Brkt. - R.H.

Note: Code: N Notates a new part (not previously existing)

Variations

White Outdoor 783-0086A-0637

BRACKET-TRANS SUP- - POWDER BLACK (0637)

$

$

Not available

$

$

89

White Outdoor 747-0886

Brake Rod 24.94" Lg.

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

90

White Outdoor 732-0716

Ext. Spring
(Superseded to 732-0716D)

Note: Code: N Notates a new part (not previously existing)

$13.99

$

In Stock, only 1 left!

0

91

White Outdoor 747-0893

Bypass Actuator Rod

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

92

White Outdoor 736-0142

Fl-Wash. .281" I.D. x .5" O.D.

$4.99

$

In Stock, Qty 20+

0

93

White Outdoor 783-0098

Bypass Adjustment Brkt.

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

94

White Outdoor 736-0222

External L-Wash. 1/4" I.D.

$5.99

$

In Stock, only 3 left!

0

95

White Outdoor 731-1086A

Sleeve .758" I.D. x 1" O.D.

$10.99

$

In Stock, only 1 left!

0

96

White Outdoor 710-0604

Hex . Wash. TT-Tap Scr. 5/16-18 x .62" Lg.
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

97

White Outdoor 17994

Retainer Brkt. - Transaxle
(Superseded to 17994-0637)

Note: Code: N Notates a new part (not previously existing)

Variations

White Outdoor 17994-0637

BRACKET-TRANS RETAINER - POWDER BLACK (0637)

$

$

Not available

$

$

98

White Outdoor 710-0176

Hex Bolt 5/16-18 x 2.75" Lg. (Gr. 5)

$4.49

$

In Stock, only 2 left!

0

99

White Outdoor 732-0250

Tension Spring
(Superseded to HG-50384)

$

$

Not available

100

White Outdoor 710-0888

Hex Bolt 5/16-24 x 1" Lg. (Special)

$4.49

$

In Stock, Qty 20+

0

101

White Outdoor 710-0224

Hex Wash. Hd. AB-Tap Scr. #10 x .5" Lg.
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 20+

0

102

White Outdoor 751-0588

Hose 20" Lg.

$29.99

$

Usually ships in 3-6 days

0

103

White Outdoor 712-3019

Hex Nut 7/16-14 Thd. (Gr. 5)

$6.99

$

In Stock, only 1 left!

0

104

White Outdoor 736-3015

Fl-Wash. .469" I.D. x .875" O.D.
(Superseded to 936-3015)

$4.49

$

In Stock, Qty 20+

0

105

White Outdoor 736-0439

Bell-Wash. .46" I.D. x 1.13" O.D.

$3.49

$

Usually ships in 3-6 days

0

106

White Outdoor 710-0505

Hex Bolt 7/16-14 x 1" Lg.

$6.99

$

Usually ships in 3-6 days

0

107

White Outdoor 647-0008A

Speed Control Lever Ass'y.

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

108

White Outdoor 17668

Axle Support Brkt. - R.H.
(Superseded to 17668A-0637)

Variations

White Outdoor 17668-0637

Axle Support Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

White Outdoor 17669

Axle Support Brkt. - L.H.
(Superseded to 17669A-0637)

Note: (Not shown)

Variations

White Outdoor 17669-0637

Axle Support Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

109

White Outdoor 732-0433

Ext. Spring 2.75" Lg.

$

$

Not available

110

White Outdoor 736-0141

Spr-Wash. .445" I.D. x .75" O.D.
(Superseded to 936-0141)

$6.99

$

Usually ships in 3-6 days

0

111

White Outdoor 17840

Transaxle Mtg. Brkt.
(Superseded to 17840-0637)

Variations

White Outdoor 17840-0637

Trans Mounting Bracket - POWDER BLACK (0637)

$11.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0

112

White Outdoor 725-3169A

Safety Switch (Clutch)
(Superseded to 925-04039)

$24.99

$

In Stock, Qty 8

0

113

White Outdoor 17962

Switch Plate

$4.99

$

In Stock, only 3 left!

0

114

White Outdoor 710-0351

Truss Mach. B-Tap Scr. #10 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

115

White Outdoor 710-0650

Hex Wash. TT-Tap Scr. 5/16-18 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

116

White Outdoor 17715B

Clutch/Brake Pedal Ass'y.

Note: Code: N Notates a new part (not previously existing)

Variations

White Outdoor 17715B-0637

No Longer Available PEDAL ASSY-CLUTCH - POWDER BLACK (0637)

$

$

Not available

$

$

117

White Outdoor 750-0802

Spacer .63" I.D.

$6.99

$

Usually ships in 3-6 days

0

118

White Outdoor 17860

Pedal Bracket
(Superseded to 17860-0637)

Variations

White Outdoor 17860-0637

Pedal Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

119

White Outdoor 736-0264

Fl-Wash. .344" I.D. x .62" O.D.

$6.99

$

In Stock, only 1 left!

0

120

White Outdoor 714-0111

Cotter Pin 3/32" Dia.

$4.99

$

In Stock, Qty 13

0

121

White Outdoor 714-0470

Cotter Pin 1/8" Dia.

$4.49

$

In Stock, Qty 20+

0

122

White Outdoor 736-0256

Fl-Wash. .64" I.D. x .94" O.D.
(Superseded to 936-0256)

$7.49

$

Usually ships in 3-6 days

0

123

White Outdoor 710-0227

Hex Wash. Hd. AB-Tap Scr. #8 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

124

White Outdoor 726-0320

Insulator Nut Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 11

0

125

White Outdoor 725-1643

Reverse Safety Switch

$10.99

$

In Stock, only 1 left!

0

126

White Outdoor 725-1399

Extension Wire

$

$

Not available

127

White Outdoor 710-0344

Hex Bolt 3/8-16 x 1.5" Lg.

$5.99

$

In Stock, Qty 11

0

128

White Outdoor 756-0116

Idler Pulley
(Superseded to 756-04209)

$22.99

$

In Stock, Qty 20+

0

130

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

131

White Outdoor 720-0218

Shift Knob

$19.99

$

Usually ships in 3-6 days

0

132

White Outdoor 783-0014

Hitch Plate Extension

$

$

Not available

133

White Outdoor 783-0099

Idler Brkt.

Note: Code: N Notates a new part (not previously existing)

Variations

White Outdoor 783-0099-0637

No Longer Available BRACKET-IDLER - POWDER BLACK (0637)

$

$

Not available

$

$

134

White Outdoor 783-0122

Speed Control Stabilizing Brkt.

Note: Code: N Notates a new part (not previously existing)

$4.99

$

In Stock, only 1 left!

0

135

White Outdoor 731-1485

Hose Fitting

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

136

White Outdoor 731-1480

Plastic Vent

Note: Code: N Notates a new part (not previously existing)

$15.99

$

Usually ships in 3-6 days

0

137

White Outdoor 731-1481

Plastic Vent Cap

Note: Code: N Notates a new part (not previously existing)

$10.99

$

Usually ships in 3-6 days

0

138

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0
