LT-145 (132-736G190) - White Outdoor 42" Lawn Tractor (1992) Lower Frame, Seat, Running Boards And Rear Fender Parts Diagram

42" Lawn Tractor

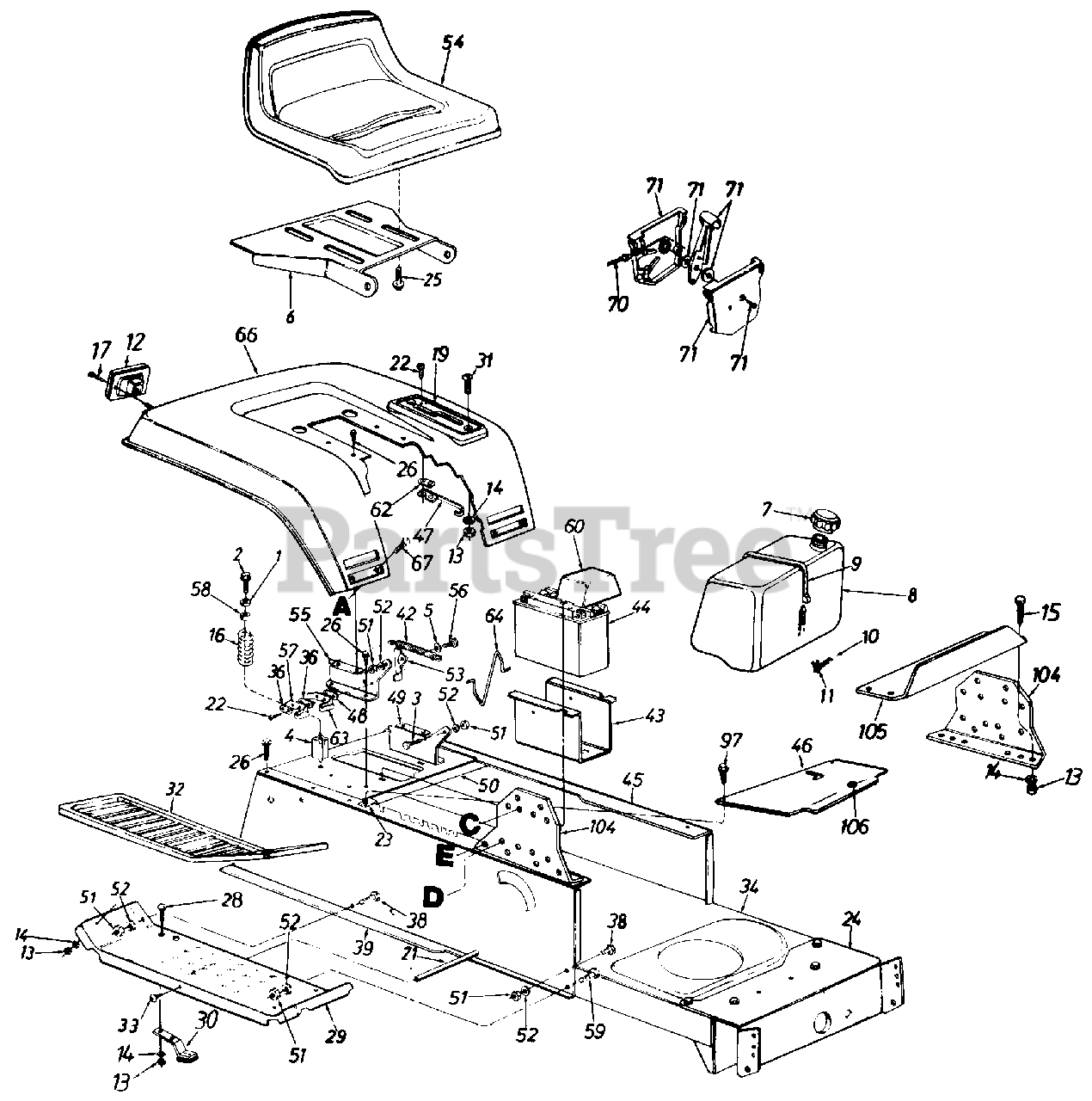

Lower Frame, Seat, Running Boards And Rear Fender Parts Diagram

  • Title

1

White Outdoor 736-0159

Fl-Wash. .344" I.D. x .875"

$4.49

$

In Stock, Qty 20+

0

2

White Outdoor 710-1208

Hex Wash. Hd. Tap Scr. 5/16-18 x 3.25" Lg.

$6.99

$

In Stock, only 2 left!

0

3

White Outdoor 738-0155

Shld. Bolt .437" Dia. x .162"
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

4

White Outdoor 748-0347

Spring Spacer
(Superseded to 748-0347A)

$

$

Not available

5

White Outdoor 736-0141

Spr-Wash. .445" I.D. x .75
(Superseded to 936-0141)

$6.99

$

Usually ships in 3-6 days

0

6

White Outdoor 15607D

Seat Pivot Bracket
(Superseded to 783-0039A)

$71.99

$

Usually ships in 3-6 days

0

7

White Outdoor 751-3071

Fuel Cap w/o Gasket
(Superseded to 751-0603B)

$23.99

$

Usually ships in 3-6 days

0

8

White Outdoor 751-0555

Fuel Tank
(Superseded to 751-0555D)

$89.99

$

In Stock, only 1 left!

0

9

White Outdoor 726-0209

Tie Strap
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

10

White Outdoor 751-0535-26

Fuel Line
(Superseded to 751-10349-28)

$41.99

$

In Stock, only 1 left!

0

11

White Outdoor 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

12

725-3018

Taillight Ass'y.

$

$

Not available

13

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

14

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

15

White Outdoor 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

16

White Outdoor 732-0672

Compression Spring
(Superseded to 732-0735A)

$29.99

$

In Stock, Qty 5

0

17

White Outdoor 710-0936

Truss Hd. AB-Tap Scr. #6 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

19

White Outdoor 731-1053A

Speed Control Index Brkt.
(Superseded to 931-1734)

$

$

Not available

21

White Outdoor 738-0526

Running Board Rod

$

$

Not available

22

White Outdoor 710-0227

Hex Wash. Hd. AB-Tap Scr. #8 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 726-0139

Speed Nut #10Z

$6.99

$

Usually ships in 3-6 days

0

24

White Outdoor 17621

Front Pivot Brkt.
(Superseded to 783-0041C)

$77.99

$

Usually ships in 3-6 days

0

25

White Outdoor 710-0623

Hex Tap Scr. 3/8-16 x .75"

$4.49

$

In Stock, Qty 20+

0

26

White Outdoor 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

28

White Outdoor 710-0134

Carriage Bolt 1/4-20 x .62"

$4.49

$

In Stock, Qty 20+

0

29

White Outdoor 17770

Running Board (R.H. & L.H.)
(Superseded to 17770H)

$

$

Not available

30

White Outdoor 761-0168A

Blade Brake Ass'y.
(Superseded to 961-0168D)

$31.99

$

In Stock, only 1 left!

0

31

White Outdoor 710-0924

Truss Mach. Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

32

White Outdoor 731-0911

Rubber Foot Pad - L.H.

Note: (Optional)

$

$

Not available

White Outdoor 731-0912

Rubber Foot Pad - R.H.

Note: (Optional)

$

$

Not available

33

White Outdoor 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

34

White Outdoor 17620C

Lower Frame

Note: Code: N notates a new part (not previously existing).

$

$

Not available

36

White Outdoor 726-0279

Insulator Plate

$3.99

$

In Stock, Qty 8

0

38

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

39

White Outdoor 17622B

Upper Frame - R.H.
(Superseded to 783-0042D)

Note: Code 483/N

$

$

Not available

42

White Outdoor 732-0581B

Extension Spring 5.31" Lg.
(Superseded to 932-0581B)

$14.99

$

In Stock, only 1 left!

0

43

White Outdoor 17952

Battery Tray
(Superseded to 17952A-0637)

$

$

Not available

44

White Outdoor 725-1635

12-V Battery (275 Cold Crank Amps)
(Superseded to 753-0608)

$

$

Not available

45

White Outdoor 17623

Upper Frame - L.H.
(Superseded to 783-0043B)

Note: Code 483

$

$

Not available

46

White Outdoor 17775

Shift Cover

$

$

Not available

47

White Outdoor 725-1643

Reverse Safety Switch

Note: Code: N notates a new part (not previously existing).

$10.99

$

In Stock, only 1 left!

0

48

White Outdoor 726-0278

Insulator Boss Plate

$6.99

$

In Stock, Qty 10

0

49

White Outdoor 17951

Seat Pivot Brkt. Support - L.H.
(Superseded to 17951A-0637)

Variations

White Outdoor 17951-0637

Seat Support Bracket, LH - POWDER BLACK (0637)

$26.99

$

In Stock, only 1 left!

0

$26.99

$

In Stock, only 1 left!

0

50

White Outdoor 17953

Hitch Plate

Variations

White Outdoor 17953-0637

No Longer Available PLATE-HITCH - POWDER BLACK (0637)

$

$

Not available

$

$

51

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

52

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

53

White Outdoor 17239A

Seat Lift Brkt.
(Superseded to 17239C)

$

$

Not available

54

White Outdoor 757-0351

Seat

$

$

Not available

White Outdoor 757-0338

Seat - 10-5/8" High
(Superseded to 957-0360A)

$

$

Not available

White Outdoor 757-0350

Seat - 14-1/4" High
(Superseded to 957-0350)

$588.99

$

Usually ships in 3-6 days

0

55

White Outdoor 17950

Seat Pivot Brkt. Support - R.H.
(Superseded to 17950A-0637)

Variations

White Outdoor 17950-0637

Seat Support Bracket, RH - POWDER BLACK (0637)

$23.99

$

Usually ships in 3-6 days

0

$23.99

$

Usually ships in 3-6 days

0

56

White Outdoor 738-0296

Shld. Bolt .437" Dia. x .268"

$4.49

$

In Stock, Qty 20+

0

57

White Outdoor 725-1303

Spring Switch
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

58

White Outdoor 722-0160

Bushing

$

$

Not available

59

White Outdoor 710-0650

Hex Wash. Hd. Scr. 5/16-18 x .87" Lg.

$3.99

$

In Stock, Qty 20+

0

60

White Outdoor 731-1200

Battery Cover

$

$

Not available

62

White Outdoor 726-0320

Insulator Nut Plate
(Superseded to 926-0320)

Note: Code: N notates a new part (not previously existing).

$6.99

$

In Stock, Qty 11

0

63

White Outdoor 725-1439

Safety Switch (Seat)

$8.49

$

In Stock, Qty 10

0

64

UNKNOWN

$

$

Not available

66

White Outdoor 17328B

Fender

Note: Code 483/N

Variations

White Outdoor 17328B-0483

No Longer Available FENDER-RR - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 17328B-0499

No Longer Available FENDER-RR - CUB BEIGE (0499)

$

$

Not available

White Outdoor 17328B-0638

No Longer Available FENDER-RR - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 17328B-0648

No Longer Available FENDER-RR - TECH GRAY (0648)

$

$

Not available

White Outdoor 17328B-0665

No Longer Available FENDER-RR - YARDMAN GREEN (0665)

$

$

Not available

$

$

67

White Outdoor 710-0167

Carriage Bolt 1/4-20 x .62" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

70

White Outdoor 746-0634

Throttle Wire
(Superseded to 946-0634)

$11.99

$

In Stock, only 1 left!

0

71

White Outdoor 831-0823A

Throttle Control Box Ass'y.

$32.99

$

In Stock, Qty 20+

0

97

White Outdoor 710-0351

Truss Mach. B-Tap Scr. #10 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

104

White Outdoor 17300D

Dash Support Brkt.

Note: (Not Used on Style 0)

Variations

White Outdoor 17300D-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

105

White Outdoor 17633A

Gas Tank Support Brkt.

Note: Code: N notates a new part (not previously existing).

Variations

White Outdoor 17633A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

White Outdoor 17632A

Gas Tank Support Brkt.

Note: (Style 0 Only). Code: N notates a new part (not previously existing).

Variations

White Outdoor 17632A-0637

No Longer Available BRACKET-GAS TANK S - POWDER BLACK (0637)

$

$

Not available

$

$

106

White Outdoor 731-0405

Snap Bushing

$

$

Not available
