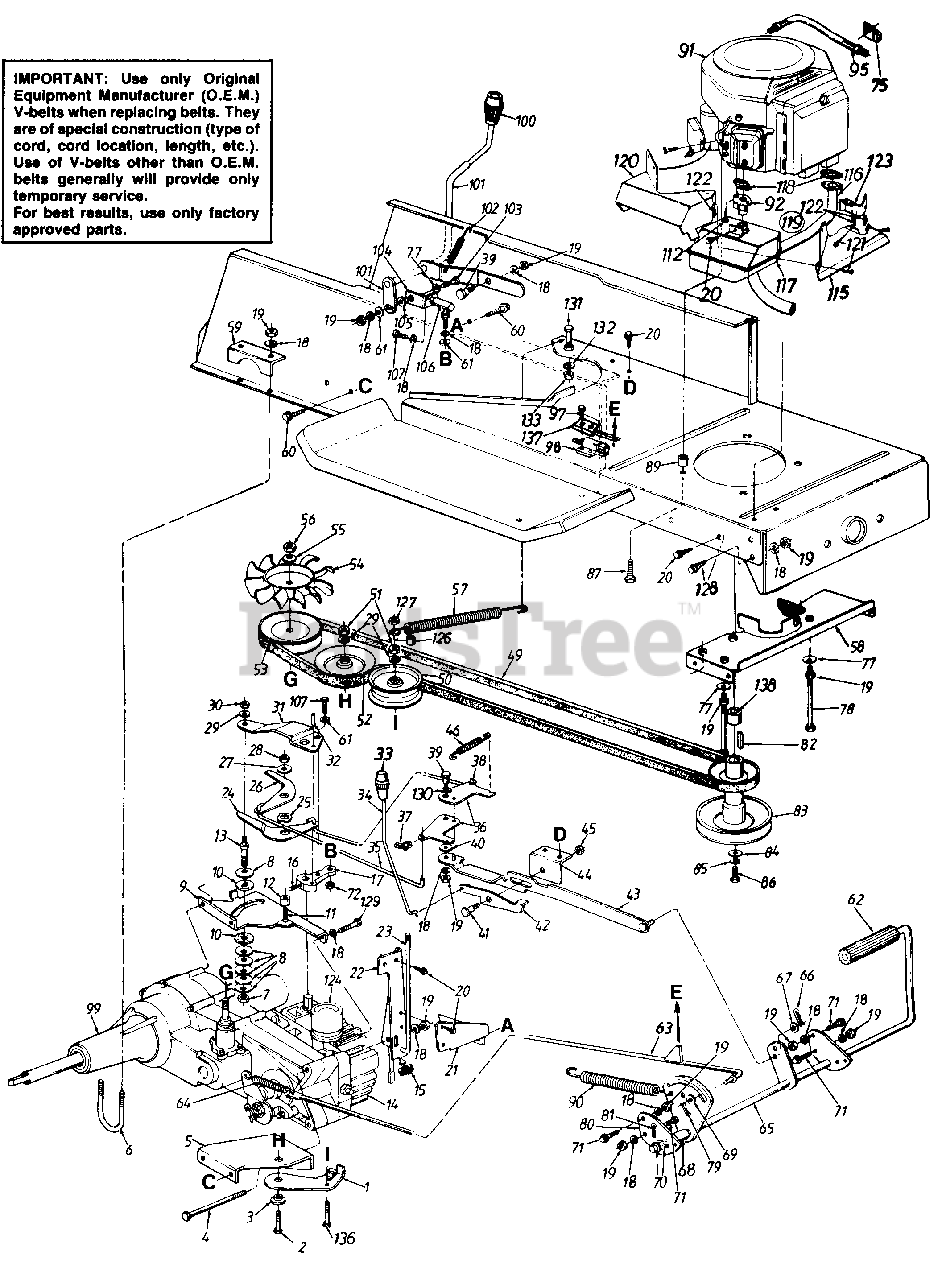

LT-145 (131-736G190) - White Outdoor 42" Lawn Tractor (1991) Drive Mounting Assembly Parts Diagram

42" Lawn Tractor

Drive Mounting Assembly Parts Diagram

  • Title

1

17746

Idler Bracket

$

$

Not available

2

White Outdoor 710-0427

Hex Bolt 3/8-16 x 2.0" Lg.
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 738-0347

Shld. Spacer .625" I.D.
(Superseded to 938-0347)

$10.99

$

Usually ships in 3-6 days

0

4

White Outdoor 710-3195

Hex Bolt 5/16-18 x 4.5" Lg. (Gr. 5)

$7.49

$

Usually ships in 3-6 days

0

5

White Outdoor 17747

Idler Plate

$

$

Not available

6

White Outdoor 710-3193

U-Bolt 5/16-18 x 1.75" Lg.

$

$

Not available

7

White Outdoor 712-0116

Hex L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

8

White Outdoor 736-0219

Bell-Wash. .40" I.D. x 1.13"
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

9

17743

Mounting Bracket

$

$

Not available

10

White Outdoor 761-0196

Friction Washer
(Superseded to 961-0196)

$9.49

$

Usually ships in 3-6 days

0

11

White Outdoor 710-1012

Rib Neck Bolt 5/16-24 x .84" Lg.

$4.49

$

Usually ships in 3-6 days

0

12

White Outdoor 750-0808

Spacer

$

$

Not available

13

White Outdoor 738-0827

Axle

$

$

Not available

14

White Outdoor 717-0940

Hydrostatic Pump

$

$

Not available

15

White Outdoor 735-0126

Rubber Washer .33" I.D.
(Superseded to 735-0126A)

$

$

Not available

16

White Outdoor 710-0257

Set Screw

$

$

Not available

17

White Outdoor 748-0328A

Pintle Shift Lever

$

$

Not available

18

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

19

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

20

White Outdoor 710-0599

Hex TT-Tap Scr. 1/4-20 x .5"

$4.49

$

In Stock, Qty 20+

0

21

White Outdoor 17769

Reinforcement Plate

$

$

Not available

22

White Outdoor 17744

Transmission Torque Brkt.

$

$

Not available

23

White Outdoor 747-0764

Release Valve Rod

$

$

Not available

24

White Outdoor 17737

Reverse Arm

$

$

Not available

25

White Outdoor 736-0174

Spring Washer .625" I.D.

$6.99

$

In Stock, Qty 12

0

26

White Outdoor 17745

Forward Arm

$

$

Not available

27

White Outdoor 736-3078

Fl-Wash. .344" I.D. x 1.0"

$4.49

$

In Stock, Qty 20+

0

28

White Outdoor 712-0237

Hex Cent. L-Nut 5/16-24 Thd.

$4.99

$

In Stock, only 4 left!

0

29

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

30

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

31

White Outdoor 17765

Pintle Arm Ext. Plate

$

$

Not available

32

White Outdoor 715-0156

Roll Pin 1/4" Dia. x .75" Lg.

$4.49

$

In Stock, only 1 left!

0

33

White Outdoor 720-0232

Knob
(Superseded to 920-0232)

$10.99

$

In Stock, Qty 10

0

34

White Outdoor 747-0601

Lock-Up Rod

$

$

Not available

35

747-0763

Connection Rod

$

$

Not available

36

White Outdoor 17757

Balancer Bracket

$

$

Not available

37

White Outdoor 726-0281

Rod End Clevis Clips-R.H.

$

$

Not available

38

White Outdoor 726-0280

Rod End Clevis Clips-L.H.

$

$

Not available

39

White Outdoor 738-0296

Shld. Bolt .437" Dia. x .268"

$4.49

$

In Stock, Qty 20+

0

40

White Outdoor 736-3074

Fl-Wash. .344" I.D. x 1.12"

$

$

Not available

41

White Outdoor 738-0141

Shld. Bolt .437" Dia. x .35"
(Superseded to 938-0141)

$7.49

$

In Stock, Qty 7

0

42

17738

Lock-Up Bracket

$

$

Not available

43

White Outdoor 17756

Neutral Return Brkt. Ass'y.

$

$

Not available

44

White Outdoor 17755

Bracket

$

$

Not available

45

White Outdoor 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

46

White Outdoor 732-0387

Ext. Spring 2 5n Lg.

$

$

Not available

49

White Outdoor 754-0372

"V"-Belt
(Superseded to 954-0372)

$66.99

$

Usually ships in 3-6 days

0

White Outdoor 756-0515

Flat Idler

$

$

Not available

51

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

52

White Outdoor 756-0577

Idler Pulley 4.0" O.D.

$

$

Not available

53

White Outdoor 756-0571

Transmission Pulley

$

$

Not available

54

White Outdoor 731-1145

Hydro Fan

$

$

Not available

55

White Outdoor 736-0427

Bell-Wash. .56" I.D. x 1.125"
(Superseded to 936-0427)

$

$

Not available

56

White Outdoor 712-3035

Hex Jam Nut 9/16-18 Thd.

$6.99

$

Usually ships in 3-6 days

0

57

White Outdoor 732-0641

Extension Spring

$

$

Not available

58

White Outdoor 17358C

Belt Guard Brkt. Ass'y.
(Superseded to 17358D-0637)

$

$

Not available

59

17818

Bracket

$

$

Not available

60

White Outdoor 710-0603

Hex B-Tap Scr. 5/16-18 x .5"

$4.99

$

Usually ships in 3-6 days

0

61

White Outdoor 736-0261

Flat Tooth Washer 5/16" I.D.
(Superseded to 736-0607)

$3.99

$

In Stock, Qty 20+

0

62

White Outdoor 735-0196

Foot Pad
(Superseded to 735-0239A)

$12.99

$

In Stock, only 1 left!

0

63

White Outdoor 17686

Brake Rod Ass'y.

$

$

Not available

64

White Outdoor 732-0649

Ext. Spring 3.67" Lg.

$

$

Not available

65

White Outdoor 17715A

Clutch Brake Pedal Ass'y.

$

$

Not available

66

White Outdoor 714-0104

Intern. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

67

White Outdoor 736-0140

Fl-Wash. .385" I.D. x .62n

$7.49

$

In Stock, Qty 7

0

68

White Outdoor 750-0802

Spacer.63" I.D.

$6.99

$

Usually ships in 3-6 days

0

69

White Outdoor 736-0117

Fl-Wash. .385" I.D. x .62n
(Superseded to 936-0117)

$7.49

$

Usually ships in 3-6 days

0

70

White Outdoor 736-0256

Fl-Wash. .635" I.D. x 1.0"
(Superseded to 936-0256)

$7.49

$

Usually ships in 3-6 days

0

71

White Outdoor 710-0650

Hex TT-Tap Scr. 5/16-18 x 7/8"

$3.99

$

In Stock, Qty 20+

0

72

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

75

White Outdoor 726-3009

Clamp

$

$

Not available

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

77

White Outdoor 736-0242

Bell-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

78

White Outdoor 710-0190

Hex Bolt 5/16-18 x 4.0" Lg.

$7.99

$

Usually ships in 3-6 days

0

79

White Outdoor 714-0507

Cotter 3/32" Dia. x .75" Lg.

$4.49

$

In Stock, Qty 12

0

80

White Outdoor 15835A

Pedal Brkt.

$

$

Not available

81

White Outdoor 714-0111

Cotter Pin 8/32n Dia. x 1.0" Lg.

$4.99

$

In Stock, Qty 13

0

82

White Outdoor 714-0114

Sq.-Key 1/4" x 2.0"
(Superseded to 914-0114)

$4.49

$

In Stock, only 1 left!

0

83

White Outdoor 756-0562

Engine Pulley
(Superseded to 956-0562)

$

$

Not available

84

White Outdoor 736-0322

Fl-Wash. 7/16" I.D. x 1.25"

$9.49

$

In Stock, Qty 8

0

85

White Outdoor 736-0171

L-Wash. 7/16n l.D. (H.D.)

$4.49

$

In Stock, only 4 left!

0

86

White Outdoor 710-0757

Hex Bolt 7/16-20 x 1.5" Lg.

$9.99

$

In Stock, only 1 left!

0

87

White Outdoor 710-1035

Hex TT-Tap Scr. 3/8-16 Thd.

$10.99

$

Usually ships in 3-6 days

0

89

White Outdoor 750-0748

Spacer 5/16" I.D.

$9.49

$

Usually ships in 3-6 days

0

90

White Outdoor 732-0643A

Extension Spring 6.11n Lg.

$

$

Not available

91

Engine

$

$

Not available

92

White Outdoor 751-0470

Inlet Tube Ass'y.

$

$

Not available

95

White Outdoor 727-0434

Hydraulic Hose 13n Lg.

$

$

Not available

97

White Outdoor 710-0351

Truss Mach. B-Tap Scr. #10 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

98

White Outdoor 725-3169A

Safety Switch
(Superseded to 925-04039)

Note: (Clutch)

$24.99

$

In Stock, Qty 8

0

99

White Outdoor 717-0950

Transaxle

$

$

Not available

100

White Outdoor 720-0218

Shift Knob

$19.99

$

Usually ships in 3-6 days

0

101

White Outdoor 17734

Speed Selector Lever Ass'y.

$

$

Not available

102

White Outdoor 732-0433

Ext. Spring 2 75n Lg.

$

$

Not available

103

White Outdoor 710-0874

Hex Bolt 5/16-18 x 1.25" Lg.

$6.99

$

Usually ships in 3-6 days

0

104

White Outdoor 17742

Connection Brkt.

$

$

Not available

105

White Outdoor 711-0404

Shoulder Nut

$

$

Not available

106

White Outdoor 723-3011

Ball Joint 5/16-24 Thd.
(Superseded to 923-3011)

$37.99

$

In Stock, only 4 left!

0

107

White Outdoor 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 18

0

White Outdoor 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

112

710-1037

Bolt w/Washer

$

$

Not available

115

White Outdoor 16876A

Muffler Heat Shield-Front

$

$

Not available

116

751-0471

Formed Tube Ass'y.

$

$

Not available

117

White Outdoor 751-0472

Exhaust Muffler Sub Ass'y.

$

$

Not available

118

White Outdoor 721-0218

Gasket
(Superseded to BS-691613)

$5.49

$

Usually ships in 2-12 days

0

119

White Outdoor 751-0469A

Muffler Ass'y. Comp.

$

$

Not available

120

White Outdoor 16875A

Muffler Heat Shield

$

$

Not available

121

White Outdoor 710-0224

Hex Wash. Tap Scr. #10 x 5n Lg.
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 20+

0

122

White Outdoor 712-0147

Speed Nut #10-24 Thd.

$6.99

$

Usually ships in 3-6 days

0

123

White Outdoor 16877

Front Heat Shield Ext.

$

$

Not available

124

White Outdoor 717-3049

Reservoir
(Superseded to 917-3049)

$125.99

$

Usually ships in 3-6 days

0

126

750-0504

Spacer .375" I.D. x .503

$

$

Not available

127

White Outdoor 712-0266

Hex Jam Nut 3/8-16 Thd.
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 20+

0

128

White Outdoor 710-0604

Hex Wash. TT-Tap Scr. 5/16-18 x 62" Lg.
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

129

White Outdoor 710-0974

Hex Bolt 5/16-18 x 4.75" Lg.

$11.99

$

Usually ships in 3-6 days

0

130

White Outdoor 736-0141

Spr.-Wash. .445" I.D. x .75" O.D.
(Superseded to 936-0141)

$6.99

$

Usually ships in 3-6 days

0

131

White Outdoor 710-0106

Hex Bolt 1/4-20 x 1.25" Lg.

$3.99

$

In Stock, Qty 12

0

132

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

133

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

136

White Outdoor 710-0756

Hex Bolt 3/8-16 x 2.5" Lg.

$

$

Not available

137

White Outdoor 17962

Switch Plate

$4.99

$

In Stock, only 3 left!

0

138

White Outdoor 750-0782

Engine Pulley Spacer

$

$

Not available
