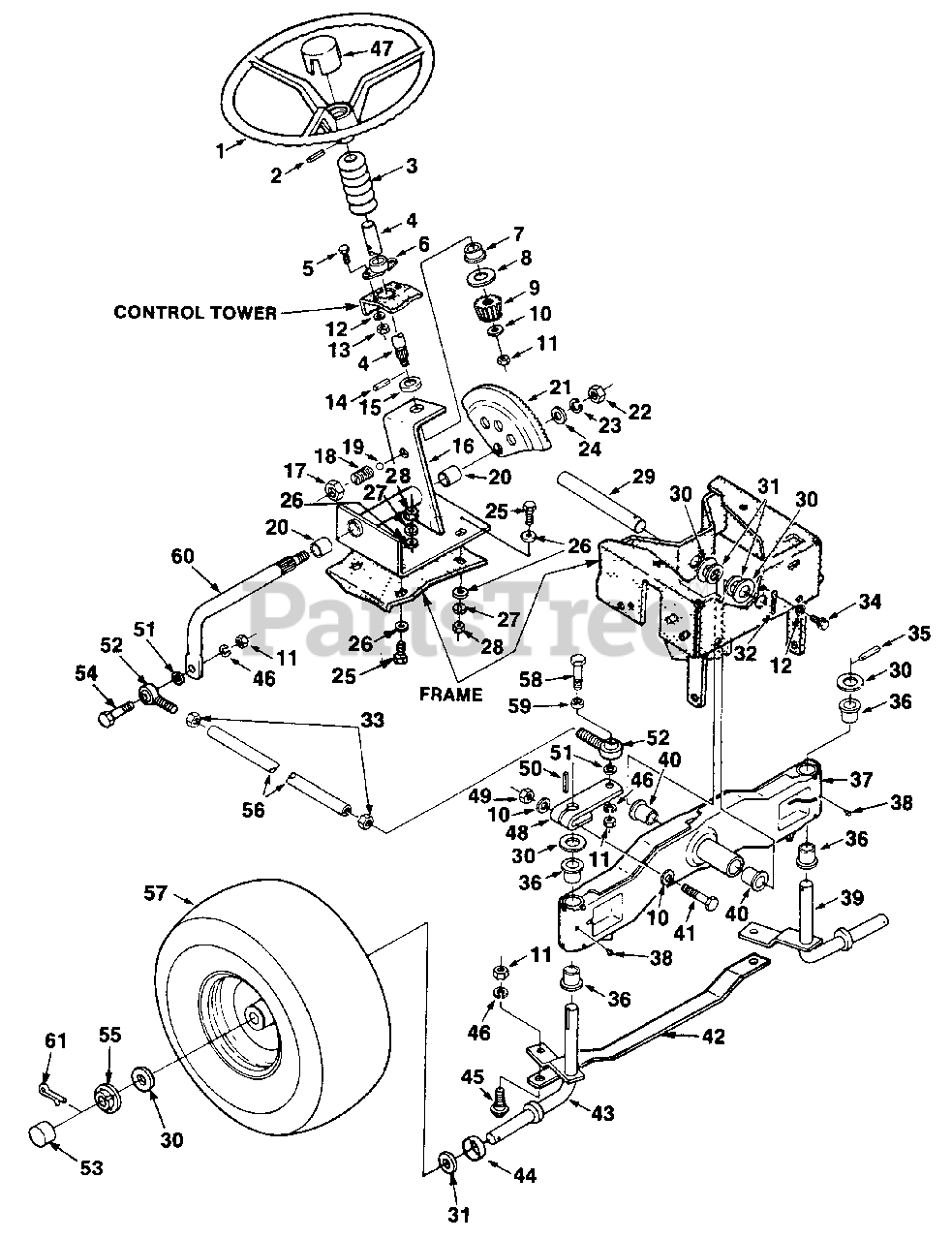

LT 1438 H (UT-33022) - Homelite Lawn Tractor Steering Linkage Parts Diagram

Lawn Tractor

Steering Linkage Parts Diagram

  • Title

1

Homelite JA990346

WHEEL- Steering

$294.99

$

Usually ships in 3-7 days

0

2

Homelite JA461387

PIN- Roll

$4.99

$

Usually ships in 3-7 days

0

3

Homelite JA993162

BELLOW- Steering

$

$

Currently unavailable

4

Homelite JA994335

SHAFT- Steering Wheel

$

$

Currently unavailable

5

Homelite JA400104

SCREW- (1/4-20 x 1/2")
(Superseded to UP03379)

$

$

Not available

6

Homelite JA376074

BEARING- Steering Shaft

$

$

Not available

7

Homelite JA346133

BUSHING

$

$

Currently unavailable

8

Homelite JA375970

WASHER- Front Hub

$

$

Not available

9

Homelite JA339629

PINION- Steering

$

$

Currently unavailable

10

Homelite JA992581

WASHER

$4.99

$

Usually ships in 3-7 days

0

11

Homelite JA443110

NUT- Hex (3/8-16)

$

$

Not available

12

Homelite JA446130

WASHER- Lock (1/4-20)

$

$

Not available

13

Homelite JA443102

NUT- Hex (1/4-20)
(Superseded to JA993730)

$

$

Not available

14

Homelite JA461383

PIN- Roll

$

$

Not available

15

Homelite JA376108

SPACER- Steering

$

$

Not available

16

Homelite JA994337

SUPPORT- Steering

$

$

Currently unavailable

17

Homelite JA443826

NUT- (5/8-11)

$7.99

$

Usually ships in 3-7 days

0

18

Homelite JA376121

SPACER- Steering Gr

$

$

Currently unavailable

19

Homelite JA465006

BALL-.312 Dia

$4.49

$

Usually ships in 3-7 days

0

20

Homelite JA311555

BUSHING

$

$

Currently unavailable

21

Homelite JA392599

GEAR- Steering

$

$

Currently unavailable

22

Homelite JA443118

NUT- (1/2-13)

$

$

Currently unavailable

23

Homelite JA446154

WASHER- Lock hvy (1/2")

$

$

Not available

24

Homelite JA453017

WASHER- Flat (1/2")

$

$

Not available

25

Homelite JA400186

SCREW- Hex (5/16-18 x 7/8")
(Superseded to UP07177)

$

$

Not available

26

Homelite JA453009

WASHER- Flat (5/16")
(Superseded to UP07173)

$

$

Not available

27

Homelite JA446136

WASHER- Lock (5/16")
(Superseded to UP03791)

$

$

Not available

28

Homelite JA443106

NUT- Hex (5/16-18)
(Superseded to 81018)

$

$

Not available

29

Homelite JA376067

ROD

$

$

Currently unavailable

30

Homelite JA453022

WASHER- Flat (3/4")

$

$

Currently unavailable

31

Homelite JA313820

SPACER- Axle

$

$

Currently unavailable

32

Homelite JA460064

PIN- Cotter (1/4 x 1 1/2")

$4.49

$

Usually ships in 3-7 days

0

33

Homelite JA443112

NUT- (3/8-24)

$1.99

$

Usually ships in 3-7 days

0

34

Homelite JA408878

SCREW- (1/4-20 x 3/4")

$

$

Not available

35

Homelite JA461408

PIN

$

$

Not available

36

Homelite JA376065

BUSHING- Spindle

$

$

Currently unavailable

37

Homelite JA994339

AXLE- Front

Note: Incl. #34

$

$

Currently unavailable

38

Homelite JA471225

FITTING- Grease

$

$

Currently unavailable

39

Homelite JA992616

SPINDLE- L.H.

$

$

Not available

40

Homelite JA310084

BEARING

$

$

Currently unavailable

41

Homelite JA400272

SCREW- (3/8-16 x 2 1/4")

$

$

Not available

42

Homelite JA994466

BAR- Tie

$

$

Currently unavailable

43

Homelite JA992617

SPINDLE- R.H.

$

$

Not available

44

Homelite JA375411

WASHER

$

$

Currently unavailable

45

Homelite JA376085

BOLT- Tie Bar Mtg

$10.99

$

Usually ships in 3-7 days

0

46

Homelite JA446142

WASHER- Lock (3/8")

$

$

Not available

47

Homelite JA990345

CAP- Steering Wheel

$

$

Currently unavailable

48

Homelite JA994342

ARM- Steering

$

$

Currently unavailable

49

Homelite JA444762

NUT- Centerlock (3/8-16)

$

$

Currently unavailable

50

Homelite JA320790

KEY

$

$

Currently unavailable

51

Homelite JA376115

SPACER- Balljoint

$

$

Currently unavailable

52

Homelite JA376064

JOINT- Ball

$

$

Currently unavailable

53

Homelite JA316802

CAP- Hub

$

$

Currently unavailable

54

Homelite JA992252

SCREW- (3/8-16 x 1 1/2")

$

$

Currently unavailable

55

Homelite JA312398

WASHER- Wheel retaining

$

$

Currently unavailable

56

Homelite JA376062

TUBE- Drag link

$

$

Currently unavailable

57

Homelite JA181964

RIM & TIRE ASSY

$

$

Currently unavailable

58

Homelite JA400268

SCREW- (3/8-16 x 1 3/4")
(Superseded to UP07178)

$

$

Not available

59

Homelite JA376114

SPACER- Balljoint

$

$

Currently unavailable

60

Homelite JA994336

PITMAN ARM

$

$

Currently unavailable

61

Homelite JA460040

PIN

$

$

Currently unavailable
