LT 1438 H (UT-33022) - Homelite Lawn Tractor Frame, Transaxle And Engine Parts Diagram

Lawn Tractor

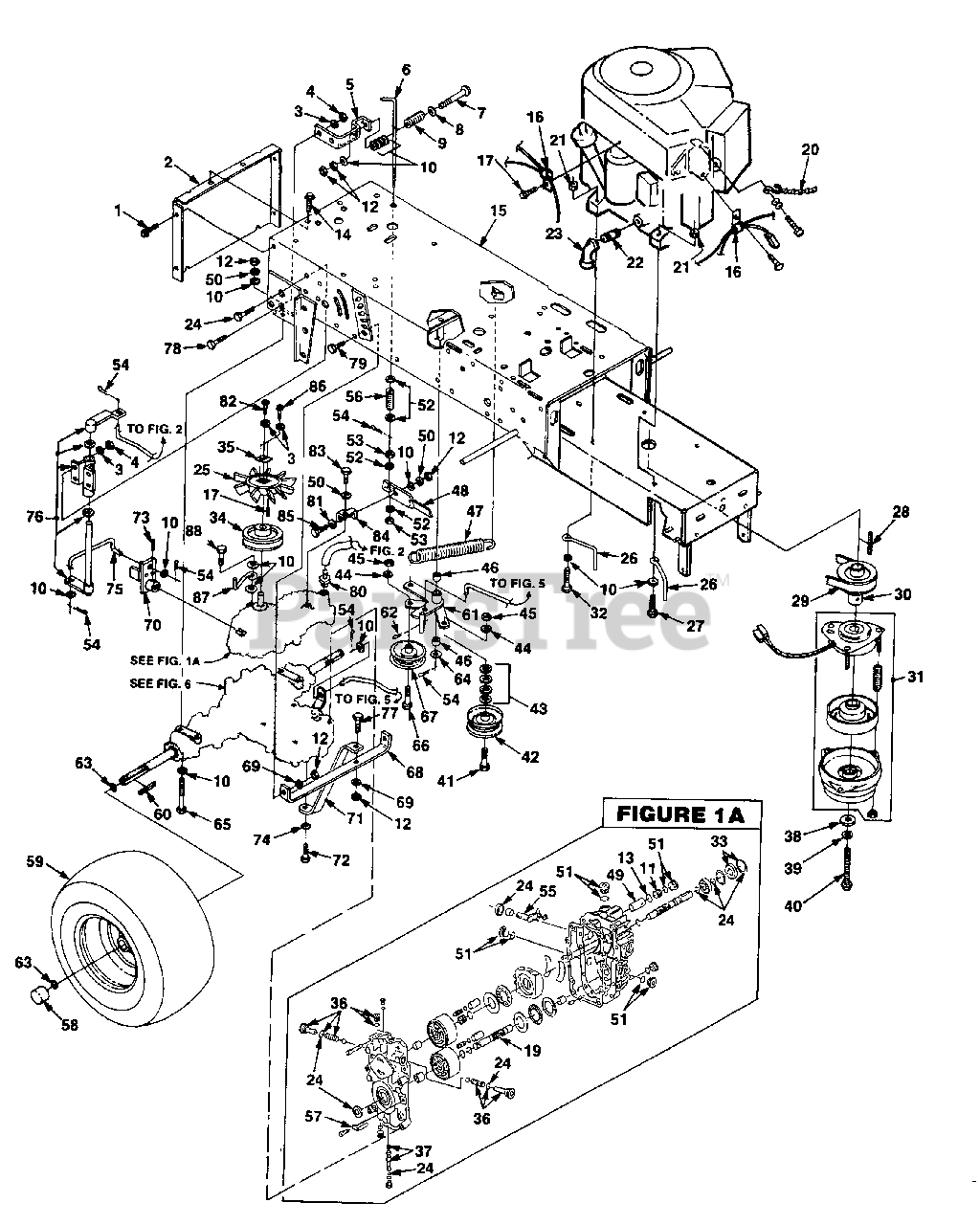

Frame, Transaxle And Engine Parts Diagram

  • Title

1

Homelite JA408406

SCREW- (1/4-14 x 1")

$6.99

$

Usually ships in 3-7 days

0

2

Homelite JA994985

BRACKET- Hitch

$

$

Currently unavailable

3

Homelite JA446128

WASHER- Lock (1/4")
(Superseded to UP03409)

$8.49

$

Usually ships in 3-7 days

0

4

Homelite JA443102

NUT- Hex (1/4-20)
(Superseded to JA993730)

$

$

Not available

5

Homelite JA993328

LIMITER- Bracket

$

$

Currently unavailable

6

Homelite JA993259

ROD-Dump

$

$

Currently unavailable

7

Homelite JA993679

BOLT- Rd. Hd. Sq. Neck (1/4-20 x 4 1/2")

$

$

Currently unavailable

8

Homelite JA453013

WASHER (7/16")
(Superseded to 84047)

$

$

Not available

9

Homelite JA993681

SPRING- Compression

$

$

Currently unavailable

10

Homelite JA453009

WASHER- Flat (5/16")
(Superseded to UP07173)

$

$

Not available

11

Homelite JA994573

SPRING (Filter)

$

$

Currently unavailable

12

Homelite JA443106

NUT- Hex (5/16-18)
(Superseded to 81018)

$

$

Not available

13

Homelite JA994574

WASHER (Filter)

$

$

Currently unavailable

14

Homelite JA408865

SCREW- (1/4-20 x 9/16")

$

$

Currently unavailable

15

Homelite JA994472

FRAME

$

$

Currently unavailable

16

Homelite JA994310

CLAMP

$

$

Currently unavailable

17

Homelite JA993216

KEY

$

$

Currently unavailable

?18

Homelite JA993676

SCREW (m8 x 1 1/4 x 120mm)

$

$

Currently unavailable

19

Homelite JA994577

SHAFT- Motor

$

$

Currently unavailable

20

Homelite JA994960

CHAIN- Restraining

$

$

Currently unavailable

21

Homelite JA445775

NUT- Hex C'lock
(Superseded to UP06674)

$

$

Not available

22

Homelite JA995039

NIPPLE- Pipe (3/8 x 2")

$

$

Currently unavailable

23

Homelite JA471704

ELBOW- (3/8")

$

$

Currently unavailable

24

Homelite JA994565

OVERHAUL- Seal kit

$

$

Currently unavailable

25

Homelite JA992646

FAN

$

$

Currently unavailable

26

Homelite JA992244

GUIDE- Front Belt

$

$

Currently unavailable

27

Homelite JA400192

SCREW- (5/16-18 x 1 3/4")

$

$

Currently unavailable

28

Homelite JA306968

KEY

$

$

Currently unavailable

29

Homelite JA994944

BELT- Traction

$

$

Currently unavailable

30

Homelite JA991071

PULLEY- Drive

$

$

Currently unavailable

31

Homelite JA990977

CLUTCH- Brake

$

$

Currently unavailable

32

Homelite JA400196

SCREW

$

$

Currently unavailable

33

Homelite JA994559

SEAL KIT

$

$

Currently unavailable

34

Homelite JA992834

PULLEY- Drive

$

$

Currently unavailable

35

Homelite JA993575

PLATE- Retainer

$

$

Currently unavailable

36

Homelite JA994561

CHECK VALVE KIT

$

$

Currently unavailable

37

Homelite JA994563

BYPASS VALVE KIT

$

$

Currently unavailable

38

Homelite JA990128

CLUTCH- Retainer

$

$

Currently unavailable

39

Homelite JA446148

WASHER- Lock (7/16")

$

$

Not available

40

Homelite JA400368

SCREW- (7/16-20 x 3)

$4.49

$

Usually ships in 3-7 days

0

41

Homelite JA400270

SCREW- (3/8-16 x 2)

$

$

Not available

42

Homelite JA339630

IDLER- Inside

$

$

Currently unavailable

43

Homelite JA453011

WASHER- Flat (3/8")
(Superseded to PS84010)

$

$

Not available

44

Homelite JA446142

WASHER- Lock (3/8")

$

$

Not available

45

Homelite JA443110

NUT- Hex (3/8-16)

$

$

Not available

46

Homelite JA328133

BUSHING

$

$

Currently unavailable

47

Homelite JA376088

SPRING- Extension

$

$

Not available

48

Homelite JA993254

LINK- Dump

$

$

Currently unavailable

49

Homelite JA994575

FILTER

$

$

Currently unavailable

50

Homelite JA446134

WASHER- Lock (5/16")
(Superseded to 653671)

$4.49

$

Usually ships in 3-7 days

0

51

Homelite JA994572

PLUG

$

$

Currently unavailable

52

Homelite JA453023

WASHER- Flat (1/4")
(Superseded to 678013001)

$1.99

$

Usually ships in 3-7 days

0

53

Homelite JA444708

NUT- Lock (1/4-20)

$

$

Currently unavailable

54

Homelite JA460014

PIN- Cotter (3/32-3/4")

$

$

Not available

55

Homelite JA994568

UNION ARM

$

$

Currently unavailable

56

Homelite JA315344

SPRING

$7.49

$

Usually ships in 3-7 days

0

57

Homelite JA994569

NAME PLATE

$

$

Currently unavailable

58

Homelite JA993286

CAP- Rear Hub

$

$

Currently unavailable

59

Homelite JA993157

REAR WHEEL ASSY.

$

$

Currently unavailable

60

Homelite JA993284

KEY- (1/4 x 2.50)

$

$

Currently unavailable

61

Homelite JA994338

BEARING ASSY.

Note: Incl. #46

$

$

Currently unavailable

62

Homelite JA460048

PIN

$4.49

$

Usually ships in 3-7 days

0

63

Homelite JA458039

RING- Snap

$

$

Not available

64

Homelite JA453017

WASHER- Flat (1/2")

$

$

Not available

65

Homelite JA400202

SCREW- (5/16 x 3")

$

$

Not available

66

Homelite JA400268

SCREW- (3/8-16 x 1 3/4")
(Superseded to UP07178)

$

$

Not available

67

Homelite JA336222

PULLEY

$

$

Currently unavailable

68

Homelite JA993295

REINFORCEMENT

$

$

Currently unavailable

69

Homelite JA446136

WASHER- Lock (5/16")
(Superseded to UP03791)

$

$

Not available

70

Homelite JA993217

ARM & LUG

$

$

Currently unavailable

71

Homelite JA993257

BRACKET- Rotation Control

$

$

Currently unavailable

72

Homelite JA408870

SCREW- (5/16-18 x .88)

$2.49

$

Usually ships in 3-7 days

0

73

Homelite JA432005

SCREW- Set (1/4-20 x 1/2")

$3.49

$

Usually ships in 3-7 days

0

74

Homelite JA452006

WASHER- Flat (5/16")

$

$

Currently unavailable

75

Homelite JA993072

ROD

$

$

Currently unavailable

76

Homelite JA994333

PIVOT- Bracket & Arm

$

$

Not available

77

Homelite JA400188

HEX BOLT- (5/16-18 x 1")
(Superseded to 80085)

$2.49

$

Usually ships in 3-7 days

0

78

Homelite JA400108

SCREW- (1/4-20 x 3/4")
(Superseded to 80052)

$

$

Not available

79

Homelite JA400184

SCREW- (5/16-18 x 3/4")
(Superseded to UP03381)

$

$

Not available

80

Homelite JA993161

CONNECTOR

$

$

Currently unavailable

81

Homelite JA993171

SLEEVE

$

$

Currently unavailable

82

Homelite JA993677

SCREW- (m6 x 1 x 12mm)

$4.99

$

Usually ships in 3-7 days

0

83

Homelite 88120

SCREW- (m8 x 1.25 x 50mm)

$

$

Not available

84

Homelite JA993253

BRACKET- Pivot

$

$

Currently unavailable

85

Homelite JA400186

SCREW- (5/16-18 x 7/8")
(Superseded to UP07177)

$

$

Not available

86

Homelite JA406005

SCREW- (#10-24 x 5/8")

$5.49

$

Usually ships in 3-7 days

0

87

Homelite JA993567

GUIDE BELT

$

$

Currently unavailable

88

Homelite JA993676

SCREW- (m8 x 1 1/4 x 120mm)

$

$

Currently unavailable
