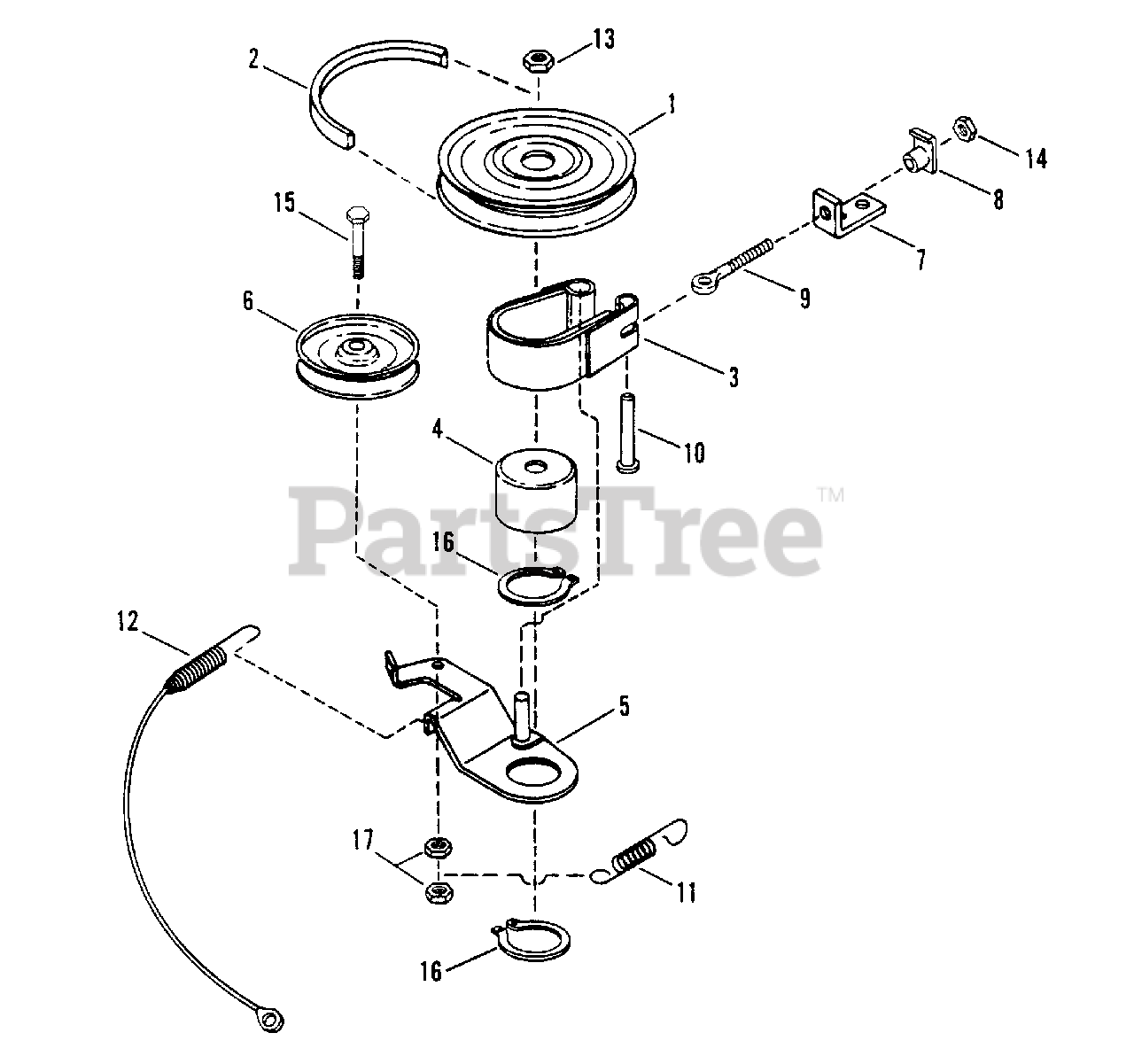

LT 140H422KV (80382) - Snapper 42" Lawn Tractor, 14hp Belt, Blade Brake Components (42" Deck) Parts Diagram

42" Lawn Tractor, 14hp

Belt, Blade Brake Components (42" Deck) Parts Diagram

  • Title

1

Snapper 7015724

PULLEY, Drive 5.75" OD

$

$

Not available

2

Snapper 7014799

BELT, Drive A101
(Superseded to 7014799YP)

$49.99

$

In Stock, only 1 left!

0

3

Snapper 7052886

ASSEMBLY, Brake Band
(Superseded to 7503086YP)

$35.99

$

In Stock, only 1 left!

0

4

Snapper 7032169

DRUM, Brake
(Superseded to 7035378YP)

$11.99

$

In Stock, only 2 left!

0

5

Snapper 7047912

ASSEMBLY, Brake Arm
(Superseded to 7047912YP)

$76.99

$

Usually ships in 2-12 days

0

6

Snapper 7018574

PULLEY, Flat Idler 4.12" OD
(Superseded to 7018574SM)

$38.99

$

In Stock, Qty 20+

0

7

Snapper 7032587

ANCHOR, Brake
(Superseded to 7032587YP)

$26.99

$

Usually ships in 2-12 days

0

8

Snapper 7014303

TEE-NUT, 1/4-20
(Superseded to 7014303YP)

$15.99

$

Usually ships in 2-12 days

0

9

Snapper 7014302

BOLT, 1/4-20 Eye
(Superseded to 7014302YP)

$4.99

$

In Stock, Qty 6

0

10

Snapper 7011021

PIN, 1/4 x 1 1/4" Clevis
(Superseded to 7023914YP)

$

$

Not available

11

Snapper 7029788

SPRING, Blade Brake
(Superseded to 7029788YP)

Note: Was 23172

$23.99

$

Usually ships in 2-12 days

0

12

Snapper 7026119

CABLE, Blade 30.44"
(Superseded to 7026119YP)

$12.99

$

Usually ships in 2-12 days

0

13

Snapper 7074467

NUT, 3/4-16 Hex Jam
(Superseded to 7074467SM)

Note: Was 10027

$4.49

$

In Stock, Qty 10

0

14

Snapper 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

Note: Was 90063

$3.49

$

In Stock, Qty 20+

0

15

Snapper 7090167

SCREW, 3/8-24 x 2" Hex Head Cap
(Superseded to 7090167SM)

$3.99

$

Usually ships in 2-12 days

0

16

Snapper 7010740

RING, 2" External Retaining
(Superseded to 7010740YP)

$5.49

$

In Stock, only 2 left!

0

17

Snapper 7090289

NUT, 3/8-24 Hex Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0
