LT 140H411KV (80237) - Snapper 41" Lawn Tractor, 14hp (1991) Transmission Support & Components I Parts Diagram

41" Lawn Tractor, 14hp

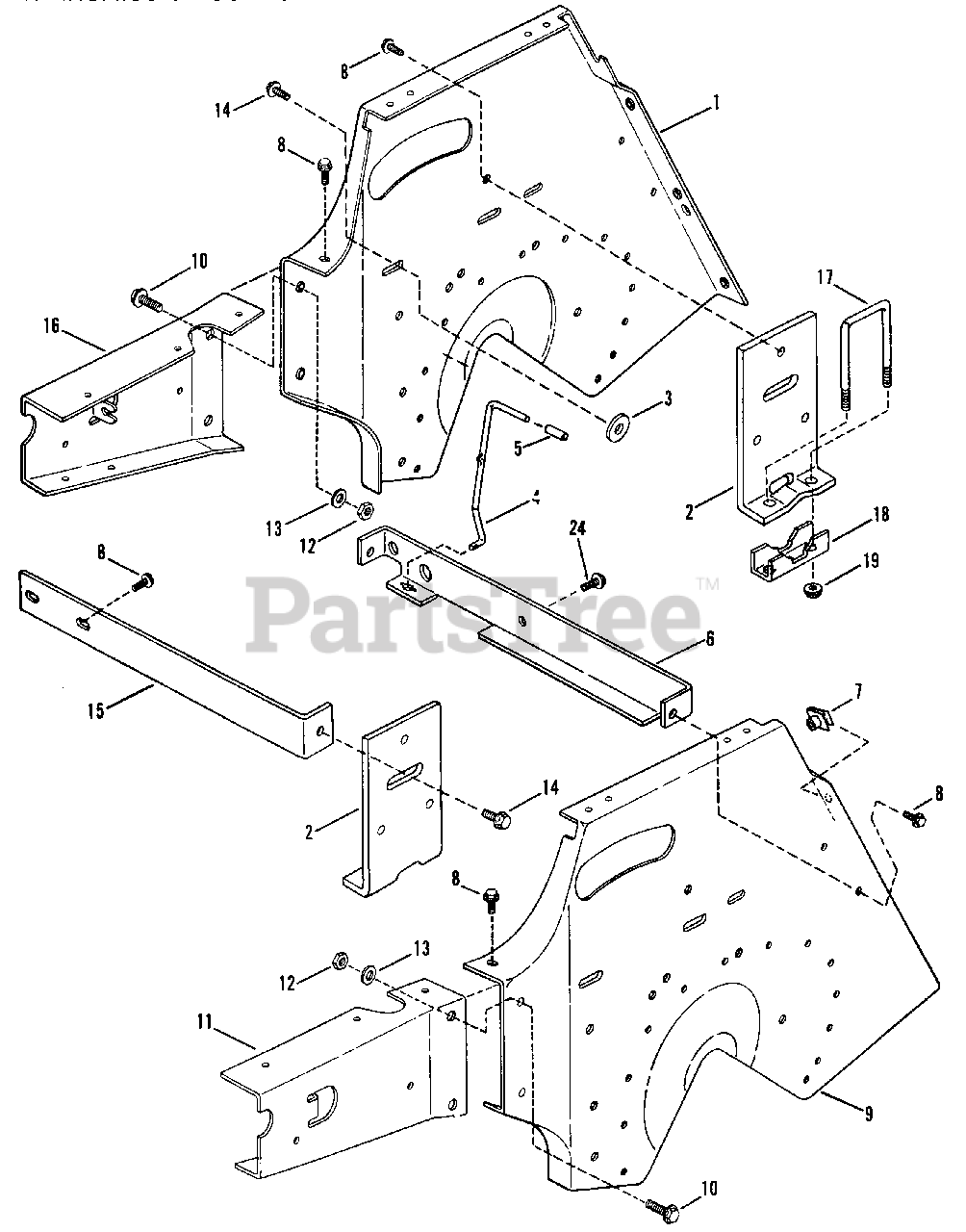

Transmission Support & Components I Parts Diagram

  • Title
1

Snapper 7033063

TRANSMISSION SUPPORT, R.H. (No longer available)

Note: Was 33063

$

$

Currently unavailable

2

Snapper 7033059

BRACKET, Transmission Mount (No longer available)

Note: Was 33059

$

$

Currently unavailable

3

Snapper 7016360

WASHER .406 x 1.38 x .25

$

$

Not available

4

Snapper 7017164

ROD, Release
(Superseded to 7017164YP)

$6.49

$

Usually ships in 2-12 days

0

5

Snapper 7023606

CAP, Release Rod
(Superseded to 7023606YP)

Note: Was 23525

$3.99

$

In Stock, only 2 left!

0

6

Snapper 7033061

BRACE, Torque
(Superseded to 7033061YP)

$41.99

$

Usually ships in 2-12 days

0

7

Snapper 7016116

NUT, 5/16 Push-On
(Superseded to 7016116YP)

$2.49

$

In Stock, Qty 10

0

8

Snapper 7090361

SCREW, 5/16-18 x 5/8" Self-Tapping
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

9

Snapper 7033062

TRANSMISSION SUPPORT, L.H. (No longer available)

Note: Was 33062

$

$

Currently unavailable

10

Snapper 7027198

BOLT, 3/8-16 x 1" Hex Flange Lock
(Superseded to 704038)

Note: Was 90582

$5.99

$

In Stock, only 2 left!

0

11

Snapper 7035179

EXTENSION, Transmission Support, L.H. (No longer available)

Note: Was 35179

$

$

Currently unavailable

12

Snapper 7091585

NUT, 3/8-16 Center Lock
(Superseded to 703347)

Note: Was 90546

$4.99

$

In Stock, only 2 left!

0

13

Snapper 7090122

WASHER, 3/8 SAE
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

14

Snapper 7091541

SCREW, 5/16-18 x 3/4" Self-Tapping
(Superseded to 703228)

Note: Was 90368

$4.49

$

In Stock, Qty 20+

0

15

Snapper 7033065

BRACE, Shift Bracket (No longer available)

Note: Was 33065

$

$

Currently unavailable

16

Snapper 7035180

EXTENSION, Transmission Support, R.H. (No longer available)

Note: Was 35180

$

$

Currently unavailable

17

Snapper 7022289

U-BOLT
(Superseded to 7022289YP)

$7.49

$

Usually ships in 2-12 days

0

18

Snapper 7033320

SADDLE, U-Bolt
(Superseded to 7033320YP)

$21.99

$

Usually ships in 2-12 days

0

19

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

24

Snapper 7091000

SCREW, 5/16-18 X 7/8" Torx Self-Tap
(Superseded to 1960086SM)

$4.99

$

In Stock, only 2 left!

0
