LT 140H38BBV (80643) - Snapper 38" Lawn Tractor, 14hp Frame, Clutch, Brake & Steering Components Parts Diagram

38" Lawn Tractor, 14hp

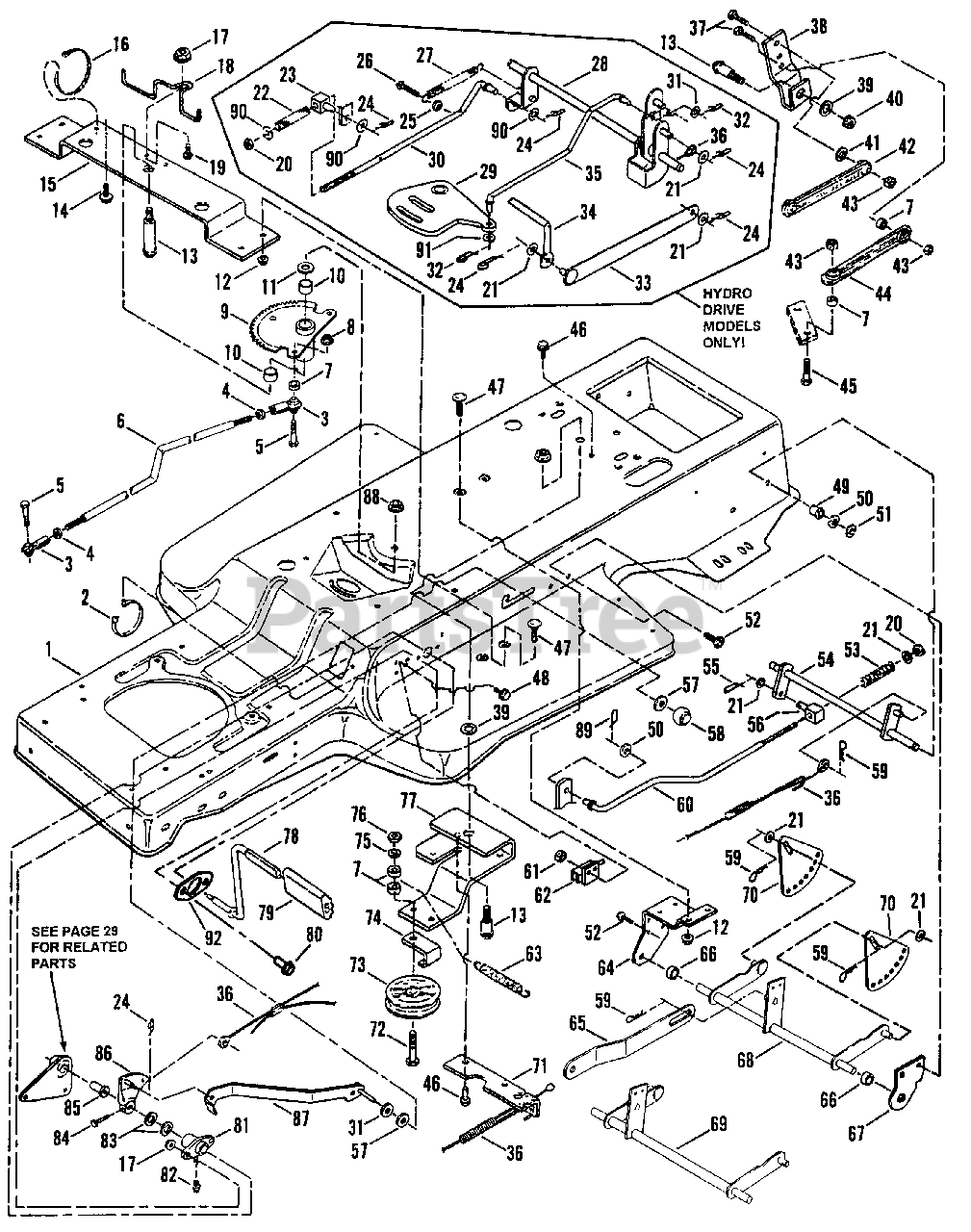

Frame, Clutch, Brake & Steering Components Parts Diagram

  • Title

1

Snapper 7034705

FRAME, Tractor

$

$

Currently unavailable

2

Snapper 7014451

TIE, Wire
(Superseded to 7014451YP)

$3.49

$

Usually ships in 2-12 days

0

3

Snapper 7027936

BALL JOINT, 3/8-24
(Superseded to 7027936SM)

$17.99

$

In Stock, only 4 left!

0

4

Snapper 7090482

NUT, 3/8-24 Hex Jam
(Superseded to 7090482SM)

$4.49

$

In Stock, only 1 left!

0

5

Snapper 7090163

SCREW, 3/8-24 x 1-1/4" Hex Head Cap

$

$

Not available

6

Snapper 7028420

LINK, Drag

$

$

Not available

7

Snapper 7024180

SPACER
(Superseded to 7024180YP)

$7.49

$

Usually ships in 2-12 days

0

8

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

9

Snapper 7053568

ASSEMBLY, Sector Gear

Note: (Includes item 10)

$

$

Not available

10

Snapper 7012706

BEARING, Sector Gear
(Superseded to 7012706SM)

$10.99

$

In Stock, only 4 left!

0

11

Snapper 7031036

WASHER, 3/4 Thrust
(Superseded to 7031036YP)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, Qty 9

0

13

Snapper 7022381

BOLT, 1/2-13 x 2" Hex Flng. Lk.
(Superseded to 7035849YP)

$59.99

$

Usually ships in 2-12 days

0

14

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

$3.49

$

In Stock, Qty 11

0

15

Snapper 7033627

BRACE, Sector Gear
(Superseded to 7033627YP)

$45.99

$

Usually ships in 2-12 days

0

16

Snapper 7012080

TIE, Cable
(Superseded to 7012080SM)

$4.99

$

Usually ships in 2-12 days

0

17

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

18

Snapper 7028314

GUIDE, Drive Belt
(Superseded to 7028314YP)

$7.49

$

Usually ships in 2-12 days

0

19

Snapper 7090595

BOLT, 5/16-18 x 3/4" Hex Flng. Lk.
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

20

Snapper 7091299

NUT, 3/8-16 Hex Nyloc
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

21

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

22

Snapper 7028091

SPRING, Brake
(Superseded to 7028091YP)

$3.49

$

Usually ships in 2-12 days

0

23

Snapper 7028037

SWIVEL, Inline Brake
(Superseded to 7028037SM)

$75.99

$

In Stock, only 1 left!

0

24

Snapper 7091593

PIN, 3/64 x 1-7/32" Cotter (Self-Lkg.)
(Superseded to 703355)

$3.99

$

In Stock, Qty 14

0

25

Snapper 7091575

NUT, 5/16-18 Hex Center Lock
(Superseded to 703164)

Note: Was 90184

$3.49

$

In Stock, Qty 20+

0

26

Snapper 7091524

SCREW, 5/16-18 x 1-1/4" Self-Tapp.
(Superseded to 703167)

Note: Was 91151

$3.99

$

In Stock, Qty 7

0

27

Snapper 7012264

SPRING
(Superseded to 7012264YP)

$6.99

$

In Stock, Qty 17

0

28

Snapper 7041589

WELDMENT, Brake Arm
(Superseded to 7041589YP)

$150.99

$

Usually ships in 2-12 days

0

28

Snapper 7041703

WELDMENT, Brake Arm
(Superseded to 7041703YP)

Note: 1996 - LT140H33BBV & ELT140H33BBV

$182.99

$

Usually ships in 2-12 days

0

29

Snapper 7041612

ARM, Transmission Speed Control

$

$

Not available

30

Snapper 7028034

ROD, Brake
(Superseded to 7028034YP)

$14.99

$

In Stock, only 1 left!

0

31

Snapper 7090188

WASHER, 5/16 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

32

Snapper 7034162

PIN, 5/16 Cotter, Self-locking
(Superseded to 704030)

$4.49

$

In Stock, only 2 left!

0

33

Snapper 7041590

LINK, Shift
(Superseded to 7041590YP)

$39.99

$

Usually ships in 2-12 days

0

34

Snapper 7052920

ASSEMBLY, Shift Lever (Lower)
(Superseded to 7052920YP)

$23.99

$

Usually ships in 2-12 days

0

35

Snapper 7034159

LINK, Speed

$

$

Not available

35

Snapper 7034704

LINK, Speed
(Superseded to 7034704YP)

Note: 1996 - LT140H33BBV & ELT140H33BBV

$13.99

$

Usually ships in 2-12 days

0

36

Snapper 7024115

ASSEMBLY, Clutch/Brake Cable
(Superseded to 7024115YP)

$39.99

$

Usually ships in 2-12 days

0

37

Snapper 7091328

SCREW, 3/8-16 x 1 1/4" H. H. C.
(Superseded to 703871)

Note: Was 90143

$4.99

$

Usually ships in 2-12 days

0

38

Snapper 7033555

BELLCRANK, Shift Lever
(Superseded to 7033555YP)

$58.99

$

Usually ships in 2-12 days

0

39

Snapper 7090509

WASHER, 1/2 Internal Tooth Lk.
(Superseded to 7090509YP)

$4.49

$

In Stock, Qty 10

0

40

Snapper 7090619

NUT, 1/2-13 Hex Flange Lock
(Superseded to 703918)

$3.49

$

Usually ships in 2-12 days

0

41

Snapper 7090118

WASHER, 3/8 Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

42

Snapper 7024286

LINK, Shift Lever
(Superseded to 7024286YP)

$22.99

$

Usually ships in 2-12 days

0

43

Snapper 7091585

NUT, 3/8-16 Hex Center Lock
(Superseded to 703347)

$4.99

$

In Stock, only 4 left!

0

44

Snapper 7025041

LINK, Shift Lever (Twisted)
(Superseded to 7025041YP)

$26.99

$

Usually ships in 2-12 days

0

45

Snapper 7091497

SCREW, 3/8-16 x 1 1/2" H. H. C.
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

46

Snapper 7090361

SCREW, 5/16-18 x 5/8" Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

47

Snapper 7090803

BOLT, 1/4-20 x 5/8" Carriage
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

48

Snapper 7091240

SCREW, #10-32 x 5/8" H. W. H.
(Superseded to 7091240YP)

$4.99

$

In Stock, only 1 left!

0

49

Snapper 7011016

BEARING, Nylon
(Superseded to 7011016YP)

$4.49

$

In Stock, Qty 7

0

50

Snapper 7091587

WASHER, 1/2 Flat
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

51

Snapper 7014341

RING, 1/2" External Retaining
(Superseded to 703976)

$4.49

$

In Stock, Qty 10

0

52

Snapper 7091001

SCREW, 5/16-18 x 5/8" Truss Head (Torx)
(Superseded to 1960086SM)

$4.99

$

In Stock, only 2 left!

0

53

Snapper 7024381

SPRING, Brake
(Superseded to 7024381YP)

$3.99

$

Usually ships in 2-12 days

0

54

Snapper 7041347

WELDMENT, Brake Pivot
(Superseded to 7041347YP)

$71.99

$

Usually ships in 2-12 days

0

55

Snapper 7091594

COTTER-PIN, 1/16" x 1.42" Self-Locking
(Superseded to 7091594SM)

Note: Was 24874

$2.99

$

In Stock, only 3 left!

0

56

Snapper 7024586

SWIVEL, Brake Link
(Superseded to 7024586YP)

$4.99

$

Usually ships in 2-12 days

0

57

Snapper 7023649

WASHER, 5/16 Nylon
(Superseded to 7023649YP)

$4.49

$

In Stock, only 2 left!

0

58

Snapper 7072403

KNOB, Push/Pull
(Superseded to 7072403YP)

Note: Was 28362

$8.49

$

In Stock, only 1 left!

0

59

Snapper 7091503

PIN, 3/32 x 1-1/2" Hair
(Superseded to 7091503SM)

Note: Was 15067

$3.99

$

In Stock, Qty 20+

0

60

Snapper 7024430

ROD, Brake
(Superseded to 7024430YP)

$10.99

$

Usually ships in 2-12 days

0

61

Snapper 7090376

NUT, #10-32 Hex Nyloc
(Superseded to 703937)

$3.49

$

Usually ships in 2-12 days

0

62

Snapper 7023355

SWITCH
(Superseded to 7023355YP)

$17.99

$

In Stock, Qty 20+

0

63

Snapper 7024383

SPRING
(Superseded to 7024383YP)

$9.99

$

Usually ships in 2-12 days

0

64

Snapper 7033521

BRACKET, Rear Lift/PTO Lever
(Superseded to 7033521YP)

$22.99

$

Usually ships in 2-12 days

0

65

Snapper 7034850

LINK, Lift
(Superseded to 7034850YP)

$17.99

$

Usually ships in 2-12 days

0

65

Snapper 7034347

LINK, Lift

$

$

Not available

65

Snapper 7034386

LINK, Lift
(Superseded to 7034386YP)

Note: (Model: LT120G30BB)

$41.99

$

Usually ships in 2-12 days

0

66

Snapper 7034384

SPACER

$

$

Not available

67

Snapper 7033520

BRACKET, Deck Hang Pivot
(Superseded to 7033520YP)

$5.49

$

Usually ships in 2-12 days

0

68

Snapper 7041256

WELDMENT, Rear Lift
(Superseded to 7041256YP)

Note: (Models: LT140H38BBV, LT150H38BBV, & LT155H42BBV)

$176.99

$

Usually ships in 2-12 days

0

69

Snapper 7041249

WELDMENT, Rear Lift

Note: (Models: LT120G30BB, LT125G33BB, ELT125G33BB, ELT140H33BBV, & LT140H33BBV)

$

$

Not available

70

Snapper 7034377

PLATE, Lift Sector
(Superseded to 7034377YP)

$16.99

$

Usually ships in 2-12 days

0

71

Snapper 7033595

EXTENSION, Idler Arm

$

$

Not available

72

Snapper 7091560

SCREW, 3/8-16 x 2-1/4" Hex Head Cap
(Superseded to 703872)

$4.99

$

In Stock, Qty 20+

0

73

Snapper 7023954

PULLEY
(Superseded to 7023954YP)

$

$

Not available

74

Snapper 7033556

GUIDE, Pulley
(Superseded to 7033556YP)

$9.99

$

Usually ships in 2-12 days

0

75

Snapper 7091320

WASHER, 3/8 Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

76

Snapper 7091302

NUT, 3/8-16 Hex
(Superseded to 7091302SM)

$4.49

$

Usually ships in 2-12 days

0

77

Snapper 7033557

ARM, Idler (Traction Drive)

$

$

Not available

78

Snapper 7022743

PEDAL, Park Brake
(Superseded to 7022743YP)

$30.99

$

Usually ships in 2-12 days

0

79

Snapper 7012661

PAD, Pedal
(Superseded to 7012661YP)

$

$

Not available

80

Snapper 7091000

SCREW, 3/8-16 x 7/8" Truss Head (Torx)
(Superseded to 1960086SM)

$4.99

$

In Stock, only 2 left!

0

81

Snapper 7052431

ASSEMBLY, Foot Shaft Pivot

Note: (Includes item 82)

$

$

Not available

82

Snapper 7014871

FITTING, Lube
(Superseded to 7014871SM)

$4.49

$

In Stock, only 4 left!

0

83

Snapper 7027344

WASHER, 5/8 Flat
(Superseded to 7027344SM)

Note: Was 15992

$3.99

$

Usually ships in 2-12 days

0

84

Snapper 7023645

PIN, 3/16 x 1 1/2" Clevis
(Superseded to 7023645SM)

$3.49

$

Usually ships in 2-12 days

0

85

Snapper 7022742

BEARING, Flange
(Superseded to 7022742YP)

$21.99

$

Usually ships in 2-12 days

0

86

Snapper 7041236

ASSEMBLY, Clutch Brake Arm
(Superseded to 7041236YP)

$43.99

$

Usually ships in 2-12 days

0

87

Snapper 7041244

LATCH, Park Brake
(Superseded to 7041244YP)

$26.99

$

Usually ships in 2-12 days

0

88

Snapper 7090975

NUT, 1/2-13 Hex Center Lock
(Superseded to 703894)

$3.49

$

In Stock, Qty 9

0

89

Snapper 7091594

PIN, 1/16 x 1 27/64 Cotter (Self-Locking)
(Superseded to 7091594SM)

$2.99

$

In Stock, only 3 left!

0

90

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

Note: Was 91514

$3.99

$

In Stock, Qty 20+

0

91

Snapper 7090188

WASHER, 11/32" Flat Grade 5
(Superseded to 703350)

Note: Was 91296

$4.49

$

In Stock, only 2 left!

0

92

Snapper 7063052

WASHER, Pivot-Stiffener
(Superseded to 7063052YP)

Note: Was 46778

$20.99

$

Usually ships in 2-12 days

0
