LT 140H38BBV (80643) - Snapper 38" Lawn Tractor, 14hp 38" Cutting Deck, Belts, Brakes Parts Diagram

38" Lawn Tractor, 14hp

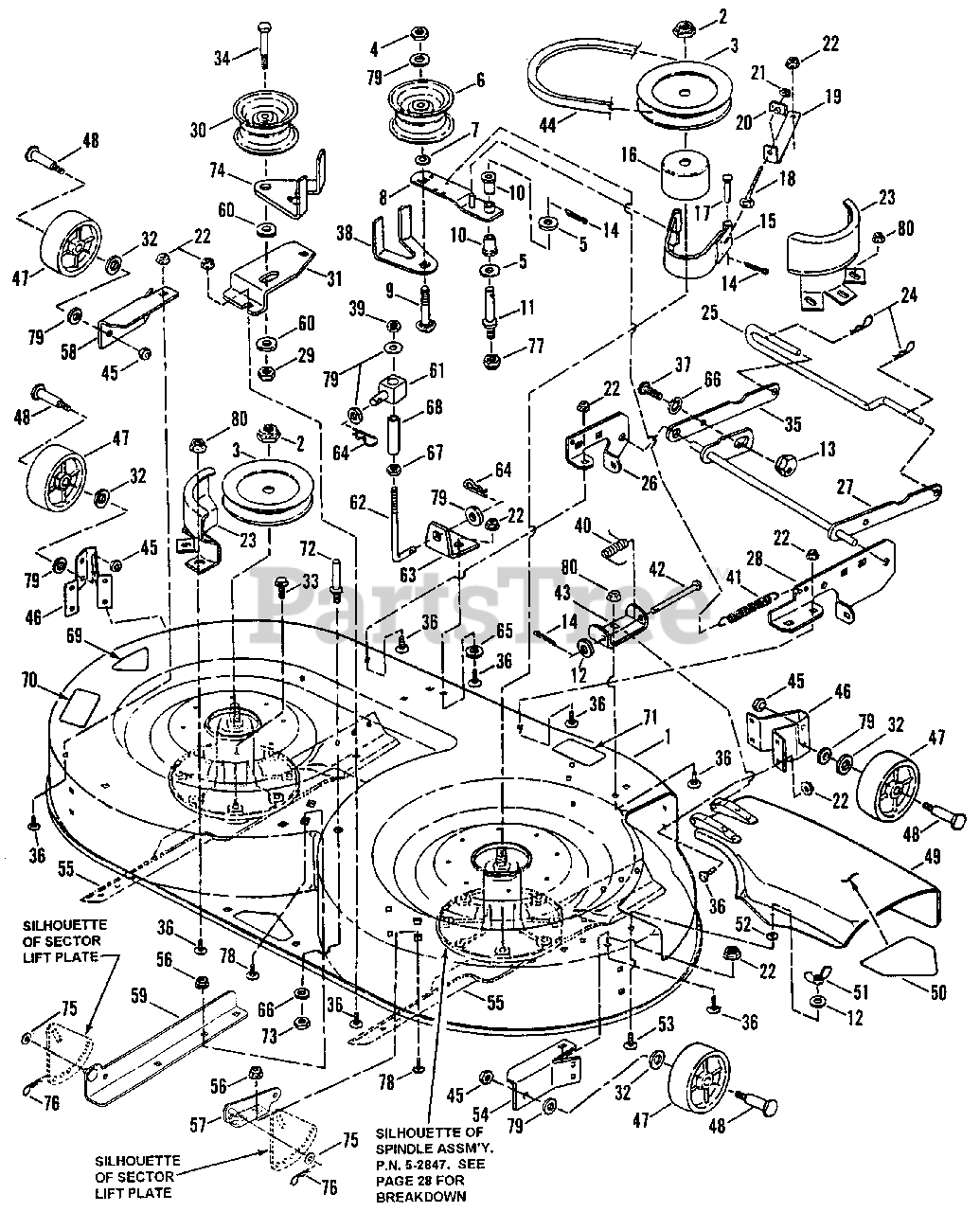

38" Cutting Deck, Belts, Brakes Parts Diagram

  • Title

1

Snapper 7053732

ASSEMBLY, Deck, 38" Cutting

Note: Was 53691 (Includes items 70 & 71)

$

$

Currently unavailable

2

Snapper 7091006

NUT, 5/8-16 Hex Nyloc
(Superseded to 7091006SM)

$4.49

$

Usually ships in 2-12 days

0

3

Snapper 7027792

PULLEY, Spindle
(Superseded to 1732354SM)

$30.99

$

In Stock, only 1 left!

0

4

Snapper 7091299

NUT, 3/8-16 Hex Nyloc
(Superseded to 703117)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

5

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

6

Snapper 7024725

PULLEY, Idler
(Superseded to 7024725YP)

$37.99

$

Usually ships in 2-12 days

0

7

Snapper 7013847

RETAINER, 3/8 Bolt
(Superseded to 703986)

$4.49

$

Usually ships in 2-12 days

0

8

Snapper 7041392

ARM, Idler Pulley
(Superseded to 7041392YP)

$59.99

$

Usually ships in 2-12 days

0

9

Snapper 7092000

BOLT, 3/8-16 x 2-3/4" Short Neck Carriage, Grade 5
(Superseded to 7092000SM)

Note: Was 90738

$4.49

$

Usually ships in 2-12 days

0

10

Snapper 7012306

BUSHING, Flange
(Superseded to 703973)

$5.99

$

In Stock, Qty 13

0

11

Snapper 7026618

STUD, Idler
(Superseded to 7026618YP)

$

$

Not available

12

Snapper 7090188

WASHER, Flat
(Superseded to 703350)

Note: Was 91296

$4.49

$

In Stock, only 3 left!

0

13

Snapper 7015447

ECCENTRIC, Leveling
(Superseded to 7015447YP)

$22.99

$

Usually ships in 2-12 days

0

14

Snapper 7091597

COTTER-PIN, 3/32 x 3/4"
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

15

Snapper 7052886

ASSEMBLY, Brake Band
(Superseded to 7503086YP)

$35.99

$

In Stock, only 1 left!

0

16

Snapper 7033816

DRUM, Brake
(Superseded to 7033816YP)

$21.99

$

Usually ships in 2-12 days

0

17

Snapper 7014304

PIN, 1/4 x 1 5/8" Clevis
(Superseded to 7014304YP)

$4.49

$

Usually ships in 2-12 days

0

18

Snapper 7014302

BOLT, 1/4-20 Eye
(Superseded to 7014302YP)

$4.99

$

In Stock, Qty 6

0

19

Snapper 7033825

ANCHOR, Blade Brake
(Superseded to 7033825YP)

$21.99

$

Usually ships in 2-12 days

0

20

Snapper 7024908

NUT, 1/4-20 "T" Lock

$

$

Not available

21

Snapper 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

Note: Was 90063

$3.49

$

In Stock, Qty 20+

0

22

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

23

Snapper 7024801

GUARD, Belt
(Superseded to 7024801YP)

$27.99

$

Usually ships in 2-12 days

0

24

Snapper 7091596

PIN, Hair
(Superseded to 7091596YP)

$4.49

$

Usually ships in 2-12 days

0

25

Snapper 7027471

PIN, Deck Hanger

$

$

Not available

26

Snapper 7035577

BRACKET, Front Lift Arm (Left Side)
(Superseded to 7035577YP)

Note: Was 26757

$11.99

$

Usually ships in 2-12 days

0

27

Snapper 7041371

LIFT, Front Arm
(Superseded to 7041371YP)

$110.99

$

Usually ships in 2-12 days

0

28

Snapper 7028365

BRACKET, Front Lift Arm (Right Side)
(Superseded to 7028365YP)

$27.99

$

In Stock, only 1 left!

0

29

Snapper 7091325

NUT, 1/2-13 Hex Nyloc
(Superseded to 7091325YP)

$4.99

$

In Stock, only 1 left!

0

30

Snapper 7026310

PULLEY, Idler
(Superseded to 7026310YP)

$59.99

$

In Stock, only 1 left!

0

31

Snapper 7033728

BRACKET, idler
(Superseded to 7033728YP)

$17.99

$

Usually ships in 2-12 days

0

32

Snapper 7091587

WASHER, 1/2 Flat
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

33

Snapper 7090815

SCREW, 3/8-16 x 3/4" Self- Tapping
(Superseded to 703950)

$5.49

$

In Stock, only 1 left!

0

34

Snapper 7091558

BOLT, 1/2-13 x 3-1/2" Hx. Hd. Cap
(Superseded to 7091558SM)

$4.99

$

In Stock, only 1 left!

0

35

Snapper 7035603

ARM, Front Lift

Note: Was 33751

$

$

Not available

36

Snapper 7090799

BOLT, 5/16-18 x 5/8" Short Neck Carriage
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

37

Snapper 7090163

SCREW, 3/8-24 x 1-1/4" Hex Head Cap, Grade 2

$

$

Not available

38

Snapper 7033929

GUIDE, Belt
(Superseded to 7033929YP)

$13.99

$

Usually ships in 2-12 days

0

39

Snapper 7091585

NUT, 3/8-16 Hex Center Lock
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

40

Snapper 7026158

SPRING, Chute Deflector Hinge
(Superseded to 7026158YP)

$7.99

$

Usually ships in 2-12 days

0

41

Snapper 7026173

SPRING, Blade Brake
(Superseded to 7026173YP)

$

$

Not available

42

Snapper 7026161

PIN, 5/16 x 3 3/16" Clevis
(Superseded to 7026161YP)

$6.49

$

Usually ships in 2-12 days

0

43

Snapper 7026750

HINGE, Chute Deflector
(Superseded to 7026750YP)

$11.99

$

Usually ships in 2-12 days

0

44

Snapper 7029641

BELT, Drive, 38" Cutting Deck
(Superseded to 7029641YP)

Note: Was 25042

$65.99

$

In Stock, only 1 left!

0

45

Snapper 7090289

NUT, 3/8-24 Hex Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

46

Snapper 7033756

BRACKET, Gage Wheel, Front
(Superseded to 7033756SM)

$19.99

$

In Stock, only 1 left!

0

47

Snapper 7026122

WHEEL, Gage
(Superseded to 7026122SM)

$10.99

$

In Stock, only 2 left!

0

48

Snapper 7091526

BOLT, 3/8-24 Shoulder
(Superseded to 7091526SM)

$

$

Not available

49

Snapper 7053227

ASSEMBLY, Chute Deflector
(Superseded to 7053227YP)

Note: Was 53226 (Includes 12 & 14, 40, 42, 43, & 50)

$282.99

$

Usually ships in 2-12 days

0

50

Snapper 7013010

DECAL, Danger
(Superseded to 7013010SM)

Note: Was 26831

$9.49

$

In Stock, Qty 11

0

51

Snapper 7091537

NUT, 5/16-18 Wing
(Superseded to 7091537YP)

Note: Was 90492

$4.49

$

In Stock, only 3 left!

0

52

Snapper 7011791

RETAINER, 5/16 Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

53

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage, Grade 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

54

Snapper 7033890

BRACKET, Wheel (Right Side)
(Superseded to 7033890YP)

$23.99

$

In Stock, only 1 left!

0

55

Snapper 7042998

BLADE, 19-1/2"
(Superseded to 7042998BZYP)

Note: Was 24466

$27.99

$

In Stock, Qty 20+

0

56

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

57

Snapper 7041259

BRACKET, Rear Deck Lift (Right Side)

$

$

Not available

58

Snapper 7033891

BRACKET, Wheel (Left Side)
(Superseded to 7033891YP)

$21.99

$

Usually ships in 2-12 days

0

59

Snapper 7041257

BRACKET, Rear Deck Lift (Left Side)

$

$

Not available

60

Snapper 7091152

WASHER, .406 I.D. x 1.50 O.D. x .20
(Superseded to 7091152YP)

$3.99

$

In Stock, only 2 left!

0

61

Snapper 7026648

SWIVEL, Lift
(Superseded to 7026648YP)

$36.99

$

Usually ships in 2-12 days

0

62

Snapper 7029718

BOLT, "J"

$16.99

$

Usually ships in 2-12 days

0

63

Snapper 7026634

BRACKET, Angle (Front)

$

$

Not available

64

Snapper 7091310

PIN, Hair
(Superseded to 703430)

$3.49

$

In Stock, only 2 left!

0

65

Snapper 7090500

WASHER, 7/16 Flat

$2.99

$

In Stock, Qty 7

0

66

Snapper 7090390

WASHER, 3/8 Internal Tooth Lk.
(Superseded to 703930)

$4.49

$

In Stock, only 1 left!

0

67

Snapper 7091302

NUT, 3/8-16 Hex, Grade 5
(Superseded to 7091302SM)

$4.49

$

Usually ships in 2-12 days

0

68

Snapper 7026649

SPACER, Lift

$

$

Not available

69

Snapper 7026154

DECAL, 38"
(Superseded to 7026154SM)

$6.49

$

Usually ships in 2-12 days

0

70

Snapper 7014852

DECAL - CAUTION (Rotating Blades)
(Superseded to 7101665YP)

Note: Was 16973

$14.99

$

In Stock, Qty 5

0

71

Snapper 7014852

DECAL - CAUTION
(Superseded to 7101665YP)

$14.99

$

In Stock, Qty 5

0

72

Snapper 7012125

STOP, Deck
(Superseded to 703837)

Note: Was 14583

$8.49

$

In Stock, only 1 left!

0

73

Snapper 7091630

NUT, 3/8-24 Hex
(Superseded to 703895)

Note: Was 90155

$4.49

$

In Stock, only 1 left!

0

74

Snapper 7034045

GUIDE, Belt
(Superseded to 7034045YP)

$10.99

$

Usually ships in 2-12 days

0

75

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

Note: Was 91514

$3.99

$

In Stock, Qty 20+

0

76

Snapper 7091503

PIN, Hair, .093 x 1.50"
(Superseded to 7091503SM)

$3.99

$

In Stock, Qty 20+

0

77

Snapper 7092062

NUT, 5/16-24 Hex Lock
(Superseded to 703459)

Note: Was 11201

$3.49

$

In Stock, Qty 20+

0

78

Snapper 7091547

BOLT, 3/8-16 x 3/4" Carriage
(Superseded to 703448)

Note: Was 90850

$4.49

$

In Stock, Qty 20+

0

79

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

Note: Was 91514

$3.99

$

In Stock, Qty 20+

0

80

Snapper 7091601

NUT, 5/16-18 Hex Lock, Gr. 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0
