LT 140H38ABV (80561) - Snapper 38" Lawn Tractor, 14hp Spindle Parts Diagram

38" Lawn Tractor, 14hp

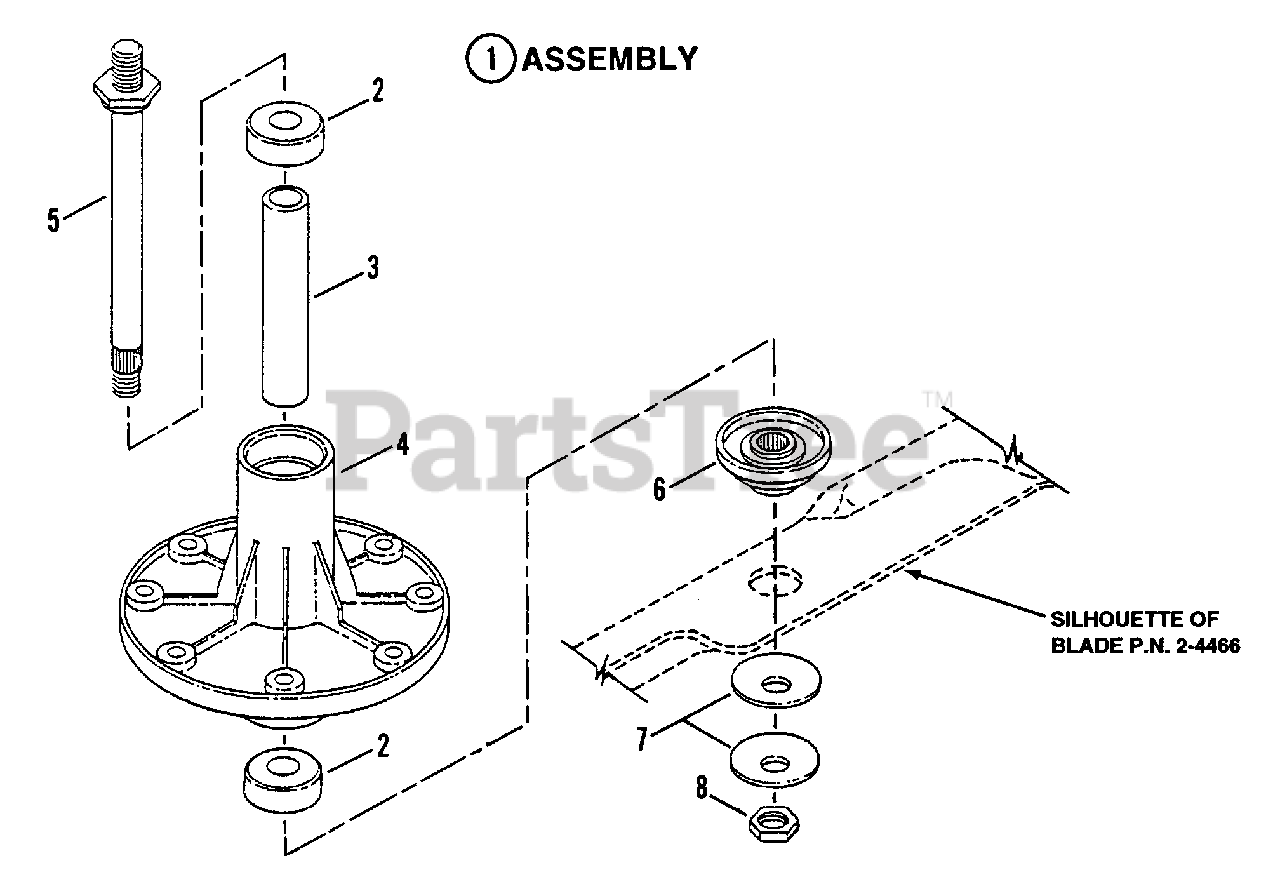

Spindle Parts Diagram

  • Title

1

Snapper 7054513

ASSEMBLY, Spindle Housing, 38" Cutting Deck
(Superseded to 7054513YP)

Note: Was 52847 (Includes 2 thru 8)

$427.99

$

Usually ships in 2-12 days

0

2

Snapper 7026808

BEARING, Spindle
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

3

Snapper 7024465

SPACER, Spindle Housing

$10.99

$

In Stock, only 2 left!

0

4

Snapper 7024461

HOUSING, Spindle
(Superseded to 7024461YP)

$92.99

$

In Stock, only 1 left!

0

5

Snapper 7026754

SPINDLE, (6.899")
(Superseded to 7026754YP)

Note: Was 24462

$

$

Not available

6

Snapper 7024463

SPACER, Blade
(Superseded to 7024463YP)

$19.99

$

In Stock, only 1 left!

0

7

Snapper 7024467

WASHER, Belleville, 19/32" I.D., 1 3/4" O.D.
(Superseded to 7024467SM)

$4.49

$

In Stock, Qty 20+

0

8

Snapper 7024468

NUT, 9/16-18 Hex Jam
(Superseded to 7091633SM)

$4.99

$

In Stock, Qty 20+

0
