LT 140H38ABV (80561) - Snapper 38" Lawn Tractor, 14hp Rear Fender & Components Parts Diagram

38" Lawn Tractor, 14hp

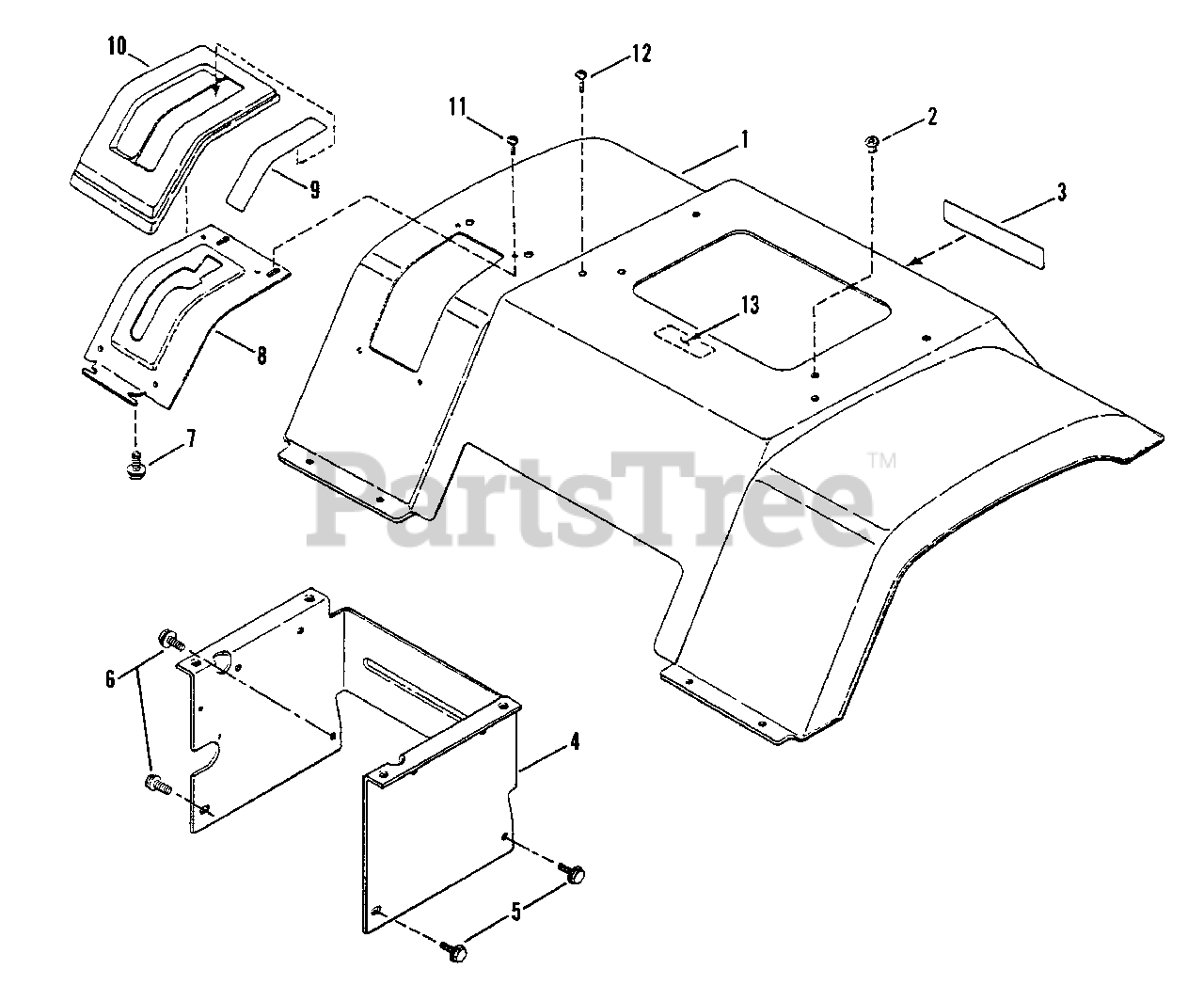

Rear Fender & Components Parts Diagram

  • Title

1

Snapper 7073346

PAN, Seat (Fender)
(Superseded to 7073346YP)

Note: Was 33314

$341.99

$

Usually ships in 2-12 days

0

2

Snapper 7023193

RIV-NUT, 5/16-18
(Superseded to 7023193YP)

$3.49

$

Usually ships in 2-12 days

0

3

Snapper 7022971

DECAL - SNAPPER, 7.28 Molded Logo

Note: (For 33" & 38" Models)

$

$

Not available

4

Snapper 7033312

SUPPORT, Fender

$

$

Not available

5

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Head, Self-Tapping
(Superseded to 703949)

Note: (Left Side Only!)

$3.99

$

In Stock, only 3 left!

0

6

Snapper 7091524

SCREW, 5/16-18 x 1 1/4" Hex Washer Head, Self-Tapping
(Superseded to 703167)

Note: Was 91151 (Right Side Only!)

$3.99

$

In Stock, only 3 left!

0

7

Snapper 7091105

SCREW, #10-16 x 1/2" Hex Washer Head, Self-Tapping
(Superseded to 7091105YP)

$5.49

$

In Stock, only 4 left!

0

8

Snapper 7033120

DETENT, Gear Shift

$

$

Not available

9

Snapper 7073424

DECAL, Shift Cover, 5-Speed

Note: Was 16576

$

$

Not available

10

Snapper 7024894

COVER, Shift
(Superseded to 7024894YP)

$5.99

$

Usually ships in 2-12 days

0

11

Snapper 7090999

SCREW, 1/4-20 x 5/8" Truss Head (Torx)
(Superseded to 7090999FS)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper 7091001

SCREW, 5/16-18 x 5/8" Truss Head (Torx)
(Superseded to 1960086SM)

$4.99

$

In Stock, only 2 left!

0

13

Snapper 7026415

DECAL - CAUTION, Battery Location
(Superseded to 7026415YP)

$7.49

$

Usually ships in 2-12 days

0
