LT 140H38ABV (80561) - Snapper 38" Lawn Tractor, 14hp Engine Components Parts Diagram

38" Lawn Tractor, 14hp

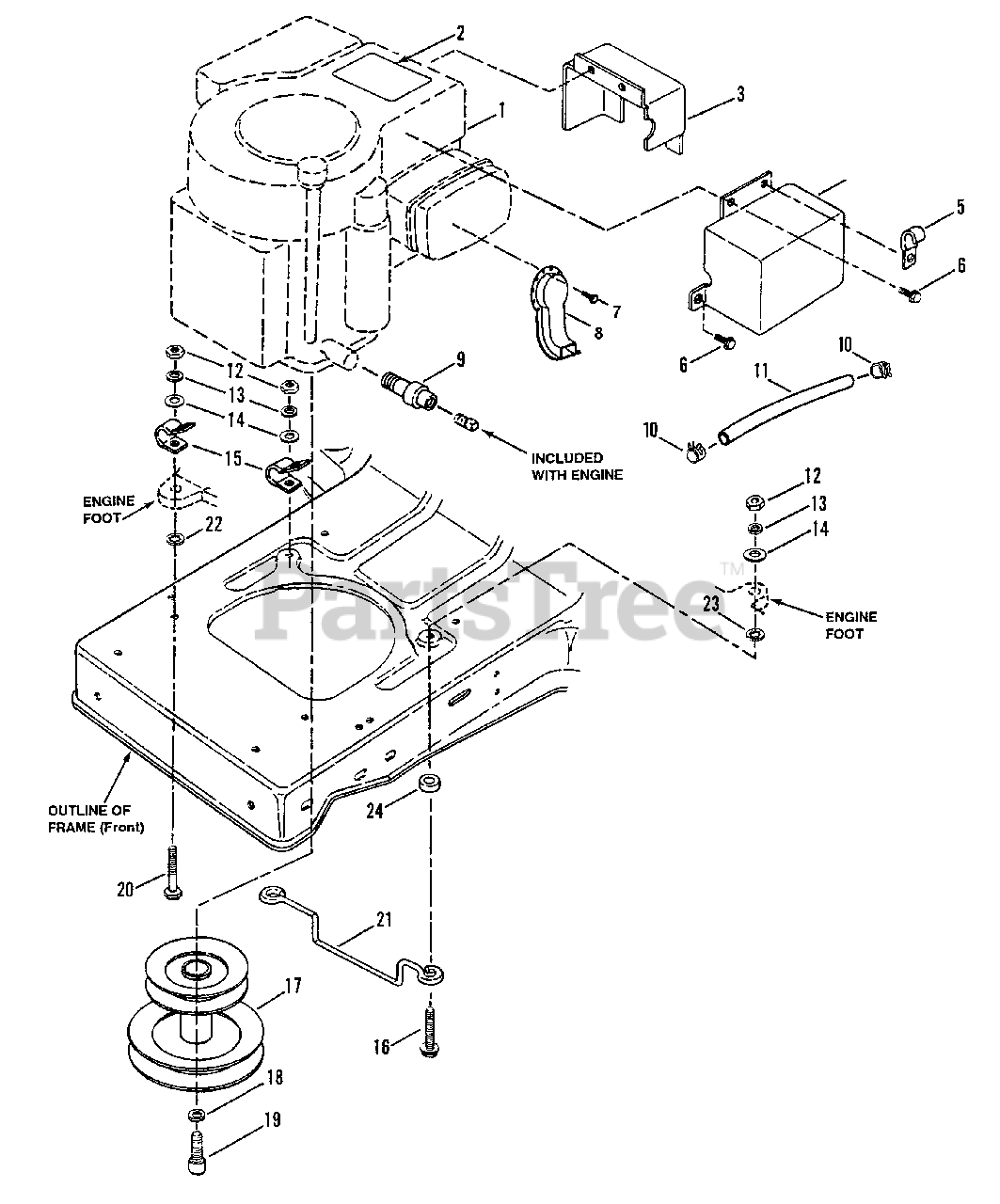

Engine Components Parts Diagram

  • Title

1

* ENGINE, B. & S., 14 HP OHV (B&S # 287707-0228-01)

Note: (For 38" Model)

$

$

Not available

* ENGINE, B. 8 S., 14 HP OHV (B&S # 287707-0229-01)

Note: (For 33" Model)

$

$

Not available

2

Snapper 7027390

DECAL, 14HP Brigg's & Stratton

$

$

Currently unavailable

3

Snapper 7041497

HEAT SHIELD, Valve Cover

Note: (For '93 Models & Earlier)

$

$

Currently unavailable

4

Snapper 7041506

HEAT SHIELD, Muffler
(Superseded to 7041506YP)

$96.99

$

Usually ships in 2-12 days

0

5

Snapper 7026482

CLIP, "J" Type
(Superseded to 7026482YP)

$3.49

$

In Stock, only 1 left!

0

6

Snapper 7090584

BOLT, 1/4-20 x 1/2' Hex Flange Lock
(Superseded to 7090584YP)

$3.99

$

Usually ships in 2-12 days

0

7

Snapper 7091581

SCREW, #8-18 x 1/2' Hex Hd., Self-Tap.
(Superseded to 7091581YP)

Note: Was 90525

$3.49

$

Usually ships in 2-12 days

0

8

Snapper 7041537

EXTENSION, Muffler
(Superseded to 7041537YP)

$85.99

$

Usually ships in 2-12 days

0

9

Snapper 7022486

EXTENSION, Oil Drain (Short)
(Superseded to 7022486YP)

$24.99

$

Usually ships in 2-12 days

0

10

Snapper 7029900

CLAMP, Fuel Line
(Superseded to 791850)

Note: Was 12222

$3.49

$

In Stock, Qty 9

0

11

Snapper 7032633

LINE, Fuel

$

$

Currently unavailable

12

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, only 3 left!

0

13

Snapper 7090187

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 6

0

14

Snapper 7090188

WASHER, 5/16 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

15

Snapper 7015861

CLIP, Harness
(Superseded to 7015861SM)

$3.49

$

Usually ships in 2-12 days

0

16

Snapper 7091592

SCREW, 5/16-18 x 2' Hex Hd. Cap
(Superseded to 704062)

Note: Was 90586

$4.49

$

Usually ships in 2-12 days

0

17

Snapper 7028028

PULLEY ASSEMBLY
(Superseded to 7028028YP)

Note: (For 33" Model)

$112.99

$

Usually ships in 2-12 days

0

17

Snapper 7028033

PULLEY ASSEMBLY
(Superseded to 7028033YP)

Note: (For 38" Model)

$97.99

$

Usually ships in 2-12 days

0

18

Snapper 7091301

WASHER, 7/16 Split Lock
(Superseded to 704007)

Note: Was 90247

$4.49

$

In Stock, only 3 left!

0

19

Snapper 7090836

SCREW, 7/16-20 x 1" Hex Cap, Skt. Hd.

$

$

Not available

20

Snapper 7090669

SCREW, 5/16-18 x 1 3/4" Hex Hd. Cap
(Superseded to 7090669YP)

$4.49

$

Usually ships in 2-12 days

0

21

Snapper 7028031

GUIDE, Belt
(Superseded to 7028031YP)

$7.49

$

Usually ships in 2-12 days

0

22

Snapper 7090391

WASHER, 5/16 Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

23

Snapper 7011791

RETAINER, 5/16 Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 8

0

24

Snapper 7021740

SPACER, .625 O.D., .342 I.D. x.370

$

$

Not available
