LT 140H38ABV (80561) - Snapper 38" Lawn Tractor, 14hp Electrical Components Parts Diagram

38" Lawn Tractor, 14hp

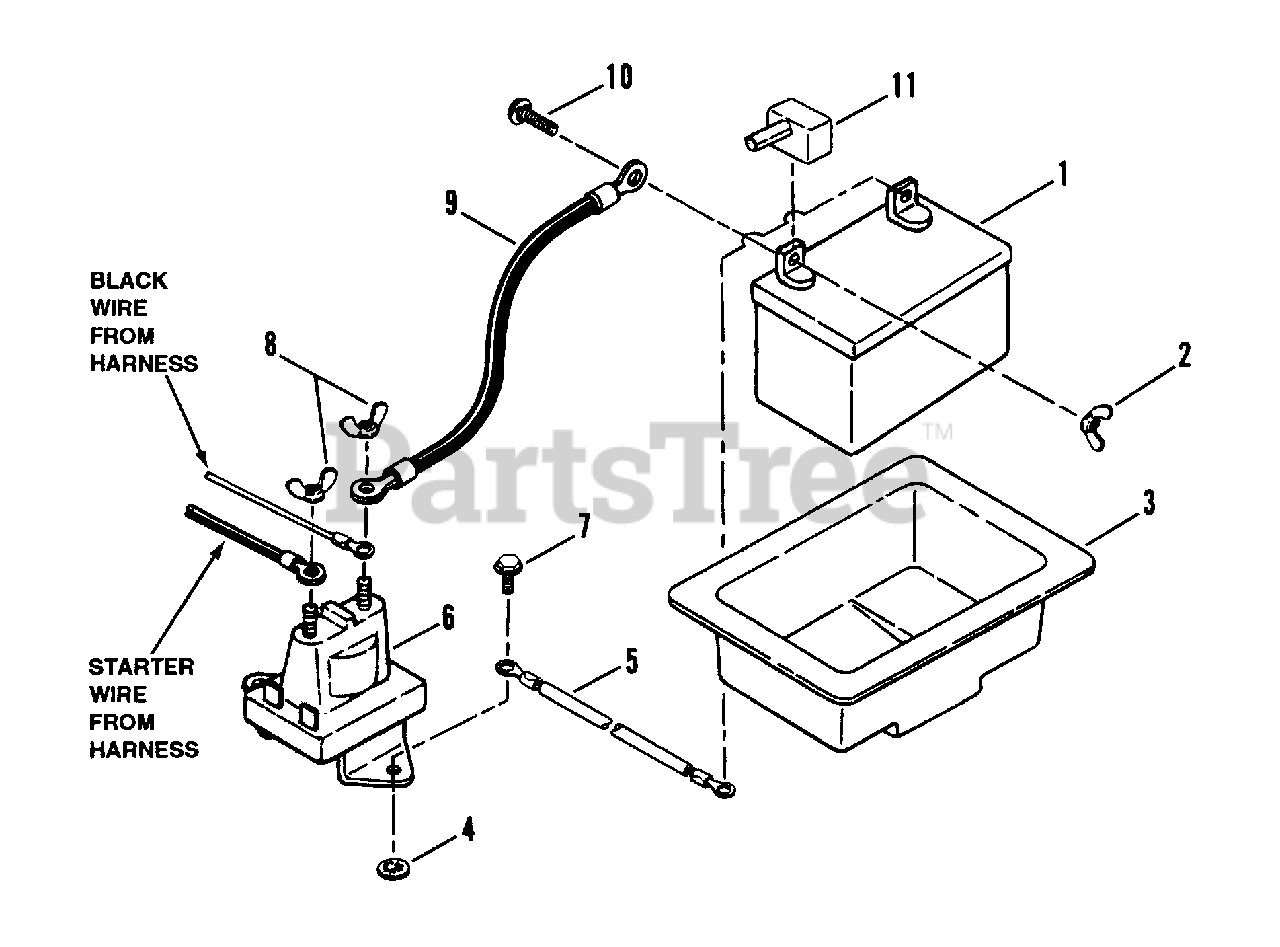

Electrical Components Parts Diagram

  • Title

1

Snapper 7060618

KIT, Battery
(Superseded to 1685215SM)

Note: (Includes Decal P.N. 16134 and Battery Without Acid)

$

$

Not available

Snapper 7016134

Decal (Not shown)

$

$

Currently unavailable

2

Snapper 7091568

WING-NUT, 1/4-20
(Superseded to 014X79MA)

Note: Was 90311

$4.99

$

Usually ships in 2-12 days

0

3

Snapper 7017853

TRAY, Battery
(Superseded to 7017853YP)

$24.99

$

Usually ships in 2-12 days

0

4

Snapper 7012485

RETAINER, Screw
(Superseded to 7012485YP)

$3.49

$

In Stock, Qty 20+

0

5

Snapper 7026414

CABLE, Ground (Black)
(Superseded to 7026414YP)

$9.99

$

Usually ships in 2-12 days

0

6

Snapper 7075622

SOLENOID
(Superseded to 1755382YP)

Note: Was 18604

$29.99

$

In Stock, Qty 20+

0

7

Snapper 7091122

SCREW, 1/4-20 x 1/2" Self-Tapping
(Superseded to 7091122SM)

Note: Was 90539

$3.99

$

In Stock, Qty 7

0

8

Snapper 7090997

WING-NUT, 1/4-20 Locking
(Superseded to 7090997YP)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper 7014476

CABLE, Positive (Red)
(Superseded to 7014476YP)

$12.99

$

Usually ships in 2-12 days

0

10

Snapper 7091530

BOLT, 1/4-20 x 3/4" Carriage
(Superseded to 7091530SM)

Note: Was 90074

$3.99

$

In Stock, only 3 left!

0

11

Snapper 7012444

COVER, Positive Terminal
(Superseded to 1677296SM)

$6.49

$

In Stock, Qty 11

0
