LT 140H38ABV (80561) - Snapper 38" Lawn Tractor, 14hp Blade Engagement & Transmission Controls Parts Diagram

38" Lawn Tractor, 14hp

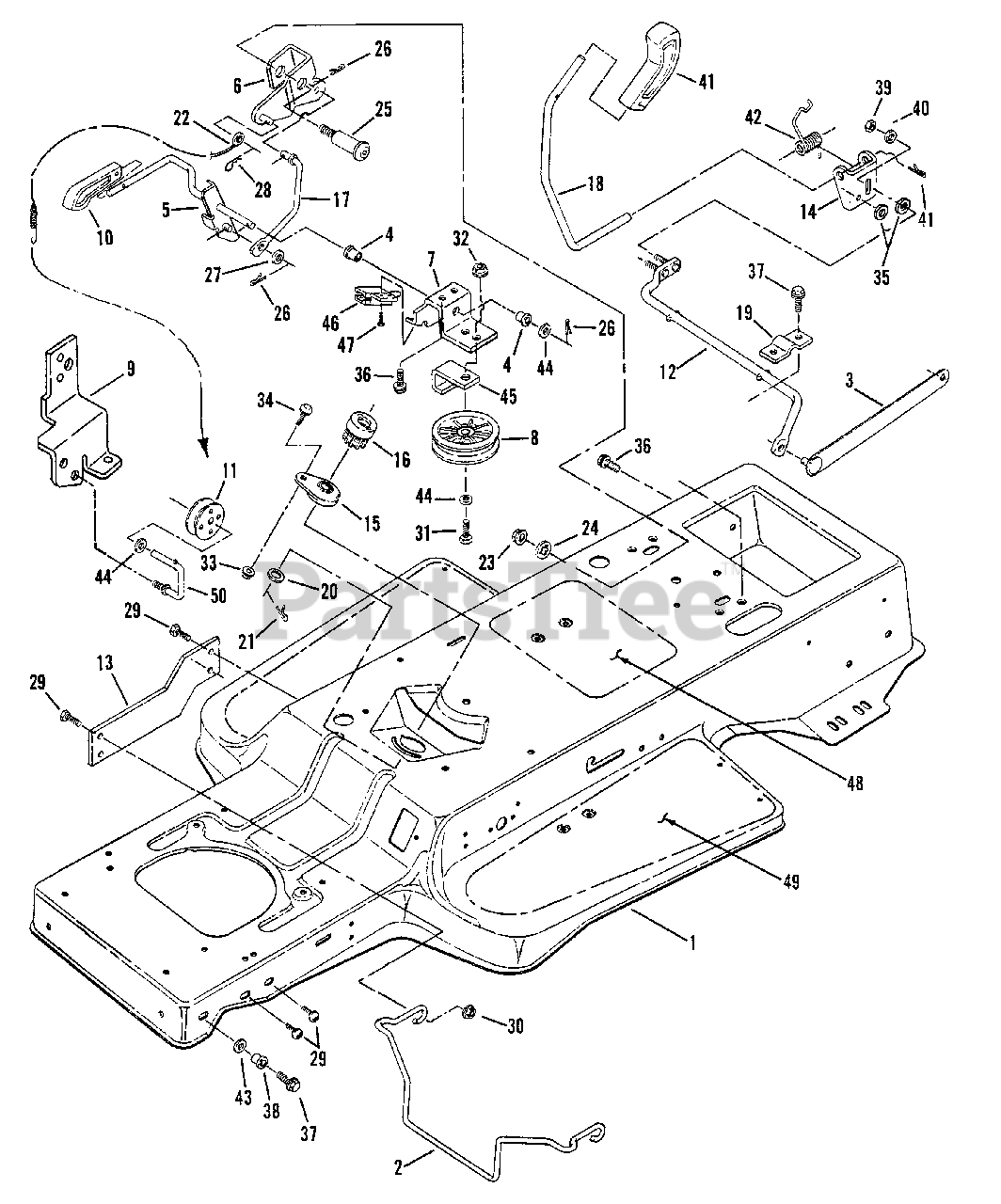

Blade Engagement & Transmission Controls Parts Diagram

  • Title

1

Snapper 7033301

FRAME, Tractor

$

$

Not available

2

Snapper 7027736

GUIDE, Belt
(Superseded to 7027736YP)

Note: (For 33" Model)

$7.49

$

Usually ships in 2-12 days

0

2

Snapper 7041556

GUIDE, Belt
(Superseded to 7041556YP)

Note: (For 38" Model)

$54.99

$

Usually ships in 2-12 days

0

3

Snapper 7041590

LINK, Shift
(Superseded to 7041590YP)

$39.99

$

Usually ships in 2-12 days

0

4

Snapper 7013321

BUSHING
(Superseded to 7013321YP)

$4.49

$

In Stock, Qty 20+

0

5

Snapper 7041307

WELDMENT. PTO Lever
(Superseded to 7041307YP)

$66.99

$

Usually ships in 2-12 days

0

6

Snapper 7041310

WELDMENT, PTO Bellcrank

$

$

Not available

7

Snapper 7033525

SUPPORT, PTO LEVER
(Superseded to 7033525YP)

$19.99

$

Usually ships in 2-12 days

0

8

Snapper 7024344

PULLEY
(Superseded to 7024344YP)

$39.99

$

Usually ships in 2-12 days

0

9

Snapper 7034127

BRACKET, Spool
(Superseded to 7034127YP)

$50.99

$

In Stock, only 1 left!

0

10

Snapper 7023657

KNOB, Deck Engagement
(Superseded to 7023657YP)

$4.99

$

In Stock, Qty 5

0

11

Snapper 7023182

SPOOL
(Superseded to 7023182YP)

$8.49

$

In Stock, only 1 left!

0

12

Snapper 7052920

ASSEMBLY, Shift Lever (Lower)
(Superseded to 7052920YP)

$23.99

$

Usually ships in 2-12 days

0

13

Snapper 7033832

BRACE, Frame
(Superseded to 7033832YP)

$37.99

$

Usually ships in 2-12 days

0

14

Snapper 7033541

BRACKET, Shift Lever (Upper)
(Superseded to 7033541YP)

$12.99

$

Usually ships in 2-12 days

0

15

Snapper 7052562

ASSEMBLY, Steering Adjuster
(Superseded to 7052562YP)

$43.99

$

Usually ships in 2-12 days

0

16

Snapper 7022368

GEAR, Steering Pinion
(Superseded to 7022368YP)

$20.99

$

Usually ships in 2-12 days

0

17

Snapper 7023931

ROD, PTO Link

$

$

Not available

18

Snapper 7023957

LEVER, Shift
(Superseded to 7023957YP)

$38.99

$

Usually ships in 2-12 days

0

19

Snapper 7033554

CLIP

$

$

Not available

20

Snapper 7014296

WASHER, 1/2 Shim
(Superseded to 7014296YP)

$4.49

$

In Stock, only 4 left!

0

21

Snapper 7091598

PIN, 1/8 x 3/4" Cotter
(Superseded to 703958)

Note: Was 90365

$4.49

$

In Stock, only 4 left!

0

22

Snapper 7026621

CABLE, Blade 14.3"
(Superseded to 7026621YP)

Note: (For 33" Model)

$16.99

$

Usually ships in 2-12 days

0

22

Snapper 7035432

CABLE, Blade 20.5"
(Superseded to 7035432YP)

Note: Was 24377 (38" Models)

$20.99

$

Usually ships in 2-12 days

0

23

Snapper 7090619

NUT, 1/2-13 Hex Flange Lock
(Superseded to 703918)

$3.49

$

Usually ships in 2-12 days

0

24

Snapper 7090509

WASHER, 1/2 Internal Tooth Lock
(Superseded to 7090509YP)

$4.49

$

In Stock, Qty 10

0

25

Snapper 7024518

BOLT, 1/2-13 x 2 11/32" Shoulder

$

$

Not available

26

Snapper 7091597

PIN, 3/32 x 3/4" Cotter
(Superseded to 703312)

Note: Was 90037

$3.99

$

In Stock, Qty 20+

0

27

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

28

Snapper 7091503

PIN, 3/32 x 1 1/2" Hair
(Superseded to 7091503SM)

Note: Was 15067

$3.99

$

In Stock, Qty 20+

0

29

Snapper 7091001

SCREW, 5/16-18 x 5/8" Truss Head, Torx
(Superseded to 1960086SM)

$4.99

$

In Stock, only 2 left!

0

30

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

31

Snapper 7091497

SCREW, 3/8-16 x 1 1/2" Hex Head Cap
(Superseded to 703406)

Note: Was 90655

$4.99

$

In Stock, only 1 left!

0

32

Snapper 7091585

NUT, 3/8-16 Hex Center Lock
(Superseded to 703347)

Note: Was 90546

$4.99

$

In Stock, only 2 left!

0

33

Snapper 7091584

NUT, 1/4 Hex Flange Lock
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, Qty 6

0

34

Snapper 7091573

BOLT, 1/4-20 x 5/8" Short Neck Carriage
(Superseded to 7091573YP)

Note: Was 90551

$4.49

$

In Stock, only 1 left!

0

35

Snapper 7090053

WASHER,1/4 Internal Tooth Lock
(Superseded to 703462)

Note: Was 91023

$4.49

$

In Stock, Qty 7

0

36

Snapper 7090361

SCREW, 5/16-18 x 5/8" Self-Tapping
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

37

Snapper 7091524

SCREW, 5/16-18 x 1 1/4" Self-Tapping
(Superseded to 703167)

Note: Was 91151

$3.99

$

In Stock, Qty 5

0

38

Snapper 7024616

BUSHING, Flange
(Superseded to 7024616YP)

$

$

Not available

39

Snapper 7076978

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703232)

$4.49

$

In Stock, Qty 18

0

40

Snapper 7091294

WASHER, 1/4 Flat
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

41

Snapper 7023656

KNOB, Deck Lift Lever
(Superseded to 7023656YP)

$5.99

$

In Stock, Qty 6

0

42

Snapper 7024069

SPRING, Shift Lever

$

$

Not available

43

Snapper 7090188

WASHER, 5/16 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

44

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

45

Snapper 7033556

GUIDE, Belt
(Superseded to 7033556YP)

$9.99

$

Usually ships in 2-12 days

0

46

Snapper 7023355

SWITCH, Blade Engagement
(Superseded to 7023355YP)

$17.99

$

In Stock, Qty 20+

0

47

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

$3.49

$

In Stock, Qty 11

0

48

Snapper 7046556

DECAL, Instruction/Safety

Note: Was 34161

$

$

Currently unavailable

49

Snapper 7026614

PAD, Foot Sandpaper
(Superseded to 7026614YP)

$16.99

$

Usually ships in 2-12 days

0

50

Snapper 7029600

ROD, Spool Pivot
(Superseded to 7029600YP)

Note: Was 24182

$16.99

$

Usually ships in 2-12 days

0
