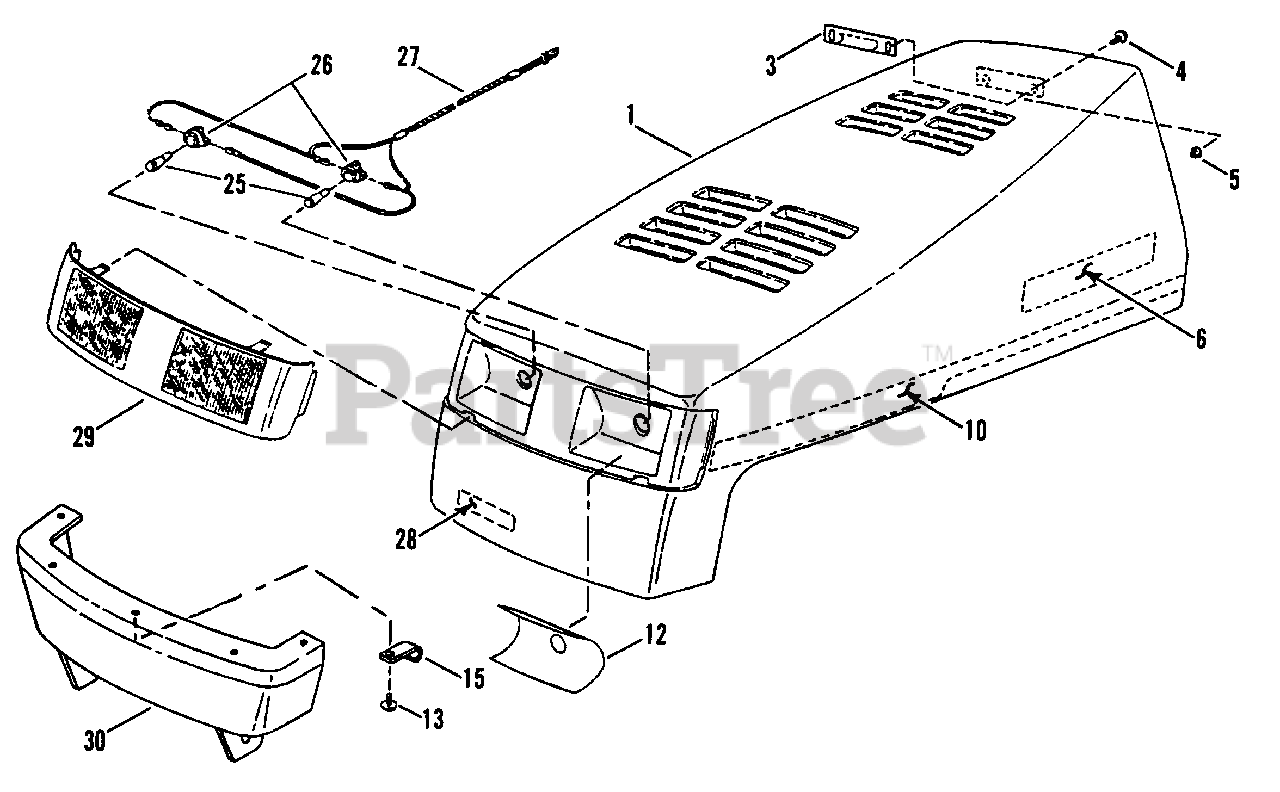

LT 140H33BBV (80723) - Snapper 33" Lawn Tractor, 14hp Hood, Bumper, Headlights & Components Parts Diagram

33" Lawn Tractor, 14hp

Hood, Bumper, Headlights & Components Parts Diagram

  • Title

1

Snapper 7063298

HOOD
(Superseded to 7063298YP)

Note: Was 24605 (30", 33", & ELT33" Gear Drive Models) (ELT33" & 38" Hydro Drive Models) (1995) (30", 33", & ELT33" Gear Drive Models) (38" Hydro Drive Models) (1996)

$1036.99

$

Usually ships in 2-12 days

0

1

Snapper 7024471

HOOD, Mozart (Not shown)
(Superseded to 7063298YP)

Note: (LT150H38BBV & LT155H42BBV Hydro Drive Models) (Model Year 1995) (LT150H38BBV, LT155H42BBV & ELT140H33BBV Hydro Drive Models) (Model Year 1996)

$1036.99

$

Usually ships in 2-12 days

0

3

Snapper 7024718

LATCH, Spring
(Superseded to 7024718YP)

$23.99

$

Usually ships in 2-12 days

0

4

Snapper 7090999

SCREW, 1/4-20 x 5/8" Truss Head, Torx
(Superseded to 7090999FS)

$3.99

$

Usually ships in 2-12 days

0

5

Snapper 7076978

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

6

Snapper 7024903

DECAL - SNAPPER, 8" Molded Logo, White Letters

Note: (Gear Dr. Mdls. LT120G30BB, LT125G33BB, & ELT125G33BB)

$

$

Currently unavailable

6

Snapper 7024980

DECAL - SNAPPER, 8" Molded Logo, Silver Letters

Note: Was 16974 or 36438 (Hydro Dr. Mdls. ELT140H33BBV, LT140H33BBV, LT140H38BBV, LT150H38BBV, & LT155H42BBV)

$

$

Not available

10

Snapper 7027840

DECAL, Hood (Right Hand)
(Superseded to 7027840YP)

Note: (Model ELT140H33BBV & LT140H33BBV) (Hydro Drive)

$13.99

$

Usually ships in 2-12 days

0

10

Snapper 7027841

DECAL, Hood (Left Hand)
(Superseded to 7027841YP)

Note: (Model ELT140H33BBV & LT140H33BBV) (Hydro Drive)

$7.49

$

Usually ships in 2-12 days

0

10

Snapper 7027832

DECAL, Hood (Right Hand)
(Superseded to 7027832YP)

Note: (Model LT140H38BBV) (Hydro Drive)

$10.99

$

Usually ships in 2-12 days

0

10

Snapper 7027833

DECAL, Hood (Left Hand)

Note: (Model LT140H38BBV) (Hydro Drive)

$

$

Currently unavailable

10

Snapper 7029585

DECAL, Hood (Right Hand)

Note: (Model LT150H38BBV) (Hydro Drive)

$

$

Currently unavailable

10

Snapper 7029586

DECAL, Hood (Left Hand)

Note: (Model LT150H38BBV) (Hydro Drive)

$

$

Currently unavailable

10

Snapper 7029587

DECAL, Hood (Right Hand)

Note: (Model LT155H42BBV) (Hydro Drive)

$

$

Not available

10

Snapper 7029588

DECAL, Hood (Left Hand)

Note: (Model LT155H42BBV) (Hydro Drive)

$

$

Currently unavailable

10

Snapper 7027824

DECAL, Hood (Right Hand)

Note: (Model LT120G30BB) (Gear Drive)

$

$

Not available

10

Snapper 7027825

DECAL, Hood (Left Hand)

Note: (Model LT120G30BB) (Gear Drive)

$

$

Not available

10

Snapper 7027826

DECAL, Hood (Right Hand)

Note: (Models LT125G33BB & ELT125G33BB) (Gear Drive)

$

$

Not available

10

Snapper 7027827

DECAL, Hood (Left Hand)

Note: (Models LT125G33BB & ELT125G33BB) (Gear Drive)

$

$

Currently unavailable

10

Snapper 7026706

DECAL, Hood (Right Side)

Note: (Models BH140H33BBV & BH140H38BBV)

$

$

Currently unavailable

10

Snapper 7026707

DECAL, Hood (Left Side Shown)

Note: (Models BH140H33BBV & BH140H38BBV)

$

$

Not available

12

Snapper 7017175

DECAL, Clear Lens (Left Hand)
(Superseded to 7017175YP)

$7.99

$

Usually ships in 2-12 days

0

12

Snapper 7017174

DECAL, Clear Lens (Right Hand - Not shown)
(Superseded to 7017174YP)

$7.99

$

Usually ships in 2-12 days

0

13

Snapper 7091106

SCREW, M4.8 x 1.59 x 16.00MM, Special
(Superseded to 7091106YP)

$3.99

$

Usually ships in 2-12 days

0

15

Snapper 7026482

CLIP, "J"
(Superseded to 7026482YP)

$3.49

$

In Stock, only 1 left!

0

25

Snapper 7026172

BULB, Headlights
(Superseded to 7026172YP)

$14.99

$

In Stock, only 1 left!

0

26

Snapper 7024709

SOCKET, Headlight Bulb

$

$

Not available

27

Snapper 7026171

HARNESS, Headlight Wiring
(Superseded to 7026171YP)

$11.99

$

Usually ships in 2-12 days

0

28

Snapper 7024904

DECAL - SNAPPER, 4" Molded Logo

Note: (White Letters & Stripe) (Gear Drive Mdls. Only!)

$

$

Not available

29

Snapper 7024892

LENS, Solid Black
(Superseded to 7024892YP)

Note: (Models without Headlights)

$41.99

$

Usually ships in 2-12 days

0

29

Snapper 7024893

LENS, Clear
(Superseded to 7024893YP)

Note: (Models with Headlights)

$45.99

$

Usually ships in 2-12 days

0

30

Snapper 7029620

BUMPER, Front Hood Support
(Superseded to 7029620YP)

$104.99

$

Usually ships in 2-12 days

0
