LT 140G42AKV (80379) - Snapper 42" Lawn Tractor, 14hp Spindle Assembly - 38" Cutting Deck Parts Diagram

42" Lawn Tractor, 14hp

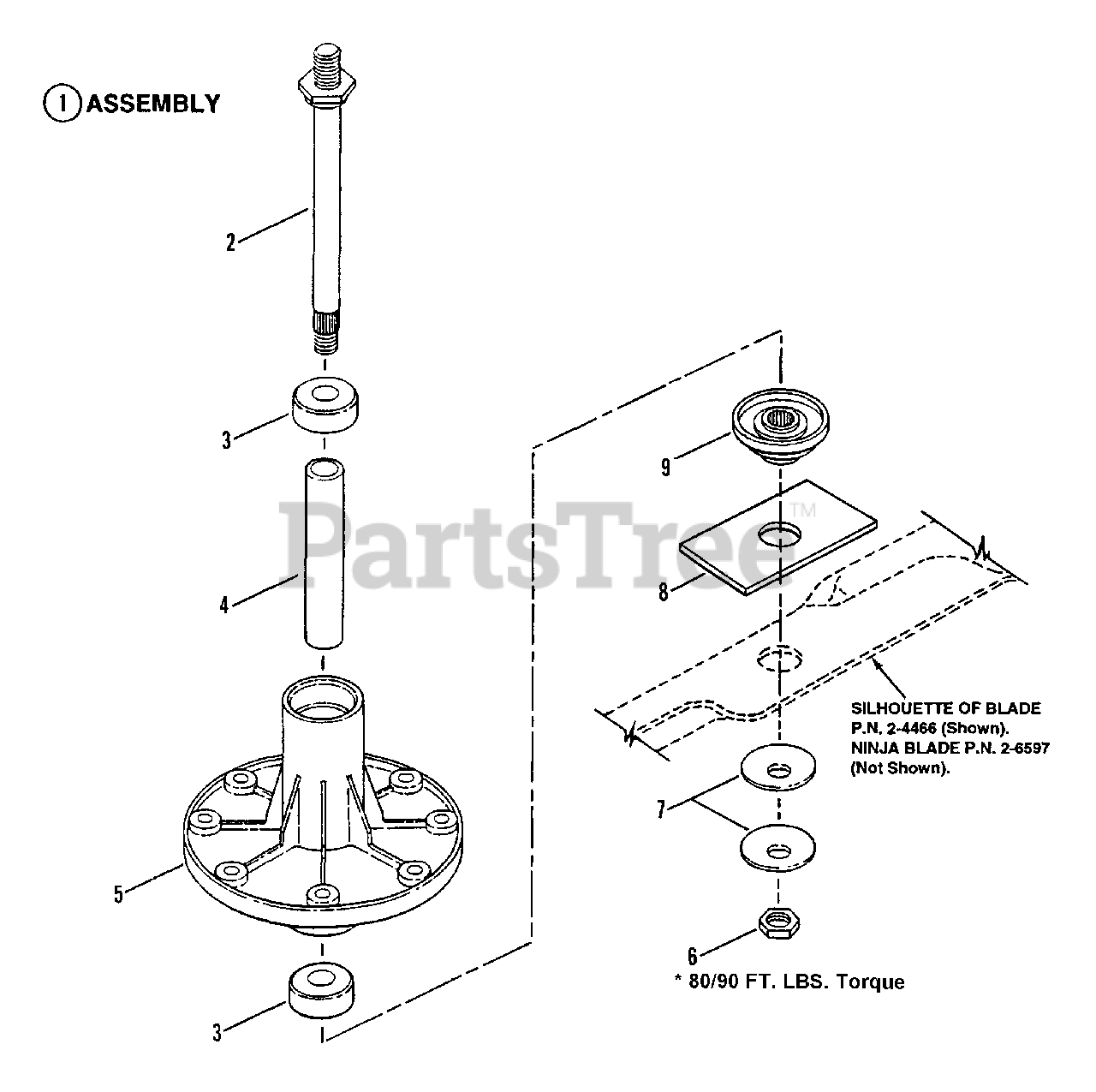

Spindle Assembly - 38" Cutting Deck Parts Diagram

  • Title

1

Snapper 7054513

ASSEMBLY, Spindle Housing, 38" Cutting Deck
(Superseded to 7054513YP)

Note: Was 52847 (Includes 2, 3, 4, 5, 6, 7, & 9)

$448.99

$

Usually ships in 2-12 days

0

1

Snapper 7053063

ASSEMBLY, Spindle Housing, 38" Cutting Deck

Note: (Includes items 2 thru 9); (Model RLT125G38AKV Only - Ninja Blade)

$

$

Currently unavailable

2

Snapper 7026754

SPINDLE (7.019")
(Superseded to 7026754YP)

$47.99

$

Usually ships in 2-12 days

0

3

Snapper 7026808

BEARING, Spindle
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

4

Snapper 7024465

SPACER, Spindle Housing

$10.99

$

In Stock, only 2 left!

0

5

Snapper 7024461

HOUSING, Spindle
(Superseded to 7024461YP)

$125.99

$

In Stock, only 1 left!

0

6

Snapper 7024468

NUT, 9/16-18 Hex Jam
(Superseded to 7091633SM)

Note: 80/90 Ft. lbs. Torque

$4.99

$

In Stock, Qty 20+

0

7

Snapper 7024467

WASHER, Bellville, 19/32" I.D. x 1 3/4" O.D.
(Superseded to 7024467SM)

$4.49

$

In Stock, Qty 20+

0

8

Snapper 7026749

WASHER, Ninja Blade
(Superseded to 7026749SM)

Note: (Model RLT125G38AKV Only)

$10.99

$

In Stock, only 1 left!

0

9

Snapper 7024463

SPACER, Blade
(Superseded to 7024463YP)

$19.99

$

In Stock, only 1 left!

0

10

Snapper 7042998

BLADE, Standard 19-1/2"
(Superseded to 7042998BZYP)

Note: Was 24466 Shown

$27.99

$

In Stock, Qty 20+

0

10

Snapper 7026597

BLADE, Ninja (Mulching Quad Edge)
(Superseded to 7026597BZYP)

Note: Not Shown

$74.99

$

In Stock, only 2 left!

0
