LT 140G42AKV (80379) - Snapper 42" Lawn Tractor, 14hp Implement Lift Parts - 42" Cutting Deck Parts Diagram

42" Lawn Tractor, 14hp

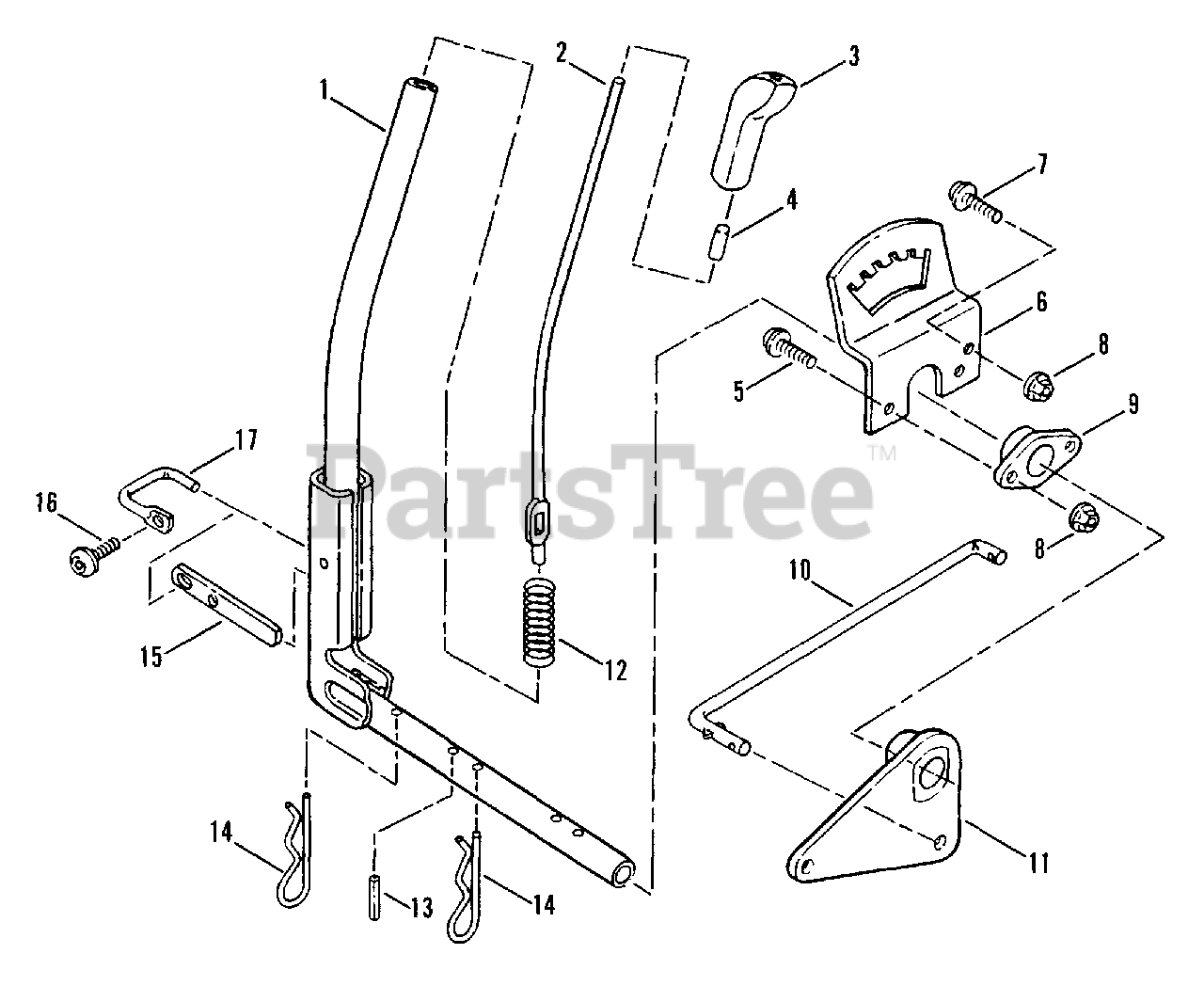

Implement Lift Parts - 42" Cutting Deck Parts Diagram

  • Title
1

Snapper 7041015

STRUCTURE, Lift Lever
(Superseded to 7041015YP)

$110.99

$

Usually ships in 2-12 days

0

2

Snapper 7022565

ROD, Lift Lever
(Superseded to 7022565YP)

$10.99

$

Usually ships in 2-12 days

0

3

Snapper 7019363

KNOB, Lift Lever
(Superseded to 7019363YP)

$8.49

$

Usually ships in 2-12 days

0

4

Snapper 7014361

CAP, Lever Rod
(Superseded to 7014361YP)

$4.49

$

Usually ships in 2-12 days

0

5

Snapper 7091000

SCREW, 5/16-18 x 7/8" Truss Head (Torx)
(Superseded to 1960086SM)

$4.99

$

In Stock, only 2 left!

0

6

Snapper 7033449

QUADRANT, Lift Lever
(Superseded to 7033449YP)

$26.99

$

Usually ships in 2-12 days

0

7

Snapper 7091001

SCREW, 5/16-18 x 5/8" Truss Head (Torx)
(Superseded to 1960086SM)

$4.99

$

In Stock, only 2 left!

0

8

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

9

Snapper 7022567

PIVOT, Lift Lever
(Superseded to 7022567YP)

$7.99

$

Usually ships in 2-12 days

0

10

Snapper 7022964

ROD, Lift Link
(Superseded to 7022964YP)

$8.99

$

Usually ships in 2-12 days

0

11

Snapper 7041301

BELLCRANK, Lift Structure
(Superseded to 7041301YP)

$50.99

$

Usually ships in 2-12 days

0

12

Snapper 7022566

SPRING, Lift Lever Rod

$

$

Not available

13

Snapper 7022895

PIN, 1/4 x 1 1/8" Dowel
(Superseded to 7022895YP)

$3.49

$

Usually ships in 2-12 days

0

14

Snapper 7091596

PIN, 5/32 x 2 5/8" Hair
(Superseded to 7091596YP)

Note: Was 13844

$4.49

$

Usually ships in 2-12 days

0

15

Snapper 7022568

DETENT, Latch
(Superseded to 7022568YP)

$22.99

$

Usually ships in 2-12 days

0

16

Snapper 7090999

SCREW, 1/4-20 x 5/8" Truss Head (Torx)
(Superseded to 7090999FS)

$3.99

$

Usually ships in 2-12 days

0

17

Snapper 7024742

LATCH, Pivot
(Superseded to 7024742YP)

$4.99

$

Usually ships in 2-12 days

0
