LT 140G42AKV (80379) - Snapper 42" Lawn Tractor, 14hp Hood, Grille & Components Parts Diagram

42" Lawn Tractor, 14hp

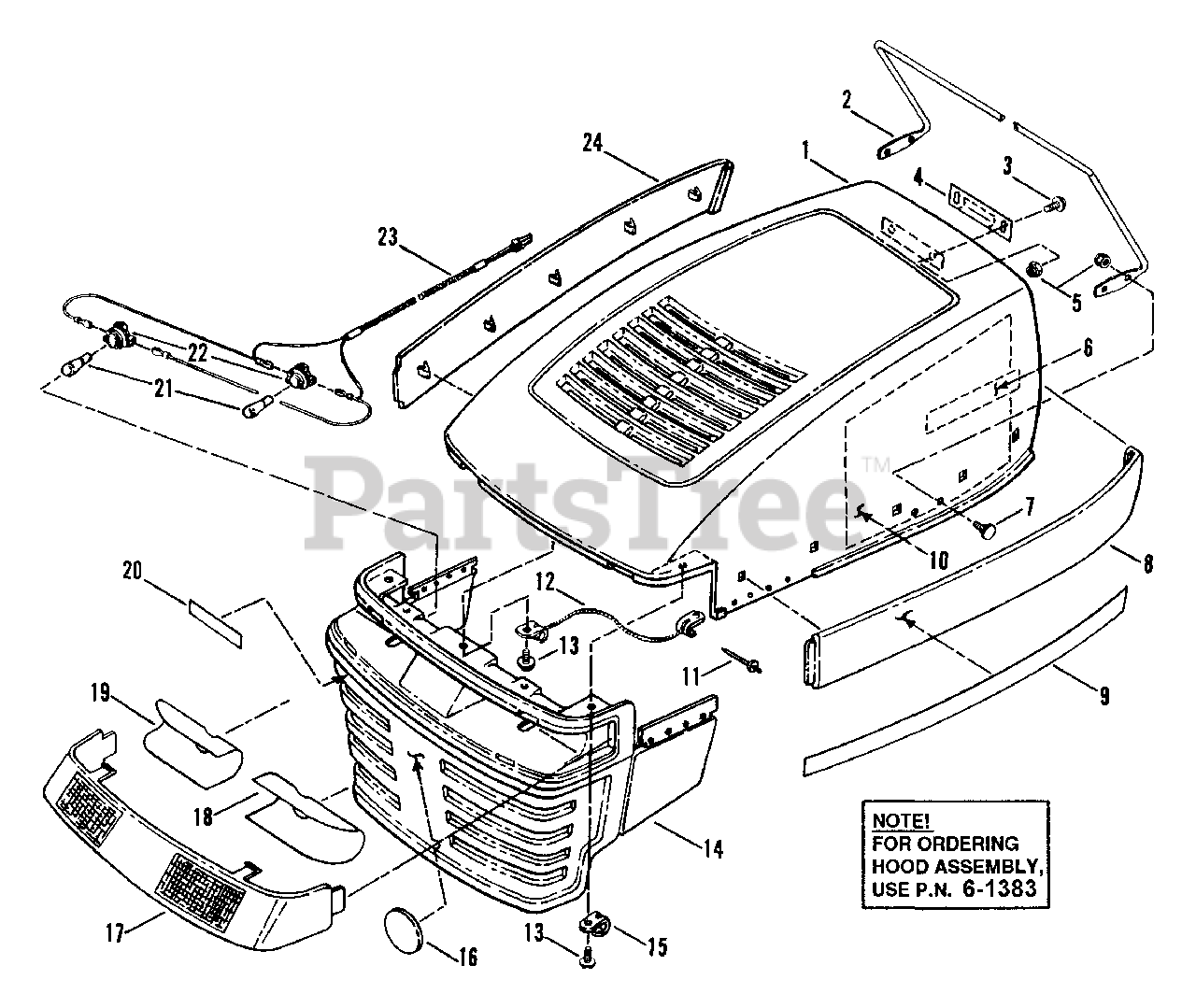

Hood, Grille & Components Parts Diagram

  • Title

1

Snapper 7024471

HOOD
(Superseded to 7063298YP)

$1036.99

$

Usually ships in 2-12 days

0

2

Snapper 7016766

ROD, Hood Support
(Superseded to 7016766YP)

$15.99

$

Usually ships in 2-12 days

0

3

Snapper 7090999

SCREW, 1/4-20 x 5/8" Truss Head
(Superseded to 7090999FS)

$3.99

$

Usually ships in 2-12 days

0

4

Snapper 7024718

LATCH, Spring
(Superseded to 7024718YP)

$23.99

$

Usually ships in 2-12 days

0

5

Snapper 7076978

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

6

Snapper 7024984

LOGO - SNAPPER (Chrome)

$

$

Not available

7

Snapper 7090803

BOLT, 1/4-20 x 5/8" Flat Head Carriage
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

8

Snapper 7024474

PANEL, Hood (Left Side)

$

$

Currently unavailable

9

Snapper 7024957

DECAL, Hood

Note: (Model LT125G38AKV); (R.H.); (LX140G)

$

$

Not available

9

Snapper 7024958

DECAL, Hood

Note: (Model LT125G38AKV); (L.H.); (LX140G)

$

$

Currently unavailable

9

Snapper 7024959

DECAL, Hood
(Superseded to 7024959YP)

Note: (Models LT140G38ABV & LT140G42AKV); (R.H.); (LX150G)

$7.49

$

Usually ships in 2-12 days

0

9

Snapper 7024960

DECAL, Hood

Note: (Models LT140G38ABV & LT140G42AKV); (L.H.); (LX150G)

$

$

Not available

9

Snapper 7024961

DECAL, Hood

Note: (Model RLT125G38AKV); (R.H.); (RX140G)

$

$

Currently unavailable

9

Snapper 7024962

DECAL, Hood

Note: (Model RLT125G38AKV); (L.H.); (RX140G)

$

$

Currently unavailable

9

Snapper 7027805

DECAL, Hood

Note: (Model LT150G42AKV); (R.H.)

$

$

Not available

9

Snapper 7027806

DECAL, Hood

Note: (Model LT150G42AKV); (L.H.)

$

$

Not available

10

Snapper 7026734

HEAT SHIELD, Hood

Note: (Kohler Engines); (L.H. Only)

$

$

Not available

11

Snapper 7091095

RIVET, 1/8" Pop
(Superseded to 7091095SM)

$2.99

$

In Stock, Qty 12

0

12

Snapper 7026114

LANYARD, Hood
(Superseded to 7073446YP)

Note: (Brigg's & Straton Engines)

$9.99

$

Usually ships in 2-12 days

0

12

Snapper 7073446

LANYARD, Hood
(Superseded to 7073446YP)

Note: Was 26192 (Kohler Engines)

$9.99

$

Usually ships in 2-12 days

0

13

Snapper 7091106

SCREW, M4.8 x 1.59 x 16.00MM, Special
(Superseded to 7091106YP)

$3.99

$

Usually ships in 2-12 days

0

14

Snapper 7029570

GRILLE, Hood
(Superseded to 7029570YP)

Note: Was 24472

$152.99

$

Usually ships in 2-12 days

0

15

Snapper 7026482

CLIP, 'J'
(Superseded to 7026482YP)

$3.49

$

In Stock, only 1 left!

0

16

Snapper 7026366

DECAL, Convertible

$

$

Currently unavailable

16

Snapper 7024988

DECAL, Recycling, Ninja Blade

Note: (Model RLT125G38AKV Only); ('93 Model Year & Earlier)

$

$

Not available

17

Snapper 7024475

LENS
(Superseded to 7029602YP)

$60.99

$

Usually ships in 2-12 days

0

18

Snapper 7026180

DECAL, Reflect (L.H.)
(Superseded to 7026180YP)

$7.99

$

Usually ships in 2-12 days

0

19

Snapper 7026179

DECAL, Reflect (R.H.)
(Superseded to 7026179YP)

$5.99

$

Usually ships in 2-12 days

0

20

Snapper 7024983

LOGO - SNAPPER, 4" (Chrome)
(Superseded to 7024983YP)

$5.49

$

Usually ships in 2-12 days

0

21

Snapper 7026172

BULB, Headlights
(Superseded to 7026172YP)

$14.99

$

In Stock, only 1 left!

0

22

Snapper 7024709

SOCKET, Headlight Bulb

$

$

Not available

23

Snapper 7026171

HARNESS, Headlight Wiring
(Superseded to 7026171YP)

$11.99

$

Usually ships in 2-12 days

0

24

Snapper 7024473

PANEL, Hood (R.H.)

$

$

Currently unavailable

61383

Snapper 7063298

Hood Assembly
(Superseded to 7063298YP)

Note: Was 61383

$1036.99

$

Usually ships in 2-12 days

0
