LT 140 (954000512-A) - Husqvarna Lawn Tractor (1993-01) Seat Assembly Parts Diagram

Lawn Tractor

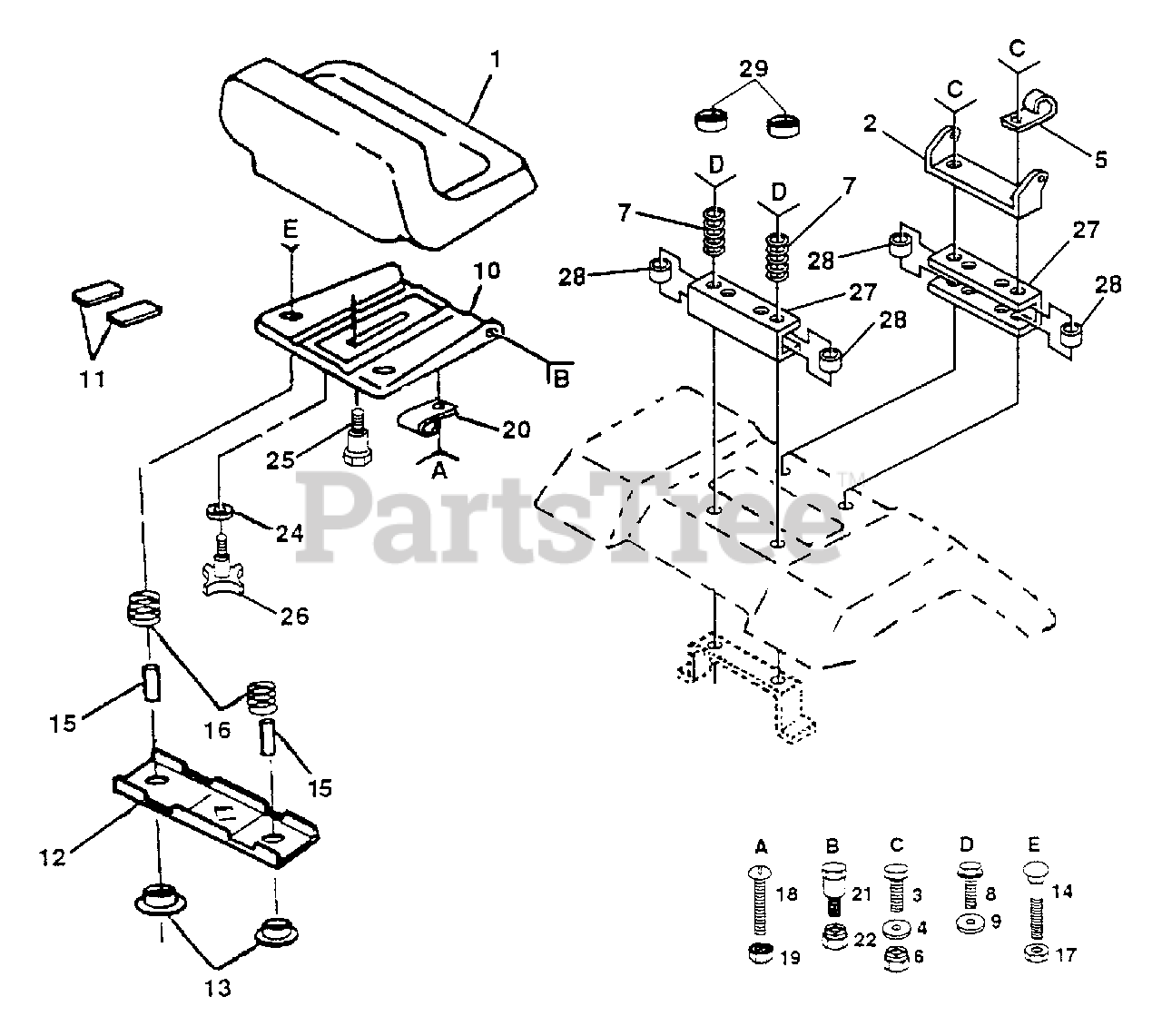

Seat Assembly Parts Diagram

  • Title
1

Husqvarna 532124185

Seat
(Superseded to 532401042)

$206.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532126656

Bracket Pivot Seat

$

$

Not available

3

Husqvarna 874760640

Bolt, Hex 3/8-16unc X 2-1/2

$

$

Not available

4

Husqvarna 819131610

Washer 13/32 X 1 X 10 Ga

$6.49

$

In Stock, Qty 7

0

5

Husqvarna 532124996

Clip Fuel Line
(Superseded to 532002751)

$

$

Not available

6

Husqvarna 873680600

Nut, Crownlock 3/8-16 Unc

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532124181

Spring Seat Cprsn
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

8

Husqvarna 817490640

Screw Hwsh Thdrol 3/8-16x2-1/2

$

$

Not available

9

Husqvarna 819131614

Washer 13/32 X 1 X 14 Ga
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

10

Husqvarna 532131451

Pan Seat
(Superseded to 532195530)

$21.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532121251

Strip Foam

$

$

Not available

12

Husqvarna 532121246

Bracket Mounting Switch
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532121248

Bushing Snap

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 872050411

Bolt 1/4-20x1-3/8

$

$

Not available

15

Husqvarna 532134300

Spacer Split

$7.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532121250

Spring Cprsn

$7.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532123976

Locknut 1/4 Gr. 5
(Superseded to 873900400)

$4.99

$

In Stock, Qty 16

0

18

Husqvarna 874641008

Screw SLTD Pan Hd #10-32 X 1/2

$2.99

$

Usually ships in 3-10 days

0

19

Husqvarna 873951000

Nut, Keps #10-32 Unf

$5.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532124967

Clip Insulated

$

$

Not available

21

Husqvarna 532105529

Bolt, Shoulder 5/16-18 Unc
(Superseded to 532139888)

$6.49

$

In Stock, only 1 left!

0

22

Husqvarna 873680500

Nut, Crownlock 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 819171912

Washer 17/32 X 1-3/16 X 12 Ga

$7.49

$

In Stock, only 1 left!

0

25

Husqvarna 532127018

Bolt, Shoulder 5/16-18 X 62

$7.49

$

Usually ships in 3-10 days

0

26

Husqvarna 532120068

Knob Seat 1/2-13unc
(Superseded to 532166369)

$10.99

$

In Stock, only 1 left!

0

27

Husqvarna 532131772

Spacer, Seat

$

$

Not available

28

Husqvarna 532131771

Spacer Split

$

$

Not available

29

Husqvarna 532124238

Cap Spring Seat

$

$

Not available
