LT 140 (954000512-A) - Husqvarna Lawn Tractor (1993-01) Engine Parts Diagram

Lawn Tractor

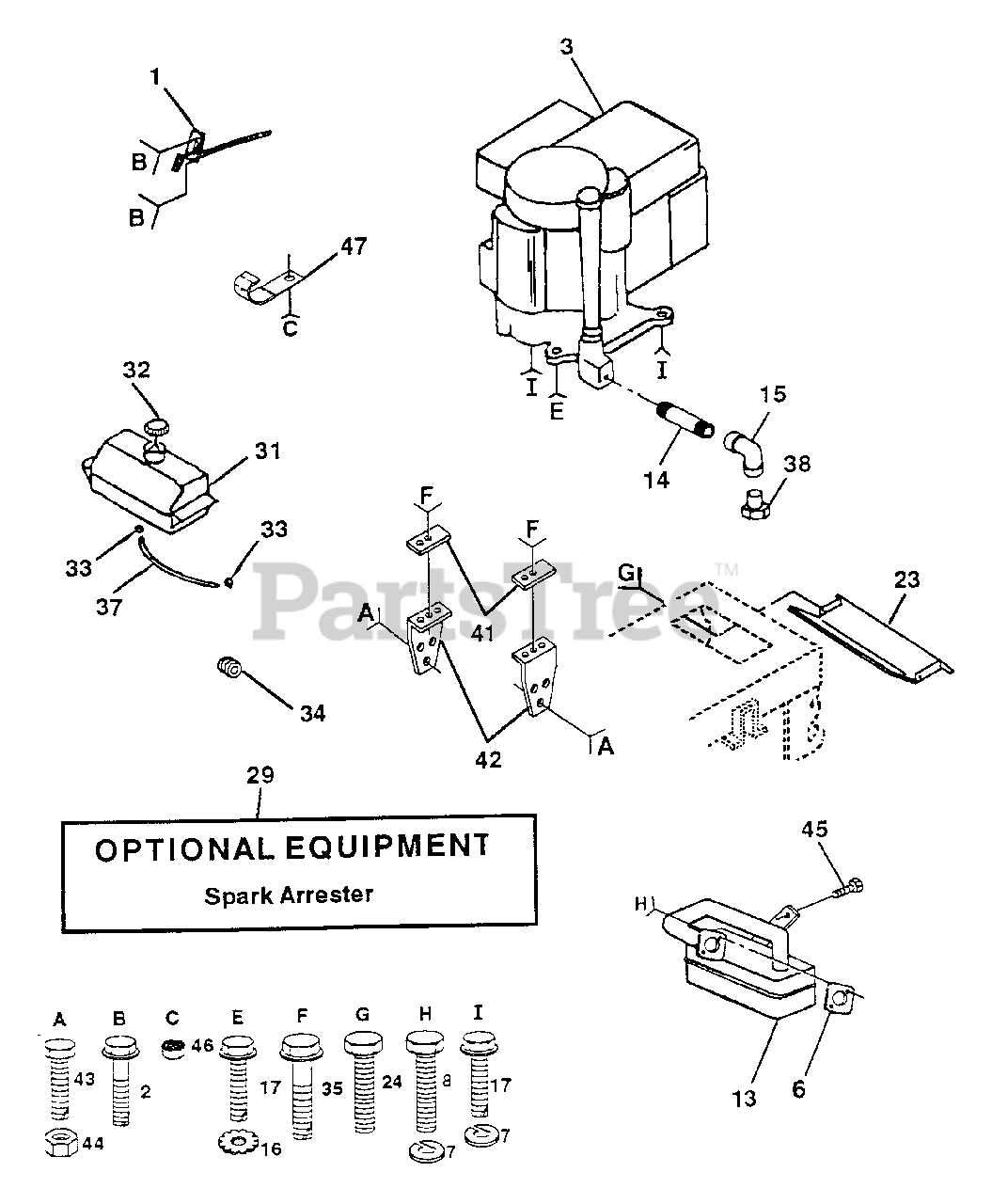

Engine Parts Diagram

  • Title
1

Husqvarna 532132753

Control Th/ch

$

$

Not available

2

Husqvarna 817720410

Screw Hex Thd Cut 1/4-20x5/8 T
(Superseded to 874780410)

$3.99

$

In Stock, only 1 left!

0

3

Engine Kohl 14 HP Model No. PS1454

$

$

Not available

6

Gasket, Eng

Note: (Order from Engine Mfg.)

$

$

Not available

7

Husqvarna 810040500

Washer Lock Hvy Hlcl Spr 5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

8

Husqvarna 874760508

Bolt, Fin Hex 5/16-18 X 5/8

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532137350

Muffler LT Kohler
(Superseded to 532159420)

$121.99

$

Usually ships in 3-10 days

0

14

Husqvarna 813280328

Nipple Pipe 3/8 Npt X 3-1/2"

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 813200300

Elbow Std 900 3/8-18 Npt
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

16

Husqvarna 811050500

Washer Lock Ext Tooth 5/16
(Superseded to 810040500)

$3.99

$

In Stock, only 3 left!

0

17

Husqvarna 532125398

Bolt Hex
(Superseded to 740108025)

$

$

Not available

23

Husqvarna 532128953

Shield Heat Browning

$

$

Not available

24

Husqvarna 817021008

Screw Hex Thd Cut #10-24unc X 1/2

$4.99

$

In Stock, Qty 14

0

29

Husqvarna 532137179

Kit Spark Arrestor

$

$

Not available

31

Husqvarna 532109202

Fuel Tank Front 1 25
(Superseded to 532184900)

$45.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532123549

Cap Asm Fuel W/sym Vented
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532123487

Hose Clamp

$7.49

$

In Stock, only 4 left!

0

34

Husqvarna 532124028

Bushing Snap Nyl Fuel Line

$5.99

$

In Stock, only 3 left!

0

35

Husqvarna 817490612

Screw Hexwash Thdrol 3/8-16x3/4 Ty-tt
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

37

Husqvarna 532124953

Fuel Line
(Superseded to 532008542)

$

$

Not available

38

Plug Oil Drain

Note: (Order from Engine Mfg.)

$

$

Not available

41

Husqvarna 532128230

Strap Support Fuel Tank

$

$

Not available

42

Husqvarna 532128229

Bracket Support Tank Fuel

$

$

Not available

43

Husqvarna 874760616

Bolt, Hex 3/8-16unc X 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

44

Husqvarna 873680600

Nut, Crownlock 3/8-16 Unc

$3.99

$

Usually ships in 3-10 days

0

45

Bolt, Hex

Note: (Order from Engine Mfg.)

$

$

Not available

46

Husqvarna 873510600

Nut, Hex Keps 3/8-16

$6.49

$

Usually ships in 3-10 days

0

47

Husqvarna 532124996

Clip Fuel Line
(Superseded to 532002751)

$

$

Not available
