LT-140 (136-704-190) - White Outdoor 44" Lawn Tractor (1986) Speed Selector Assembly Parts Diagram

44" Lawn Tractor

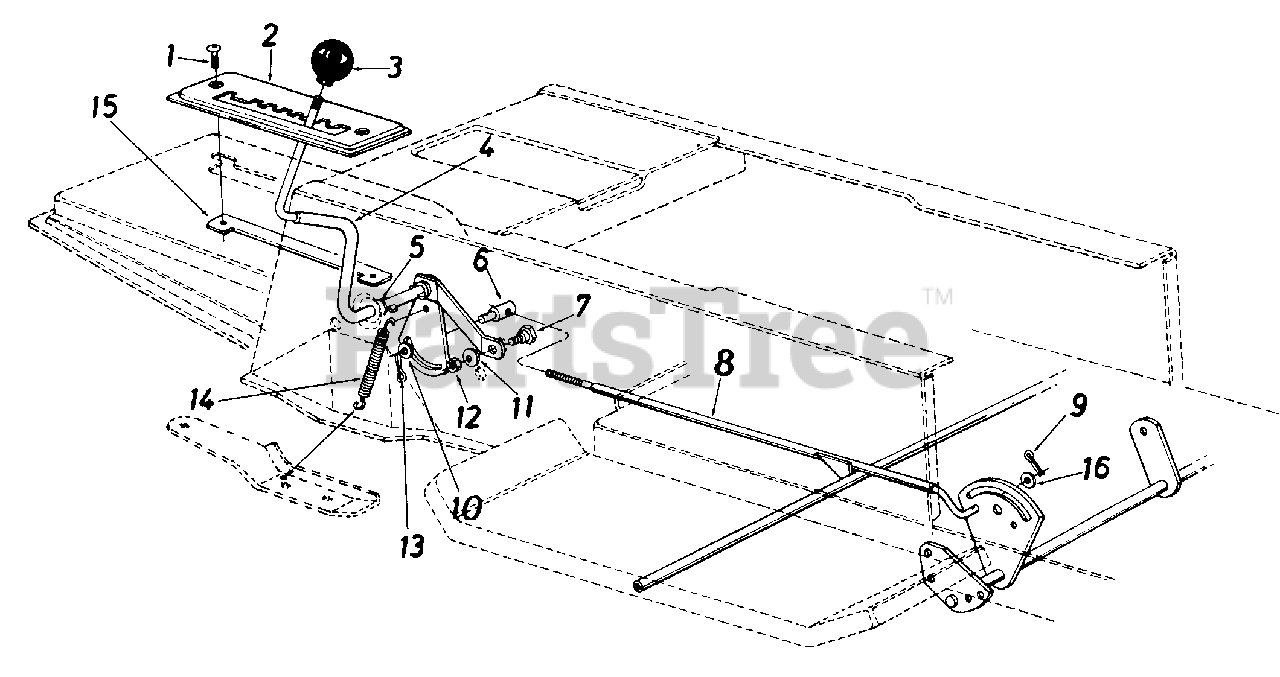

Speed Selector Assembly Parts Diagram

  • Title

1

White Outdoor 710-0924

Truss Mach. Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

2

White Outdoor 16194

Speed Selector Plate 7-Speed

Variations

White Outdoor 16194-0637

PLATE-7 SPEED - POWDER BLACK (0637)

$

$

Not available

$

$

3

White Outdoor 720-0175

Gear Shift Knob
(Superseded to 931-0009A)

$14.99

$

In Stock, only 4 left!

0

4

White Outdoor 16192

Speed Selector Cam Ass'y.
(Superseded to 16192A)

$

$

Not available

5

White Outdoor 736-0192

Flat Washer .53" I.D. x .93"

$4.49

$

In Stock, Qty 18

0

6

White Outdoor 711-0198

Ferrule 3/8-24 x .37" Dia.
(Superseded to 911-0198)

$13.99

$

In Stock, Qty 17

0

7

White Outdoor 738-0155

Shoulder Bolt .435" Dia. x .1 60
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

8

White Outdoor 16355

Speed Control Rod Ass'y.

$

$

Not available

9

White Outdoor 714-0507

Cotter Pin 3/32" Dia. x .75"

$4.49

$

In Stock, only 2 left!

0

10

White Outdoor 736-0140

Fl-Wash. .385" I.D. x .62" O.D.

$7.49

$

In Stock, Qty 7

0

11

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

12

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

13

White Outdoor 714-0507

Cotter Pin 3/32 Dia. x .75"

$4.49

$

In Stock, only 2 left!

0

14

White Outdoor 732-0303

Spring
(Superseded to 932-0303)

$10.99

$

In Stock, Qty 12

0

15

White Outdoor 16196

Clamping Plate

$

$

Not available

16

White Outdoor 736-0226

Fl-Wash. .47" I.D. x .88" O.D.
(Superseded to 936-0226)

$3.99

$

Usually ships in 3-6 days

0
