LT-140 (136-704-190) - White Outdoor 44" Lawn Tractor (1986) Front Wheel And Drive Assembly Parts Diagram

44" Lawn Tractor

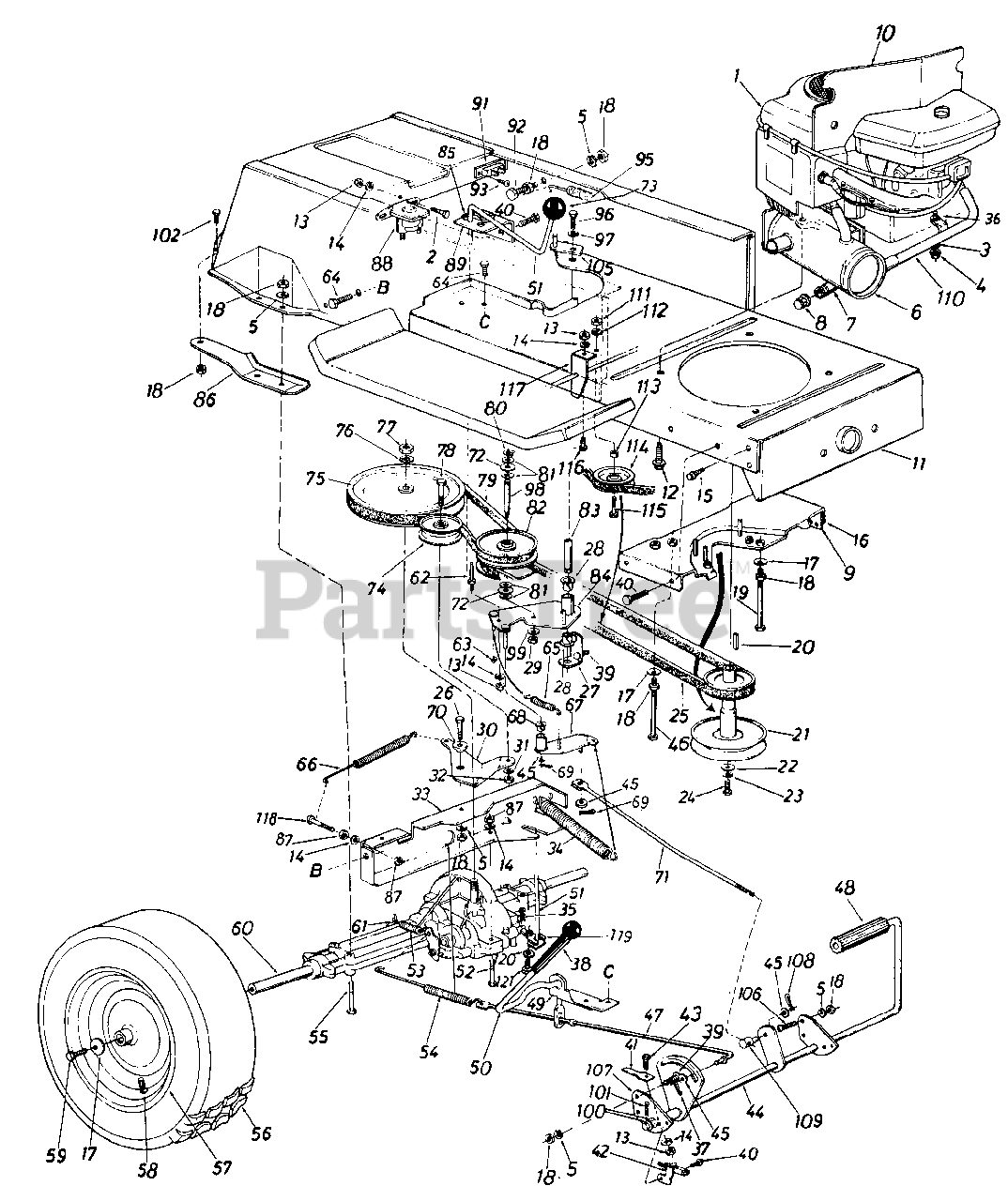

Front Wheel And Drive Assembly Parts Diagram

  • Title

1

Engine

$

$

Not available

2

White Outdoor 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

3

White Outdoor 736-0170

Special L-Wash. 5116" I.D.

$5.99

$

Usually ships in 3-6 days

0

4

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

5

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

6

White Outdoor 751-0444

Exhaust Muffler

$

$

Not available

7

White Outdoor 737-0164

Pipe Nipple
(Superseded to 937-0164)

$

$

Not available

8

White Outdoor 737-0143

Cap Oil Drain

$

$

Not available

9

16371

Brake Cable Brk't.

$

$

Not available

10

16215

Heat Shield

$

$

Not available

11

White Outdoor 15930

Lower Frame Ass'y.

$

$

Not available

12

White Outdoor 710-0502

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.25" Lg.
(Superseded to 710-0502A)

$6.99

$

In Stock, only 2 left!

0

13

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

14

White Outdoor 736-0329

L-Wash. 1/4" I.D*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

15

White Outdoor 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/16" x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

16

16219

Belt Guard Brkt. Ass'y.

$

$

Not available

17

White Outdoor 736-0242

Bell-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

19

White Outdoor 710-0190

Hex Bolt 5/16-18 x 4.00"

$7.99

$

Usually ships in 3-6 days

0

20

White Outdoor 714-0114

Sq. Key 1/4" x 1/4" x 2.00"
(Superseded to 914-0114)

$4.49

$

In Stock, only 1 left!

0

21

White Outdoor 756-0424

Engine Pulley
(Superseded to 753-0631)

Note: (704)

$187.99

$

Usually ships in 3-6 days

0

White Outdoor 756-0458

Engine Pulley

Note: (708)

$

$

Not available

22

White Outdoor 736-0322

Fl-Wash. 7/16" I.D. x 1.25"

$9.49

$

In Stock, Qty 8

0

23

White Outdoor 736-0171

L-Wash. 7/16" I.D.

$4.49

$

In Stock, only 4 left!

0

24

White Outdoor 710-0757

Hex Bolt 7/16-20 x 1.50" Lg.

$9.99

$

In Stock, only 1 left!

0

25

White Outdoor 754-0280

Variable-Speed Belt .715 x 53" Lg.
(Superseded to 954-0280A)

$45.99

$

In Stock, only 1 left!

0

26

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

27

White Outdoor 16553

Bearing Shaft Bracket Ass'y.

$

$

Not available

28

White Outdoor 741-0295

Flanged Nyliner Brg. 5/8" I.D. x .88" Lg.
(Superseded to 941-0591)

$

$

Not available

29

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

30

White Outdoor 15891

Idler Bracket
(Superseded to 15891C-0637)

$

$

Not available

31

White Outdoor 736-0169

L-Wash. 3/8" I.D*

$3.99

$

In Stock, Qty 20+

0

32

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

33

White Outdoor 15945

Transaxle Support Brkt.
(Superseded to 15945E-0637)

$

$

Not available

34

White Outdoor 732-0459

Ext. Spring .94" O.D. x 6.7
(Superseded to 732-0459C)

$18.99

$

In Stock, only 1 left!

0

35

White Outdoor 714-0149

Inter. Cotter Pin
(Superseded to 914-0149B)

$

$

Not available

36

White Outdoor 736-0204

Fl-Wash. .34" I.D. x .62" O.D. x .033

$4.49

$

In Stock, Qty 7

0

37

White Outdoor 714-0507

Cotter Pin 3/32" Dia. x .75"

$4.49

$

In Stock, only 2 left!

0

38

White Outdoor 720-0143

Grip Black

$

$

Not available

39

White Outdoor 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

40

White Outdoor 710-0599

Hex Wash. Hd. Self-Tap Scr 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

41

White Outdoor 732-0435

Switch Actuator

$

$

Not available

42

White Outdoor 725-0577

Safety Switch

$

$

Not available

43

White Outdoor 710-0597

Hex Bolt 1/4-20 x 1.0" Lg.

$3.99

$

In Stock, Qty 14

0

44

16235

Clutch & Brake Pedal Ass'y.

$

$

Not available

45

White Outdoor 736-0117

Fl-Wash.
(Superseded to 936-0117)

$7.49

$

In Stock, only 1 left!

0

46

White Outdoor 710-0402

Hex Bolt 5/16-18 x 4.51'

$

$

Not available

47

White Outdoor 747-0519

Brake Rod 20.9" Lg.

$

$

Not available

48

White Outdoor 735-0196

Foot Pad
(Superseded to 735-0239A)

$12.99

$

In Stock, only 1 left!

0

49

White Outdoor 15889

Brake Lever Bracket

$

$

Not available

50

15888

Hill Holder Brake Handle

$

$

Not available

51

White Outdoor 16430

Shift Lever Ass'y.
(Superseded to 17705)

$

$

Not available

52

White Outdoor 710-0559

Hex Bolt 1/4-28 x 1.75" Lg*

$

$

Not available

53

White Outdoor 732-0264

Ext. Spring .38" O.D. x 2.5"
(Superseded to 932-0264)

$4.99

$

In Stock, Qty 20+

0

54

White Outdoor 732-0413

Ext. Spring .59" O.D. x 7.08"
(Superseded to 932-0413)

$12.99

$

In Stock, only 4 left!

0

55

White Outdoor 710-0176

Hex Bolt 5/16-18 x 2.75"

$4.49

$

In Stock, only 2 left!

0

56

White Outdoor 734-0817

Wheel Ass'y. Comp.

Variations

White Outdoor 734-0817-0911

WHEEL ASSY W/TIRE - Carlisle Gray (0911)

$

$

Not available

White Outdoor 734-0817-0912

No Longer Available WHEEL ASSY W/TIRE - Dico Gray (0912)

$

$

Not available

White Outdoor 734-0817-0915

No Longer Available WHEEL ASSY W/TIRE - Duro Gray (0915)

$

$

Not available

White Outdoor 734-0817-0931

No Longer Available WHL ASSY 18 X 9 50 - Carlisle Beige (0931)

$

$

Not available

White Outdoor 734-0817-0932

No Longer Available WHEEL ASSY 18X9.5X - Dico Beige (0932)

$

$

Not available

White Outdoor 734-0817-0941

No Longer Available WHL ASSY 18 X 9 50 - Carlisle Yellow (0941)

$

$

Not available

White Outdoor 734-0817-0981

No Longer Available WHEEL ASSY W/TIRE - Carlisle Green (0981)

$

$

Not available

$

$

White Outdoor 734-0448

Tire Only

Variations

White Outdoor 734-0448-0901

No Longer Available TIRE 18 X 9 50 - Carlisle (0901)

$

$

Not available

White Outdoor 734-0448-0902

TIRE-TUBELESS 18X9 - Dico (0902)

$

$

Not available

White Outdoor 734-0448-0905

TIRE-TUBELESS 18X9 - Duro (0905)

$

$

Not available

$

$

57

White Outdoor 734-0603

Wheel Rim Only
(Superseded to 634-04369)

$134.99

$

Usually ships in 3-6 days

0

58

White Outdoor 734-0255

Air Valve
(Superseded to 934-0255)

Note: (Service Only)

$4.49

$

In Stock, Qty 20+

0

59

White Outdoor 710-0627

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

60

White Outdoor 717-1050

Transaxle Complete R.H.
(Superseded to 753-0539)

$

$

Not available

61

White Outdoor 732-0454

Brake Return Spring Anchor
(Superseded to 932-0722A)

$12.99

$

In Stock, only 4 left!

0

62

White Outdoor 711-0768

Belt Guard Pin 1/4-20 Thd.
(Superseded to 911-1000)

$10.99

$

In Stock, only 2 left!

0

63

White Outdoor 726-0106

Cap Speed Nut 1/4" Dia.

$3.99

$

Usually ships in 3-6 days

0

64

White Outdoor 710-0604

Hex Wash. TT-Tap Scr. 5/16 x .62" Lg.
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

65

White Outdoor 732-0387

Ext. Spring .50" Dia.

$

$

Not available

66

White Outdoor 732-0384

Ext. Spring .62" O.D. x 6.12"
(Superseded to 932-0384)

$14.99

$

In Stock, only 4 left!

0

67

16554

Variable Speed Torque Brkt. Ass'y.

$

$

Not available

68

White Outdoor 741-0419

Flanged Bearing

$

$

Not available

69

White Outdoor 714-0507

Cotter Pin 3/32" Dia.

$4.49

$

In Stock, only 2 left!

0

70

White Outdoor 748-0234

Shoulder Spacer .500" Dia. x.27" Lg.

$4.49

$

Usually ships in 3-6 days

0

71

White Outdoor 747-0530

Speed Control Link
(Superseded to 747-0530A)

$14.99

$

Usually ships in 3-6 days

0

72

White Outdoor 741-0405

Truss Bearing .56 Dia. x 1 .25"
(Superseded to 941-0405)

$

$

Not available

73

White Outdoor 720-0165

Ball Knob
(Superseded to 920-0232)

$10.99

$

In Stock, only 1 left!

0

74

White Outdoor 756-0437

Fl-ldler Pulley 3.25" x 1.0"
(Superseded to 756-0643A)

$40.99

$

In Stock, Qty 15

0

75

White Outdoor 756-0374

1/2" "V"-Pulley 8.0" O.D. x.501" I.D.

$

$

Not available

76

White Outdoor 736-0921

L-Wash. 1/2" I.D*

$4.49

$

In Stock, Qty 5

0

77

White Outdoor 712-0922

Hex Jam Nut 1/2-20 Thd.
(Superseded to 712-3029)

$6.99

$

In Stock, Qty 6

0

78

White Outdoor 710-0539

Hex Bolt 3/8-24 x .75" Lg.

$4.99

$

In Stock, Qty 11

0

79

White Outdoor 754-0281

Variable Speed Belt .715 x 44" Lg.
(Superseded to 954-0281)

$40.99

$

In Stock, only 1 left!

0

80

White Outdoor 716-0114

Snap Ring .56" Dia.
(Superseded to 916-0114)

$6.99

$

In Stock, only 3 left!

0

81

White Outdoor 736-0355

Fl-Wash.

$4.49

$

In Stock, Qty 12

0

82

White Outdoor 717-0800

Variable Speed Pulley Ass'y. 5" O.D.
(Superseded to 917-0800A)

$245.99

$

In Stock, only 3 left!

0

83

White Outdoor 711-0766

Bearing Shaft

$

$

Not available

84

White Outdoor 16354

Variable Speed Brkt. Ass'y.
(Superseded to 16354B-0637)

$

$

Not available

85

White Outdoor 732-0525

Comp. Spring Clip

$10.99

$

In Stock, only 1 left!

0

86

White Outdoor 14770

Transaxle Support Brkt. R.H.

$

$

Not available

White Outdoor 14769

Transaxle Support Brkt. L.H.
(Superseded to 14769A)

Note: (Not Shown)

$

$

Not available

87

White Outdoor 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

88

White Outdoor 725-0771

Solenoid
(Superseded to 925-0771)

$35.99

$

In Stock, only 1 left!

0

89

White Outdoor 16429

Shift Lever Bracket

$

$

Not available

91

White Outdoor 725-0459

Circuit Breaker
(Superseded to 753-0685)

$

$

Not available

92

White Outdoor 710-0959

Hex Bolt 5/16-18 x 1.50"

$7.49

$

Usually ships in 3-6 days

0

93

White Outdoor 710-0351

Truss Hd. Phil. Scr. #10 x 1/2" Lg.

$4.49

$

In Stock, only 2 left!

0

95

White Outdoor 732-0307

Ext. Spring .99" O.D. x 11.0"
(Superseded to 932-0307A)

$

$

Not available

96

White Outdoor 710-0180

Hex Bolt 3/8-24 x .75" Lg.

$6.99

$

In Stock, only 3 left!

0

97

White Outdoor 736-0105

Bell-Wash. .38" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

98

White Outdoor 738-0569

Shaft .56" Dia. x 3.875" Lg.
(Superseded to 938-0569)

$33.99

$

In Stock, only 1 left!

0

99

White Outdoor 736-0331

Bell-Wash. .39" I.D. x 1.12"

$3.99

$

In Stock, Qty 16

0

100

White Outdoor 736-0256

Fl-Wash.
(Superseded to 936-0256)

$7.49

$

Usually ships in 3-6 days

0

101

White Outdoor 714-0507

Cotter Pin 3/32" Dia. x .75"

$4.49

$

In Stock, only 2 left!

0

102

White Outdoor 710-0604

Hex Wash. Hd. Scr. 5/16-18 x .62" Lg.
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

105

White Outdoor 16067

Belt Guard

$

$

Not available

106

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

107

White Outdoor 15835

Pedal Bracket

$

$

Not available

108

White Outdoor 714-0507

Cotter Pin 3/32 x .75"

$4.49

$

In Stock, only 2 left!

0

109

White Outdoor 711-0198

Ferrule
(Superseded to 911-0198)

$13.99

$

In Stock, Qty 17

0

110

751-0446

Inlet Tube Ass'y.

$

$

Not available

111

White Outdoor 712-0798

Hex Nut 3/8"-16 Thd.

$4.49

$

In Stock, only 2 left!

0

112

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

113

White Outdoor 736-0280

Fl-Wash. .390" I.D. x 1.12"
(Superseded to 736-04005)

$8.99

$

Usually ships in 3-6 days

0

114

White Outdoor 756-0217

Fl-ldler w/ Flanges 2.750
(Superseded to 956-0217)

$22.99

$

In Stock, only 1 left!

0

115

White Outdoor 710-0427

Hex Bolt 3/8-16 x 2.00" Lg.
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 7

0

116

White Outdoor 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

117

16181

Spring Hanger Bracket

$

$

Not available

118

White Outdoor 710-0428

Hex Bolt 1/4-28 x 1.25" Lg.

$2.49

$

In Stock, only 1 left!

0

119

White Outdoor 16437

Shift Lever Link Ass'y.

$

$

Not available

120

White Outdoor 736-0270

Bell-Wash. .265 I.D. x .75 0 O.D.

$3.99

$

In Stock, Qty 20+

0

121

White Outdoor 710-0195

Hex Bolt 1/4-28 x .62" Lg.
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0
