LT-140 (135-704-190) - White Outdoor 44" Lawn Tractor (1985) Steering Assembly Parts Diagram

44" Lawn Tractor

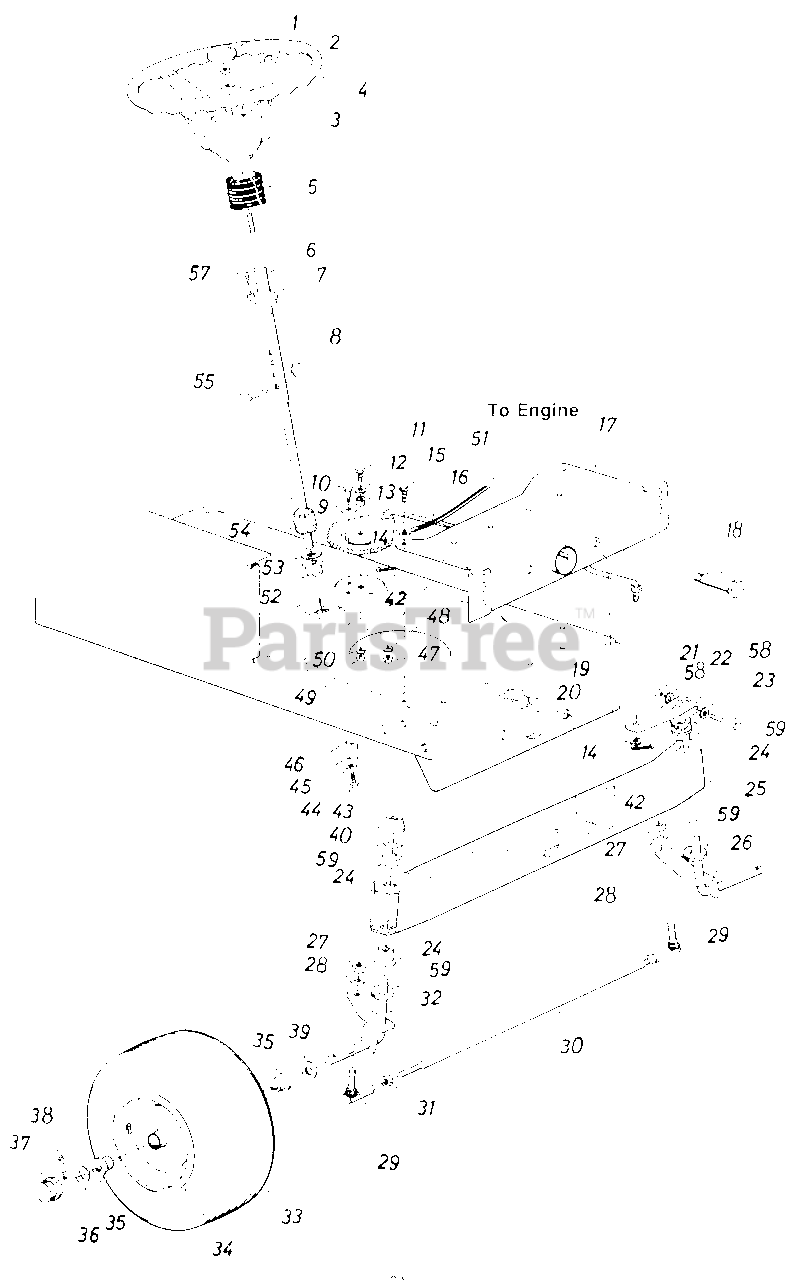

Steering Assembly Parts Diagram

  • Title

1

MTD 931-0220

Steering Wheel Cap

$9.49

$

In Stock, only 2 left!

0

2

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

3

MTD 736-0242

Belleville Wash. .345" I.D.

$4.49

$

In Stock, Qty 20+

0

4

MTD 731-0219

Steering Wheel 12" Dia.

$38.99

$

In Stock, only 1 left!

0

4

MTD 731-0356

Steering Wheel 13.5" Dia.

Note: NLA

$

$

Not available

5

MTD 731-0559B

Steering Bellow

$

$

Not available

6

MTD 14775

Steering Column Ass'y.

Note: NLA

$

$

Not available

7

MTD 741-0356

Flange Bearing .890 I.D. x 1.36 O.D.
(Superseded to 741-0356A)

$7.49

$

In Stock, only 3 left!

0

8

MTD 714-0147

Internal Cotter Pin 1/4" Dia.

$4.99

$

In Stock, Qty 6

0

9

MTD 936-0319

Fl-Wash. .438" I.D. x 1.37" O.D.

$11.99

$

Usually ships in 3-6 days

0

10

MTD 938-0141

Shoulder Bolt .437" Dia. x .35 Lg. 5/16-18 Thd.

$7.49

$

In Stock, Qty 7

0

11

MTD 710-1039

Hex Bolt 3/8-24 x 1.0" Lg. (Grade 5)

$4.49

$

In Stock, Qty 20+

0

12

MTD 936-0206

Fl-Wash. .38" I.D. x 1.0" O.D.
(Superseded to 736-0258)

$4.49

$

In Stock, only 3 left!

0

13

MTD 950-0535

Spacer.380" I.D. x .625" O.D. x .227

$4.49

$

In Stock, Qty 20+

0

14

MTD 736-0355

Flat Washer .56 I.D. x 1.0 O.D.

$4.49

$

In Stock, Qty 20+

0

15

MTD 710-0726

Hex Wash. Hd. Self-Tap Scr.

$4.49

$

In Stock, Qty 20+

0

16

MTD 711-0782

Steering Drag Link

$

$

Not available

17

MTD 14619

Front Pivot Brkt.

Note: NLA

$

$

Currently unavailable

18

MTD 938-0527

Shoulder Bolt .498" Dia. x 2.04 Lg. 3/8-16 Thd.
(Superseded to 738-0527)

$8.49

$

In Stock, Qty 6

0

19

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, Qty 12

0

20

MTD 936-0169

L-Wash. 3/8" I.D.*
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

21

MTD 912-0237

Hex Cent. L-Nut 5/16-24 Thd.
(Superseded to 712-0237)

$

$

Not available

22

MTD 14611

Steering Arm Front Axle

Note: NLA

$

$

Not available

23

MTD 710-0772

Hex Bolt 5/16-24 x 2.00" Lg. (Grade 5)

$4.49

$

Usually ships in 3-6 days

0

24

MTD 941-0225

Hex Flg. Brg. .634 I.D.

$7.49

$

In Stock, Qty 20+

0

25

MTD 753-0642-0637

Pivot Bar Ass'y.

$127.99

$

In Stock, only 2 left!

0

26

MTD 753-0594

Front Axle Ass'y. L. H .

$

$

Not available

27

MTD 712-0241

Hex Nut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 13

0

28

MTD 936-0169

L-Wash. 3/8" I.D.*
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

29

MTD 923-0156

Bal I Joi nt 3/8-24 Thd.

$16.99

$

In Stock, Qty 20+

0

30

MTD 711-0613

Tie Rod

$

$

Not available

31

MTD 712-0711

Hex Jam Nut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 20+

0

32

MTD 683-0040

Front Axle Ass'y. R.H..

$

$

Not available

33

MTD 634-0056B-0911

Wheel Ass'y. Comp.

$249.99

$

In Stock, only 3 left!

0

33

MTD 734-0498

Tire Only

Note: NLA

$

$

Currently unavailable

34

MTD 753-0838-0662

Front Wheel Rim Only

$

$

Not available

34

MTD 934-0255

Air Valve

$4.49

$

In Stock, Qty 20+

0

34

MTD 937-0146

Grease Fitting

$5.49

$

In Stock, only 2 left!

0

35

MTD 741-0487C

Bearing

$7.49

$

Usually ships in 3-6 days

0

36

MTD 736-0285

Fl-Wash. .635 I.D. x 1.59" O.D.

$4.49

$

In Stock, Qty 20+

0

37

MTD 931-0484A

Front Wheel Hub Cap

$6.49

$

In Stock, Qty 20+

0

37

MTD 734-0541

Front Wheel Hub Cap (Chrome)

Note: NLA

$

$

Not available

38

MTD 914-0470

Cotter Pin 118" Dia. x 1.25" Lg.*
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

39

MTD 736-0156

Fl-Wash. .635" I.D. x 1.20" O.D.

$4.49

$

In Stock, Qty 12

0

40

MTD 726-0214

Push Cap 5/8" Dia. Rod

$10.99

$

In Stock, only 4 left!

0

42

MTD 914-0115

Cotter Pin 118" Dia. x 1.0" Lg.
(Superseded to 714-0115)

$3.99

$

In Stock, Qty 20+

0

43

MTD 710-0538

Hex L-Bolt 5/16-18 x .62" Lg.

$4.49

$

In Stock, Qty 9

0

44

MTD 936-0119

L-Wash. 5/16" I.D.*

$4.99

$

In Stock, Qty 20+

0

45

MTD 936-0231

Fl-Wash. .344" I.D. x 1.25" O.D.
(Superseded to 736-0231)

$

$

Not available

46

MTD 950-0532

Spacer (Plastic)

$

$

Not available

47

MTD 712-0241

Hex Nut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 13

0

48

MTD 936-0169

L-Wash. 3/8" I.D.*
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

49

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

50

MTD 936-0119

L-Wash. 5/16" I.D.*

$4.99

$

In Stock, Qty 20+

0

51

MTD 917-0468

Steering Gear Segment

$

$

Not available

52

MTD 941-0225

Hex Flg. Brg. .634 I.D.

$7.49

$

In Stock, Qty 20+

0

53

MTD 736-0187

Fl-Wash. (Hardened)

$4.49

$

In Stock, Qty 20+

0

54

MTD 738-0522A

Steering Shaft Lower

$75.99

$

In Stock, Qty 5

0

55

MTD 711-0684

Clevis Pin 1/4" Dia. x 1.00" Lg.

$

$

Not available

57

MTD 710-0837

Oval Hd. Cr. Sunk Scr. #10 x 5/8" Lg.

$4.49

$

In Stock, Qty 5

0

58

MTD 736-0242

Bell-Wash.

$4.49

$

In Stock, Qty 20+

0

59

MTD 736-0187

Fl-Wash. (Hardened)

$4.49

$

In Stock, Qty 20+

0
