LT-140 (135-704-190) - White Outdoor 44" Lawn Tractor (1985) Electrical System Parts Diagram

44" Lawn Tractor

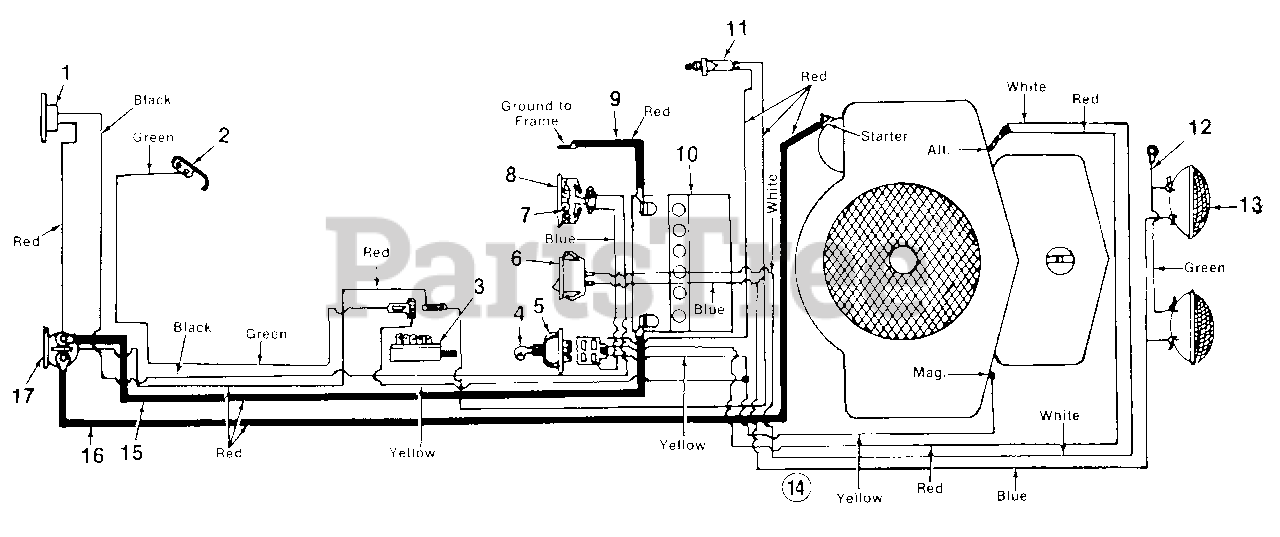

Electrical System Parts Diagram

  • Title

1

MTD 753-0685

Circuit Breaker

$

$

Not available

2

MTD 753-0579

Spring Switch

$

$

Not available

3

MTD 925-0819A

Safety Switch Dpst.

$30.99

$

Usually ships in 3-6 days

0

4

MTD 925-0201

Ignition Key

$9.49

$

In Stock, only 1 left!

0

5

MTD 925-0267B

Ignition Switch

$35.99

$

In Stock, Qty 20+

0

6

MTD 925-0634

Headlight Switch

$17.99

$

In Stock, only 4 left!

0

7

MTD 722-0135

Foam Strip

Note: NLA

$

$

Not available

8

MTD 925-0925

Ammeter

$31.99

$

In Stock, Qty 6

0

9

MTD 629-0739

Grounding Wire 14.0" Lg.

$

$

Not available

10

MTD 925-0453G

12 Volt Battery

$

$

Not available

11

MTD 725-0577

Safety Switch

$

$

Not available

12

MTD 725-0916A

Ground Wire

$

$

Not available

13

MTD 925-0222

Headlight

$58.99

$

In Stock, only 4 left!

0

14

MTD 725-1076

Wire Harness

Note: NLA

$

$

Currently unavailable

15

MTD 725-1080

Electric Wire 27.0" Lg.

Note: NLA

$

$

Currently unavailable

16

MTD 629-0740

Electric Wire 32.5" Lg.

$20.99

$

Usually ships in 3-6 days

0

17

MTD 925-0771

Solenoid

$35.99

$

In Stock, only 1 left!

0
