LT-140 (135-704-190) - White Outdoor 44" Lawn Tractor (1985) Drive Assembly Parts Diagram

44" Lawn Tractor

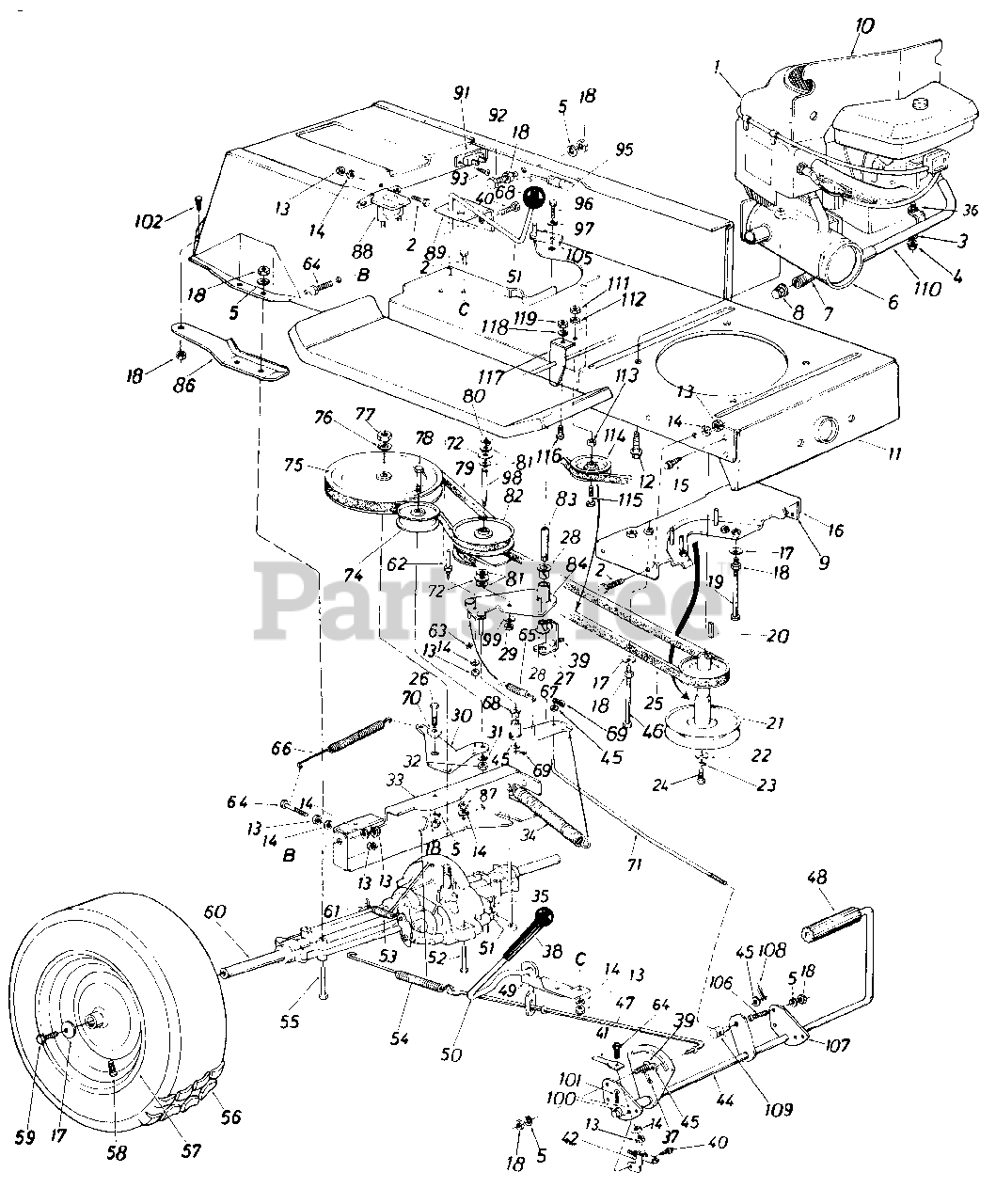

Drive Assembly Parts Diagram

  • Title

1

Engine

$

$

Not available

2

MTD 710-0751

Hex Bolt 1/4-20 x .62" Lg.*

$3.99

$

In Stock, Qty 20+

0

3

MTD 936-0170

Special L-Wash. 5/16" I.D.
(Superseded to 736-0170)

$

$

Not available

4

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

5

MTD 936-0119

L-Wash. 5/16" I.D.*

$4.99

$

In Stock, Qty 20+

0

6

MTD 751-0421

Exhaust Muffler

Note: NLA

$

$

Currently unavailable

7

MTD 937-0164

Pipe Nipple

$

$

Not available

8

MTD 737-0143

Cap Oil Drain

Note: NLA

$

$

Not available

9

MTD 16371

Brake Cable Brk't.

Note: NLA

$

$

Currently unavailable

10

MTD 16215

Heat Shield

Note: NLA

$

$

Currently unavailable

11

MTD 15930

Lower Frame Ass'y.

Note: NLA

$

$

Not available

12

MTD 710-0502A

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.25" Lg.

$6.99

$

In Stock, only 2 left!

0

13

MTD 912-0287

Hex Nut 1/4-20 Thd.*

$4.99

$

Usually ships in 3-6 days

0

14

MTD 936-0329

L-Wash. 1/4" I.D.*

$4.49

$

In Stock, Qty 11

0

15

MTD 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/16" x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

16

MTD 15898

Belt Guard Brkt. Ass'y.

Note: NLA

$

$

Currently unavailable

17

MTD 736-0242

Bell-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

18

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

19

MTD 710-0190

Hex Bolt 5/16-18 x 4.00"*

$7.99

$

Usually ships in 3-6 days

0

20

MTD 914-0114

Sq. Key 1/4 " x 1/4 " x 2.00"

$4.49

$

In Stock, only 1 left!

0

21

MTD 753-0631

Engine Pulley

$187.99

$

Usually ships in 3-6 days

0

22

MTD 736-0322

Fl-Wash. 7/16" I.D. x 1.25"

$9.49

$

In Stock, Qty 8

0

23

MTD 936-0171

L-Wash. 7/16" I.D.*
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

24

MTD 710-0757

Hex Bolt 7/16-20 x 1.50" Lg.

$9.99

$

In Stock, only 1 left!

0

25

MTD 954-0280A

Variable-Speed Belt .715 x 53" Lg.

$45.99

$

In Stock, only 1 left!

0

26

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.*

$4.49

$

In Stock, Qty 20+

0

27

MTD 15890

Bearing Shaft Bracket

Note: NLA

$

$

Not available

28

MTD 941-0591

Flanged Nyliner Brg. 5/8" I.D. x .88 " Lg.
(Superseded to 741-0591)

$

$

Not available

29

MTD 712-0241

Hex Nut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 13

0

30

MTD 15891C-0637

Idler Bracket

$

$

Not available

31

MTD 936-0169

L-Wash. 3/8" I.D.*
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

32

MTD 712-0241

Hex Nut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 13

0

33

MTD 15945E-0637

Transaxle Support Brkt.

$

$

Not available

34

MTD 732-0459C

Ext. Spring .94" O.D. x 6.7

$18.99

$

In Stock, only 1 left!

0

35

MTD 914-0115

Cotter Pin 1/8" Dia. x 1.0"*
(Superseded to 714-0115)

$3.99

$

In Stock, Qty 20+

0

36

MTD 736-0204

Fl-Wash. .34" I.D. x .62" O.D. x .033

$4.49

$

In Stock, Qty 7

0

37

MTD 914-0111

Cotter Pin 3/32" Dia. x 1.0"*
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

38

MTD 720-0143

Grip Black

Note: NLA

$

$

Not available

39

MTD 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

40

MTD 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

41

MTD 732-0435

Switch Actuator

$

$

Not available

42

MTD 925-0268

Safety Switch

$39.99

$

Usually ships in 3-6 days

0

44

MTD 16191

Clutch & Brake Pedal Ass'y.

Note: NLA

$

$

Currently unavailable

45

MTD 936-0117

Fl-Wash.

$7.49

$

In Stock, only 1 left!

0

46

MTD 710-0402

Hex Bolt 5/16-18 x 4.5"*

Note: NLA

$

$

Not available

47

MTD 747-0472

Brake Rod

Note: NLA

$

$

Not available

48

MTD 735-0239

Foot Pad
(Superseded to 735-0239A)

$12.99

$

Usually ships in 3-6 days

0

49

MTD 15889

Brake Lever Bracket

Note: NLA

$

$

Not available

50

MTD 15888

Hill Holder Brake Handle

Note: NLA

$

$

Currently unavailable

51

MTD 15838

Shift Lever Ass'y.

Note: NLA

$

$

Currently unavailable

52

MTD 710-0559

Hex Bolt 1/4-28 x 1.75" Lg.*

Note: NLA

$

$

Not available

53

MTD 932-0264

Ext. Spring .38" O.D. x 2.5"

$4.99

$

In Stock, Qty 20+

0

54

MTD 932-0413

Ext. Spring .59" O.D. x 7.08"

$12.99

$

In Stock, only 4 left!

0

55

MTD 710-0378

Hex Bolt 5/16-18 x 2.50"*

$4.99

$

In Stock, only 4 left!

0

56

MTD 734-0817

Wheel Ass'y. Comp.

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 734-0817-0911

No Longer Available WHEEL ASM - Carlisle Gray (0911)

$

$

Not available

MTD 734-0817-0912

No Longer Available WHEEL ASM - Dico Gray (0912)

$

$

Not available

MTD 734-0817-0915

No Longer Available WHEEL ASM - Duro Gray (0915)

$

$

Not available

MTD 734-0817-0931

No Longer Available WHL ASM 1 - Carlisle Beige (0931)

$

$

Not available

MTD 734-0817-0932

No Longer Available WHEEL ASM - Dico Beige (0932)

$

$

Not available

MTD 734-0817-0941

No Longer Available WHL ASM 1 - Carlisle Yellow (0941)

$

$

Not available

MTD 734-0817-0981

No Longer Available WHEEL ASM - Carlisle Green (0981)

$

$

Not available

$

$

56

MTD 734-0448

Tire OnIy

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 734-0448-0901

No Longer Available TIRE 18 X - Carlisle (0901)

$

$

Not available

MTD 734-0448-0902

No Longer Available - Dico (0902)

$

$

Not available

MTD 734-0448-0905

No Longer Available - Duro (0905)

$

$

Not available

$

$

57

MTD 634-0070

Wheel Rim Only
(Superseded to 634-04369)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 634-0070-4009

WHEEL RIM - TEE WHITE (4009)

$154.99

$

Usually ships in 3-6 days

0

MTD 634-0070-0499

WHEEL RIM - CUB BEIGE (0499)

$165.99

$

Usually ships in 3-6 days

0

MTD 634-0070-0674

WHEEL RIM - YARDMAN YELLOW (0674)

$165.99

$

Usually ships in 3-6 days

0

MTD 634-0070-0629

WHEEL RIM - SILVER FLAKE (0629)

$165.99

$

Usually ships in 3-6 days

0

MTD 634-0070-0662

WHEEL RIM - OYSTER GRAY (0662)

$165.99

$

Usually ships in 3-6 days

0

MTD 634-0070-0688

WHEEL RIM - SPRING GREEN (0688)

$165.99

$

Usually ships in 3-6 days

0

$134.99

$

Usually ships in 3-6 days

0

58

MTD 934-0255

Air Valve

$4.49

$

In Stock, Qty 20+

0

59

MTD 710-0627

Hex Bolt 5/16-24 x .75" Lg.*

$4.49

$

In Stock, Qty 20+

0

60

MTD 753-0539

Transaxle Complete

$

$

Not available

61

MTD 932-0722A

Brake Return Spring Anchor

$12.99

$

In Stock, only 4 left!

0

62

MTD 911-1000

Belt Guard Pin 1/4-20 Thd.

$10.99

$

In Stock, only 2 left!

0

63

MTD 926-0106

Cap Speed Nut 1/4" Dia.
(Superseded to 726-0106)

$

$

Not available

64

MTD 710-0597

Hex Bolt 1/4-20 x 1.0" Lg.*

$3.99

$

In Stock, Qty 14

0

65

MTD 732-0387

Ext. Spring .50" Dia.

$

$

Not available

66

MTD 932-0384

Ext. Spring .56" O.D. x 5.96"

$14.99

$

In Stock, only 4 left!

0

67

MTD 16352

Variable Speed Torque Brkt. Ass'y.

Note: NLA

$

$

Not available

68

MTD 741-0419

Flanged Bearing

$

$

Not available

69

MTD 914-0507

Cotter Pin 3/32" Dia.*

$4.49

$

In Stock, Qty 17

0

70

MTD 748-0234

Shoulder Spacer .500" Dia. x .27" Lg.

$4.49

$

Usually ships in 3-6 days

0

71

MTD 747-0518

Speed Control Link

Note: NLA

$

$

Not available

72

MTD 941-0405

Truss Bearing .56 Dia. x 1.25"

$

$

Not available

72

MTD 920-0232

Ball Knob

$10.99

$

In Stock, only 1 left!

0

74

MTD 756-0643A

Fl-ldler Pulley 3.25" x 1.0"

$40.99

$

In Stock, Qty 15

0

75

MTD 756-0374

11/16" "V"-Pulley 8.0" O.D. x .501" I.D.

$

$

Not available

76

MTD 936-0921

L-Wash. 1/2" I.D.
(Superseded to 736-0921)

$4.49

$

In Stock, Qty 5

0

77

MTD 712-3029

Hex Jam Nut 1/2-20 Thd.*

$6.99

$

In Stock, Qty 6

0

78

MTD 710-0459A

Hex Bolt 3/8-24 x 1.50" Lg.*

$6.99

$

In Stock, Qty 8

0

79

MTD 954-0281

Variable Speed Belt .715 x 44" Lg.

$40.99

$

In Stock, only 1 left!

0

80

MTD 916-0114

Snap Ring .56" Dia.

$6.99

$

In Stock, only 3 left!

0

81

MTD 736-0355

Fl-Wash .

$4.49

$

In Stock, Qty 12

0

82

MTD 917-0800A

Variable Speed Pulley Ass'y. 5" O.D.

$245.99

$

In Stock, only 3 left!

0

83

MTD 711-0766

Bearing Shaft

$

$

Not available

84

MTD 16354B-0637

Variable Speed Brkt. Ass'y.

$

$

Not available

84

MTD 711-0474

Belt Guard Pin 1/4" Dia. x 1.68" Lg.

Note: NLA

$

$

Currently unavailable

86

MTD 14770

Transaxle Support Brkt. R.H.

$

$

Not available

86

MTD 14769A

Transaxle Support Brkt. L.H.

$

$

Not available

87

MTD 912-0138

Hex Nut 1/4-28 Thd.
(Superseded to 712-0138)

$

$

Not available

88

MTD 925-0771

Solenoid

$35.99

$

In Stock, only 1 left!

0

89

MTD 16031

Shift Lever Bracket

Note: NLA

$

$

Not available

91

MTD 753-0685

Circuit Breaker

$

$

Not available

92

MTD 710-0528

Hex Bolt 5/16-18 x 1.25" Lg.

$4.49

$

In Stock, Qty 20+

0

93

MTD 710-0351

Truss Hd. Phil. Scr. #10 x 1/2" Lg.

$4.49

$

In Stock, only 2 left!

0

95

MTD 932-0307A

Ext. Spring .99" O.D. x 11.0"

$

$

Not available

96

MTD 710-0180

Hex Bolt 3/8-24 x .75" Lg.*

$6.99

$

In Stock, only 3 left!

0

97

MTD 736-0105

Bell-Wash. .38" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

98

MTD 938-0569

Shaft .56" Dia. x 3.875" Lg.

$33.99

$

In Stock, only 1 left!

0

99

MTD 736-0331

Bell-Wash. .39" I.D. x 1.12"

$3.99

$

In Stock, Qty 16

0

100

MTD 936-0256

Fl-Wash.

$7.49

$

Usually ships in 3-6 days

0

101

MTD 914-0470

Cotter Pin
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

102

MTD 710-0604A

Hex Wash. Hd. Scr. 5/16-18 x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

102

MTD 736-0362

Fl-Wash. .32" I.D. x 1.25"

$4.49

$

In Stock, Qty 8

0

105

MTD 16067

Belt Guard

Note: NLA

$

$

Not available

106

MTD 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.*

$4.99

$

In Stock, only 2 left!

0

107

MTD 15835

Pedal Bracket

Note: NLA

$

$

Not available

108

MTD 914-0104

Hairpin Cotter 118" Dia.
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

109

MTD 911-0198

Ferrule

$13.99

$

In Stock, Qty 17

0

110

MTD 751-0422

Inlet Tube Ass'y.

Note: NLA

$

$

Currently unavailable

111

MTD 712-0798

Hex Nut 3/8"-16 Thd.*

$4.49

$

In Stock, only 2 left!

0

112

MTD 936-0169

L-Wash. 3/8" I.D.*
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

113

MTD 736-0280

Fl-Wash. .390" I.D. x 1.12" O.D. x .187
(Superseded to 736-04005)

$8.99

$

Usually ships in 3-6 days

0

114

MTD 956-0217

Fl-ldler w/ Flanges 2.750

$22.99

$

In Stock, only 1 left!

0

115

MTD 710-3144

Hex Bolt 3/8-16 x 2.00" Lg.*

$4.49

$

In Stock, Qty 7

0

116

MTD 710-0751

Hex Bolt 1/4-20 x .62" Lg.*

$3.99

$

In Stock, Qty 20+

0

117

MTD 16181

Spring Hanger Bracket

Note: NLA

$

$

Currently unavailable

118

MTD 936-0329

L-Wash. 1/4" I.D.*

$4.49

$

In Stock, Qty 11

0

119

MTD 912-0287

Hex Nut 1/4-20 Thd.*

$4.99

$

Usually ships in 3-6 days

0
