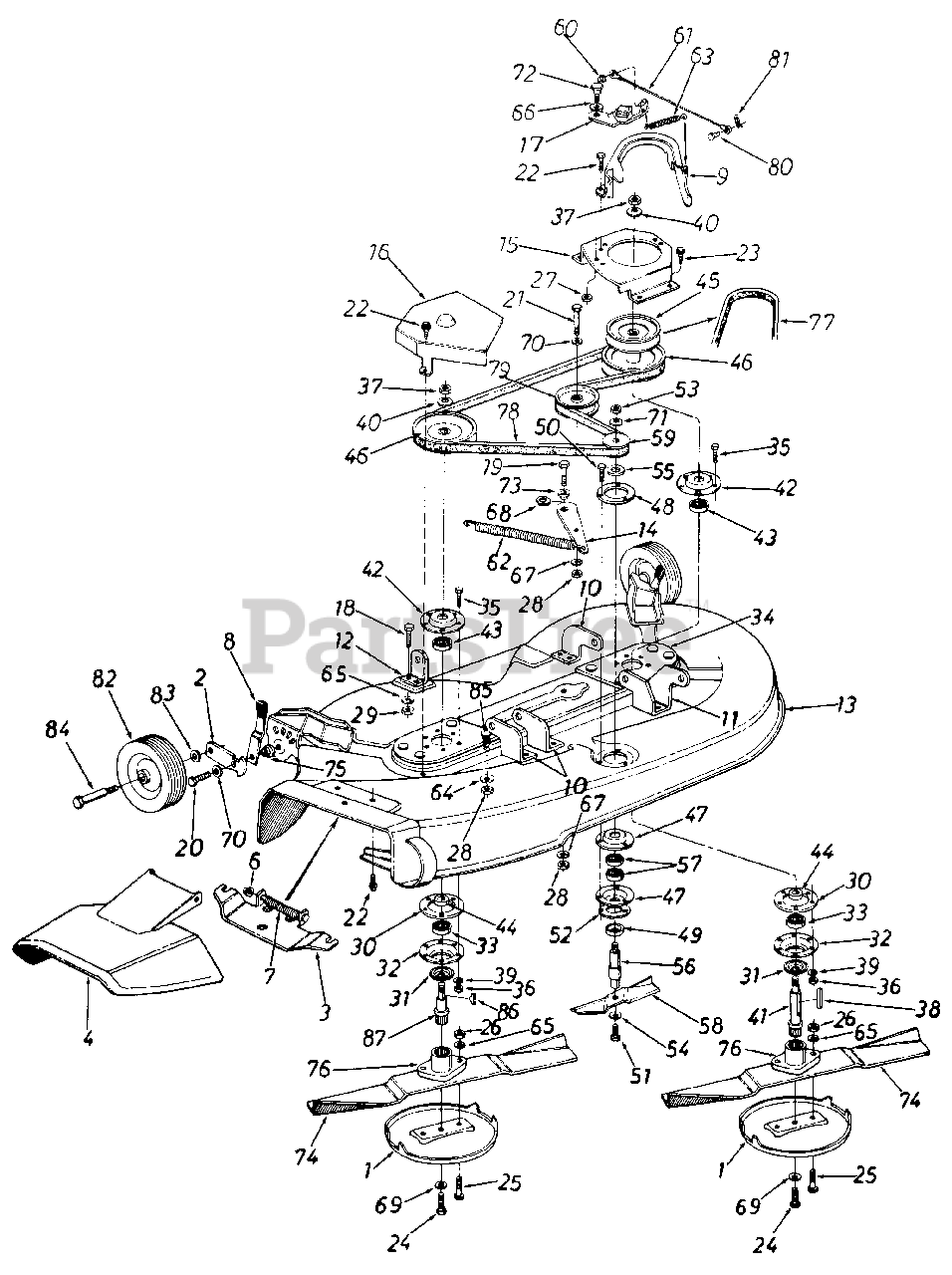

LT-140 (135-704-190) - White Outdoor 44" Lawn Tractor (1985) Deck Assembly Parts Diagram

44" Lawn Tractor

Deck Assembly Parts Diagram

  • Title

1

MTD 07919B-0637

Anti-Scalp Plate

$

$

Not available

2

MTD 10937

Bar-Wheel Pivot

Note: NLA

$

$

Not available

3

MTD 11396

Adapter Plate

Note: NLA

$

$

Not available

4

MTD 11574

Chute Cover Ass'y.

Note: NLA

$

$

Currently unavailable

4

MTD 711-0571

Hinge Pin

Note: NLA

$

$

Not available

6

MTD 926-0106

Cap Speed Nut 1/4" Rod
(Superseded to 726-0106)

$

$

Not available

7

MTD 732-0261

Torsion Spring

Note: NLA

$

$

Not available

8

MTD 14082

Spring Lever Ass'y.

$

$

Not available

9

MTD 14258B-0637

Belt Guard

$

$

Not available

10

MTD 16175

Deck Hanger Bracket

Note: NLA

Variations

MTD 16175-0637

No Longer Available BRACKET-DE - POWDER BLACK (0637)

$

$

Not available

$

$

11

MTD 16176

Butterfly-Bracket

Note: NLA

$

$

Not available

12

MTD 16180

Deck Hanger Bracket 1.91

Note: NLA

$

$

Not available

13

MTD 16231

44" Deck Ass'y

Note: NLA

$

$

Currently unavailable

14

MTD 16331

Idler Bracket

Note: NLA

$

$

Not available

15

MTD 16333

Pulley Cover L.H.

Note: NLA

$

$

Not available

16

MTD 16334

Pulley Cover R.H.

Note: NLA

Variations

MTD 16334-0637

No Longer Available COVER-PULL - POWDER BLACK (0637)

$

$

Not available

$

$

17

MTD 16337

Spindle Brake Arm Ass'y

Note: NLA

$

$

Not available

18

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.*

$4.49

$

In Stock, Qty 20+

0

19

MTD 710-1039

Hex Bolt 3/8-24 x 1.00" Lg.*

$4.49

$

In Stock, Qty 20+

0

20

MTD 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.*

$4.99

$

In Stock, Qty 9

0

21

MTD 710-0459A

Hex Bolt 3/8-24 x 1.50" Lg.*

$6.99

$

In Stock, Qty 8

0

22

MTD 710-0599

Hex Wash. S-Tapp Scr. 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

23

MTD 710-0726

Hex Wash. Hd. Tapp Scr. 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

24

MTD 710-0696

Hex Cent. L-Bolt 3/8-24 x .88" Lg.

$6.99

$

In Stock, only 2 left!

0

25

MTD 710-0888

Hex Bolt Special 5/16-24 x 1.0" Lg.

$4.49

$

In Stock, Qty 20+

0

26

MTD 912-3057

Hex Nut 5/16-24 Thd.*

$6.99

$

In Stock, only 2 left!

0

27

MTD 912-0158

Hex Cent. L-Nut 5/16-18 Thd.

$3.49

$

In Stock, Qty 18

0

28

MTD 712-0241

Hex Nut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 13

0

29

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

30

MTD 09164A-0637

Reinforcement Plate

$33.99

$

In Stock, only 2 left!

0

31

MTD 13703

Bearing Shield

$

$

Not available

32

MTD 15296A

Open Brg. Housing 1.85" I.D.

$8.99

$

In Stock, only 2 left!

0

33

MTD 941-0919A

Ball Brg. .787" I.D. x 1.85" O.D. x .551
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

34

MTD 16349

Spindle Mounting Plate Ass'y

Note: NLA

$

$

Not available

35

MTD 710-0888

Hex Bolt Special 5/16-24 x 1.0" Lg.

$4.49

$

In Stock, Qty 20+

0

36

MTD 912-3057

Hex Nut 5/16-24 Thd.*

$6.99

$

In Stock, only 2 left!

0

37

MTD 712-0318

Hex Jam N ut 5/8-18 Thd.*

$3.49

$

In Stock, Qty 12

0

38

MTD 714-0168

Sq. Key 3/16" x 3/16 x 2.25" Lg.

$

$

Not available

39

MTD 936-0119

L-Wash. 5/16" I.D.*

$4.99

$

In Stock, Qty 20+

0

40

MTD 736-0317

Bell-Wash. .630" I.D. x 1.25" O.D.

$7.99

$

In Stock, Qty 20+

0

41

MTD 938-0632

44" Deck Blade Spindle

$

$

Not available

42

MTD 08253B

Bearing Housing 1.85" I.D.

$19.99

$

In Stock, only 1 left!

0

43

MTD 941-0919A

Ball Brg. .787" I.D. x 1.85" O.D. x .551
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

44

MTD 950-0456

Spacer 1.0" O.D. x .790" I.D.
(Superseded to 750-0456)

$4.49

$

In Stock, Qty 20+

0

45

MTD 756-0329

5/8 "V"-Pulley .79" I.D. x 5.75" O.D.

$96.99

$

In Stock, only 1 left!

0

46

MTD 756-0470

V-Pulley .79" I.D. x 6.50" O.D.

Note: NLA

$

$

Not available

47

MTD 15319B

1-3/8" I.D. Bearing Housing

$10.99

$

In Stock, only 3 left!

0

48

MTD 16348B

Reinforcement Plate

$9.49

$

Usually ships in 3-6 days

0

49

MTD 16400

Bearing Shield

Note: NLA

$

$

Not available

50

MTD 910-0195

Hex Sems Scr. 1/4-28 x .625" Lg.

$3.99

$

In Stock, only 1 left!

0

51

MTD 710-0696

Hex Cent. L-Bolt 3/8-24 x .88" Lg.

$6.99

$

In Stock, only 2 left!

0

52

MTD 16348B

Ring Nut 1/4-28 Thd.

$9.49

$

Usually ships in 3-6 days

0

53

MTD 712-3029

Hex Jam Nut 1/2-20 Thd.*

$6.99

$

In Stock, Qty 6

0

54

MTD 736-0105

Bell-Wash. .400" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

55

MTD 736-0162

Fl-Wash. .635" I.D. x 1.04" O.D.

$4.49

$

In Stock, Qty 20+

0

56

MTD 938-0627

6.5" Blade Spindle

$

$

Not available

57

MTD 941-0155

Ball Brg. .62" I.D. x 1.38" O.D. x .44

$23.99

$

In Stock, Qty 13

0

58

MTD 742-0252

6.50" Blade

Note: NLA

$

$

Not available

59

MTD 756-0468

1/2" "V"-Pulley Half .625" I.D. x 2.25" O.D.

$9.49

$

Usually ships in 3-6 days

0

60

MTD 926-0106

Cap Speed Nut 1/4" Rod
(Superseded to 726-0106)

$

$

Not available

61

MTD 727-0290A

Brake Cable 11.75" Lg.

$12.99

$

Usually ships in 3-6 days

0

62

MTD 932-0121

Extension Spring .73" O.D. x 4.31 " Lg.

$14.99

$

In Stock, only 1 left!

0

63

MTD 932-0395

Ext. Spring .50" x 2.5" Lg.

$

$

Not available

64

MTD 736-0105

Bell-Wash. .400" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

65

MTD 936-0119

L-Wash. 5/16" I.D.*

$4.99

$

In Stock, Qty 20+

0

66

MTD 936-0141

Spring Wash. .445" I.D. x .75" O.D.

$6.99

$

In Stock, only 2 left!

0

67

MTD 936-0169

L-Wash. 3/8" I.D.*
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

68

MTD 736-0174

Spring Wash. .625" I.D. x .885" O.D.

$6.99

$

In Stock, Qty 8

0

69

MTD 936-0217

L-Wash. 3/8" I.D (Heavy Duty)
(Superseded to 736-0217)

$4.49

$

In Stock, Qty 6

0

70

MTD 936-0219

Bell-Wash. .400" I.D. x 1.13" O.D.

$4.49

$

Usually ships in 3-6 days

0

71

MTD 936-0253

Bell-Wash. .505" I.D. x 1.00" O.D.
(Superseded to 736-0253)

$

$

Not available

72

MTD 938-0140

Shld. Bolt .437" Dia. x .180
(Superseded to 738-0140)

$

$

Not available

73

MTD 938-0347

Shld. Spacer .625" I.D.

$10.99

$

Usually ships in 3-6 days

0

74

MTD 742-0295

21" Blade

Note: NLA

$

$

Not available

75

MTD 748-0279

Shld. Spacer

Note: NLA

$

$

Not available

76

MTD 748-0300

Blade Adapter

$13.99

$

In Stock, only 3 left!

0

77

MTD 954-0229

V-Belt 1/2" x 52.0" Lg.

$59.99

$

Usually ships in 3-6 days

0

78

MTD 954-0293

V-Belt 1/2" x 74.0" Lg. (Drive Belt)

$32.99

$

Usually ships in 3-6 days

0

79

MTD 956-0365

Fl-ldler w/ Flanges 3.50" O.D.

$48.99

$

In Stock, Qty 7

0

80

MTD 911-0701

Clevis Pin 1/4" Dia. x .53" Lg.

$6.99

$

In Stock, only 1 left!

0

81

MTD 914-0104

Intern. Cotter Pin 5/16" Dia.
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

82

MTD 734-0974

Deck Wheel 6.0" x 1.38

$20.99

$

Usually ships in 3-6 days

0

83

MTD 736-0105

Bell-Wash. .400" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

84

MTD 938-0455

Shld. Bolt 3/8-16 x 1.41

$

$

Not available

85

MTD 710-0617

Rib Neck Bolt

$4.49

$

Usually ships in 3-6 days

0

86

MTD 914-0122

Sq. Key 3/16" x 3/16" x .75" Lg.
(Superseded to 714-0122)

$

$

Not available

87

MTD 938-0633

44" Deck Blade Spindle

$

$

Not available
