LT-14 (13BP673F190) - White Outdoor 38" Lawn Tractor (1999) Steering Assembly Parts Diagram

38" Lawn Tractor

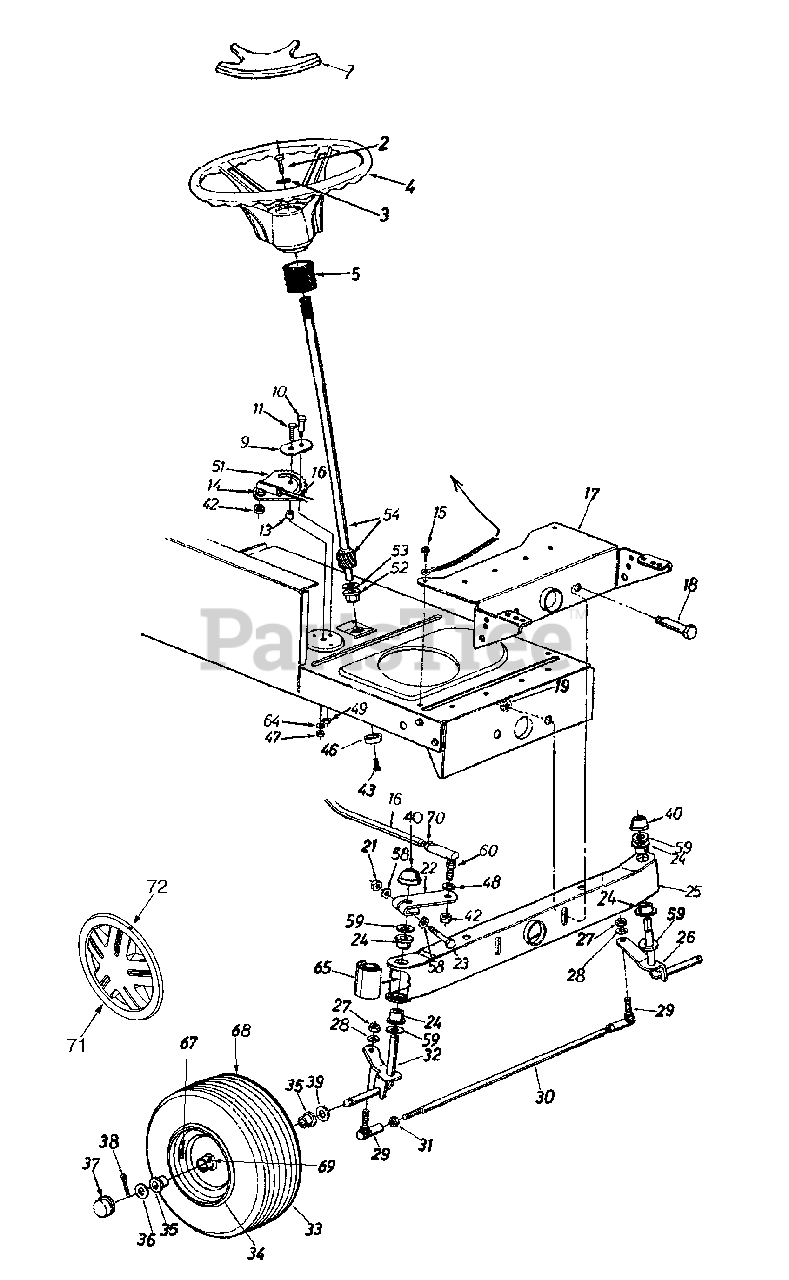

Steering Assembly Parts Diagram

  • Title

1

White Outdoor 731-1509A

Steering Wheel Cap

$

$

Not available

2

White Outdoor 710-0643

Hex Bolt 5/16-18 x 1" Lg.

$6.99

$

In Stock, Qty 5

0

3

White Outdoor 736-0242

Belleville Wash. .345" I.D.

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 731-1686

Steering Wheel
(Superseded to 931-1686)

$

$

Not available

5

White Outdoor 731-0954

Steering Bellow - 9"
(Superseded to 931-0954)

$21.99

$

Usually ships in 3-6 days

0

9

White Outdoor 17198A

Retainer Plate
(Superseded to 783P08577A)

$7.49

$

In Stock, Qty 20+

0

10

White Outdoor 738-0141

Shoulder Bolt .437" Dia. x .35 Lg. 5/16-18 Thd.
(Superseded to 938-0141)

$7.49

$

In Stock, Qty 7

0

11

White Outdoor 710-0152

Hex Bolt 3/8-24 x 1.0" Lg. (Gr. 5)
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 750-0535

Spacer .380" I.D. x .625" O.D. x .227
(Superseded to 950-0535)

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 736-0217

L-Wash. 3/8" I.D. (H.D.)

$4.49

$

In Stock, Qty 8

0

15

White Outdoor 710-0726

Hex Wash. Hd. Self-Tap Scr.

$4.49

$

In Stock, Qty 20+

0

16

White Outdoor 711-1107

Steering Drag Link
(Superseded to 911-1107)

$39.99

$

In Stock, Qty 8

0

17

White Outdoor 783-0041B

Front Pivot Brkt.
(Superseded to 783-0041C)

Variations

White Outdoor 783-0041B-0483

Pivot Bar Bracket - CHARCOAL GRAY (0483)

$89.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0041B-0637

BRACKET-PIVOT BAR - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0041B-0665

BRACKET-PIVOT BAR - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0041B-0638

BRACKET-PIVOT BAR - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0041B-0648

BRACKET-PIVOT BAR - TECH GRAY (0648)

$

$

Not available

White Outdoor 783-0041B-0650

BRACKET-PIVOT BAR - RED METALLIC (0650)

$

$

Not available

$77.99

$

Usually ships in 3-6 days

0

18

White Outdoor 738-0527

Shoulder Bolt .498" Dia. x 2.04 Lg. 3/8-16 Thd.

$8.49

$

In Stock, Qty 6

0

19

White Outdoor 712-0431

Flanged L- Nut 3/8-16 Thd.
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

21

White Outdoor 712-0411

Hex L-Nut 5/16-24 Thd.

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 16481A

Steering Arm Front Axle
(Superseded to 983-0055-0637)

$47.99

$

In Stock, only 1 left!

0

23

White Outdoor 710-0772

Hex Bolt 5/16-24 x 2.00" Lg. (Gr.5)

$4.49

$

Usually ships in 3-6 days

0

24

White Outdoor 741-0659

Hex Flg. Brg. .632 I.D.
(Superseded to 941-0659)

$5.49

$

In Stock, Qty 5

0

25

White Outdoor 683-0128

Pivot Bar Ass'y.
(Superseded to 683-0128B-0637)

Variations

White Outdoor 683-0128-0637

Steel Axle Pivot Bar Assembly - POWDER BLACK (0637)

$97.99

$

In Stock, only 2 left!

0

$97.99

$

In Stock, only 2 left!

0

26

White Outdoor 683-0127

Front Axle Ass'y. - L.H.
(Superseded to 983-0127)

$101.99

$

In Stock, only 1 left!

0

27

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

28

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

29

White Outdoor 723-3018

Ball Joint 3/8-24 Thd.
(Superseded to 923-3018)

$16.99

$

In Stock, Qty 20+

0

30

White Outdoor 747-0753

Tie Rod (Adjustable)

$34.99

$

In Stock, only 1 left!

0

31

White Outdoor 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

32

White Outdoor 683-0126

Front Axle Ass'y. - R.H.
(Superseded to 983-0126)

$101.99

$

In Stock, only 1 left!

0

33

White Outdoor 634-0056A

Wheel Ass'y. Comp.
(Superseded to 634-0056B-0911)

Variations

White Outdoor 634-0056A-0911

Tire and Wheel Assembly - Carlisle Gray (0911)

$249.99

$

In Stock, only 3 left!

0

White Outdoor 634-0056A-0912

Tire and Wheel Assembly - Dico Gray (0912)

$249.99

$

In Stock, only 3 left!

0

White Outdoor 634-0056A-0914

Tire and Wheel Assembly - Cheng Gray (0914)

$249.99

$

In Stock, only 3 left!

0

White Outdoor 634-0056A-0916

Tire and Wheel Assembly - Kenda Gray (0916)

$249.99

$

In Stock, only 3 left!

0

White Outdoor 634-0056A-0941

Tire and Wheel Assembly - Carlisle Yellow (0941)

$249.99

$

In Stock, only 3 left!

0

White Outdoor 634-0056A-0981

Tire and Wheel Assembly - Carlisle Green (0981)

$249.99

$

In Stock, only 3 left!

0

White Outdoor 634-0056A-0931

WHEEL ASM-W/TIRE - Carlisle Beige (0931)

$202.99

$

In Stock, only 1 left!

0

$249.99

$

In Stock, only 3 left!

0

34

White Outdoor 634-0051

Front Wheel Rim Only

Variations

White Outdoor 634-0051-0629

WHEEL RIM 6 X 4.5 - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 634-0051-0662

WHEEL RIM 6 X 4.5 - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 634-0051-0499

WHEEL RIM 6 X 4.5 - CUB BEIGE (0499)

$

$

Not available

White Outdoor 634-0051-0674

WHEEL RIM 6 X 4.5 - YARDMAN YELLOW (0674)

$

$

Not available

$

$

35

White Outdoor 741-0569

Bearing
(Superseded to 941-0569)

$34.99

$

In Stock, only 1 left!

0

36

White Outdoor 736-0285

Fl-Wash. .635 I.D. x 1.59" O.D.

$4.49

$

In Stock, Qty 20+

0

37

White Outdoor 731-0484A

Front Wheel Hub Cap
(Superseded to 931-0484A)

$6.49

$

In Stock, Qty 20+

0

38

White Outdoor 714-0470

Cotter Pin 1/8" Dia. x 1.25"

$4.49

$

In Stock, Qty 20+

0

39

White Outdoor 736-0162

Fl-Wash. .640 x 1.00 x 1.20

$4.49

$

In Stock, Qty 20+

0

40

White Outdoor 726-0214

Push Cap 5/8" Dia. Rod

$10.99

$

In Stock, only 3 left!

0

42

White Outdoor 712-0262

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

43

White Outdoor 710-1309

Hex Patch Bolt 5/16-18 x .62"

$4.49

$

In Stock, Qty 20+

0

46

White Outdoor 748-0389

Cap
(Superseded to 948-0389)

$5.49

$

In Stock, Qty 20+

0

47

White Outdoor 712-0214

Hex Cent. L-Nut 3/8-24 Thd.

$6.49

$

In Stock, only 3 left!

0

48

White Outdoor 736-0217

L-Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 8

0

49

White Outdoor 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

51

White Outdoor 717-0622A

Steering Gear Segment
(Superseded to 717-0622C)

$53.99

$

In Stock, only 2 left!

0

52

White Outdoor 741-0656

Hex Flg. Brg. .634 I.D.
(Superseded to 941-0656A)

$5.49

$

In Stock, Qty 20+

0

53

White Outdoor 736-0187

Fl-Wash. (Hardened)

$4.49

$

In Stock, Qty 20+

0

54

White Outdoor 738-0919

Steering Shaft
(Superseded to 738-0919B)

$59.99

$

In Stock, Qty 20+

0

58

White Outdoor 736-0271

Wave-Wash. .32" I.D. x .62" O.D.
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

59

White Outdoor 736-0187

Fl-Wash. (Hardened)

$4.49

$

In Stock, Qty 20+

0

60

White Outdoor 723-0448

Drag Link Ball Joint 7/16-20 Thd.
(Superseded to 923-0448A)

$24.99

$

In Stock, Qty 20+

0

64

White Outdoor 736-0356

Bell-Wash. .39" I.D. x 1.38" O.D.
(Superseded to 936-0356)

$

$

Not available

65

White Outdoor 731-1291A

Pivot Bar End Cap
(Superseded to 931-1291A)

Note: (Optional)

$15.99

$

In Stock, Qty 9

0

67

White Outdoor 734-0255

Valve - Air
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

68

White Outdoor 734-0864

Tire Only

Variations

White Outdoor 734-0864-0901

TIRE 15 X 6 - Carlisle (0901)

$136.99

$

Usually ships in 3-6 days

0

White Outdoor 734-0864-0902

TIRE 15 X 6 DICO T - Dico (0902)

$136.99

$

Usually ships in 3-6 days

0

White Outdoor 734-0864-0904

TIRE - Cheng (0904)

$136.99

$

Usually ships in 3-6 days

0

White Outdoor 734-0864-0905

TIRE 15 X 6 - Duro (0905)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 734-0864-0906

TIRE-15X6 KENDA - Kenda (0906)

$

$

Not available

$111.99

$

Usually ships in 3-6 days

0

69

White Outdoor 737-0280

Grease Fitting

$7.99

$

In Stock, Qty 8

0

70

White Outdoor 712-0240

Jam Nut 7/16-20
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

71

White Outdoor 734-1783A

Spoked Hub Cap (6" Dia.)

$

$

Not available

72

White Outdoor 727-0425A

Spring Clip
(Superseded to 927-0425A)

$

$

Not available
