LT-14 (133R676G190) - White Outdoor 42" Lawn Tractor (1993) Hood And Rear Fender Assembly Parts Diagram

42" Lawn Tractor

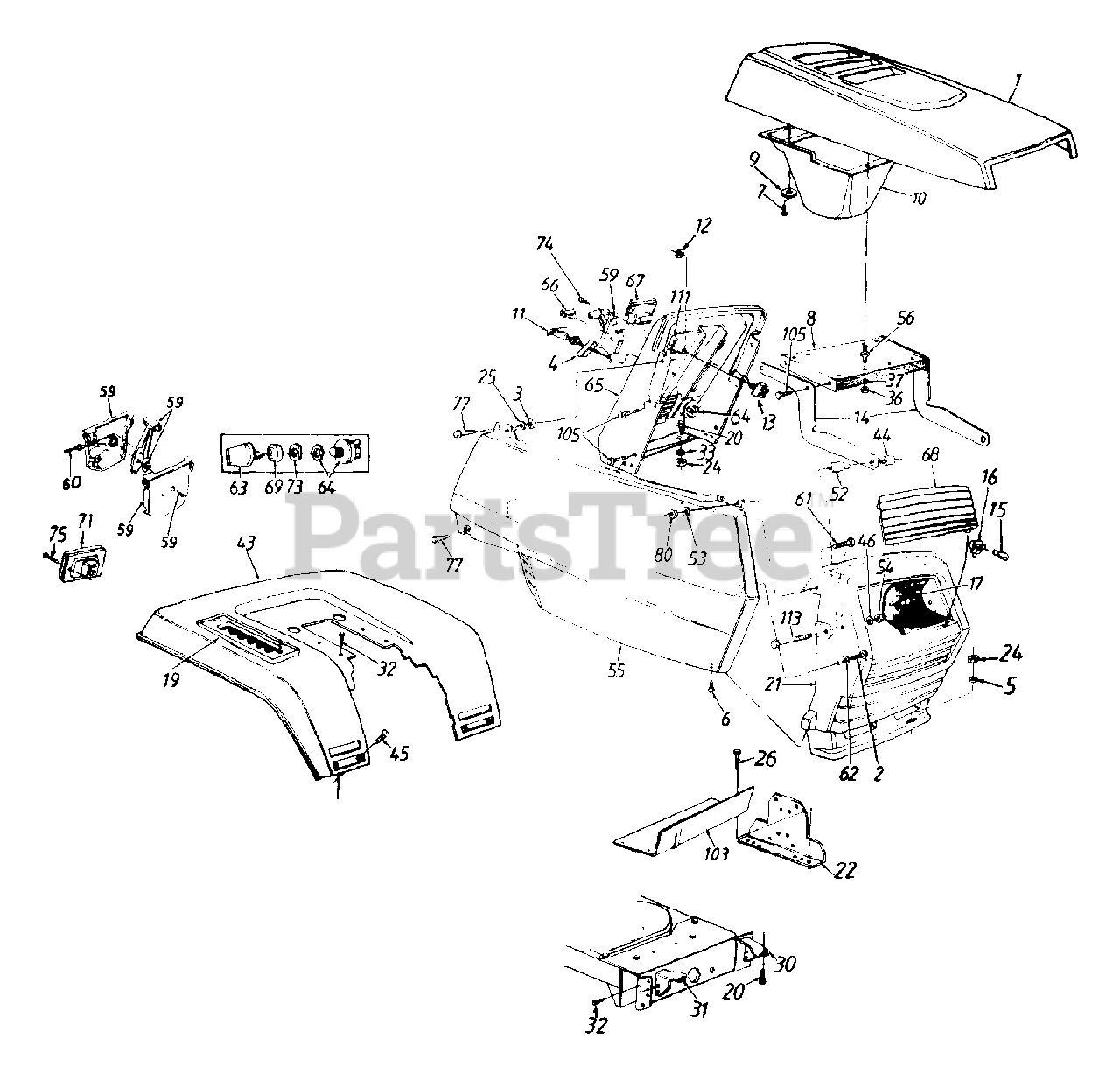

Hood And Rear Fender Assembly Parts Diagram

  • Title

1

White Outdoor 731-1429

Hood
(Superseded to 931-1429)

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

2

White Outdoor 710-0896

Hex Wash. B-Tap Scr. 1/4 x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 726-0233

Bolt Retainer 1/4" I.D.

$4.49

$

In Stock, only 3 left!

0

4

White Outdoor 17782

Retainer Clip

$

$

Not available

5

White Outdoor 736-3078

Fl-Wash. .34" I.D. x 1"

$4.49

$

In Stock, only 4 left!

0

6

White Outdoor 710-0351

Truss Mach. B-Tap Scr. #10 x .5" Lg.

$4.49

$

In Stock, only 2 left!

0

7

White Outdoor 710-0200

Hex Wash. Hd. AB-Tap Scr. #8 x .5" Lg.

$

$

Not available

8

White Outdoor 16903A

Hood Plate

Variations

White Outdoor 16903A-0637

PLATE-HOOD - POWDER BLACK (0637)

$

$

Not available

$

$

9

White Outdoor 736-0400

Fl-Wash. .218" I.D. x .62" O.D.

$5.49

$

In Stock, Qty 14

0

10

White Outdoor 731-1423

Air Plentum

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

11

White Outdoor 746-0882

Choke Control

$

$

Not available

12

White Outdoor 712-3014

Hex Nut 1/2-27 Thd.

$

$

Not available

13

White Outdoor 725-0893

Toggle Switch
(Superseded to 925-0893)

$82.99

$

In Stock, only 1 left!

0

14

White Outdoor 16902

Hood Hinge

$

$

Not available

15

White Outdoor 725-0963

Lamp
(Superseded to 925-0963)

$7.49

$

In Stock, only 4 left!

0

16

White Outdoor 725-1649

Twist Lock - Lamp Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

17

777-8516

Reflector - Headlight

$

$

Not available

19

White Outdoor 17469

7-Speed Selector Plate

Variations

White Outdoor 17469-0637

PLATE-SELECTOR-7 SPEED - POWDER BLACK (0637)

$

$

Not available

$

$

20

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

21

White Outdoor 731-1430

Grille
(Superseded to 931-1430B)

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

22

White Outdoor 17300D

Dash Support Bracket

Variations

White Outdoor 17300D-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

24

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

25

White Outdoor 736-0176

Fl-Wash. 1/4" I.D. x .93" O.D.

$4.99

$

In Stock, Qty 6

0

26

White Outdoor 710-0603

Hex Wash. Hd. B-Tap Scr. 5/16-18 x .5" Lg.

$4.99

$

Usually ships in 3-6 days

0

?27

White Outdoor 710-0429

Hex B-Tap Scr. #10 x .38" Lg.
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

30

White Outdoor 705-0167

Grille Mount Brkt. - L.H.

$

$

Not available

31

White Outdoor 705-0166

Grille Mount Brkt. - R.H.

$

$

Not available

32

White Outdoor 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

33

White Outdoor 736-0242

Bell-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

36

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

37

White Outdoor 736-0270

Bell-Wash. .265" I.D. x .75"

$3.99

$

In Stock, Qty 20+

0

43

White Outdoor 17324B

Rear Fender

Note: Code: N Notates a new part (not previously existing)

Variations

White Outdoor 17324B-0480

No Longer Available FENDER-RR - BRILLIANT GREEN (0480)

$

$

Not available

White Outdoor 17324B-0483

No Longer Available FENDER-RR - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 17324B-0498

No Longer Available FENDER-RR - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 17324B-0499

No Longer Available FENDER-RR - CUB BEIGE (0499)

$

$

Not available

White Outdoor 17324B-0629

No Longer Available FENDER-RR - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 17324B-0638

No Longer Available FENDER-RR - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 17324B-0648

Fender - TECH GRAY (0648)

$

$

Not available

White Outdoor 17324B-0662

No Longer Available FENDER-RR - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 17324B-0665

No Longer Available FENDER-RR - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 17324B-0667

No Longer Available FENDER-RR - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 17324B-0674

No Longer Available FENDER-RR - YARDMAN YELLOW (0674)

$

$

Not available

White Outdoor 17324B-0685

No Longer Available FENDER-RR - CUB BLUE (0685)

$

$

Not available

White Outdoor 17324B-0686

No Longer Available FENDER-RR - SIMPLICITY ORANGE (0686)

$

$

Not available

$

$

44

White Outdoor 750-0755

Spacer .33" I.D x .625" O.D.

$4.49

$

Usually ships in 3-6 days

0

45

White Outdoor 710-0167

Carriage Bolt 1/4-20 x .50" Lg
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

46

White Outdoor 736-0278

Fl-Wash. .328" I.D. x .68" O.D.

$5.99

$

Usually ships in 3-6 days

0

52

White Outdoor 750-0754

Shld. Spacer .33" I.D.

$

$

Not available

53

White Outdoor 736-0142

Fl-Wash. .281" I.D. x .5" O.D.

$4.99

$

In Stock, only 4 left!

0

54

White Outdoor 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

55

White Outdoor 731-1432

Side Cover - R.H.

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

White Outdoor 731-1431

Side Cover - L.H.

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

56

White Outdoor 710-1034

Double Ended Stud 1/4-20 Thd.

$

$

Not available

59

White Outdoor 831-0823A

Throttle Control Box Ass'y.

$32.99

$

In Stock, Qty 20+

0

60

White Outdoor 746-0501

Throttle Control Wire 35" Lg.

$17.99

$

In Stock, only 1 left!

0

61

White Outdoor 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

62

White Outdoor 736-0173

Fl-Wash. .281" I.D. x .73" O.D.

$4.49

$

In Stock, only 4 left!

0

63

White Outdoor 725-1341B

Ignition Key

$10.99

$

In Stock, only 1 left!

0

64

White Outdoor 725-1396

Ignition Switch
(Superseded to 925-1396A)

$43.99

$

In Stock, Qty 5

0

65

White Outdoor 731-0960A

Dash Panel

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

66

White Outdoor 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, Qty 5

0

67

White Outdoor 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

Usually ships in 3-6 days

0

68

White Outdoor 731-1038

Lens
(Superseded to 931-1038A)

$

$

Not available

69

White Outdoor 725-1347

Ignition Switch Cap

$4.99

$

In Stock, only 1 left!

0

71

725-3018

Taillight

$

$

Not available

73

White Outdoor 725-1346

Ignition Switch Nut
(Superseded to 925-1346)

$

$

Not available

74

White Outdoor 710-0779A

Truss Mach. AB-Tap Scr. #10 x .5" Lg.

$4.49

$

In Stock, Qty 12

0

75

White Outdoor 710-0936

Truss Hd. AB-Tap Scr. #6 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

77

White Outdoor 710-0642

Hex Wash. Hd. Tap Scr. 1/4 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

80

White Outdoor 712-0291

Hex L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 8

0

?94

White Outdoor 712-0147

Speed Nut #10-24 Thd.

$6.99

$

Usually ships in 3-6 days

0

103

White Outdoor 17633A

Gasoline Tank Support

Variations

White Outdoor 17633A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

105

White Outdoor 710-0599

Hex Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

111

White Outdoor 712-0185

Speed Nut 1/4-20 Thd.

$

$

Not available

113

White Outdoor 710-0176

Hex Bolt 5/16-18 x 2.75"

$4.49

$

In Stock, only 2 left!

0

White Outdoor 777-6549

Plastic Logo on Hood Side Labels

$

$

Not available

777-0186

Plastic Logo - Grille

$

$

Not available

777-8214

White Label - Fender

$

$

Not available

White Outdoor 777-4777

Reflective Label - Seat Back

$

$

Not available

777-8840A

LT-14 Side Panel Labels

$

$

Not available
