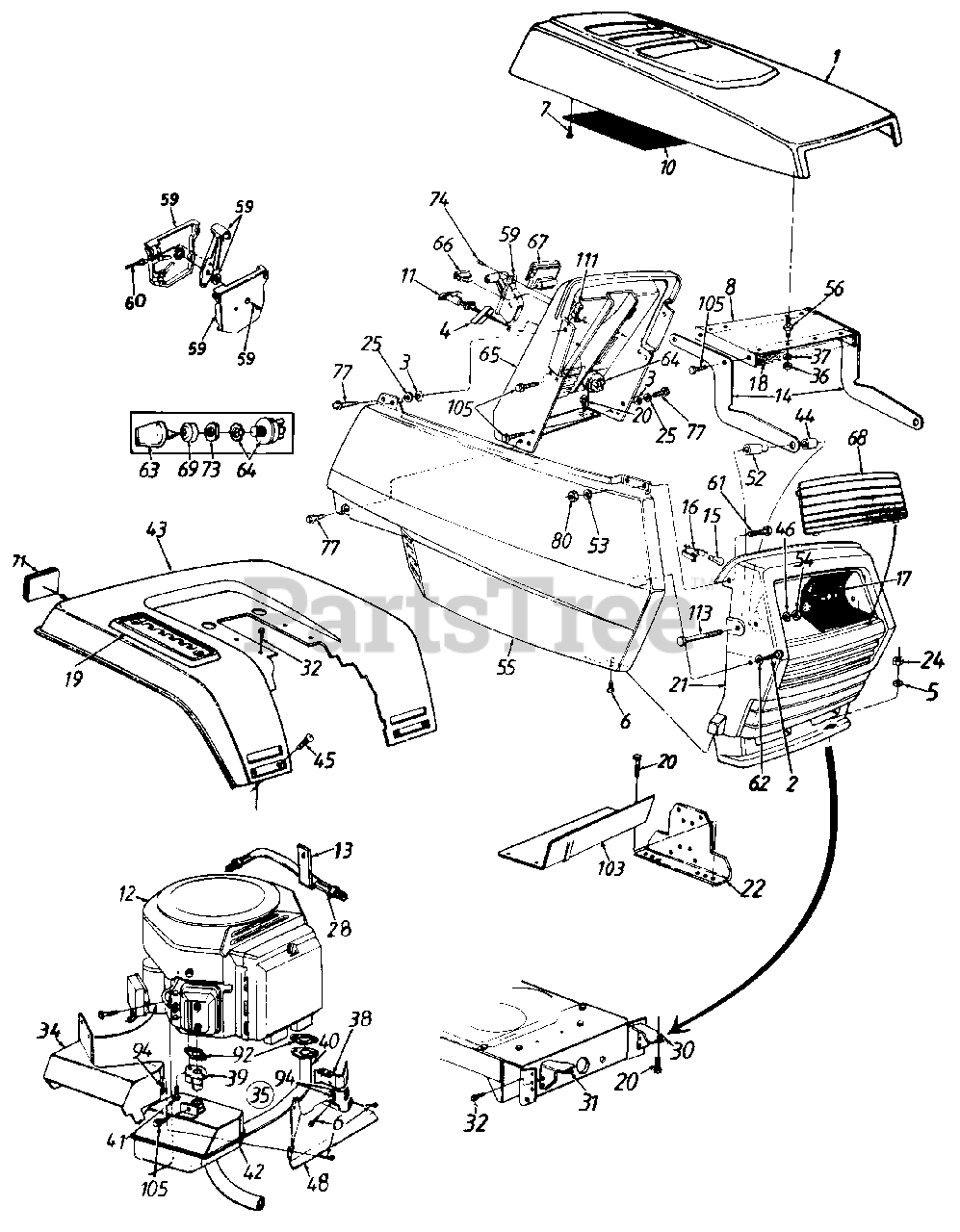

LT-14 (131-686G190) - White Outdoor 42" Lawn Tractor (1991) Body Assembly Parts Diagram

42" Lawn Tractor

Body Assembly Parts Diagram

  • Title

1

White Outdoor 731-1036

Hood

Variations

White Outdoor 731-1036-0629

HOOD - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 731-1036-0638

HOOD - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 731-1036-0662

HOOD OYSTER GRAY - OYSTER GRAY (0662)

$

$

Not available

$

$

2

White Outdoor 710-0896

Hex Wash. B-Tap Scr. 1/4 x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 726-0233

Bolt Retainer 1/4" I.D.

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 17782

RetainerClip

$

$

Not available

5

White Outdoor 736-0275

Fl-Wash. .34" I.D. x .68n

$6.99

$

Usually ships in 3-6 days

0

6

White Outdoor 710-0224

Truss Mach. AB-Tap Scr. #10 x .5" Lg.
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 20+

0

7

White Outdoor 710-0200

Hex Wash Hd. AB-Tap Scr. #8 x .5 Lg.

$

$

Not available

8

White Outdoor 16903

Hood Plate
(Superseded to 16903A-0637)

$

$

Not available

10

White Outdoor 723-0416

Screen

$

$

Not available

11

White Outdoor 746-0614A

Choke Control 38" Lg.

$24.99

$

In Stock, only 1 left!

0

12

Engine

$

$

Not available

13

White Outdoor 726-3009

Clamp

$

$

Not available

14

White Outdoor 16902

Hood Hinge

$

$

Not available

15

White Outdoor 725-0963

Lamp
(Superseded to 925-0963)

$7.49

$

In Stock, only 1 left!

0

16

White Outdoor 725-1058A

Twist Lock-Lamp Socket
(Superseded to 925-1058A)

$

$

Not available

17

777-8516

Reflector-Headlight

$

$

Not available

18

White Outdoor 722-0199

Foam Seal

$

$

Not available

19

White Outdoor 17469

7-Speed Selector Plate

Variations

White Outdoor 17469-0637

PLATE-SELECTOR-7 SPEED - POWDER BLACK (0637)

$

$

Not available

$

$

20

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75n Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

21

731-1037

Grille

$

$

Not available

22

White Outdoor 17300D

Dash Support Bracket

Variations

White Outdoor 17300D-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

White Outdoor 712-0237

Hex L-Nut 5/16-24 Thd.

$4.99

$

In Stock, only 4 left!

0

24

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

25

White Outdoor 736-0176

Fl-Wash. 1/4" I.D. x .93" O.D.

$4.99

$

In Stock, only 4 left!

0

28

White Outdoor 727-0434

Hydraulic Hose 13" Lg.

$

$

Not available

30

White Outdoor 705-0167

Grille Mount Brk't.-L.H.

$

$

Not available

31

White Outdoor 705-0166

Grille Mount Brk't.-R.H.

$

$

Not available

32

White Outdoor 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

White Outdoor 736-0242

Bell-Wash. .345n l.D. x .88n

$4.49

$

In Stock, Qty 20+

0

34

White Outdoor 16875A

Muffler Heat Shield

$

$

Not available

35

White Outdoor 751-0469A

Muffler Ass'y. Comp.

$

$

Not available

36

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

37

White Outdoor 736-0270

Bell-Wash. .265" l.D. x .75"

$3.99

$

In Stock, Qty 20+

0

38

White Outdoor 16877

Front Heat Shield Ext.

$

$

Not available

39

White Outdoor 751-0470

Inlet Tube Ass'y.

$

$

Not available

40

751-0471

Formed Tube Ass'y.

$

$

Not available

41

710-1037

Hex Bolt w/Washer

$

$

Not available

42

White Outdoor 751-0472

Muffler Sub Ass'y.

$

$

Not available

43

White Outdoor 17324

Rear Fender

Variations

White Outdoor 17324-0480

No Longer Available - BRILLIANT GREEN (0480)

$

$

Not available

White Outdoor 17324-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 17324-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 17324-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

White Outdoor 17324-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 17324-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 17324-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

White Outdoor 17324-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 17324-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 17324-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 17324-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

White Outdoor 17324-0685

No Longer Available - CUB BLUE (0685)

$

$

Not available

White Outdoor 17324-0686

No Longer Available - SIMPLICITY ORANGE (0686)

$

$

Not available

$

$

44

White Outdoor 750-0755

Spacer .33" I.D. x .625" O.D.

$4.49

$

Usually ships in 3-6 days

0

45

White Outdoor 710-0167

Carriage Bolt 1/4-20 x .50" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

46

White Outdoor 736-0278

Fl-Wash. .328" I.D. x .68" O.D.

$5.99

$

Usually ships in 3-6 days

0

48

White Outdoor 16876A

Front Heat Shield

$

$

Not available

52

White Outdoor 750-0754

Shld. Spacer .33" l.D.

$

$

Not available

53

White Outdoor 736-0142

Fl-Wash. .281" I.D. x .5" O.D.

$4.99

$

In Stock, Qty 20+

0

54

White Outdoor 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

55

White Outdoor 731-0938

Side Cover-R.H.

$

$

Not available

White Outdoor 731-0943

Side Cover-L.H.

Note: (Not Shown)

$

$

Not available

56

White Outdoor 710-1034

Double Ended Stud 1/4-20 Thd.

$

$

Not available

59

White Outdoor 831-0823A

Throttle Control Box Ass'y.

$32.99

$

In Stock, Qty 20+

0

60

White Outdoor 746-0634

Throttle Control Wire 35" Lg.
(Superseded to 946-0634)

$11.99

$

In Stock, only 1 left!

0

61

White Outdoor 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

62

White Outdoor 736-0173

Fl-Wash. .281" I.D. x .73" O.D.

$4.49

$

In Stock, Qty 20+

0

63

White Outdoor 725-1341B

Ignition Key

$10.99

$

In Stock, only 1 left!

0

64

White Outdoor 725-1396

Ignition Switch
(Superseded to 925-1396A)

$43.99

$

In Stock, Qty 5

0

65

White Outdoor 731-0961

Dash Panel
(Superseded to 731-0961A)

$

$

Not available

66

White Outdoor 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

67

White Outdoor 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

68

White Outdoor 731-1038

Lens
(Superseded to 931-1038A)

$

$

Not available

69

White Outdoor 725-1347

Ignition Switch Cap

$4.99

$

In Stock, only 1 left!

0

71

White Outdoor 730-3000

Reflector
(Superseded to 930-3000)

$17.99

$

In Stock, only 2 left!

0

73

White Outdoor 725-1346

Ignition Switch Nut
(Superseded to 925-1346)

$

$

Not available

74

White Outdoor 710-0779A

Truss Mach. AB-Tap Scr. #10 x .5" Lg.

$4.49

$

In Stock, Qty 12

0

White Outdoor 710-0936

Truss Hd. AB-Tap Scr. #6 x .62n Lg.

$4.49

$

Usually ships in 3-6 days

0

77

White Outdoor 710-0642

Hex Wash. Hd. Tap Scr. 1/4 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

80

White Outdoor 712-0291

Hex L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 8

0

92

White Outdoor 721-0218

Gasket
(Superseded to BS-691613)

$5.49

$

Usually ships in 2-12 days

0

94

White Outdoor 712-0147

Speed Nut #10-24 Thd.

$6.99

$

Usually ships in 3-6 days

0

103

White Outdoor 17633

Gasoline Tank Support

$

$

Not available

105

White Outdoor 710-0599

Hex Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

111

White Outdoor 712-0185

Speed Nut 1/4-20 Thd.

$

$

Not available

113

White Outdoor 710-0176

Hex Bolt 5/16-18 x 2.75n

$4.49

$

In Stock, only 2 left!

0
