LT-135 (13AA692G190) - White Outdoor 42" Lawn Tractor (2002) Deck Lift Assembly Parts Diagram

42" Lawn Tractor

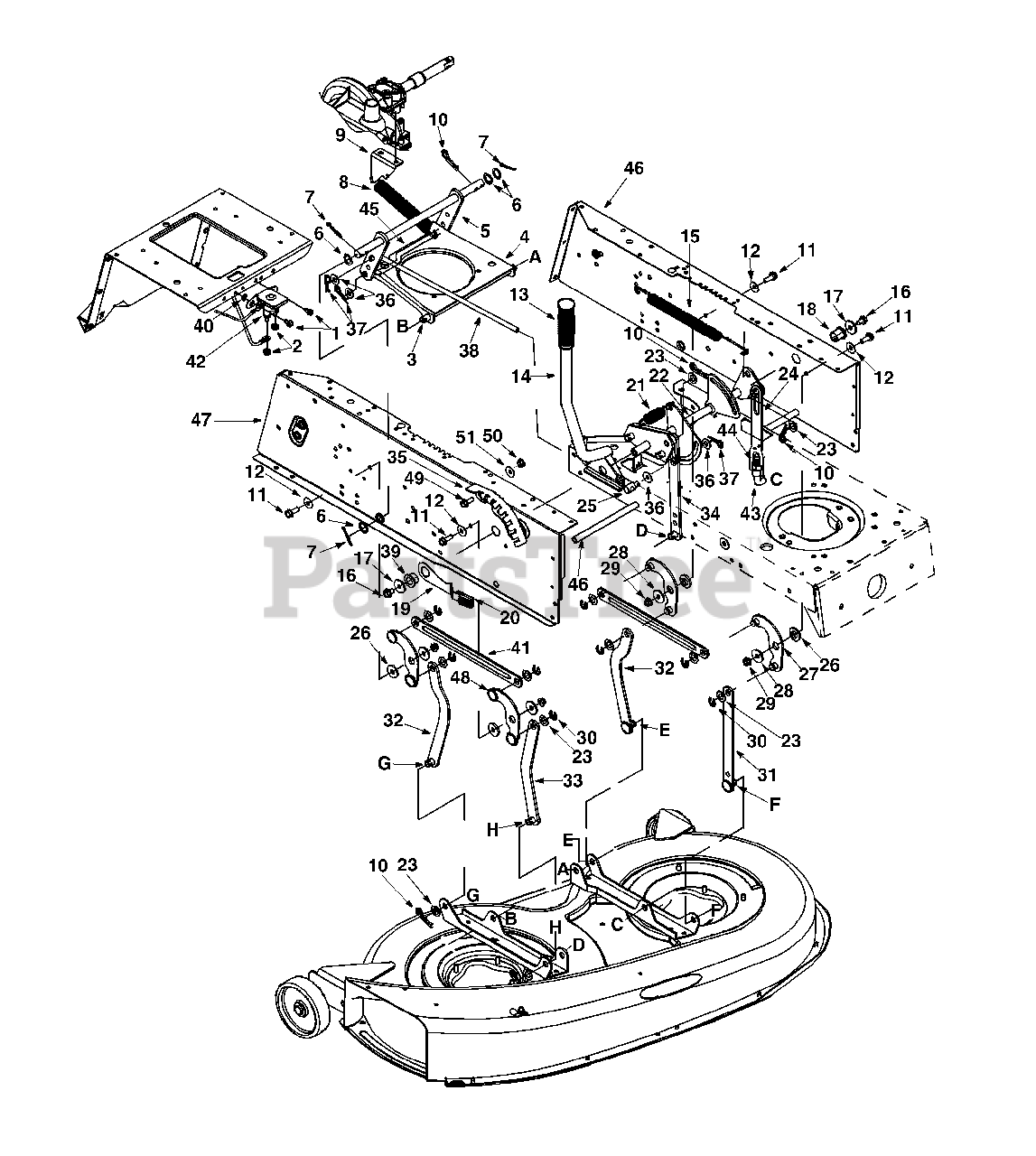

Deck Lift Assembly Parts Diagram

  • Title

1

White Outdoor 710-0599

Self Tap Screw 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

2

White Outdoor 712-0271

Sems Hex Nut 1/4-20

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 738-0670A

Shaft 1/2" Dia. x 10.50" Lg.

$

$

Not available

4

White Outdoor 17636D

Stablizer Bracket
(Superseded to 17636D-0637)

Variations

White Outdoor 17636D-0637

Stabilizer Bracket, Black - POWDER BLACK (0637)

$

$

Not available

$

$

5

White Outdoor 17624

Stablizer Shaft Assembly
(Superseded to 97624-0637)

$

$

Not available

6

White Outdoor 736-0256

Fl-Wash. .635 I.D. x .930 I.D.
(Superseded to 936-0256)

$7.49

$

Usually ships in 3-6 days

0

7

White Outdoor 714-0470

Cotter Pin 1/8" Dia.

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 732-0556

Extension Spring 7.58" Lg.
(Superseded to 932-0556)

$21.99

$

Usually ships in 3-6 days

0

9

White Outdoor 17128A

Spring Retainer Brkt.
(Superseded to 17128A-0637)

Variations

White Outdoor 17128A-0637

Retainer Spring Bracket - POWDER BLACK (0637)

$16.99

$

Usually ships in 3-6 days

0

$16.99

$

Usually ships in 3-6 days

0

10

White Outdoor 714-0147

Cotter Pin

$4.99

$

In Stock, Qty 6

0

11

White Outdoor 710-1238

TT-Tap Scr. 5/16-18 x .75" Lg.
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 736-0425

Bell-Wash. .325" I.D.

$4.99

$

In Stock, Qty 13

0

13

White Outdoor 720-0233

Grip (Lift Handle)
(Superseded to 920-0233)

$

$

Not available

14

White Outdoor 17675A

Deck Lift Handle Ass'y
(Superseded to 97675A-0637)

$

$

Not available

15

White Outdoor 732-0638

Extension Spring

$

$

Not available

16

White Outdoor 710-0604A

TT-Tap Scr. 5/16-18 x .625" Lg.

$4.49

$

In Stock, Qty 20+

0

17

White Outdoor 736-0231

Fl-Wash. .344 I.D. x 1.25 O.D.

$4.99

$

In Stock, Qty 20+

0

18

White Outdoor 741-0487A

Flange Bearing .632 I.D.
(Superseded to 741-0487C)

$7.49

$

Usually ships in 3-6 days

0

19

White Outdoor 683-0003

Hgt. Adj. Stop Lever Ass'y
(Superseded to 983-0003)

Note: (Incl. #20); Optional

$

$

Not available

20

White Outdoor 08540

Knob

Note: Optional

$

$

Not available

21

White Outdoor 732-0637

Extension Spring
(Superseded to 932-0637)

$

$

Not available

22

White Outdoor 17637A

Lift Shaft Assembly

Variations

White Outdoor 17637A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

23

White Outdoor 736-0160

Fl-Wash. .53 I.D. x .93 O.D.

$4.49

$

In Stock, only 2 left!

0

24

White Outdoor 17712

Adjustable Deck Lift Link
(Superseded to 17712-0637)

Variations

White Outdoor 17712-0637

Deck Adjust Link - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

25

White Outdoor 711-0723A

Ferrule 3/8-24 x .375 Dia.
(Superseded to 911-0723A)

$15.99

$

Usually ships in 3-6 days

0

26

White Outdoor 748-0331

Shoulder Spacer .318" Dia.
(Superseded to 948-0331)

$

$

Not available

27

White Outdoor 683-0029A

Pivot Link Ass'y -L.H.
(Superseded to 983-0029A-0637)

$13.99

$

In Stock, only 3 left!

0

28

White Outdoor 736-0231

Fl-Wash. .344 I.D. x .125 O.D.

$4.99

$

In Stock, Qty 20+

0

29

White Outdoor 712-3004A

Flange L-Nut 5/16-18 Gr. 5

$3.99

$

In Stock, Qty 20+

0

30

White Outdoor 716-0104

"E" Ring
(Superseded to 916-0104)

$3.99

$

In Stock, Qty 20+

0

31

White Outdoor 14804A

Deck Hanger Link Ass'y

$

$

Not available

32

White Outdoor 17710

Deck Hanger Link Ass'y

Variations

White Outdoor 17710-0637

HANGER LINK ASSEMBLY BLACK - POWDER BLACK (0637)

$

$

Not available

$

$

33

White Outdoor 14800A

Deck Hanger Link Ass'y
(Superseded to 14800A-0637)

Variations

White Outdoor 14800A-0637

HANGER-DECK LINK - POWDER BLACK (0637)

$

$

Not available

$

$

34

White Outdoor 14802A

Link Deck LIft Ass'y
(Superseded to 14802A-0637)

Variations

White Outdoor 14802A-0637

Deck Lift Link, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

35

White Outdoor 17730

Index Brkt.
(Superseded to 783-04113P)

$25.99

$

In Stock, only 1 left!

0

36

White Outdoor 736-0267

Fl-Wash.

$4.49

$

In Stock, Qty 20+

0

37

White Outdoor 714-0145

Hairpin Clip

$4.99

$

In Stock, Qty 20+

0

38

White Outdoor 747-0598

Deck Belt Disengagement Rod

$13.99

$

Usually ships in 3-6 days

0

39

White Outdoor 748-0176

Flange Bearing .83 I.D. x .62 O.D.

Note: Optional

$9.99

$

In Stock, only 1 left!

0

40

White Outdoor 736-0222

L-Wash.

$5.99

$

In Stock, only 3 left!

0

41

White Outdoor 783-0103

Connecting Rod
(Superseded to 783-0103-0637)

Variations

White Outdoor 783-0103-0637

ROD-CONNECTING - POWDER BLACK (0637)

$

$

Not available

$

$

42

White Outdoor 725-1426

Solenoid
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

42

White Outdoor 711-0841

Lift Link Adjuster
(Superseded to 911-0841)

$

$

Not available

43

White Outdoor 712-3066

Hex Nut 1/2-20 Thd. (Gr. 5)
(Superseded to 912-3066)

$6.99

$

In Stock, only 1 left!

0

44

White Outdoor 738-0669

Shaft 3/8" Dia. x 9.34" Lg.

$

$

Not available

45

White Outdoor 738-0526

Running Board Rod

$

$

Not available

46

White Outdoor 783-0043B

Upper Frame L.H.

Variations

White Outdoor 783-0043B-0648

FRAME-UPPER LH - TECH GRAY (0648)

$

$

Not available

White Outdoor 783-0043B-0483

No Longer Available FRAME-UPPER LH - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 783-0043B-0499

FRAME-UPPER LH - CUB BEIGE (0499)

$

$

Not available

White Outdoor 783-0043B-0606

FRAME-UPPER LH - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 783-0043B-0629

FRAME-UPPER LH - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 783-0043B-0637

FRAME-UPPER LH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0043B-0638

FRAME-UPPER LH - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0043B-0650

FRAME-UPPER LH - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0043B-0662

FRAME-UPPER LH - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 783-0043B-0665

No Longer Available FRAME-UPPER LH - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0043B-0667

FRAME-UPPER LH - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 783-0043B-0677

FRAME-UPPER LH - GRASS GREEN (0677)

$

$

Not available

White Outdoor 783-0043B-0709

FRAME-UPPER LH - MASTERCRAFT GREEN (0709)

$

$

Not available

White Outdoor 783-0043B-0716

FRAME-UPPER LH - CUB YELLOW-99 (0716)

$

$

Not available

$

$

47

White Outdoor 783-0042D

Upper Frame R.H.

Variations

White Outdoor 783-0042D-0480

FRAME-UPPER RH SID - BRILLIANT GREEN (0480)

$

$

Not available

White Outdoor 783-0042D-0483

FRAME-UPPER RH SID - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 783-0042D-0606

FRAME-UPPER RH SID - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 783-0042D-0629

FRAME-UPPER RH SID - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 783-0042D-0637

FRAME-UPPER RH SID - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0042D-0638

FRAME-UPPER RH SID - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0042D-0640

FRAME-UPPER RH SID - CO-OP GREEN (0640)

$

$

Not available

White Outdoor 783-0042D-0648

FRAME-UPPER RH SID - TECH GRAY (0648)

$

$

Not available

White Outdoor 783-0042D-0650

FRAME-UPPER RH SID - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0042D-0665

FRAME-UPPER RH SID - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0042D-0691

FRAME-UPPER RH SID - BLACK JACK (0691)

$

$

Not available

White Outdoor 783-0042D-0709

FRAME-UPPER RH SID - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

48

White Outdoor 683-0028A

Pivot Link Assembly- R.H.

$

$

Not available

49

White Outdoor 710-3008

Hex Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

50

White Outdoor 712-3010

Hex Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

51

White Outdoor 736-0119

Lock Washer 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0
