LT-135 (134A606F190) - White Outdoor 38" Lawn Tractor (1994) Transmission Parts Diagram

38" Lawn Tractor

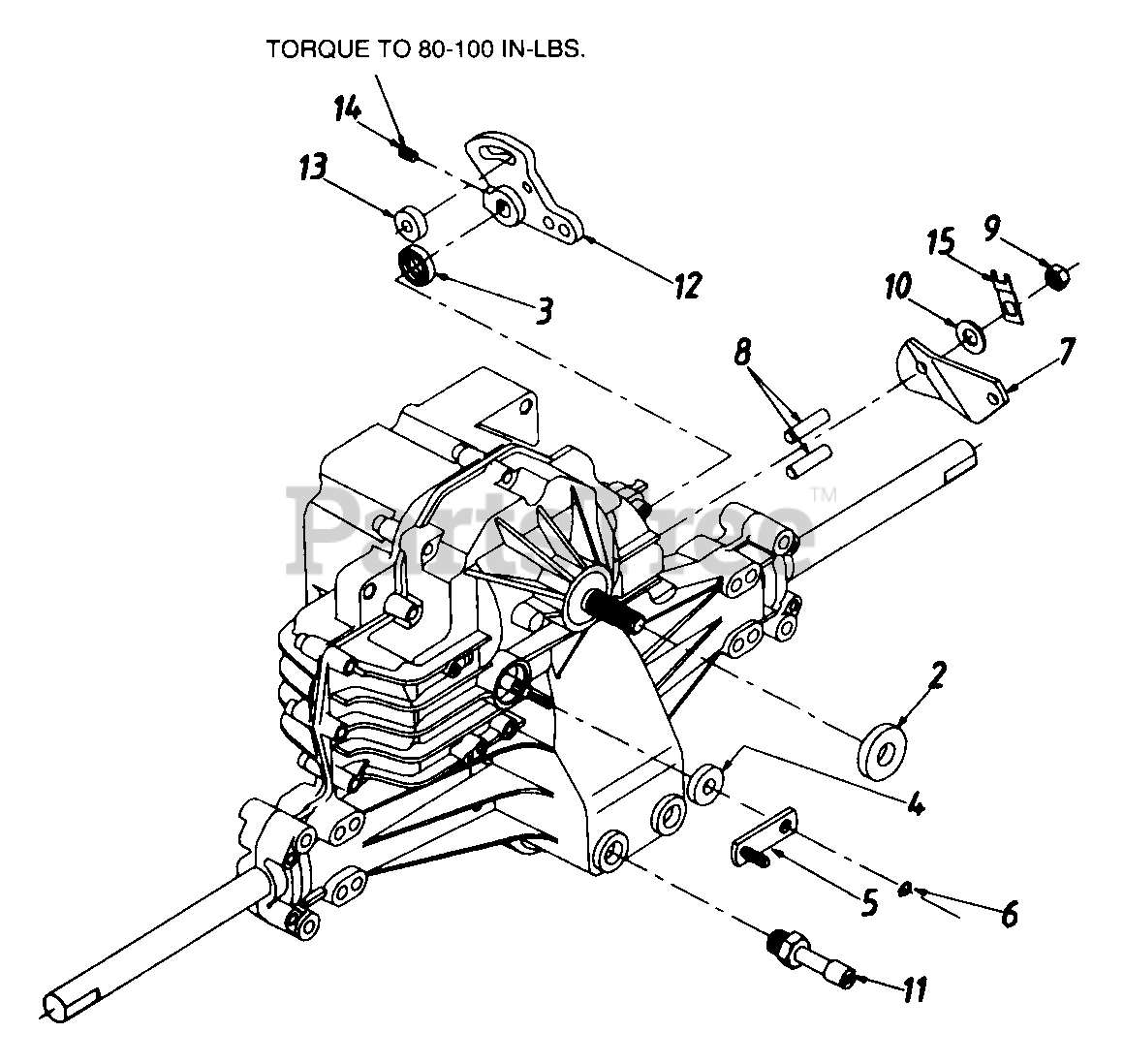

Transmission Parts Diagram

  • Title

1

MTD 918-0255A

Transmission Comp.

$

$

Not available

2

MTD HG-9008000-0128

Seal - Lip

$19.99

$

In Stock, only 2 left!

0

3

MTD HG-9008000-0126

Seal - Lip

$15.99

$

Usually ships in 3-6 days

0

4

MTD HG-45074

Seal - Lip 10 x 25 x 7

$

$

Not available

5

MTD HG-50126

Arm - Bypass

Note: NLA

$

$

Not available

6

MTD HG-44870

Ring - Retaining

$

$

Not available

7

MTD HG-44094

Arm - Actuating

$9.99

$

Usually ships in 3-6 days

0

8

MTD HG-44891

Pin - Actuating

$

$

Not available

9

MTD 912-0273

Nut - Hex Lock 5/16-24 UNJC

$4.99

$

Usually ships in 3-6 days

0

10

MTD 736-0371

Washer 7/16" x 7/8" x .060"

$4.49

$

In Stock, only 3 left!

0

11

MTD HG-50042

Breather Ass'y.

$

$

Not available

12

MTD HG-45007

Arm - Control

$

$

Not available

13

MTD HG-50034

Puck - Dampener

$

$

Not available

14

MTD HG-50018

Set Screw

Note: NLA

$

$

Not available

15

MTD HG-50129

Strap, Locking

Note: NLA

$

$

Currently unavailable
