LT-135 (134A606F190) - White Outdoor 38" Lawn Tractor (1994) Mowing Deck Parts Diagram

38" Lawn Tractor

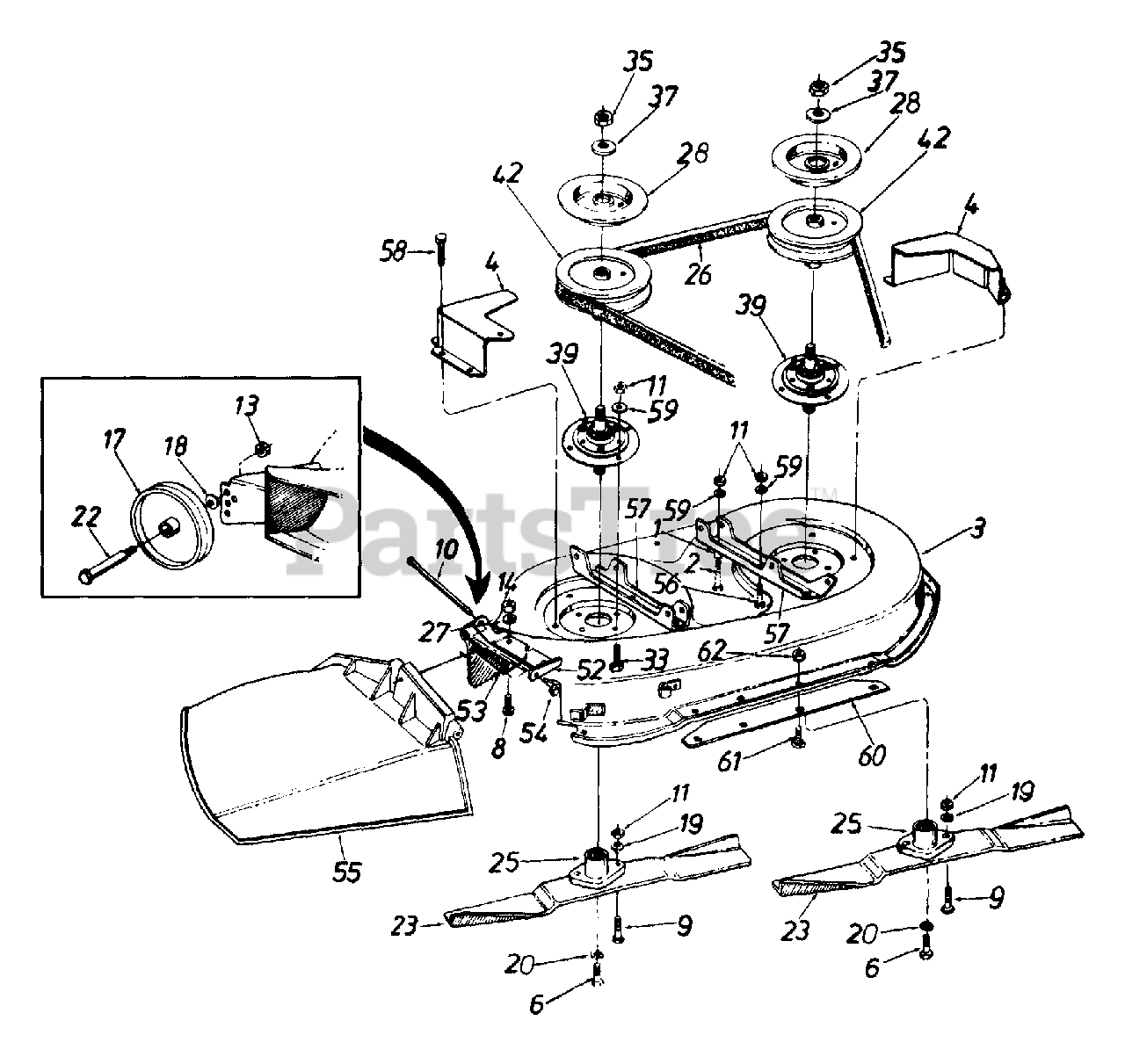

Mowing Deck Parts Diagram

  • Title

1

MTD 750-0776

Spacer .33" I D. x .88"

Note: NLA

$

$

Not available

2

MTD 710-0672

Hex Bolt 5/16-24 x 1.25" Lg.

$4.49

$

In Stock, Qty 18

0

3

MTD 753-04376

38" Deck Ass'y.

$

$

Not available

3

MTD 753-0694

38" Deck Ass'y. Comp.

Variations

MTD 753-0694-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 753-0694-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 753-0694-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 753-0694-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 753-0694-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 753-0694-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

4

MTD 17665-0637

Belt Guard Deck

$48.99

$

In Stock, only 2 left!

0

6

MTD 710-1039

Hex Bolt 3/8-24 x 1.0" Lg.

$4.49

$

In Stock, only 3 left!

0

8

MTD 710-0751

Hex Bolt 1/4-20 x .62"

$3.99

$

In Stock, Qty 20+

0

9

MTD 710-0888

Hex Bolt Special 5/16-24 x 1.0"

$4.49

$

In Stock, Qty 5

0

10

MTD 911-0792

Hinge Pin

$4.99

$

In Stock, only 1 left!

0

11

MTD 912-3057

Hex Nut 5/16-24 Thd.

$6.99

$

In Stock, only 3 left!

0

13

MTD 912-0181

Hex Top L-Nut 3/8-16 Thd.t
(Superseded to 712-0181)

Note: For Model 134T696H190 only

$

$

Not available

14

MTD 912-0287

Hex Nut 1/4-20 Thd.

$4.99

$

In Stock, only 1 left!

0

17

MTD 734-0973

Deck Wheel - 5" f

Note: For Model 134T696H190 only

$12.99

$

In Stock, Qty 20+

0

18

MTD 736-0105

Bell - Wash. .40" I.D. x .88" O

Note: For Model 134T696H190 only

$4.49

$

In Stock, Qty 20+

0

19

MTD 936-0119

L-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

20

MTD 936-0217

L-Wash. 3/8" I.D. - H.D.
(Superseded to 736-0217)

$4.49

$

In Stock, Qty 8

0

22

MTD 938-0373

Shld. Bolt .498" Dia. x 1.53"

Note: For Model 134T696H190 only

$9.49

$

In Stock, Qty 20+

0

23

MTD 942-0473A

High-Lift Blade

$33.99

$

In Stock, Qty 5

0

25

MTD 748-0300

Blade Adapter

$13.99

$

In Stock, only 4 left!

0

26

MTD 954-0329A

V-Belt

$52.99

$

In Stock, only 2 left!

0

27

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

28

MTD 09322

Brake Disc

$

$

Not available

33

MTD 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 18

0

35

MTD 712-0318

Hex Jam Nut 5/8-18 Thd.

$3.49

$

In Stock, Qty 12

0

37

MTD 936-0158

L-Wash. 5/8" I.D.

$4.49

$

In Stock, Qty 11

0

39

MTD 753-05319

Blade Spindle Ass'y. Comp.

$128.99

$

In Stock, Qty 10

0

42

MTD 756-0486

5" Dia. Pulley

$54.99

$

In Stock, only 3 left!

0

52

MTD 703-1693A

Hinge Mtg. Brkt.

$23.99

$

In Stock, only 4 left!

0

53

MTD 732-0602A

Torsion Spring

$12.99

$

In Stock, Qty 5

0

54

MTD 926-0106

Push Nut
(Superseded to 726-0106)

$

$

Not available

55

MTD 931-1032B

Chute Ass'y. Comp.
(Superseded to 631-05229)

Note: Includes items 10, 52, 53, 54 & 55

$81.99

$

In Stock, Qty 6

0

56

MTD 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 18

0

57

MTD 17493B-0637

Deck Hanger Channel

$

$

Not available

58

MTD 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

59

MTD 736-0242

Bell-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

60

MTD 17863-0637

Skirt Ext.

$

$

Not available

61

MTD 710-0167

Carr. Bolt 1/4-20 x .5" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

62

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 10

0
