LT-135 (134A606F190) - White Outdoor 38" Lawn Tractor (1994) Lower Deck Assembly Parts Diagram

38" Lawn Tractor

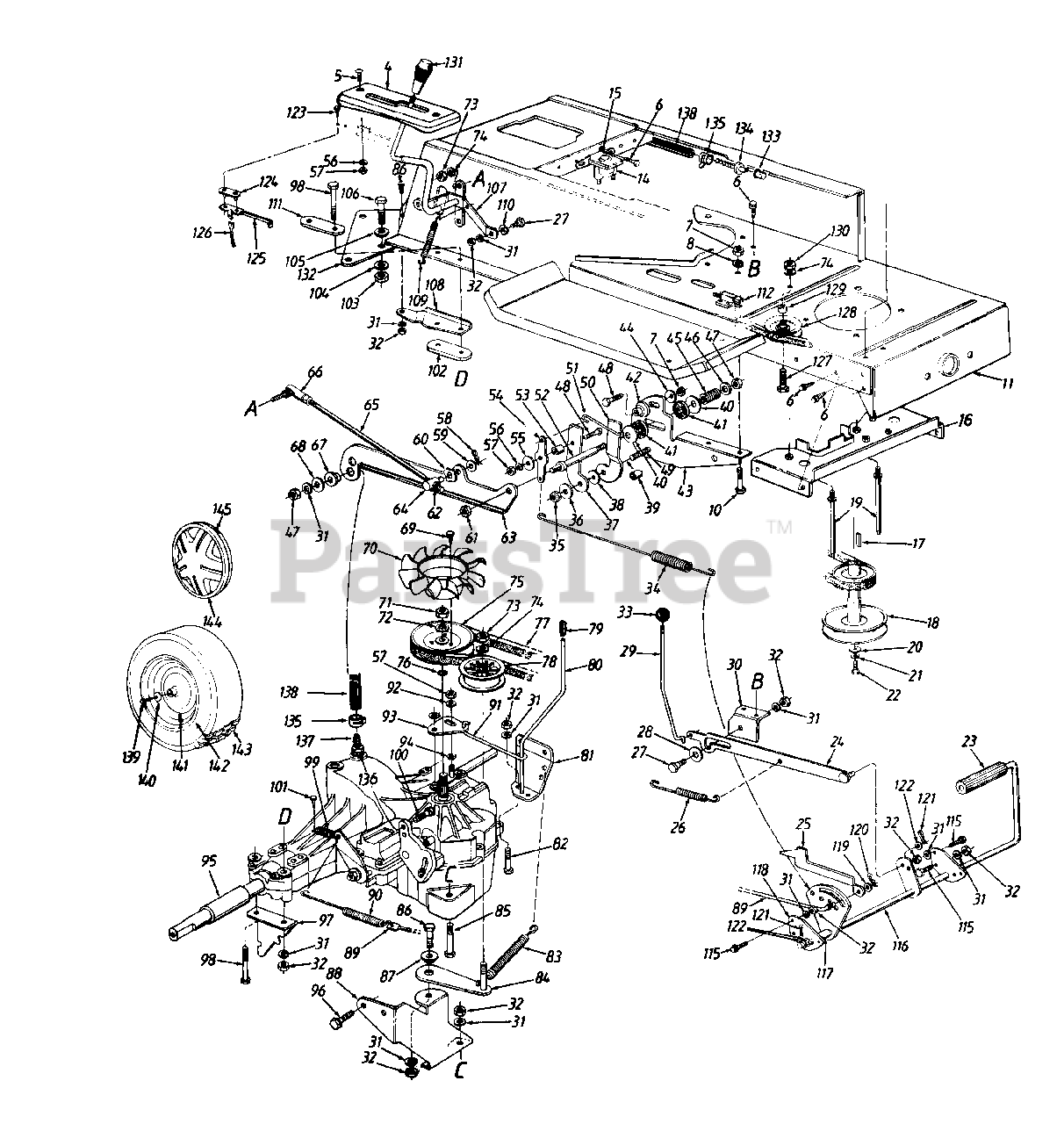

Lower Deck Assembly Parts Diagram

  • Title

4

MTD 931-1734

Index Bracket

$

$

Not available

5

MTD 710-0924

Pan Hd. Mach. Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

7

MTD 912-0138

Hex Nut 1/4-28 Thd.
(Superseded to 712-0138)

$

$

Not available

8

MTD 936-0329

L-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 9

0

10

MTD 910-0195

Hex . Bolt 1/4-28 x .62" Lg.

$3.99

$

In Stock, only 1 left!

0

11

MTD 683-0065-0637

Lower Frame Ass'y.

$

$

Not available

14

MTD 925-1426A

Solenoid

$26.99

$

In Stock, Qty 20+

0

15

MTD 936-0222

Ext. L-Wash. 1/4" I.D.
(Superseded to 736-0222)

$

$

Not available

16

MTD 17358D-0637

Belt Guard Brkt. Ass'y.

$

$

Not available

17

MTD 914-0114

Sq. Key 1/4" x 2" Lg.

$4.49

$

Usually ships in 3-6 days

0

18

MTD 956-0562

Engine Pulley

$

$

Not available

19

MTD 711-1044A

Belt Guard Stud 3.6" Lg.

$8.99

$

In Stock, Qty 8

0

20

MTD 736-0322

Fl-Wash. 7/16" I.D. x 1.25" O.D.

$9.49

$

In Stock, Qty 8

0

21

MTD 936-0171

L-Wash. 7/16" I.D.
(Superseded to 736-0171)

$4.49

$

In Stock, Qty 5

0

22

MTD 710-0757

Hex Bolt 7/16-20 x 1.5" Lg.

$9.99

$

In Stock, only 1 left!

0

23

MTD 735-0239

Foot Pad
(Superseded to 735-0239A)

$12.99

$

In Stock, only 1 left!

0

24

MTD 683-0049-0637

Brake Lockout Brkt. Ass'y.

$

$

Not available

25

MTD 783-0091A

Foot Pedal Brkt.

Note: NLA

$

$

Not available

26

MTD 732-0728

Foot Pedal Return Spring

$11.99

$

Usually ships in 3-6 days

0

27

MTD 938-0296

Shld. Bolt .437" Dia. x .268"
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

28

MTD 936-0406

Fl-Wash. 7/16" I.D. x 1-3/8" O.D.

$6.99

$

In Stock, Qty 11

0

29

MTD 747-0608C

Lock-up Rod

$

$

Not available

30

MTD 17755A

Bracket

$

$

Not available

31

MTD 936-0119

L-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

32

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

33

MTD 720-0166

Ball Knob

$

$

Not available

34

MTD 932-0727

Neutral Return Spring

$10.99

$

In Stock, only 1 left!

0

35

MTD 912-0273

Hex Nut 5/16-24 Thd.

$4.99

$

Usually ships in 3-6 days

0

36

MTD 736-3078

Fl-Wash. .344" I.D. x 1" O.D.

$4.49

$

In Stock, Qty 20+

0

37

MTD 783-0092

Scissor-Flat

$

$

Not available

38

MTD 736-0362

Fl-Wash. .33" I.D. x 1.25" O.D.

$4.49

$

In Stock, only 4 left!

0

39

MTD 750-0808

Spacer

$

$

Not available

40

MTD 936-0219

Bell-Wash. .4" I.D. x 1.13" O.D.

$4.49

$

Usually ships in 3-6 days

0

41

MTD 961-0196

Friction Washer

$9.49

$

Usually ships in 3-6 days

0

42

MTD 750-0918

Centering Gauge Spacer

$

$

Not available

43

MTD 783-0095

Neutral Return Mtg. Brkt.

$

$

Not available

44

MTD 736-0270

Bell-Wash. .265" I.D. x .75" O.D.

$3.99

$

In Stock, Qty 20+

0

45

MTD 732-0718

Comp. Spring 1.19" Lg.

$

$

Not available

46

MTD 936-3008

Fl-Wash. .312" I.D. x .75" O.D.

$6.99

$

Usually ships in 3-6 days

0

47

MTD 912-3057

Hex Nut 5/16-24 Thd.

$6.99

$

In Stock, only 1 left!

0

48

MTD 710-0299

Hex Bolt 1/4-28 x 1" Lg. (Gr. 5)

$4.49

$

Usually ships in 3-6 days

0

49

MTD 710-1012

Rib Neck Bolt 5/16-24 x .84" Lg.

$4.49

$

Usually ships in 3-6 days

0

50

MTD 783-0093

Scissor-Offset

$

$

Not available

51

MTD 747-0887

Neutral Return Rod

Note: NLA

$

$

Not available

52

MTD 938-0879

Friction Disc Stud

$15.99

$

Usually ships in 3-6 days

0

53

MTD 748-0368

Shld. Spacer

$

$

Not available

54

MTD 783-0096

Neutral Return Lever

$

$

Not available

55

MTD 736-3092

Fl-Wash. .265" I.D. x 1" O.D.

$3.99

$

In Stock, Qty 6

0

56

MTD 936-0329

L-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 9

0

57

MTD 912-0287

Hex Nut 1/4-20 Thd.

$4.99

$

In Stock, only 1 left!

0

58

MTD 914-0104

Hairpin Clip
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

59

MTD 736-0262

Fl-Wash. .375" I.D. x .87" O.D.

$3.99

$

In Stock, Qty 20+

0

60

MTD 736-0413

Spring Wash. .39" I.D.

$6.99

$

In Stock, only 2 left!

0

61

MTD 912-0116

Hex L-Nut 3/8-24 Thd.
(Superseded to 712-0116)

$

$

Not available

62

MTD 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

63

MTD 783-0090A

Neutral Return Brkt.

Note: NLA

$

$

Not available

64

MTD 911-0832

Ferrule 3/8-24 Thd.

$15.99

$

In Stock, only 4 left!

0

65

MTD 747-0365A

Control Rod

$

$

Not available

66

MTD 923-0351

Ball Joint 3/8-24 Thd.

$44.99

$

Usually ships in 3-6 days

0

67

MTD 748-0234

Shld. Spacer .5" Dia. x .27" Lg.

$4.49

$

In Stock, Qty 20+

0

68

MTD 936-0159

Fl-Wash. .349" I.D. x .879" O.D.
(Superseded to 736-0159)

$

$

Not available

69

MTD 710-3007

Hex Wash. Hd. Tap Scr. #12 x 3/8" Lg.

$4.49

$

In Stock, Qty 20+

0

70

MTD 931-1449A

Fan

$35.99

$

In Stock, Qty 8

0

71

MTD 912-0333

Hex Nut 1/2-20 Thd.

$

$

Not available

72

MTD 936-0921

L-Wash. 1/2" I.D.
(Superseded to 736-0921)

$4.49

$

In Stock, only 2 left!

0

73

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

74

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

75

MTD 756-0974

Transmission Pulley

$

$

Not available

76

MTD 732-0729

Wire Ring

$4.99

$

In Stock, only 4 left!

0

77

MTD 954-0349

V - Belt

$40.99

$

In Stock, Qty 20+

0

78

MTD 756-04224

Fl-Idler Pulley 2.75" O,D.

$26.99

$

In Stock, Qty 20+

0

79

MTD 720-0238

Rod End Grip

$3.99

$

In Stock, only 1 left!

0

80

MTD 747-0894

Bypass Control Lever

$

$

Not available

81

MTD 783-0085

Transaxle Support Brkt. - L.H.

Note: NLA

Variations

MTD 783-0085-0637

Transaxle Support Brkt. - L.H. - POWDER BLACK (0637)

$

$

Not available

$

$

82

MTD 710-0528

Hex . Bolt 5/16-18 x 1.25" Lg.

$4.49

$

In Stock, Qty 19

0

83

MTD 932-0384

Ext. Spring 6.12

$14.99

$

In Stock, Qty 11

0

84

MTD 683-0048

Idler Brkt. Ass'y.

Note: NLA

Variations

MTD 683-0048-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

85

MTD 710-3103

Hex Bolt 5/16-18 x 2.5" Lg.

$4.49

$

In Stock, Qty 20+

0

86

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

87

MTD 748-0234

Shld. Spacer .5" Dia. x .27" Lg.

$4.49

$

In Stock, Qty 20+

0

88

MTD 783-0086A-0637

Transaxle Support Brkt. - R.H.

$

$

Not available

89

MTD 747-0886

Brake Rod 24.94" Lg.

Note: NLA

$

$

Not available

90

MTD 732-0716D

Ext. Spring

$13.99

$

In Stock, only 1 left!

0

91

MTD 747-0893

Bypass Actuator Rod

$

$

Not available

92

MTD 936-0142

Fl-Wash. .281" I.D. x .5" O.D.
(Superseded to 736-0142)

$4.99

$

In Stock, Qty 20+

0

93

MTD 783-0098

Bypass Adjustment Brkt.

Note: NLA

$

$

Not available

94

MTD 936-0222

External L-Wash. 1/4" I.D.
(Superseded to 736-0222)

$

$

Not available

95

MTD 731-1086A

Sleeve .758" I.D. x 1" O.D.

$10.99

$

Usually ships in 3-6 days

0

96

MTD 710-0604A

Hex . Wash. TT-Tap Scr. 5/16-18 x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

97

MTD 17994-0637

Retainer Brkt. - Transaxle

$

$

Not available

98

MTD 710-1266

Hex Bolt 5/16-18 x 3.5" Lg. (Gr. 5)

$9.99

$

Usually ships in 3-6 days

0

99

MTD HG-50384

Tension Spring

$

$

Not available

100

MTD 710-0888

Hex Bolt 5/16-24 x 1" Lg. (Special)

$4.49

$

In Stock, Qty 20+

0

101

MTD 910-0224

Hex Wash. Hd. AB-Tap Scr. #10 x .5" Lg.

$3.99

$

In Stock, Qty 18

0

102

MTD 948-0334

Transaxle Spacer

$10.99

$

In Stock, only 1 left!

0

103

MTD 912-3019

Hex Nut 7/16-14 Thd. (Gr. 5)
(Superseded to 712-3019)

$6.99

$

In Stock, only 1 left!

0

104

MTD 936-3015

Fl-Wash. .469" I.D. x .875" O.D.

$4.49

$

In Stock, Qty 19

0

105

MTD 736-0439

Bell-Wash. .46" I.D. x 1.13" O.D.

$3.49

$

Usually ships in 3-6 days

0

106

MTD 710-0505

Hex Bolt 7/16-14 x 1" Lg.

$6.99

$

Usually ships in 3-6 days

0

107

MTD 647-0008A

Speed Control Lever Ass'y.

$

$

Not available

108

MTD 17668A-0637

Axle Support Brkt. - R.H.

$

$

Not available

108

MTD 17669A-0637

Axle Support Brkt. - L.H.

$

$

Not available

109

MTD 732-0433

Ext. Spring 2.75" Lg.

$

$

Not available

110

MTD 936-0141

Spr-Wash. .445" I.D. x .75" D.D.

$6.99

$

In Stock, only 2 left!

0

111

MTD 17840-0637

Transaxle Mtg. Brkt.

$11.99

$

Usually ships in 3-6 days

0

112

MTD 925-1657A

Safety Switch (Clutch)

$24.99

$

In Stock, only 4 left!

0

115

MTD 710-0650

Hex Wash. TT-Tap Scr. 5/16-18 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

116

MTD 17715B

Clutch/Brake Pedal Ass'y.

Note: NLA

Variations

MTD 17715B-0637

No Longer Available PEDAL ASM - POWDER BLACK (0637)

$

$

Not available

$

$

117

MTD 750-0802

Spacer .63" I.D.

$6.99

$

Usually ships in 3-6 days

0

118

MTD 17860-0637

Pedal Bracket

$

$

Not available

119

MTD 936-0264

Fl-Wash. .344" I.D. x .62" O.D.

$6.99

$

In Stock, only 2 left!

0

120

MTD 914-0111

Cotter Pin 3/32" Dia.
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

121

MTD 914-0470

Cotter Pin 1/8" Dia.
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

122

MTD 936-0256

Fl-Wash. .64" I.D. x .94" O.D.

$7.49

$

Usually ships in 3-6 days

0

123

MTD 710-0227

Hex Wash. Hd. AB-Tap Scr. #8 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

124

MTD 926-0320

Insulator Nut Plate

$6.99

$

In Stock, Qty 11

0

125

MTD 725-1643

Reverse Safety Switch

$10.99

$

In Stock, only 1 left!

0

126

MTD 725-1399

Extension Wire

$

$

Not available

127

MTD 710-0520

Hex Bolt 3/8-16 x 1.5" Lg. (14 H.P. OHV Only)

$4.49

$

In Stock, Qty 5

0

128

MTD 756-04209

Idler Pulley

$22.99

$

In Stock, Qty 20+

0

129

MTD 736-0280

Fl-Wash. .39" I.D.
(Superseded to 736-04005)

$8.99

$

Usually ships in 3-6 days

0

130

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

131

MTD 720-0218

Shift Knob

$19.99

$

Usually ships in 3-6 days

0

132

MTD 783-0014

Hitch Plate Extension

$

$

Not available

133

MTD 731-1481

Vent Cap

$10.99

$

Usually ships in 3-6 days

0

134

MTD 731-1480

Plastic Vent

$15.99

$

Usually ships in 3-6 days

0

135

MTD 926-0324

Clamp

$7.49

$

Usually ships in 3-6 days

0

136

MTD 721-0330

O - Ring

$3.49

$

Usually ships in 3-6 days

0

137

MTD 731-1485

Hose Fitting

Note: NLA

$

$

Not available

138

MTD 751-0588-18

Fuel Line 18" Lg.

$31.99

$

Usually ships in 3-6 days

0

139

MTD 710-0627

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

140

MTD 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

141

MTD 934-0255

Air Valve

$4.49

$

In Stock, Qty 20+

0

142

MTD 634-0070

Rim Only
(Superseded to 634-04369)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 634-0070-4009

WHEEL RIM - TEE WHITE (4009)

$154.99

$

Usually ships in 3-6 days

0

MTD 634-0070-0499

WHEEL RIM - CUB BEIGE (0499)

$165.99

$

Usually ships in 3-6 days

0

MTD 634-0070-0674

WHEEL RIM - YARDMAN YELLOW (0674)

$165.99

$

Usually ships in 3-6 days

0

MTD 634-0070-0629

WHEEL RIM - SILVER FLAKE (0629)

$165.99

$

Usually ships in 3-6 days

0

MTD 634-0070-0662

WHEEL RIM - OYSTER GRAY (0662)

$165.99

$

Usually ships in 3-6 days

0

MTD 634-0070-0688

WHEEL RIM - SPRING GREEN (0688)

$165.99

$

Usually ships in 3-6 days

0

$134.99

$

Usually ships in 3-6 days

0

143

MTD 734-0817

Wheel Ass'y. Comp.

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 734-0817-0911

No Longer Available WHEEL ASM - Carlisle Gray (0911)

$

$

Not available

MTD 734-0817-0912

No Longer Available WHEEL ASM - Dico Gray (0912)

$

$

Not available

MTD 734-0817-0915

No Longer Available WHEEL ASM - Duro Gray (0915)

$

$

Not available

MTD 734-0817-0931

No Longer Available WHL ASM 1 - Carlisle Beige (0931)

$

$

Not available

MTD 734-0817-0932

No Longer Available WHEEL ASM - Dico Beige (0932)

$

$

Not available

MTD 734-0817-0941

No Longer Available WHL ASM 1 - Carlisle Yellow (0941)

$

$

Not available

MTD 734-0817-0981

No Longer Available WHEEL ASM - Carlisle Green (0981)

$

$

Not available

$

$

143

MTD 734-0448

Tire Only

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 734-0448-0901

No Longer Available TIRE 18 X - Carlisle (0901)

$

$

Not available

MTD 734-0448-0902

No Longer Available - Dico (0902)

$

$

Not available

MTD 734-0448-0905

No Longer Available - Duro (0905)

$

$

Not available

$

$

144

MTD 734-1784

Hub Cap

Note: NLA

$

$

Not available

145

MTD 927-0425A

Spring Clip

$

$

Not available
