LT-135 (134A606F190) - White Outdoor 38" Lawn Tractor (1994) Hood Assembly Parts Diagram

38" Lawn Tractor

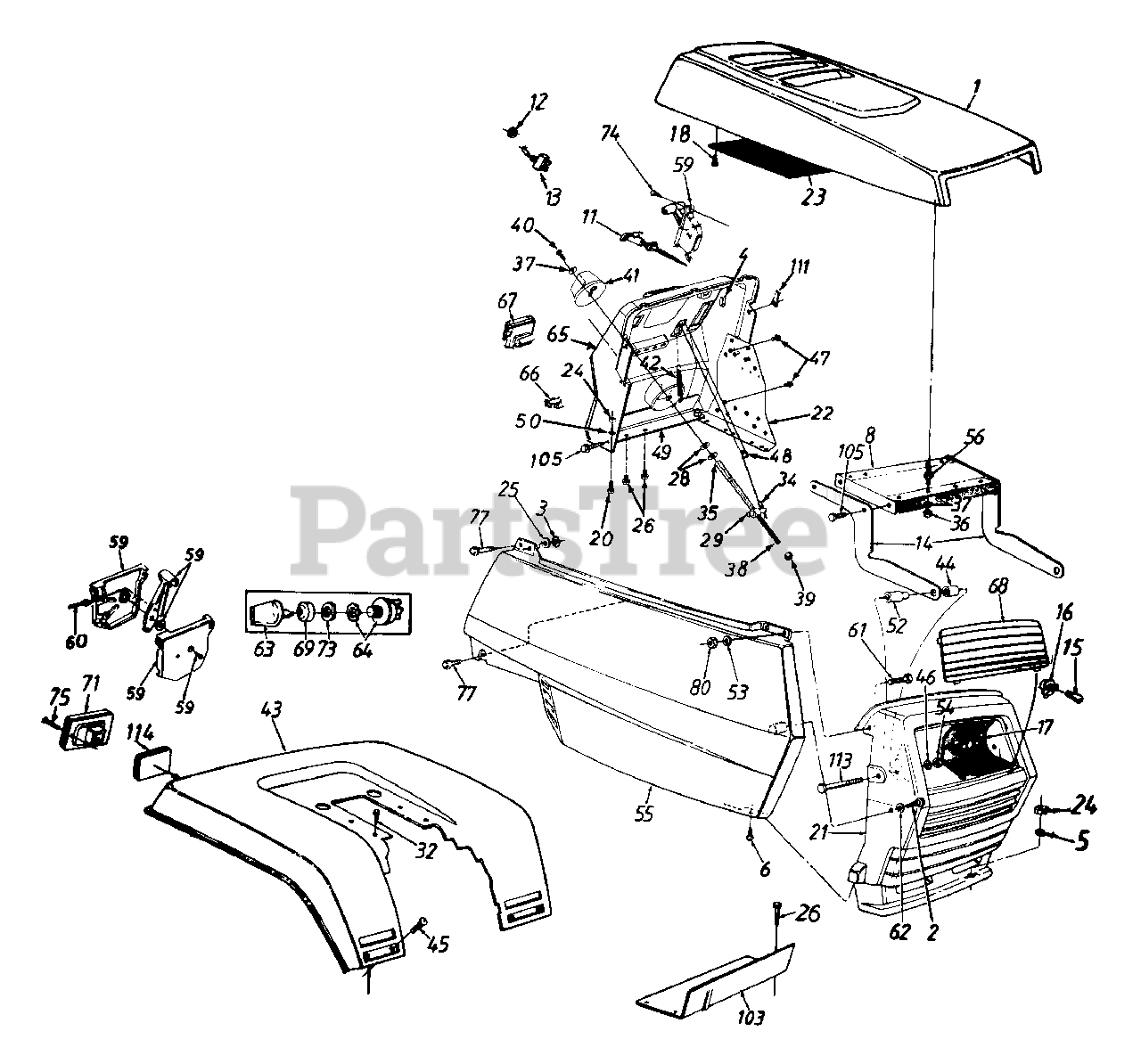

Hood Assembly Parts Diagram

  • Title

1

MTD 731-1429

Hood

Note: NLA

$

$

Not available

2

MTD 710-0896

Hex Wash. B-Tap Scr. 1/4 x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

3

MTD 726-0233

Bolt Retainer 1/4" I.D.

$4.49

$

In Stock, Qty 20+

0

4

MTD 17782

Retainer Clip

$

$

Not available

5

MTD 736-3078

Fl-Wash. .34" I.D. x 1"

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-0351

Truss Mach. B-Tap Scr. #10 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

8

MTD 16903A-0637

Hood Plate

$

$

Not available

11

MTD 746-3021

Choke Control (134A606F190)

$26.99

$

Usually ships in 3-6 days

0

11

MTD 746-0614A

Choke Control (134T696H190)

$24.99

$

In Stock, only 1 left!

0

12

MTD 712-3014

Hex Nut 1/2-27 Thd.

Note: NLA

$

$

Not available

13

MTD 925-0893

Toggle Switch

$82.99

$

In Stock, only 1 left!

0

14

MTD 16902A

Hood Hinge

Note: NLA

Variations

MTD 16902A-0637

No Longer Available HINGE-HOOD - POWDER BLACK (0637)

$

$

Not available

$

$

15

MTD 925-0963

Lamp

$7.49

$

In Stock, only 1 left!

0

16

MTD 925-1649

Twist Lock - Lamp Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

17

MTD 777-8516

Reflector - Headlight

Note: NLA

$

$

Currently unavailable

18

MTD 710-0227

Hex Wash. Hd. AB-Tap Scr. #8 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

20

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

21

MTD 931-1430B

Grille

$

$

Not available

22

MTD 17300D

Dash Support Bracket

Note: NLA

Variations

MTD 17300D-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

23

MTD 723-0416

Screen

Note: NLA

$

$

Not available

24

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

25

MTD 936-0176

Fl-Wash. 1/4" I.D. x .93" O.D.
(Superseded to 736-0176)

$4.99

$

In Stock, only 4 left!

0

26

MTD 710-0603

Hex Wash. Hd. B-Tap Scr. 5/16-18 x .5" Lg.

$4.99

$

Usually ships in 3-6 days

0

27

MTD 910-0429

Hex B-Tap Scr. #10 x .38" Lg.

$3.99

$

Usually ships in 3-6 days

0

28

MTD 936-0267

Fl-Wash. 3/8" I.D. x .875" O.D.
(Superseded to 736-0267)

$4.49

$

In Stock, Qty 20+

0

29

MTD 711-1002

Adj. Ferrule 3/8-8 Thd.

Note: NLA

$

$

Not available

33

MTD 736-0242

Bell-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

34

MTD 914-0101

Hairpin Clip
(Superseded to 714-0101)

$

$

Not available

35

MTD 916-0125

E - Ring .375" Dia.

$

$

Not available

36

MTD 912-0287

Hex Nut 1/4-20 Thd.

$4.99

$

In Stock, only 1 left!

0

37

MTD 736-0270

Bell-Wash. .265" I.D. x .75"

$3.99

$

In Stock, Qty 20+

0

38

MTD 747-0898

Adjustment Rod

Note: NLA

$

$

Not available

39

MTD 712-0449

Hex Nut 3/8-8 Twin Thd.

$

$

Not available

40

MTD 710-3015

Hex Bolt 1/4-20 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

41

MTD 920-0236

Plastic Knob

$18.99

$

Usually ships in 3-6 days

0

42

MTD 732-0732

Ext. Spring 3.21" Lg.

$

$

Not available

43

MTD 17324B

Rear Fender

Note: NLA

Variations

MTD 17324B-0480

No Longer Available FENDER-RR - BRILLIANT GREEN (0480)

$

$

Not available

MTD 17324B-0483

No Longer Available FENDER-RR - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17324B-0498

No Longer Available FENDER-RR - OLD CUB YELLOW (0498)

$

$

Not available

MTD 17324B-0499

No Longer Available FENDER-RR - CUB BEIGE (0499)

$

$

Not available

MTD 17324B-0629

No Longer Available FENDER-RR - SILVER FLAKE (0629)

$

$

Not available

MTD 17324B-0638

No Longer Available FENDER-RR - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17324B-0648

Fender - TECH GRAY (0648)

$

$

Not available

MTD 17324B-0662

No Longer Available FENDER-RR - OYSTER GRAY (0662)

$

$

Not available

MTD 17324B-0665

No Longer Available FENDER-RR - YARDMAN GREEN (0665)

$

$

Not available

MTD 17324B-0667

No Longer Available FENDER-RR - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 17324B-0674

No Longer Available FENDER-RR - YARDMAN YELLOW (0674)

$

$

Not available

MTD 17324B-0685

No Longer Available FENDER-RR - CUB BLUE (0685)

$

$

Not available

MTD 17324B-0686

No Longer Available FENDER-RR - SIMPLICITY ORANGE (0686)

$

$

Not available

$

$

44

MTD 750-0755

Spacer .33" I.D. x .625" O.D.

$4.49

$

Usually ships in 3-6 days

0

45

MTD 710-0167

Carriage Bolt 1/4-20 x .50" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

46

MTD 736-0278

Fl-Wash. .328" I.D. x .68" O.D.

$5.99

$

Usually ships in 3-6 days

0

47

MTD 710-0599

Hex Wash. Hd. Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

48

MTD 927-0460A

Indicator Strip

$

$

Not available

49

MTD 783-0120-0637

Indicator Bracket

$

$

Not available

50

MTD 936-0119

L-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

52

MTD 750-0754

Shld. Spacer .33" I.D.

$

$

Not available

53

MTD 936-0142

Fl-Wash. .281" I.D. x .5" O.D.
(Superseded to 736-0142)

$4.99

$

In Stock, Qty 20+

0

54

MTD 912-0158

Hex Cent. L-Nut 5/16-18 Thd.

$3.49

$

In Stock, Qty 18

0

55

MTD 731-1890

Side Cover - R.H.

$

$

Not available

55

MTD 731-1431A

Side Cover - L.H.

Note: NLA

$

$

Not available

56

MTD 710-1034

Double Ended Stud 1/4-20 Thd.

$

$

Not available

59

MTD 831-0823A

Throttle Control Box Ass'y.

$32.99

$

In Stock, Qty 20+

0

60

MTD 746-0905

Throttle Control Wire 22" Lg. (134A606F190)

$19.99

$

Usually ships in 3-6 days

0

60

MTD 946-0634

Throttle Control Wire 35" Lg. (134T696H190)

$11.99

$

In Stock, only 1 left!

0

61

MTD 710-0751

Hex Bolt 1/4-20 x .62" Lg.

$3.99

$

In Stock, Qty 20+

0

62

MTD 736-0173

Fl-Wash. .281" I.D. x .73" O.D.

$4.49

$

In Stock, Qty 20+

0

63

MTD 725-1341B

Ignition Key

$10.99

$

In Stock, only 1 left!

0

64

MTD 925-1396A

Ignition Switch

$43.99

$

In Stock, Qty 5

0

65

MTD 931-1510

Dash Panel

$

$

Not available

66

MTD 925-0634

Light Switch

$17.99

$

In Stock, only 4 left!

0

67

MTD 925-0925

Ammeter

$31.99

$

In Stock, Qty 6

0

68

MTD 931-1038A

Lens

$

$

Not available

69

MTD 725-1347

Ignition Switch Cap

$4.99

$

In Stock, only 1 left!

0

71

MTD 725-3018

Taillight

Note: NLA

$

$

Currently unavailable

73

MTD 925-1346

Ignition Switch Nut

$

$

Not available

74

MTD 710-0779A

Truss Mach. AB-Tap Scr. #10 x .5" Lg.

$4.49

$

In Stock, Qty 12

0

75

MTD 710-0936

Truss Hd. AB-Tap Scr. #6 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

77

MTD 710-0642

Hex Wash. Hd. Tap Scr. 1/4 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

80

MTD 912-0291

Hex L-Nut 1/4-20 Thd.
(Superseded to 712-0291)

$

$

Not available

94

MTD 712-0147

Speed Nut #10-24 Thd.

$6.99

$

Usually ships in 3-6 days

0

103

MTD 17633A

Gasoline Tank Support

Note: NLA

Variations

MTD 17633A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

105

MTD 710-0599

Hex Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

111

MTD 712-0185

Speed Nut 1/4-20 Thd.

$

$

Not available

113

MTD 710-0176

Hex Bolt 5/16-18 x 2.75"

$4.49

$

In Stock, only 2 left!

0

114

MTD 930-3000

Reflector (134A606F190)

$17.99

$

In Stock, only 2 left!

0
