LT-135 (134A606F190) - White Outdoor 38" Lawn Tractor (1994) Engine Assembly Parts Diagram

38" Lawn Tractor

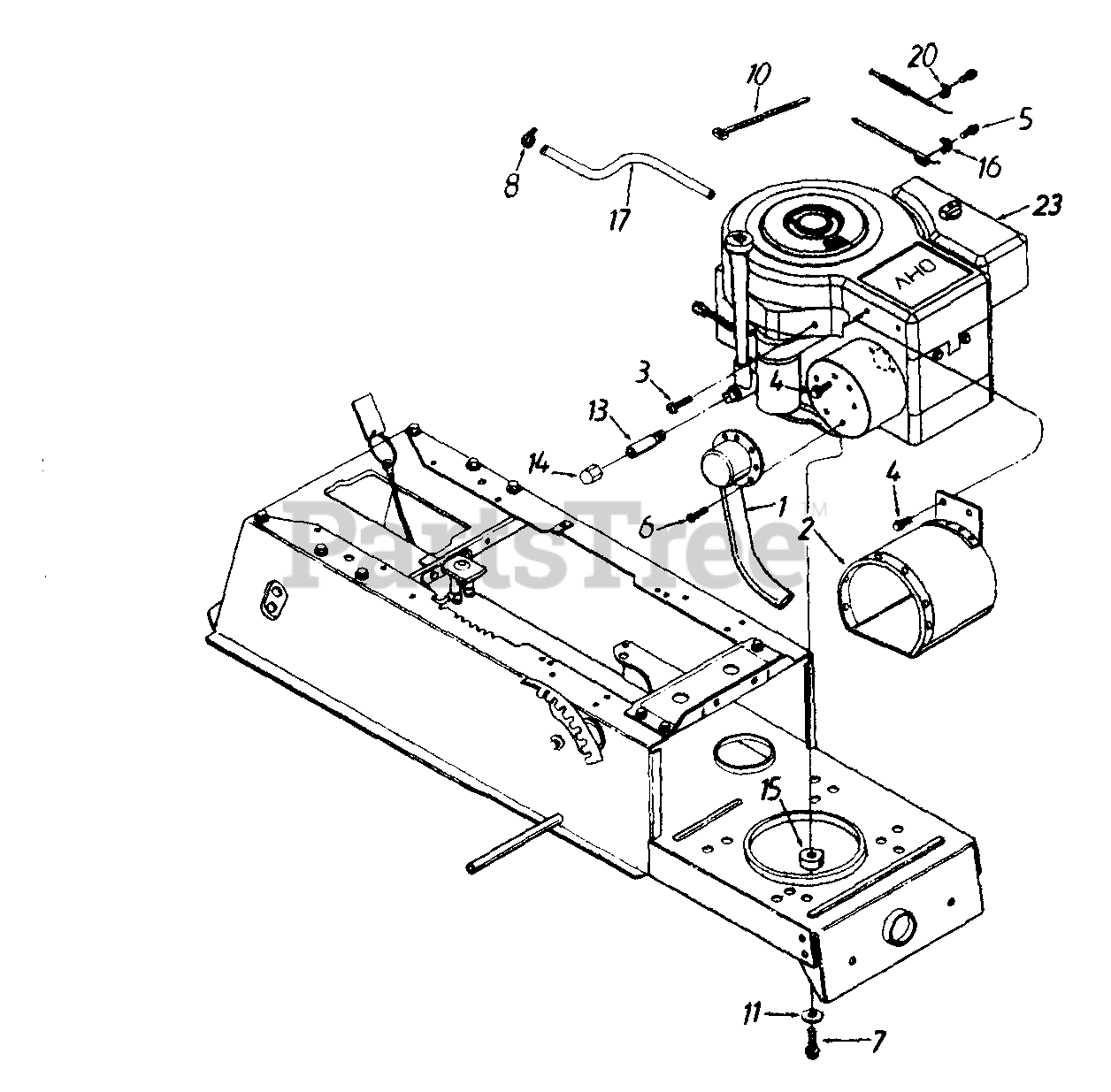

Engine Assembly Parts Diagram

  • Title

1

MTD 651-0005

Exhaust Pipe Ass'y.

Note: NLA

$

$

Currently unavailable

2

MTD 683-0072

Heat Shield Ass'y.

$61.99

$

In Stock, only 1 left!

0

3

MTD 710-0323

Pan Hd. Mach. Scr. 5/16-18 x .75"

$4.99

$

In Stock, only 2 left!

0

4

MTD 710-0599

Hex Wash. Hd. Scr. 1/4-20 x .5"

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-1237

Hex Slot Wash. Hd. #10-32 x 5/8" Lg.

$4.49

$

Usually ships in 3-6 days

0

6

MTD 710-0148

Hex Wash. Hd. F-Tap Scr. #8-32 x .38"

$4.49

$

In Stock, Qty 16

0

7

MTD 710-1007

Hex L-Wash. TT-Tap Scr. 3/8-16 x 1.5"

$6.49

$

Usually ships in 3-6 days

0

8

MTD 726-0205

Hose Clamp - .49" Dia.

$3.99

$

In Stock, Qty 20+

0

10

MTD 726-0197

Cable Tie - 4" I.D.

$3.99

$

In Stock, only 1 left!

0

11

MTD 736-0247

Flat Wash. 3/8" I.D. x 1.25" D.D.

$9.49

$

In Stock, Qty 12

0

13

MTD 937-0199

Pipe Nipple 3/8-18 NPT x 2" Lg.

$

$

Not available

14

MTD 737-0143

Cap - Oil Drain

Note: NLA

$

$

Not available

15

MTD 750-0965

Shld. Spacer .38" I.D. x 1.25" O.D.

$

$

Not available

16

MTD 751B221535

Casing Clamp

$10.99

$

In Stock, Qty 10

0

17

MTD 751-10349-16

Fuel Line Hose

$19.99

$

In Stock, Qty 11

0

20

MTD 751B221535

Casing Clamp

$10.99

$

In Stock, Qty 10

0

23

Engine

$

$

Not available
