LT 131 (960110265-02) - Husqvarna Lawn Tractor (2009-01) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

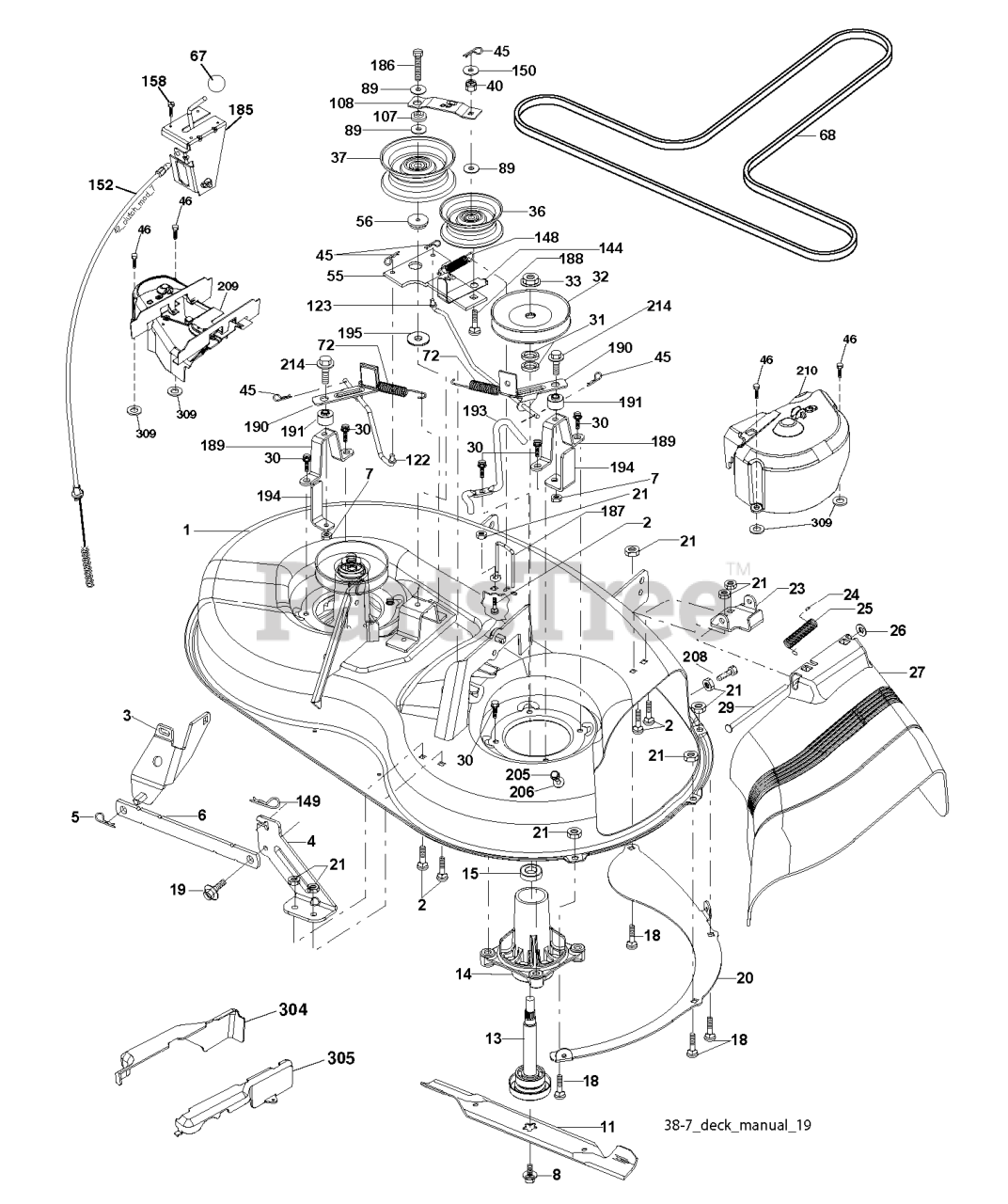

MOWER DECK / CUTTING DECK Parts Diagram

  • Title
185

Husqvarna 532188234

HEAD ASM. CABLE CLUTCH

$53.99

$

In Stock, only 1 left!

0

108

Husqvarna 532133503

STIFFENER.IDLER.ARM

$6.49

$

Usually ships in 3-10 days

0

29

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

23

Husqvarna 532192557

BRKT.DEFLECTOR.38"2005+

$9.49

$

In Stock, Qty 5

0

205

Husqvarna 817490416

SCREW
(Superseded to 817640416)

$

$

Not available

15

$13.99

$

In Stock, Qty 14

0

305

Husqvarna 532421788

NEEDS DESCRIPTION

$

$

Currently unavailable

2

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

107

Husqvarna 532133502

SPACER.IDLER.ARM

$6.49

$

In Stock, only 1 left!

0

40

$3.99

$

Usually ships in 3-10 days

0

191

Husqvarna 532192561

BRAKE.SPACER.38".DECK

$3.49

$

Usually ships in 3-10 days

0

30

Husqvarna 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

309

Husqvarna 532423062

PALNUT 1/4

$4.99

$

In Stock, only 2 left!

0

11

Husqvarna 532193957

BLADE 38" PREMIUM
(Superseded to 581116302)

$17.99

$

In Stock, only 1 left!

0

33

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 15

0

89

Husqvarna 819131311

WASHER
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

194

Husqvarna 532194105

GUARD BRAKE
(Superseded to 532192558)

$26.99

$

Usually ships in 3-10 days

0

18

Husqvarna 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

148

Husqvarna 532169022

IDLER RETURN SPRING

$5.99

$

In Stock, Qty 7

0

144

Husqvarna 532193414

KEEPER BELT

$6.49

$

In Stock, only 1 left!

0

209

Husqvarna 532422965

NEEDS DESCRIPTION

$

$

Currently unavailable

21

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

122

Husqvarna 532410189

LINK.BRAKE.38"LEFT.2007

$17.99

$

Usually ships in 3-10 days

0

188

Husqvarna 532165891

BOLT, CARRIAGE IDLER
(Superseded to 532173443)

$7.49

$

In Stock, Qty 6

0

190

Husqvarna 532192560

ARM, BRAKE
(Superseded to 532192558)

$26.99

$

Usually ships in 3-10 days

0

186

Husqvarna 817490644

SCREW.HXWSH.3/8

$

$

Not available

36

Husqvarna 532131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

214

Husqvarna 532193782

BOLT/WASHER ASM 5/16-18

$7.49

$

Usually ships in 3-10 days

0

20

Husqvarna 532400095

BAFFLE.VORTEX.FRONT.38"

$18.99

$

Usually ships in 3-10 days

0

158

Husqvarna 817720408

SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

56

Husqvarna 532165723

SPACER.RETAINER.MOWER

$6.99

$

In Stock, only 1 left!

0

4

Husqvarna 532192568

BRACKET DECK SWAY BAR 38"/42"

$10.99

$

Usually ships in 3-10 days

0

67

Husqvarna 532106932

KNOB T (3/8 HOLE)

$7.99

$

In Stock, Qty 5

0

13

Husqvarna 532192872

SHAFT.ASM.MDRL.N/GREASE.38
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

150

$6.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

24

Husqvarna 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

32

Husqvarna 532153532

PULLEY MANDREL
(Superseded to 532173435)

$22.99

$

In Stock, Qty 5

0

55

$

$

Not available

25

Husqvarna 532197026

SPRING.TORSION.DEFLECT

$10.99

$

In Stock, Qty 15

0

19

Husqvarna 532132827

BOLT SHD 5/16-18

$

$

Not available

- -

Husqvarna 532193646

NEEDS DESCRIPTION

$

$

Not available

187

Husqvarna 532193412

KEEPER BELT

$7.99

$

Usually ships in 3-10 days

0

152

Husqvarna 532193235

CABLE.CLUTCH.38".SERVICE

$51.99

$

In Stock, only 2 left!

0

304

Husqvarna 532421787

NEEDS DESCRIPTION

$

$

Currently unavailable

- -

Husqvarna 532192558

BRAKE.ASSY.38"2005.+

Note: Brake Assembly (Includes Stand, Arm and Guard Components)

$26.99

$

Usually ships in 3-10 days

0

208

Husqvarna 817670608

SCREW 3/8-16X1/2

$6.49

$

Usually ships in 3-10 days

0

189

Husqvarna 532192559

STAND, BRAKE
(Superseded to 532192558)

$26.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

206

$6.49

$

Usually ships in 3-10 days

0

193

Husqvarna 532193413

KEEPER BELT RH MANDREL

$11.99

$

In Stock, only 1 left!

0

31

Husqvarna 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 8

0

14

Husqvarna 532187281

RP.HOUSING.MANDREL.4PT.
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

45

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

195

Husqvarna 819133210

WASHER 12/32X2X10GA
(Superseded to 532413524)

$

$

Not available

6

Husqvarna 532178024

BAR SWAY DECK

$8.99

$

In Stock, only 4 left!

0

46

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 19

0

72

Husqvarna 532193216

SPRING.BRAKE.RETURN.38"

$7.49

$

In Stock, only 1 left!

0

27

Husqvarna 532401618

SHIELD ASM.DFLCTR MWR.38-7"BLK

$

$

Not available

123

Husqvarna 532410190

LINK.BRAKE.38"RIGHT

$18.99

$

Usually ships in 3-10 days

0

- -

Husqvarna 532192870

MANDREL.ASM.SUB-NON.GR
(Superseded to 587819701)

Note: Mandrel Assembly (Includes housing, shaft assembly, and bearing only - pulley/nut/washer and blade bolt/washers not included)

$56.99

$

In Stock, Qty 20+

0

3

Husqvarna 532138017

BRKT ASM SWAY BAR

$12.99

$

Usually ships in 3-10 days

0

149

Husqvarna 532165898

SPRING.RETAINER.YELLOW.ZINC

$7.49

$

Usually ships in 3-10 days

0

210

Husqvarna 532423011

NEEDS DESCRIPTION

$

$

Currently unavailable

7

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532193198

PULLEY.IDLER.FLAT.UNPLATED

$

$

Not available

26

Husqvarna 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

68

Husqvarna 532193214

V-BELT.MOWER.38"2005+

$51.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532192556

DECK SVCX1 38/94 192556X431

$338.99

$

Usually ships in 3-10 days

0
