LT 131 (960110264-07) - Husqvarna Lawn Tractor (2012-08) CHASSIS ENCLOSURES Parts Diagram

Lawn Tractor

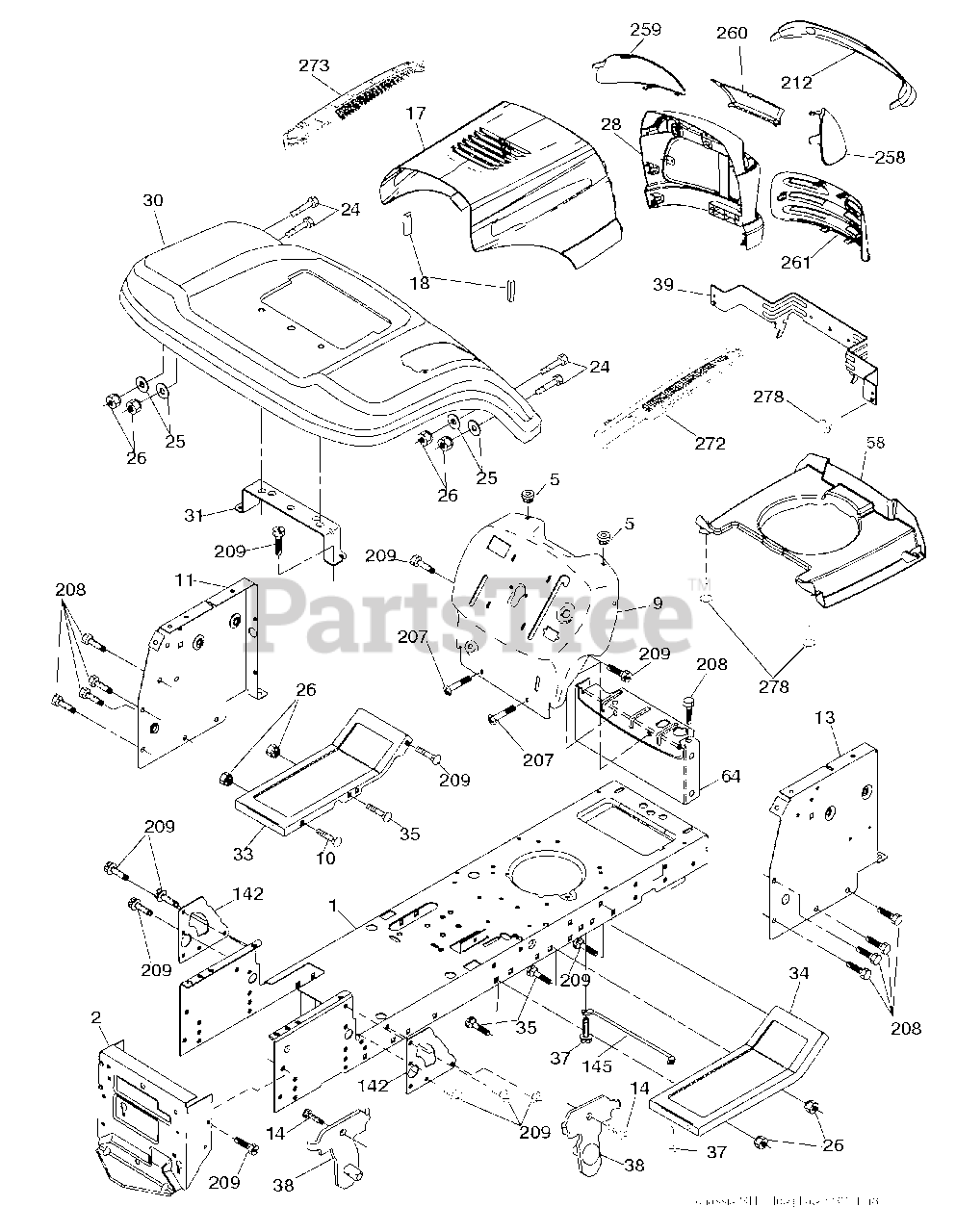

CHASSIS ENCLOSURES Parts Diagram

  • Title

1

Husqvarna 532174619

CHASSIS STAMPING
(Superseded to 579841401)

$433.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532176554

DRAWBAR, 12GA

$43.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532155272

BUMPER.RUBBER.HOOD

$7.49

$

In Stock, only 3 left!

0

9

Husqvarna 532193510

DASH.STL.PLM.CAB.N/AMM.N/HM.05
(Superseded to 584378801)

$62.99

$

Usually ships in 3-10 days

0

10

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532174996

PANEL.DASH.LH.LTX

$

$

Not available

13

Husqvarna 532172105

PANEL

$21.99

$

In Stock, only 1 left!

0

14

Husqvarna 817490608

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532442923

HOOD.PNT.LASER.SV.LT.668
(Superseded to 588251301)

$47.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532184921

BUMPER.HOOD.LARGE.1.75"

$7.49

$

In Stock, Qty 9

0

24

Husqvarna 874780616

BOLT

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

26

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532442203

GRILLE.HUSQ.LASER.LT.668

$121.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532441286

FENDER.PNT.LTST.W/S.N/C.668ROS
(Superseded to 584378001)

$

$

Not available

31

Husqvarna 532136619

BRACKET FENDER

$

$

Not available

33

Husqvarna 532182507

FOOTREST.LH.BLACK

$43.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532182508

FOOTREST.RH.BLACK

$

$

Not available

35

Husqvarna 872110606

BOLT

$4.99

$

Usually ships in 3-10 days

0

37

Husqvarna 817490508

SCREW LT
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532175710

BRACKET.ASM.PIVOT.MOWER.REAR

$11.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532407807

BRACKET PIVOT

$31.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532184270

$

$

Not available

64

Husqvarna 532154798

DASH LOWER

$20.99

$

Usually ships in 3-10 days

0

142

Husqvarna 532175702

PLATE REINFORCEMENT

$9.49

$

Usually ships in 3-10 days

0

145

Husqvarna 532409167

ROD.PIVOT.HOOD

$13.99

$

In Stock, only 2 left!

0

207

Husqvarna 817670508

SCREW, 5/16-18 X 1/2

$9.49

$

In Stock, only 2 left!

0

208

Husqvarna 817670608

SCREW 3/8-16X1/2

$6.49

$

Usually ships in 3-10 days

0

209

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

212

Husqvarna 532183548

INSERT.LENS.REFLECTIVE

$

$

Not available

258

Husqvarna 532185214

LENS LH
(Superseded to 532183379)

$10.99

$

In Stock, only 2 left!

0

259

Husqvarna 532185213

LENS LH
(Superseded to 532183378)

$10.99

$

In Stock, only 1 left!

0

260

Husqvarna 532442202

COVER.LENS.HUSQ.LASER.LT.498

$13.99

$

In Stock, only 1 left!

0

261

Husqvarna 532442201

INSERT.GRILLE.HUSQLASER.LT.498

$30.99

$

Usually ships in 3-10 days

0

272

Husqvarna 532442200

VENT.HOOD.LASER.III.SD.RH

$15.99

$

Usually ships in 3-10 days

0

273

Husqvarna 532442199

$

$

Currently unavailable

278

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

--

Husqvarna 532005479

PLUG BUTTON T

$5.99

$

Usually ships in 3-10 days

0
