LT 131 (960110264-03) - Husqvarna Lawn Tractor (2010-01) ENGINE Parts Diagram

Lawn Tractor

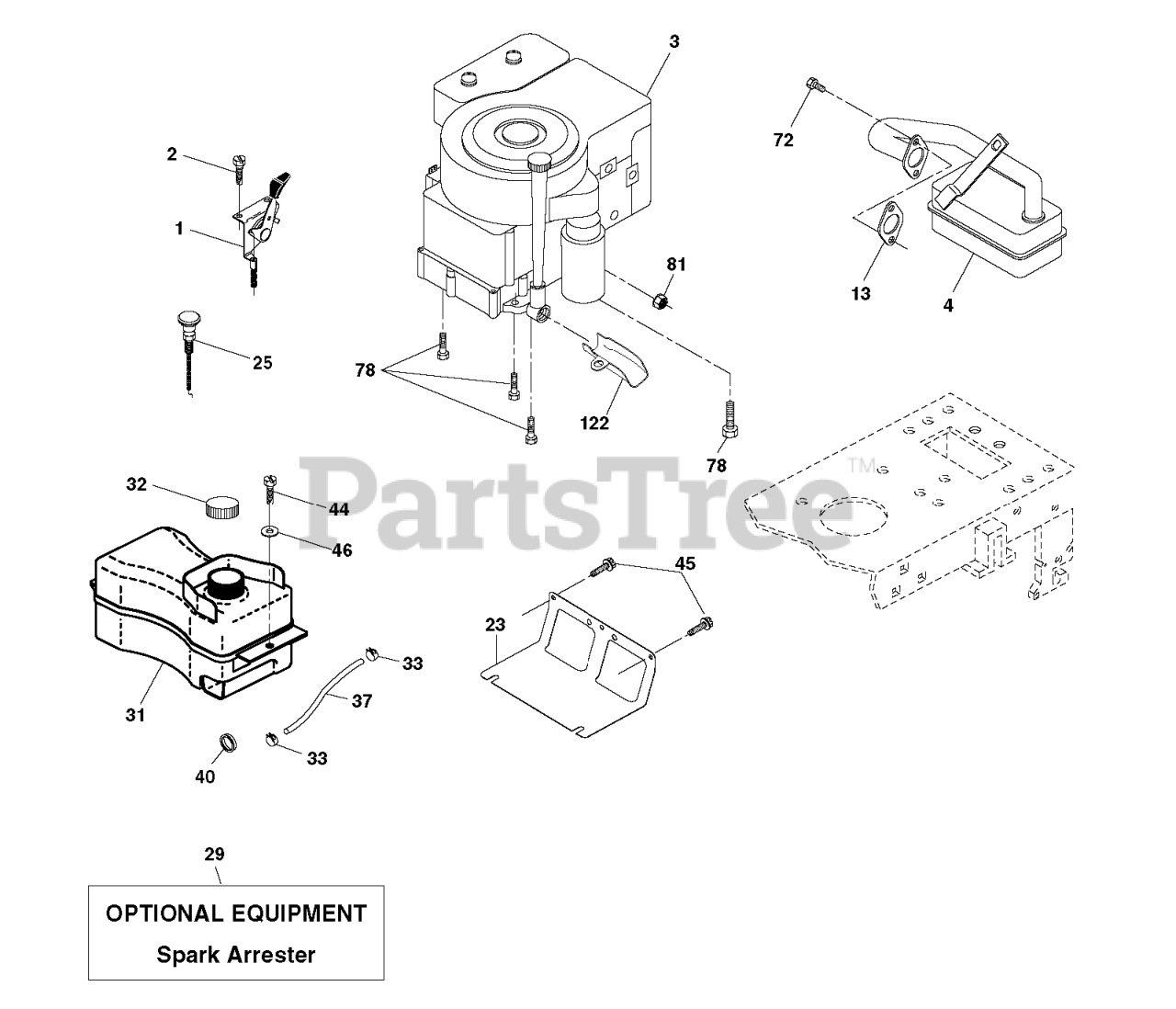

ENGINE Parts Diagram

  • Title

25

Husqvarna 532190695

KNOB.ERGO.EXTENDED.RED (1 2)

$2.99

$

Usually ships in 3-10 days

0

46

Husqvarna 819091416

WASHER

$6.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532137040

LINE.FUEL.20
(Superseded to 587044820)

$11.99

$

In Stock, Qty 11

0

45

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

Usually ships in 3-10 days

0

3

000000000

Note: Engine B&S Model No. 219807-1168-B1

$

$

Not available

44

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

Usually ships in 3-10 days

0

1

Husqvarna 532170551

CONTROL.THROTTLE/CHOKE.BLACK

$37.99

$

Usually ships in 3-10 days

0

72

Husqvarna 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 13

0

31

Husqvarna 532407516

$

$

Not available

4

Husqvarna 532179758

MUFFLER.B&S.MODEL.21.11HP.OHV

$45.99

$

In Stock, only 3 left!

0

23

Husqvarna 532169837

SHIELD.BROWNING.DBR.GUARD

$10.99

$

Usually ships in 3-10 days

0

81

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

40

Husqvarna 532124028

BUSHING.SNAP.NYL.BLK.

$5.99

$

In Stock, only 3 left!

0

33

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, only 1 left!

0

122

Husqvarna 532421922

EXTENSION DRAIN OIL

$40.99

$

In Stock, Qty 8

0

78

Husqvarna 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 11

0

32

Husqvarna 532425162

CAP.FUEL.2.25"VENTED"
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

2

Husqvarna 817720408

SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532165291

REPL BY 532 27 22-93
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0
