LT 130H382KV (80559) - Snapper 38" Lawn Tractor, 13hp Spindle Assembly - 38" Cutting Deck Parts Diagram

38" Lawn Tractor, 13hp

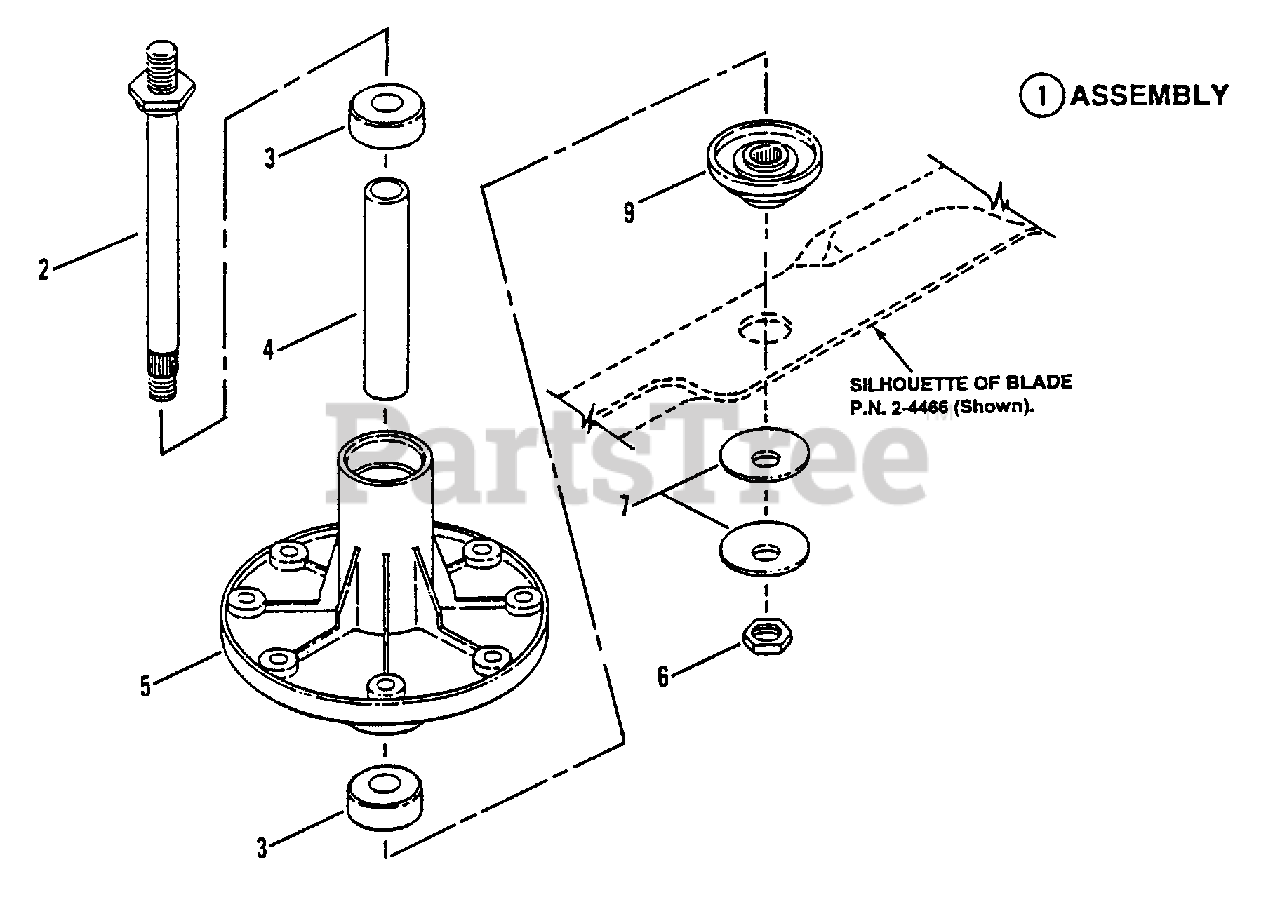

Spindle Assembly - 38" Cutting Deck Parts Diagram

  • Title

1

Snapper 7054513

ASSEMBLY, Spindle Housing
(Superseded to 7054513YP)

Note: Was 52847 (Includes 2 thru 8)

$448.99

$

Usually ships in 2-12 days

0

2

Snapper 7026754

SPINDLE 7.019" Long
(Superseded to 7026754YP)

$47.99

$

Usually ships in 2-12 days

0

3

Snapper 7026808

BEARING, Spindle 17MM
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

4

Snapper 7024465

SPACER, Spindle Housing .875 OD X .687 ID X 3.79 L

$10.99

$

In Stock, only 2 left!

0

5

Snapper 7024461

HOUSING, Spindle 4.78" Tall
(Superseded to 7024461YP)

$125.99

$

In Stock, only 1 left!

0

6

Snapper 7024468

NUT, 9/16-18 Hex Jam
(Superseded to 7091633SM)

$4.99

$

In Stock, Qty 20+

0

7

Snapper 7024467

WASHER, Belleville .594 x 1.75
(Superseded to 7024467SM)

$4.49

$

In Stock, Qty 20+

0

9

Snapper 7024463

SPACER, Blade
(Superseded to 7024463YP)

$19.99

$

In Stock, only 1 left!

0

Snapper 7042998

BLADE, 19-1/2"
(Superseded to 7042998BZYP)

Note: Was 24466 (Shown)

$27.99

$

In Stock, Qty 20+

0
