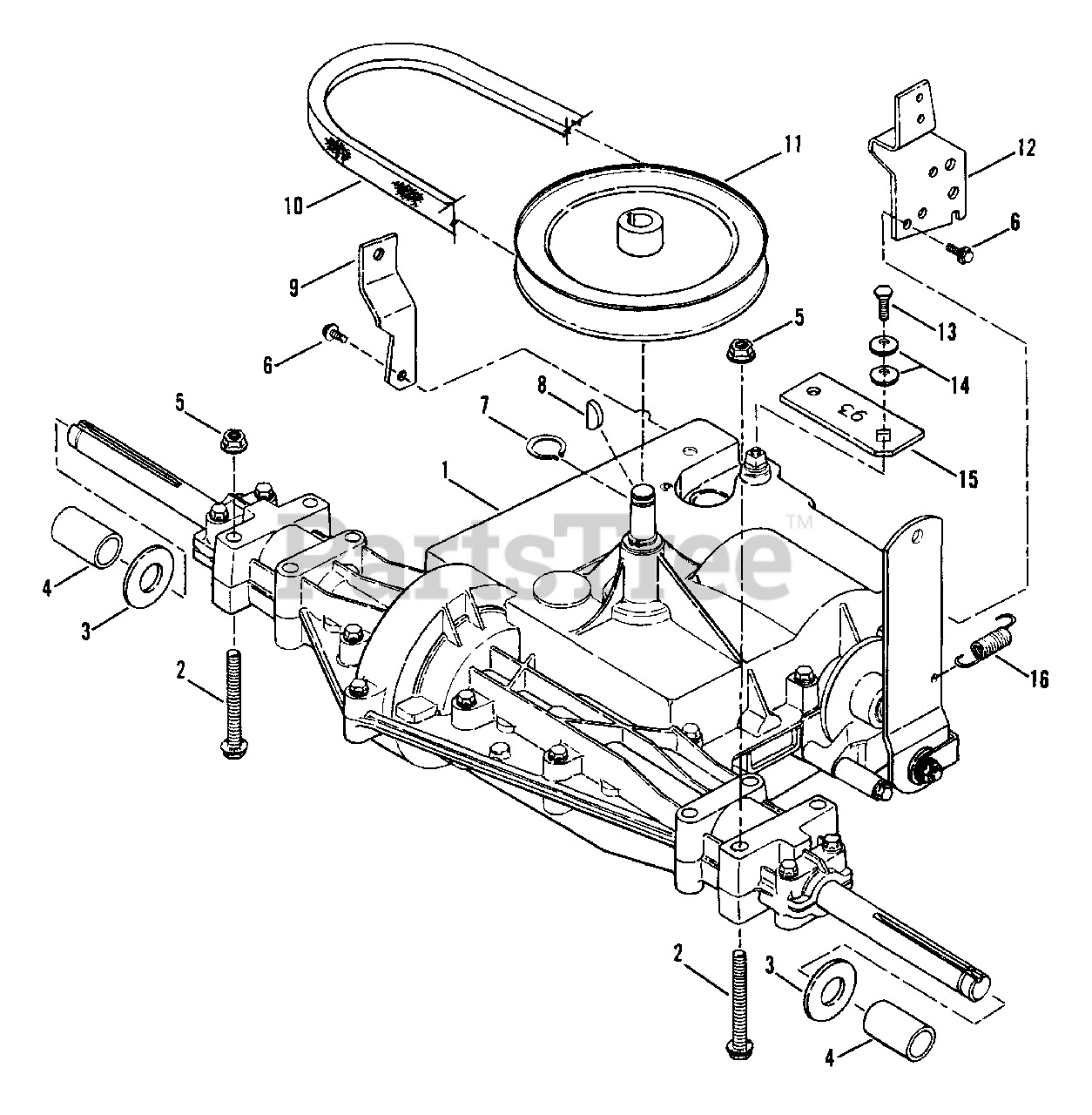

LT 130G38AKV (80557) - Snapper 38" Lawn Tractor, 13hp Transmission Group Parts Diagram

38" Lawn Tractor, 13hp

Transmission Group Parts Diagram

  • Title

1

Snapper 7024830

TRANSAXLE, Peerless Model 930, 6-Speed

$

$

Currently unavailable

2

Snapper 7090702

BOLT, 5/16-18 x 2 1/4" Hex Flange Lock
(Superseded to 7090702YP)

$3.99

$

Usually ships in 2-12 days

0

3

Snapper 7031036

WASHER, Flat
(Superseded to 7031036YP)

$3.99

$

Usually ships in 2-12 days

0

4

Snapper 7024857

SPACER

$

$

Not available

5

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

6

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Head, Self-Tapping
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

7

Snapper 7012763

RING, Retaining
(Superseded to 7012763SM)

$4.49

$

In Stock, Qty 8

0

8

Snapper 7010211

KEY, Woodruff, 3/16 x 3/4", No. 9
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 18

0

9

Snapper 7033951

BRACKET, Torque

$

$

Not available

10

Snapper 7029641

BELT, P930, Traction Drive (HA 97.75)
(Superseded to 7029641YP)

Note: Was 25042

$65.99

$

In Stock, only 1 left!

0

11

Snapper 7024831

PULLEY, Drive
(Superseded to 7024831YP)

$47.99

$

Usually ships in 2-12 days

0

12

Snapper 7034439

BRACKET, Axle/Spool

Note: Was 33810

$

$

Not available

13

Snapper 7091165

BOLT, 1/4-28 x 5/8" Hex Head
(Superseded to 7091165YP)

$2.99

$

Usually ships in 2-12 days

0

14

Snapper 7090746

WASHER, Bellville
(Superseded to 7090746YP)

$3.99

$

Usually ships in 2-12 days

0

15

Snapper 7033754

ARM, Shift Link Lever
(Superseded to 7033754YP)

$39.99

$

Usually ships in 2-12 days

0

16

Snapper 7022437

SPRING, Brake Return
(Superseded to 7022437YP)

$3.99

$

In Stock, only 1 left!

0
