LT 130 (954830071-A) - Husqvarna Lawn Tractor (1995-09) TRANSMISSION Parts Diagram

Lawn Tractor

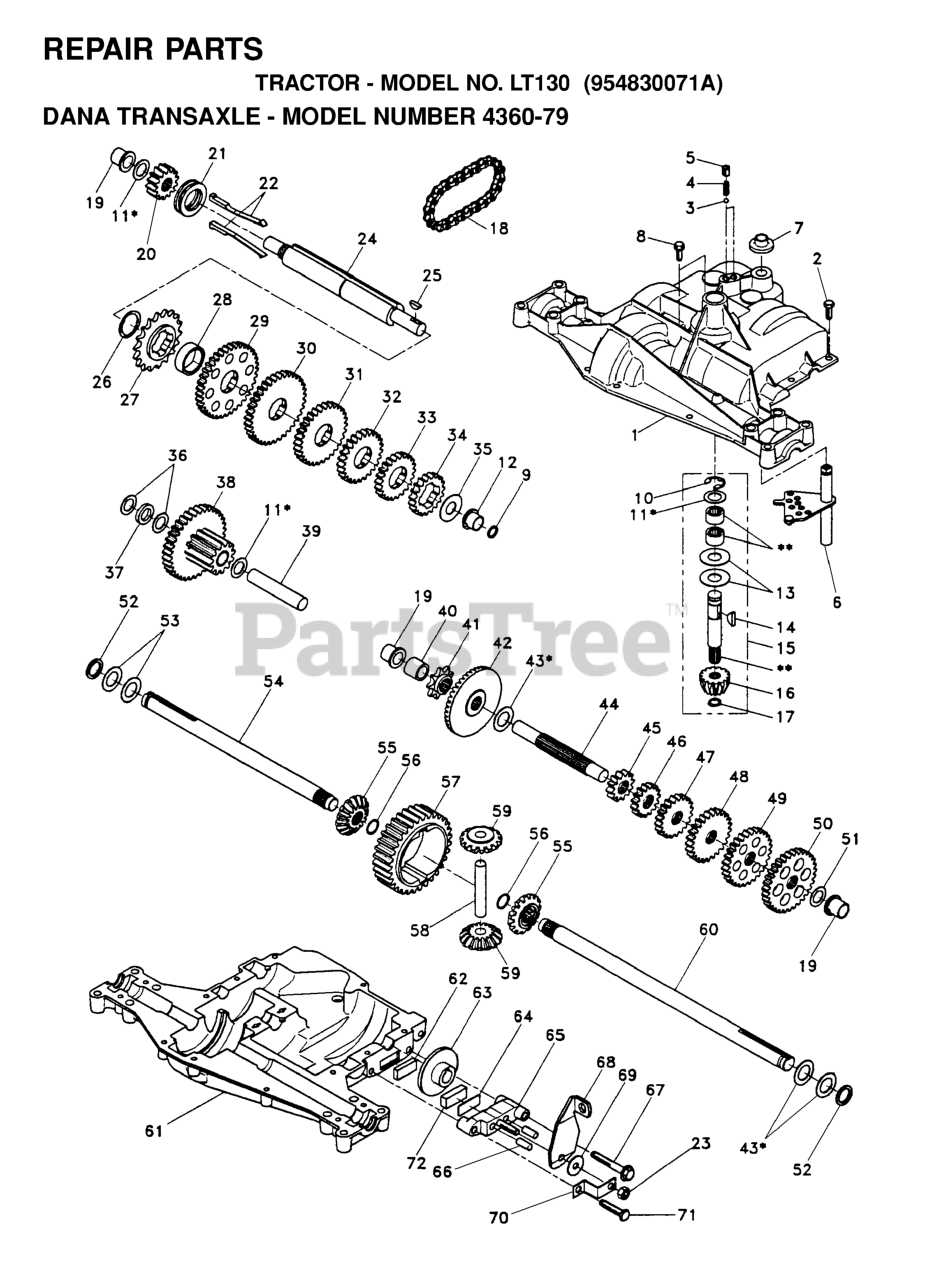

TRANSMISSION Parts Diagram

  • Title
42

Husqvarna 532110084

GEAR 42T
(Superseded to 532167148)

$

$

Not available

64

$

$

Not available

7

Husqvarna 532134399

BOOT, SHIFTER

$

$

Not available

4

Husqvarna 532105904

SPRING, DETENT

$

$

Not available

10

Husqvarna 532142672

RING, RETAINING

$

$

Not available

6

Husqvarna 532138235

SHIFTER KIT
(Superseded to 532134788)

$

$

Not available

11

Husqvarna 532134793

SHIM.KIT.DANA.4689

$

$

Not available

39

Husqvarna 532124639

SHAFT IDLER

$36.99

$

Usually ships in 3-10 days

0

68

Husqvarna 532138244

LEVER ACTUATOR
(Superseded to 532108992)

$

$

Not available

65

Husqvarna 532120953

JAW T
(Superseded to 532164670)

$

$

Not available

23

Husqvarna 873810500

LOCKNUT
(Superseded to 873610500)

$

$

Not available

63

Husqvarna 532007294

BRAKE DISC T

$

$

Not available

20

Husqvarna 532142675

GEAR SPUR 14 TTH

$15.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532120470

SPROCKET 18T

$

$

Not available

32

Husqvarna 532108980

GEAR, SPUR 25 TEETH

$

$

Not available

50

Husqvarna 532105937

GEAR, SPUR 31 TEETH

$

$

Not available

61

Husqvarna 532142680

LOWER HOUSING

$

$

Not available

3

Husqvarna 532134400

DETENT, BALL
(Superseded to 532068003)

$

$

Not available

62

Husqvarna 532120961

PUCK, FRICTION

$

$

Not available

70

Husqvarna 532120956

BRACKET, ANTI ROTATION

$

$

Not available

49

Husqvarna 532120408

GEAR, SPUR 28 TEETH

$

$

Not available

$

$

Not available

13

Husqvarna 532120415

WASHER.PLAIN..632X1.38X.046

$2.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532108996

WASHER, PLAIN .321 X 1.00X.055

$

$

Not available

33

Husqvarna 532120406

GEAR, SPUR 22 TEETH

$

$

Not available

24

Husqvarna 532142676

SHAFT INTERM DANA
(Superseded to 532143673)

$207.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532110081

GEAR 15T T
(Superseded to 532169651)

$

$

Not available

15

Husqvarna 532138234

AS KIT INPUT SHFT
(Superseded to 532167148)

$

$

Not available

14

Husqvarna 532142674

KEY.WOODRUFF.DANA

$3.99

$

Usually ships in 3-10 days

0

$

$

Not available

72

Husqvarna 532120951

PUCK, FRICTION

$

$

Not available

60

$

$

Not available

$87.69

$

Usually ships in 3-10 days

0

73

Husqvarna 532120416

SHELL, GREASE
(Superseded to 532126976)

$47.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532142677

GEAR, SPUR 37 TEETH

$

$

Not available

19

Husqvarna 532105911

BEARING, FLANGE LT

$

$

Not available

17

Husqvarna 532105909

RING RETAINING

$

$

Not available

38

Husqvarna 532110079

ASSM GEAR COMB T NLA

$

$

Not available

12

Husqvarna 532142673

Bearing, Flange

$

$

Not available

18

Husqvarna 532105910

CHAIN 24 PITCH LT

$

$

Not available

9

Husqvarna 532138241

SQUARE RING

$

$

Not available

36

Husqvarna 532002232

WASHER 025

$

$

Not available

52

Husqvarna 532134401

NEOPRENE.WASHER.DANA

$

$

Not available

1

Husqvarna 532142671

HOUSING, UPPER

$

$

Not available

44

Husqvarna 532120473

SHAFT, DRIVE

$

$

Not available

22

Husqvarna 532138236

ASSEMBLY KIT, CLUTCH KEYS

$

$

Not available

$

$

Not available

41

Husqvarna 532105928

SPROCKET 9T LT

$

$

Not available

56

Husqvarna 532105941

RING, RETAINING

$

$

Not available

57

$151.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532002244

KEY, WOODRUFF, #61

$

$

Not available

53

Husqvarna 532002264

WASHER, PLAIN .758 X 1.25X.031

$

$

Not available

46

Husqvarna 532142679

GEAR SPUR 15T DANA

$11.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532142681

GEAR, SPUR 35 TEETH

$

$

Not available

26

Husqvarna 532105916

RING, RETAINING LT

$2.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532110078

PINION 14T
(Superseded to 532167148)

$

$

Not available

67

Husqvarna 532134799

SCREW, SELF TAPPING, LARGE

$

$

Not available

59

Husqvarna 532110082

GEAR 1ST T
(Superseded to 532169651)

$

$

Not available

8

Husqvarna 532134791

SCREW, SELF TAPPING W/SEALER

$

$

Not available

54

Husqvarna 532120474

AXLE T, LH
(Superseded to 532154658)

$132.99

$

Usually ships in 3-10 days

0
