LT 130 (954820081-B) - Husqvarna Lawn Tractor (1996-01) ENGINE & CUTTING EQUIPMENT Parts Diagram

Lawn Tractor

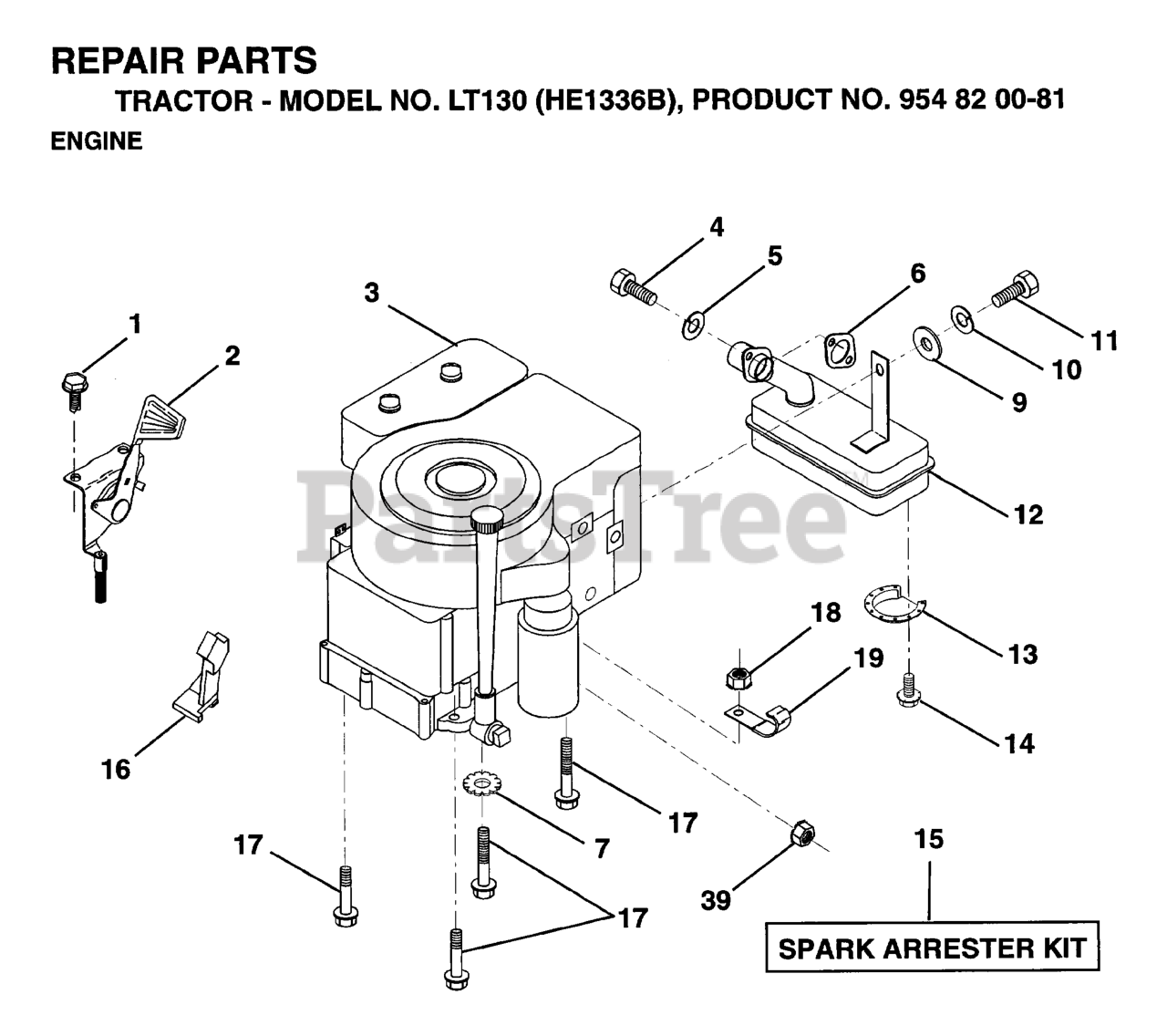

ENGINE & CUTTING EQUIPMENT Parts Diagram

  • Title

1

Husqvarna 817060408

SCREW

$5.99

$

In Stock, only 2 left!

0

15

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

2

Husqvarna 532133025

CONTROL.TH/CH.RH.BLK.FLG.EEC

$30.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532127951

STOP THROTTLE

$

$

Not available

39

Husqvarna 532128861

NUT FLANGE 1/4-20 STARTER NUT
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

6

Husqvarna 532272293

GASKET.ENG.1.313 ID.TIN PLATED

$12.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532101326

DEFL MUFFLER LTV

$

$

Not available

12

Husqvarna 532137437

MUFFLER.SINGLE.B&S.12HP

$242.99

$

Usually ships in 3-10 days

0

14

Husqvarna 817030808

SCREW
(Superseded to 817030814)

$

$

Not available

17

Husqvarna 817490624

SCREW LT
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

9

Husqvarna 819101216

WASHER
(Superseded to 734115441)

$4.99

$

In Stock, only 1 left!

0

18

Husqvarna 873510600

NUT

$6.49

$

Usually ships in 3-10 days

0

10

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

19

Husqvarna 532124996

CLIP T
(Superseded to 532002751)

$

$

Not available

4

Husqvarna 871070512

SCREW
(Superseded to 532192334)

$

$

Not available

5

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 2 left!

0

7

Husqvarna 811050600

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 15

0
