LT 130 (954140004-A) - Husqvarna Lawn Tractor (1997-12) Peerless Transaxle - Model Number 930-055A Parts Diagram

Lawn Tractor

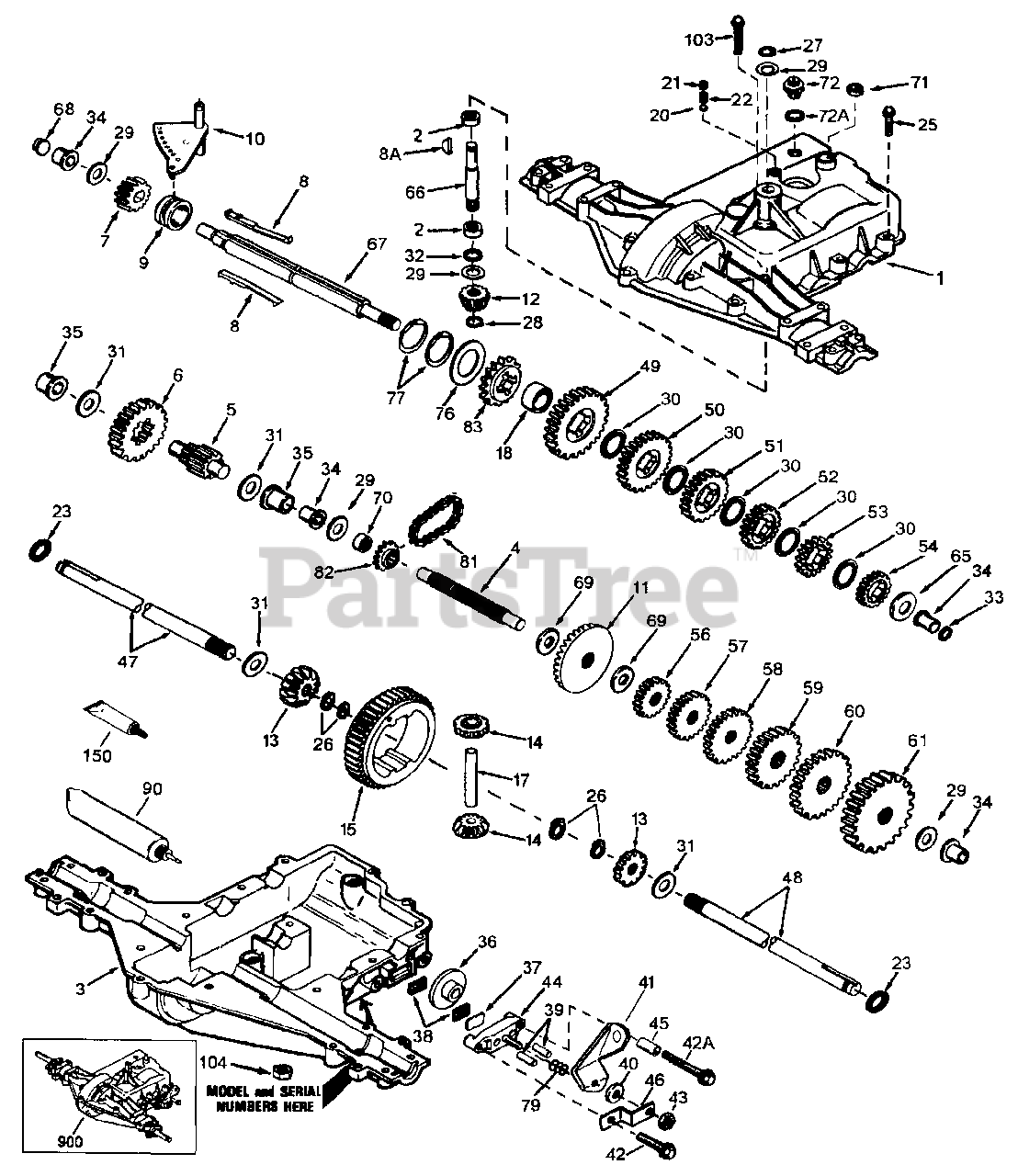

Peerless Transaxle - Model Number 930-055A Parts Diagram

  • Title

1

Husqvarna 772108A

Cover, Transaxle

$

$

Not available

2

Husqvarna 780086

Bearing, Needle

$

$

Not available

3

Husqvarna 770102A

Case, Transaxle

$

$

Not available

4

Husqvarna 776260

Shaft, Counter

$

$

Not available

5

Husqvarna 776219B

Shaft and Pinion Assembly, Output

$

$

Not available

6

Husqvarna 778139

Gear, Output

$

$

Not available

7

Husqvarna 778136

Gear, Spur, 15 Teeth

$

$

Not available

8

Husqvarna 792136A

Key, Shift

$

$

Not available

8A

Husqvarna 792047

Key, Woodruff

$

$

Not available

9

Husqvarna 784352

Collar, Shifter

$

$

Not available

10

Husqvarna 784355

Rod and Fork Assembly, Shift

$

$

Not available

11

Husqvarna 778229

Gear, Bevel, 42 Teeth

$

$

Not available

12

Husqvarna 778113A

Bevel Pinion, Input

$

$

Not available

13

Husqvarna 778221

Gear, Bevel

$

$

Not available

14

Husqvarna 778068

Gear, Bevel Pinion

$

$

Not available

15

Husqvarna 778260

Gear, Ring

$

$

Not available

17

Husqvarna 786139

Pin, Drive

$

$

Not available

18

Husqvarna 786102

Spacer, Neutral

$

$

Not available

20

Husqvarna 792077

Ball, Steel 5/16" diameter

$

$

Not available

21

Husqvarna 792078

Set Screw 3/8-16 x 3/8

$

$

Not available

22

Husqvarna 792079

Spring

$

$

Not available

23

Husqvarna 788061

Ring, Seal

$

$

Not available

25

Husqvarna 792073

Screw, Flanged Hex Head, Thread Forming 1/4-20 x 1-1/4

$

$

Not available

26

Husqvarna 792125

Ring, Retainer (4 Required, Package of 2)

$

$

Not available

27

Husqvarna 792035

Ring, Retainer

$

$

Not available

28

Husqvarna 788040

Ring, Retainer

$

$

Not available

29

Husqvarna 780072

Washer, Thrust

$

$

Not available

30

Husqvarna 780108

Washer, Thrust

$

$

Not available

31

Husqvarna 780001

Washer

$

$

Not available

32

Husqvarna 792001

"O" Ring

$

$

Not available

33

Husqvarna 788095

Seal, Square Cut

$

$

Not available

34

Husqvarna 780105A

Bushing, Flanged

$

$

Not available

35

Husqvarna 780118A

Bushing, Flanged

$

$

Not available

36

Husqvarna 790003

Disk, Brake

$

$

Not available

37

Husqvarna 790007

Plate, Brake Pad

$

$

Not available

38

Husqvarna 799021

Pad, Brake

$

$

Not available

39

Husqvarna 786026

Pin, Dowel

$

$

Not available

40

Husqvarna 792076A

Washer, Flat

$

$

Not available

41

Husqvarna 790079

Lever, Brake

$

$

Not available

42

Husqvarna 792073

Screw, Flanged Hex Head, Thread Forming 1/4-20 x 1-1/4

$

$

Not available

42A

Husqvarna 792085A

Screw 1/4-20 x 2-1/4

$

$

Not available

43

Husqvarna 792075

Locknut 5/16-24

$

$

Not available

44

Husqvarna 790025

Holder, Brake Pad

$

$

Not available

45

Husqvarna 786066

Spacer

$

$

Not available

46

Husqvarna 786086

Bracket, Brake Lever

$

$

Not available

47

Husqvarna 774690

Axle 11-5/16" long

$

$

Not available

48

Husqvarna 774691

Axle 16-1/2" long

$

$

Not available

49

Husqvarna 778215

Gear, Spur, 37 Teeth, Steel (1 )

$

$

Not available

50

Husqvarna 778125

Gear, Spur, 35 Teeth (2")

$

$

Not available

51

Husqvarna 778124A

Gear, Spur, 30 Teeth (3-)

$

$

Not available

52

Husqvarna 778123A

Gear, Spur, 25 Teeth (4-)

$

$

Not available

53

Husqvarna 778122A

Gear, Spur, 22 Teeth (5-)

$

$

Not available

54

Husqvarna 778273

Gear, Spur, 19 Teeth, Steel (6 )

$

$

Not available

56

Husqvarna 778230

Gear, Spur, 12 Teeth (1 )

$

$

Not available

57

Husqvarna 778151

Gear, Spur, 15 Teeth (2")

$

$

Not available

58

Husqvarna 778126A

Gear, Spur, 20 Teeth (3-)

$

$

Not available

59

Husqvarna 778127A

Gear, Spur, 25 Teeth (4 )

$

$

Not available

60

Husqvarna 778128A

Gear, Spur, 28 Teeth (5-)

$

$

Not available

61

Husqvarna 778163

Gear, Spur, 31 Teeth (6 )

$

$

Not available

65

Husqvarna 780109

Washer, Thrust

$

$

Not available

66

Husqvarna 776135

Shaft, Input

$

$

Not available

67

Husqvarna 776315A

Shaft, Brake, 4 Keyed

$

$

Not available

68

Husqvarna 786116A

Plug

$

$

Not available

69

Husqvarna 780051

Washer, Thrust

$

$

Not available

70

Husqvarna 786118

Spacer

$

$

Not available

71

Husqvarna 788069

Seal, Square Cut

$

$

Not available

72

Husqvarna 792165

Plug, Threaded 9/16-18

$

$

Not available

72A

Husqvarna 788091

"O" Ring

$

$

Not available

76

Husqvarna 780090

Washer, Thrust

$

$

Not available

77

Husqvarna 788078A

Ring, Retaining, Inverted (Package of 2)

$

$

Not available

79

Husqvarna 792144

Spring, Brake

$

$

Not available

81

Husqvarna 786081

Chain, Roller (Number 41 Chain, 24 Links)

$

$

Not available

82

Husqvarna 786082

Sprocket, 9 Teeth (Reverse)

$

$

Not available

83

Husqvarna 786123

Sprocket, 18 Teeth (Reverse)

$

$

Not available

90

Husqvarna 788067B

Grease, Bentonite, 32 Ounce Bottle

$

$

Not available

103

Husqvarna 792166

Screw 1/4-20 x 2

$

$

Not available

104

Husqvarna 792167

Locknut 1/4-20

$

$

Not available

150

Husqvarna 510334

Gasket Eliminator (Loctite #515)

$

$

Not available

900

Husqvarna 794603

Replacement Transaxle

$

$

Not available
